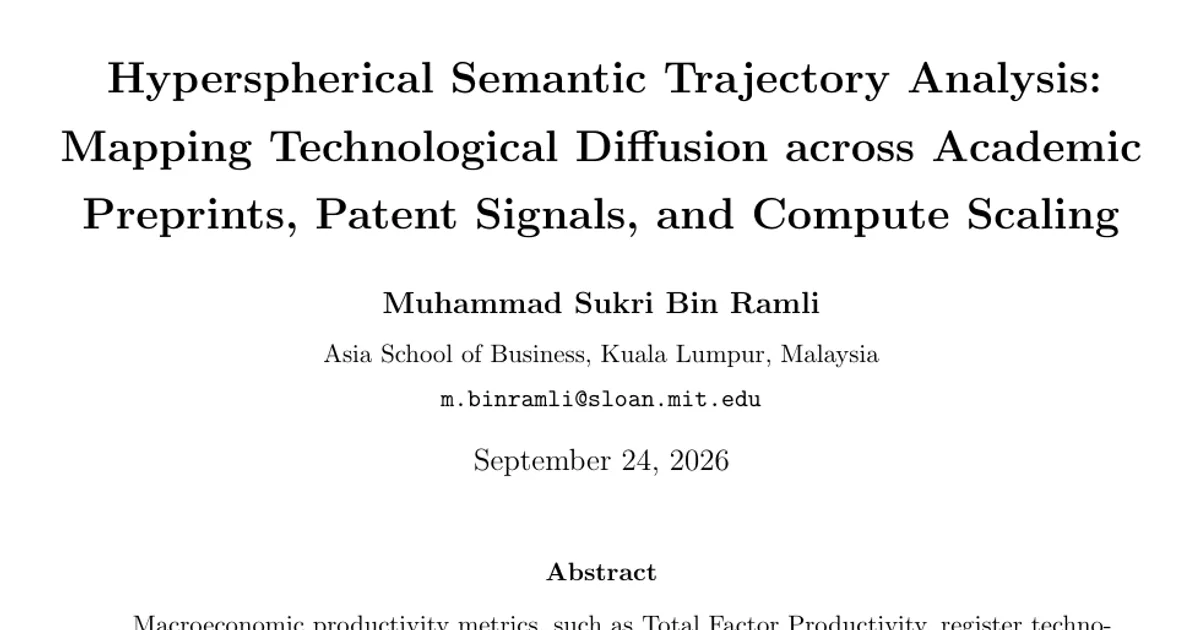

Hyperspherical Semantic Trajectory Analysis: Mapping Technological Diffusion across Academic Preprints, Patent Signals, and Compute Scaling

AI summary

Overview

Research area: Natural Language Processing applied to innovation economics and science-of-science bibliometrics, combining Transformer sentence embeddings with time-series econometrics.

Technical level: Intermediate. The paper assumes familiarity with dense vector embeddings, cosine distance, clustering, and basic econometric terminology, though each component is defined formally.

Scope: The paper introduces Hyperspherical Semantic Trajectory Analysis (HSTA), an unsupervised pipeline that measures technology diffusion by tracking semantic drift in scientific and patent text and testing whether publication velocity predicts hardware compute scaling.

What This Paper Is About

Macroeconomic productivity measures such as Total Factor Productivity are built from backward-looking surveys and national accounting conventions, so major technological breakthroughs can take three to ten years to appear in official statistics. The paper asks whether unstructured text streams that are already available at high frequency, such as arXiv preprints and USPTO patent filings, can be converted into quantitative indicators of technological change without human labeling. It then tests whether those text-derived signals carry predictive information about physical hardware investment, measured through frontier training compute in the Epoch AI database.

Key Contributions

1. The HSTA framework. An unsupervised methodology that combines 384-dimensional Transformer sentence embeddings, projection onto a unit hypersphere, Spherical K-Means clustering, and UMAP manifold reduction to map technological diffusion across a 30,000-document corpus.

2. Two formal quantitative metrics. Semantic Centroid Vector Drift, which measures directional cosine distance between early and late temporal sub-corpus centroids within each cluster, and Commercialization Offset, which finds the lag that maximizes normalized cross-correlation between quarterly arXiv and USPTO document volume series.

3. An empirical cross-domain test linking text to physical capital. Vector Autoregressive Granger predictability tests on log-differenced quarterly paper volume against quarterly maximum training compute in FLOPs, with a stated null hypothesis that publication velocity in a cluster does not Granger-cause training compute growth.

4. A validated cluster structure and robustness check. A hyperparameter sweep establishing K = 8 as optimal, plus re-runs at K in {6, 8, 10, 12} showing that topological separation and relative drift orderings remain consistent.

Main Findings

• K = 8 is the optimal cluster count. Across K in {4, 6, 8, 10, 12}, the Mean Silhouette Coefficient and Davies-Bouldin Index peak at K = 8 with S = 0.342 and DB = 1.18. The runner-up is K = 10 (S = 0.315, DB = 1.27) and the weakest is K = 4 (S = 0.261, DB = 1.54).

• Eight technical domains were assigned by TF-IDF n-grams. Device and Hardware Architecture (C0, 3,412 documents, 11.37%), Foundational Model Design (C1, 4,210, 14.03%), Artificial Intelligence Systems (C2, 3,890, 12.97%), Statistical Machine Learning (C3, 3,105, 10.35%), Neural Network Layers (C4, 3,650, 12.17%), Computer Vision and Imaging (C5, 3,820, 12.73%), Large Language Models (C6, 4,180, 13.93%), and Data Engineering and Processing (C7, 3,733, 12.44%).

• Transformer embeddings separate academic from commercial text without supervision. The UMAP projection of all 30,000 documents forms two macro-islands, with arXiv preprints in one region and USPTO patent abstracts, characterized by formal legal-technical syntax, in a separate region.

• Large Language Models show the highest semantic drift. Cluster C6 records Δ6 = 0.332, followed by C2 (Artificial Intelligence Systems, Δ2 = 0.234) and C5 (Computer Vision, Δ5 = 0.234). The lowest drift appears in C0 (Device and Hardware Architecture, Δ0 = 0.015) and C3 (Statistical Machine Learning, Δ3 = 0.012). The paper treats drift above 0.20 as rapid evolution and below 0.05 as a mature domain.

• Drift in C6 corresponds to a real paradigm shift in vocabulary. Early sub-corpus n-grams (year ≤ 2021) center on masked language modeling, BERT fine-tuning, and contextual embeddings; late sub-corpus n-grams (year > 2021) shift to in-context learning, instruction tuning, RLHF, and prompt engineering.

• Frontier compute scaled exponentially over the study window. Training compute for landmark systems rose from 10^16 FLOPs to over 10^27 FLOPs between 2016 and 2026.

• Patent filing peaks lead preprint peaks in this sample. Commercialization Offset values are all negative, falling in the range of -32 to -10 quarters. The paper's text states offsets run from -10 quarters (approximately 2.5 years) for C3 to -32 quarters (approximately 8 years) for C4 and C0, while Table 2 lists C4 at -32 and C0 at -31.

• Paper volume velocity does not Granger-cause compute growth. Every cluster p-value sits above the α = 0.05 threshold, ranging from p = 0.14 (C7, Data Engineering and Processing, F-stat 2.015) to p = 0.81 (C6, Large Language Models, F-stat 0.211). The paper states this confirms that quarterly publication volume velocity alone does not predict physical compute FLOP spikes.

• Cluster structure is robust to hyperparameter choice. Re-running Spherical K-Means at K in {6, 8, 10, 12} preserves the arXiv/USPTO separation, with language and generative modeling clusters consistently above Δk > 0.20 and hardware device layers consistently below Δk < 0.05.

Methodology in Plain English

The researchers assembled three data streams totaling 30,000 document records: 20,000 arXiv preprints across computer science and statistics categories, 10,000 USPTO patent records with filing dates between 2016 and 2025, and frontier model hardware specifications from the Epoch AI Notable AI Models database. Records missing valid timestamps or containing very short text were filtered out, and arXiv submission dates were parsed from version metadata or from the identifier format itself to avoid database update artifacts.

Each abstract was converted into a 384-dimensional vector using the all-MiniLM-L6-v2 SentenceTransformer model. Because abstract length varies, these vectors were L2-normalized so that every document sits on the surface of a unit hypersphere, eliminating magnitude differences. UMAP then projected the vectors down to two dimensions for visualization, and Spherical K-Means clustered them directly on the hypersphere by maximizing cosine similarity rather than using Euclidean distance, which degrades in high dimensions. Top TF-IDF n-grams per cluster were inspected to give each cluster a human-readable technical domain label.

To measure conceptual change, each cluster was split into an early and a late subset at the median corpus year. The centroid of each subset was normalized, and the drift metric was computed as one minus the cosine similarity between the two centroids. To measure the gap between science and commercialization, quarterly document counts per cluster were cross-correlated across lag offsets from -40 to 40 quarters, and the lag maximizing the correlation was recorded as the Commercialization Offset. Finally, quarterly maximum training compute and quarterly paper volume were both log-differenced for stationarity and entered into a bivariate VAR model with lag order p = 2, with an F-test on whether the paper volume coefficients are jointly zero.

Why This Matters

Impact on research. The paper offers a labeling-free way to detect emerging technical sub-fields from raw text, avoiding the administrative delays of citation counts and pre-defined taxonomy codes. It also supplies a negative result that is useful in itself: semantic publication velocity alone is not a sufficient predictor of hardware capital allocation, which argues for conditioning textual signals on physical capital constraints.

• Capital allocation. Investment teams tracking emerging technology could use drift metrics as a high-frequency complement to quarterly economic reporting.

• Infrastructure planning. Compute providers and data center planners could monitor which sub-fields are evolving fastest to anticipate where demand may concentrate.

• Innovation policy. Agencies that currently wait years for productivity statistics could supplement them with real-time indicators derived from open repositories.

• IP and R&D strategy. Firms could compare preprint and patent volume trajectories by sub-topic to see where commercial activity is running ahead of or behind published science.

Industry relevance. The methodology relies entirely on open-source Python libraries (sentence-transformers, umap-learn, scikit-learn, statsmodels, datasets) and public data streams, which lowers the barrier to internal adoption. The finding that patent peaks lead preprint peaks in this sample is directly relevant to competitive intelligence and patent-landscape monitoring.

Future Directions

• Joint modeling of text and physical constraints. The paper concludes that textual signals must be integrated with capital investment and hardware constraint models, but does not specify the form that integration should take.

• Explaining the negative Commercialization Offset. All observed offsets are negative, meaning patent filing peaks lead preprint peaks in this streaming sample. The paper presents this as a property of the sample rather than explaining the underlying mechanism or reconciling the -32 versus -31 quarter discrepancy between its text and Table 2 for cluster C0.

• Correcting for index-bound artifacts. The 2026 volume expansion is attributed to recent indexing updates in open repository snapshots rather than genuine publication growth, which raises the question of how to normalize edge effects from streaming sources.

• Extending beyond the sampled domains. The corpus is limited to computer science and statistics categories on arXiv and 10,000 USPTO records, leaving open whether the drift orderings and Granger results generalize to other scientific fields or other patent offices.

Target Audience

This paper suits computational social scientists, innovation economists, bibliometricians, and NLP practitioners interested in applying embedding-based methods to real-world measurement problems. It is also relevant to quantitative analysts and technology strategists who need early indicators of technological change, and to researchers studying the economics of AI compute. Readers without a background in vector embeddings or time-series econometrics will need to work through the methodology section carefully, since the paper presents its metrics in formal notation.

Authors’ abstract

Macroeconomic productivity metrics, such as Total Factor Productivity, register technological breakthroughs with multi-year reporting lags due to administrative survey intervals and national accounting conventions. This paper introduces Hyperspherical Semantic Trajectory Analysis (HSTA), an unsupervised quantitative methodology that tracks technology diffusion directly from unstructured scientific and commercial text streams. We analyze 30,000 filtered document records spanning academic preprints from arXiv and patent application records from the USPTO. By projecting high-dimensional Transformer sentence embeddings onto unit hyperspheres using Spherical K-Means clustering across eight primary sub-topics and UMAP manifold reductions, HSTA formalizes two quantitative metrics: (1) Semantic Centroid Vector Drift, which tracks vocabulary shifts between temporal sub-corpora to identify structural paradigm transformations; and (2) Commercialization Offset, which evaluates cross-corpus peak density alignments between scientific discovery and intellectual property filings. Linking quarterly topic volume velocity with physical hardware metrics from the Epoch AI database, Vector Autoregressive F-tests demonstrate that quarterly paper volume velocity alone does not Granger-cause frontier compute allocation surges at conventional statistical significance levels, highlighting the necessity of conditioning textual signals on physical capital constraints. Empirical results reveal that sub-topics covering Large Language Models (with a drift metric of 0.332) and Artificial Intelligence Systems (with a drift metric of 0.234) undergo the highest rate of semantic evolution, offering an objective, real-time mechanism to complement traditional economic statistics.
