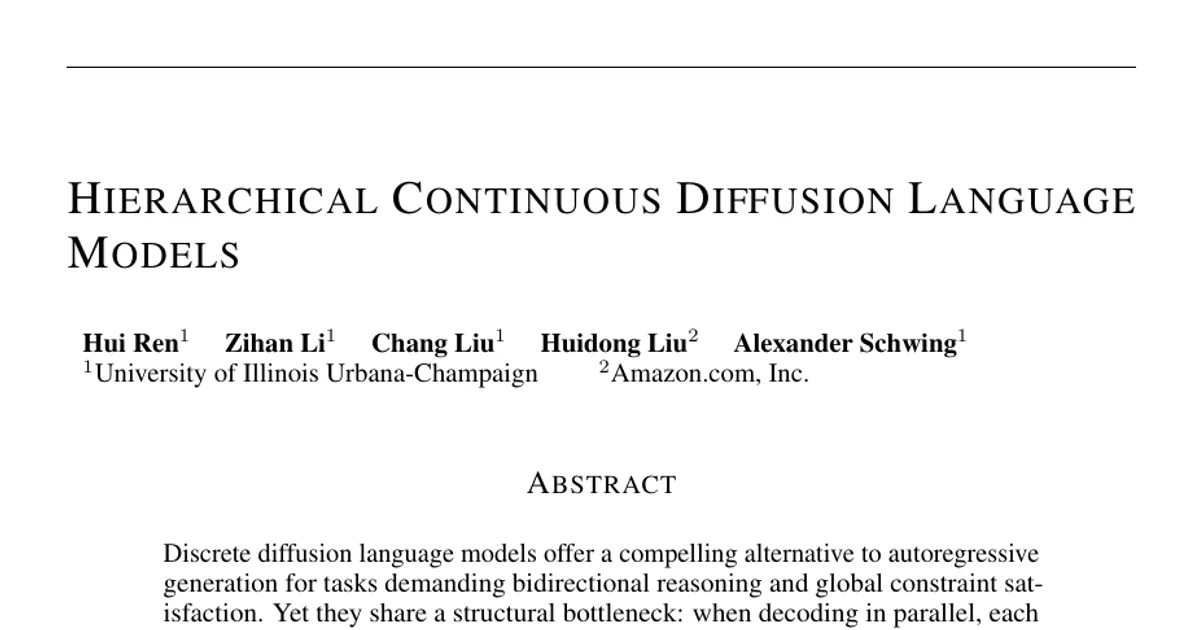

Hierarchical Continuous Diffusion Language Models

AI summary

Overview

Research area: Natural language processing / generative modeling — specifically diffusion-based language generation and hybrid discrete–continuous diffusion.

Technical level: Advanced. The paper derives a variational lower bound over a two-level (continuous latent plus discrete token) reverse chain, so familiarity with diffusion models, ELBOs, and flow matching is assumed.

Scope: The paper proposes HC-DLM, a diffusion language model in which a continuous latent trajectory is the only persistent generative state and discrete tokens are read out of it and fed back at every denoising step, evaluated on Sudoku, Countdown, and LM1B against autoregressive, discrete diffusion, and continuous/hybrid diffusion baselines.

What This Paper Is About

Discrete diffusion language models decode several tokens in parallel, but each token is sampled independently from its marginal, so the statistical dependencies between simultaneously decoded tokens are severed. Continuous diffusion language models avoid that by denoising a shared continuous state, but their denoiser sees only that state, so nothing ties it to a valid token configuration until the final decoding step. HC-DLM's goal is to fix both weaknesses at once by coupling a continuous latent trajectory with a discrete token state in a single, principled denoising process trained from a variational bound on token likelihood.

Key Contributions

1. Framework. HC-DLM, a hierarchical generative structure for discrete sequences in which a continuous latent is the only persistent state and tokens are per-step readouts that feed back as a conditioning scaffold (Section 3.1).
2. A likelihood bound for the hierarchical coupling chain. A variational lower bound derived over the hierarchical trajectory (Section 3.2), establishing that reading tokens from the latent and feeding them back is a proper generative model of the token sequence.
3. Evidence that both the continuous latent and token feedback are needed. On Sudoku, Countdown, and LM1B, HC-DLM improves over discrete and continuous diffusion baselines at matched model size (Section 4), and removing either component leaves a model that falls well short of the full one (Section 4.5).
4. A practical objective and sampler. The bound is reduced to three trainable terms — reconstruction, encoder entropy, and continuous denoising — and an alternating sampler that denoises the latent, reads tokens out, and re-noises them at each step.

Main Findings

• Sudoku (structured reasoning). HC-DLM at 6M parameters reaches 94.21 Easy / 72.41 Hard accuracy. The matched 6M hybrid baseline CCDD reaches 94.65 Easy / 70.73 Hard; the best masked-diffusion variant (top-probability margin) reaches 89.49 / 49.88; the 42M-parameter autoregressive model with ordering reaches 87.18 / 32.57, and without ordering 9.73 Easy (Hard not reported). HC-DLM leads on the out-of-distribution Hard split while CCDD is marginally higher on Easy, which the authors read as HC-DLM's advantage being most pronounced beyond the solution strategies seen in training.
• Countdown (mathematical planning). HC-DLM at 6M parameters reaches 84.41 on CD4 and 37.52 on CD5, beating matched CCDD (81.18 / 25.35) on both subtasks, with the margin widening on the longer-horizon CD5. Larger discrete diffusion models still obtain the best overall numbers — RDM at 85M reaches 87.0 / 45.8, D3PM 83.1 / 27.6, VDM 73.4 / 16.3 — but HC-DLM is competitive at a fraction of the parameter cost.
• LM1B (language modeling). At 118M parameters (denoiser plus token decoder, excluding embeddings), HC-DLM achieves generative perplexity 75.5 under GPT-2-Large, the best among the diffusion models compared: MDM 103.9, SEDD 115.9, Duo 97.6, Plaid 77.3, and LangFlow 92.2. The autoregressive Transformer scores 66.7 and ground truth is 40.4.
• Both levels matter. Removing the token scaffold from the denoiser ("Latent DM") collapses Sudoku accuracy to 50.46 Easy / 24.74 Hard, versus 94.21 / 72.41 for the full model, while the purely discrete MDM baseline reaches 89.49 / 49.88. The authors attribute the Latent DM failure to a continuous latent over-smoothing precise token-level constraints.
• Uniform noise beats absorbing noise here. With the uniform kernel and parallel updates HC-DLM scores 94.21 / 72.41 on Sudoku, versus absorbing-state variants of 69.60 / 43.74 (random ordering), 74.72 / 47.50 (top-probability), and 75.59 / 48.25 (top-probability margin). Two explanations are offered: absorbing corruption empties the scaffold of content the latent denoiser conditions on, and per-step readout keeps every position revisable whereas adaptive unmasking forecloses that.
• Information emerges earlier along the trajectory. Decoding the intermediate clean-latent estimate into tokens shows accuracy near chance at t/T = 1.0, rising significantly earlier and reaching a much higher plateau than Latent DM, consistent with the scaffold locking in structural constraints sooner.
• Fewer denoising steps hurt HC-DLM less. On Hard Sudoku, HC-DLM stays robust as step counts drop, while the purely discrete MDM baseline degrades more sharply; the paper also reports lower wall-clock sampling time than the reproduced MDM implementation at comparable parameter scale and, at large batch sizes, lower wall-clock sampling time than comparable baselines. Entropy is reported as stable under moderate NFE reductions and across the CFG sweep.
• Sampling setup. LM1B sampling uses 128 sampling steps, 1,024 samples, and classifier-free guidance with w = 2.75.

Methodology in Plain English

The authors build a generative process with two channels that are corrupted independently going forward but coupled going backward. In the forward direction, an encoder turns clean tokens into a continuous latent, Gaussian noise is added to that latent, and the tokens are separately corrupted by a standard categorical (uniform or absorbing) noise kernel. Keeping these two corruptions independent is what makes both forward marginals tractable.

The reverse direction breaks that symmetry deliberately. At each denoising step, a continuous denoiser updates the latent conditioned on the current token state, and a token predictor reads a distribution over tokens out of the latent. Those read-out tokens are then re-noised through the known forward kernel and passed back in as the scaffold for the next latent update. Crucially, the token state has no transition kernel of its own: it depends on the past only through the latent, so all cross-step information travels through the continuous trajectory and every position is read out anew, and so remains revisable.

Because the forward corruptions are independent, the authors can derive a variational lower bound over this two-level trajectory and break it into interpretable pieces (reconstruction, prior matching, boundary terms, and a per-step denoising term). Applying the chain rule to the KL divergence in the denoising term splits it into a discrete token-prediction loss and a continuous denoising loss, which is implemented with Conditional Flow Matching rather than by fitting an explicit Gaussian reverse kernel. In practice this becomes three loss terms — reconstruction, encoder entropy (which keeps the encoder from collapsing to a deterministic map), and continuous denoising — with a single timestep sampled per training example. At inference the model starts from Gaussian noise and a stationary token distribution, and alternates: form the scaffold-conditioned clean-latent estimate, take a step, read tokens out of it, and re-noise them to the next level. Baselines were reproduced at matched 6M-parameter scale under the same protocol with a shared backbone to make comparisons fair, and parameter counts refer to sampling-time generative parameters, excluding token embeddings.

Why This Matters

Impact on research. The paper reframes a known bottleneck of parallel decoding — the product-of-marginals approximation over simultaneously decoded tokens — as something a shared state can fix, and it supplies a variational bound showing that reading tokens out of that state and feeding them back is a legitimate generative model rather than an ad-hoc self-conditioning trick. This distinction matters because earlier fed-back token estimates (rounding, self-conditioning) were neither variables of the model nor terms of its objective. It also sharpens the contrast with hybrid discrete–continuous models (VMD, CADD, CCDD), which keep a separate token transition chain.

Real-world applications. The paper does not report deployed systems or product use cases; the task domains suggest where the approach could matter:

• Constraint-satisfaction problems such as scheduling, timetabling, and allocation, where all variables must satisfy global constraints simultaneously rather than being committed left-to-right.
• Multi-step tool use and planning, where intermediate arithmetic or logical subgoals must remain consistent with the final answer.
• Any-order or bidirectional completion tasks such as code infilling and structured editing, where tokens in the middle and at the end depend on each other.
• Unconditional or guided text generation at small model scale, where generative perplexity under a strong external evaluator is the target metric.

Industry relevance. Authors are affiliated with the University of Illinois Urbana-Champaign and Amazon.com, Inc., which suggests interest in generation settings where parallel decoding and constraint satisfaction matter. The central comparison is at 6M and 118M parameters, so the demonstrated relevance is to small-to-moderate-scale models and to batched parallel generation efficiency rather than to frontier-scale systems; the authors note that larger discrete diffusion models still achieve better absolute Countdown numbers.

Future Directions

• Scaling. Every HC-DLM result is at 6M parameters (Sudoku, Countdown) or 118M parameters excluding embeddings (LM1B); whether the hierarchical coupling keeps its advantage at larger scales is not established, and much larger discrete diffusion models still achieve the best overall Countdown numbers.
• Latent representation design. The encoder q_ψ(x_0 | k_0) is the only learned component of the forward process; how the latent sequence length M, per-position dimension d, and encoder architecture affect the trade-off between the over-smoothing seen in Latent DM and precise token constraints is not resolved.
• Reducing step count and cost. The paper shows HC-DLM degrades less than MDM as steps decrease, but reports entropy stability and wall-clock behavior only for its own configuration; extending the step-count robustness analysis and reporting sampling cost against more baselines would clarify where the iteration pays off.
• Comparison to other hybrid couplings. The paper positions HC-DLM against models that retain a separate token transition chain (VMD, CADD, CCDD) and defers further discussion to Appendix C, so which organization is preferable at what scale or task type remains an open empirical question.

Target Audience

Researchers and practitioners working on diffusion-based text generation, especially those interested in discrete diffusion decoding bottlenecks, continuous or latent diffusion for language, and hybrid discrete–continuous models. The paper assumes comfort with variational lower bounds, KL decompositions, DDPM/flow-matching objectives, and noise schedules, so it is best suited to readers with graduate-level machine learning background. Practitioners concerned with parallel decoding for constraint-satisfaction or planning tasks may benefit from the empirical comparisons even if they skim the derivation.

Authors’ abstract

Discrete diffusion language models offer a compelling alternative to autoregressive generation for tasks demanding bidirectional reasoning and global constraint satisfaction. Yet they share a structural bottleneck: when decoding in parallel, each token is sampled independently from its marginal, severing the statistical dependencies among the tokens decoded together. Continuous diffusion language models avoid this by denoising a shared continuous state, but their denoiser sees only that state, so nothing ties it to a valid token configuration until it is finally decoded. To address this, we propose Hierarchical Continuous Diffusion Language Models (HC-DLM), which couple discrete token generation with a continuous latent trajectory in a single, principled denoising process, whose training objective is derived from a variational bound on the token likelihood. In contrast to recent methods that attach continuous context to a self-contained discrete chain, HC-DLM makes the latent the only persistent generative state: tokens are read out from it at every step and feed back as a scaffold for the next latent update. On structured reasoning (Sudoku), mathematical planning (Countdown) and language modeling (LM1B), HC-DLM improves over discrete and continuous diffusion baselines at matched model size, in puzzle accuracy on Sudoku and Countdown and in generative perplexity on LM1B. Project page: https://hc-dlm.github.io/.
