Hidden Heroes and Gradient Bloats: Layer-Wise Redundancy Inverts Attribution in Transformers

AI summary

Overview

Research area: Mechanistic interpretability and model compression — specifically, whether gradient-based attribution (gradient magnitude) identifies the transformer components that causally drive out-of-distribution generalization.

Technical level: Intermediate. The paper is readable for someone comfortable with basic transformer notation (attention heads, MLPs, residual stream), Spearman rank correlation, and ablation baselines, but no prior background in mechanistic interpretability is assumed.

Scope: A causal audit of gradient attribution on two synthetic algorithmic tasks using a from-scratch 4-layer, 4-head decoder-only transformer, across up to 10 random seeds and two ablation baselines.

What This Paper Is About

Gradient-based attribution is widely used to decide which parts of a transformer matter — it underlies pruning, circuit discovery, and interpretability audits — but whether large gradients actually correspond to components that are causally necessary has gone largely untested at the component level. This paper tests that assumption by directly ablating components and comparing their causal impact against their gradient magnitude. It finds that on the harder of two tasks, the relationship between gradient rank and causal rank collapses, and the misalignment is organized in a stable, predictable layer-wise pattern rather than being random noise.

Key Contributions

1. A causal measurement of the "gradient-causal gap" across up to 10 random seeds, 2 algorithmic tasks, and 2 ablation baselines (mean ablation and zero ablation).
2. Identification of a stable layer-wise structure: Hidden Heroes concentrate in late layers and Gradient Bloats concentrate in early layers, robust to baseline and to the classification threshold.
3. Evidence of component identity stability, with specific heads occupying consistent roles across seeds (L3_H3 classified as a Hidden Hero in 7 of 10 sorting seeds; L1_H1 and L1_H3 as Gradient Bloats in 6 of 10 seeds).
4. A 14 times superadditivity result in joint Bloat ablation, offering mechanistic evidence that redundant circuit structure drives gradient overvaluation.

Main Findings

• Gradient attribution fails on the harder task: Spearman correlation between gradient magnitude and causal importance is 0.72 ± 0.08 on sequence reversal under mean ablation (0.73 ± 0.07 under zero ablation), but drops to 0.27 ± 0.24 on sequence sorting (0.34 ± 0.22 under zero ablation). Both baselines show the same collapse, which the authors use to rule out mean-ablation artifact.

• Individual seeds can show zero or inverted correlation: Seed 456 reaches ρ ≈ 0.00 under both baselines on sorting. Seed 2020 reaches ρ = −0.18 under mean ablation, meaning the gradient signal is actively inversely predictive of causal importance there. Preliminary activation-patching checks on the best-characterized seed give ρ = −0.445 between gradient and patching rankings.

• The failure has a layer-wise structure: On sorting, Layer 1 accumulates Gradient Bloats (21 at the ±6 threshold) while Layer 3 accumulates Hidden Heroes (17 at ±6). The same pattern appears on reversal but attenuated, consistent with reversal's higher correlation.

• Component roles are stable across random initializations: L3_H3 is a Hidden Hero in 7 of 10 sorting seeds; L1_H1 and L1_H3 are Gradient Bloats in 6 of 10 seeds. The authors read this as real functional circuit roles rather than stochastic noise.

• Raw gradient norms decline across layers: On sorting, mean gradient norms (W_V slice) are 0.139 (Layer 0), 0.172 (Layer 1), 0.093 (Layer 2), 0.052 (Layer 3) — a 3.3 times differential from Layer 1 to Layer 3. This gives a structural explanation for why early layers accumulate Bloats: architectural position determines gradient magnitude independently of causal importance.

• Ablating Hidden Heroes is devastating on reversal: Removing Hidden Heroes changes OOD accuracy by −36.4% ± 22.8%, versus only −10.1% ± 10.4% for removing Gradient Bloats. Heroes cause 3.6 times greater damage when removed, yet gradient attribution ranks them as less critical.

• Sorting shows an apparent paradox that redundancy explains: On sorting, abating Hidden Heroes changes accuracy by −13.9% ± 9.4%, while ablating Gradient Bloats changes it by −25.4% ± 23.2%.

• Superadditivity confirms redundant circuits: Individually, ablating Gradient Bloats on sorting costs a negligible 3.1% per component. Ablated jointly, the same Bloats collapse accuracy by 43.8% — a ratio of 14.1 times greater than individual results predict. Per-seed joint drops range from 10.0% to 73.0%.

• Scope caveat: The experiments use a from-scratch 4-layer, 4-head model (d_model 128, d_ff 512) on synthetic integer tasks with 20 components. The authors argue this is a lower bound on the failure, since algorithmic tasks have fully measurable causal structure and relatively simple circuits, but the results are not demonstrated on pretrained LLMs.

Methodology in Plain English

The authors train a small decoder-only transformer from scratch on two tasks: reversing a sequence of integers and sorting a sequence of integers (drawn from 1 to 99). Training sequences have lengths between 3 and 7; to test generalization, they evaluate on out-of-distribution lengths of 8, 9, 10, and 11. For each seed, they pick the OOD length where the model's accuracy falls inside a 20% to 75% window — below 20% the model has not generalized, and above 75% component effects are too small to measure reliably. Accuracy means exact sequence match. One reversal seed (4040) failed to reach a valid window and was excluded, leaving 9 reversal seeds and 10 sorting seeds.

For each of the 20 components — 16 attention heads plus 4 MLPs — they compute two things. The first is a gradient magnitude score: the normalized average Frobenius norm of the gradient over 50 OOD batches, normalized by the square root of the component's parameter count so that differently sized attention and MLP matrices can be compared fairly. Following Elhage et al. (2021), they isolate W_V and W_out so the measure is bounded to each component's residual stream contribution. The second is a causal importance score, measured by ablation under two counterfactuals: mean ablation (replacing the component's output with its mean activation computed over 50 OOD batches) and zero ablation (replacing it with the zero vector). Agreement between the two baselines is used to rule out results being an artifact of the mean ablation off-state.

They then rank components by gradient and by causal importance and compute the rank difference for each component. Components with a rank difference of at least −6 are Hidden Heroes (low gradient, causally essential); at least +6 are Gradient Bloats (high gradient, negligible causal impact); below 6 in absolute value are Aligned. The ±6 threshold corresponds to at least 30% rank divergence across the 20-component architecture. They also report sensitivity analysis at ±4, ±6, and ±8. To validate the categories causally, they ablate the top-two components per class across up to 10 seeds and measure the OOD accuracy change. Finally, they test whether Bloats are individually dispensable but collectively critical by comparing individual versus joint ablation.

Why This Matters

Impact on research. The paper reframes a widely used heuristic as a systematically unreliable one for a specific class of tasks. It argues that circuit analyses and pruning methods built on gradient attribution may overlook the components most responsible for generalization, and that causal validation should be a prerequisite before making architectural claims. The finding is distinct from earlier saliency-map sanity checks (Adebayo et al., 2018; Hooker et al., 2019), because the failure here is structural inversion at the component level rather than a mismatch between saliency and input behavior.

Real-world applications (derived from the pipelines the paper identifies as depending on gradient attribution; the paper itself does not deploy these systems at production scale):

• Model pruning and compression pipelines that use gradient magnitude to decide which attention heads or MLPs to remove, and that risk discarding late-layer components the model depends on for generalization.
• Circuit discovery workflows that trace gradients or attribution scores to reconstruct an algorithm inside a model, and that may report artifacts of the attribution method rather than genuine computational structure.
• Interpretability audits and safety reviews that need to know which components are load-bearing before intervening on, editing, or monitoring a model.
• Efficiency work on inference-time optimization and hardware-aware architecture search, where knowledge of which layers perform irreplaceable computation informs what can be offloaded or approximated.

Industry relevance. Gradient-based importance scores are cheap and scale easily, which is exactly why they are used in production-adjacent tooling. The 14 times superadditivity result matters operationally: it means a per-component importance ranking can be badly wrong about what happens when several redundant components are removed together, which is precisely the scenario compression pipelines create. The paper notes its experiments were conducted independently without external funding.

Future Directions

1. Does the layer-wise Hero/Bloat structure persist in pretrained LLMs? The authors propose replication on GPT-2 or LLaMA via TransformerLens to test whether the taxonomy scales beyond models trained from scratch.
2. Does the taxonomy replicate under activation patching? The paper frames patching as a stronger, distribution-preserving counterfactual that may reveal additional structure or refine borderline classifications.
3. Is early-layer Bloat concentration a signature of shortcut circuit formation? Tracking Hero and Bloat emergence across training checkpoints would test whether the gradient-causal gap reflects the temporal dynamics of grokking (Nanda et al., 2023).
4. Is the proposed mechanism correct? The authors explicitly present the redundant-circuit explanation for superadditivity as a hypothesis, stating that direct measurement of circuit formation dynamics during training would be required to confirm it.

Target Audience

Mechanistic interpretability researchers who use attribution to identify circuits; practitioners building pruning, compression, or model-editing pipelines that depend on gradient-based importance scores; and machine learning researchers interested in out-of-distribution generalization and in how training dynamics allocate function between early and late layers. Readers looking for evaluations on production-scale or pretrained language models will not find them here — the paper is explicit that this is future work.

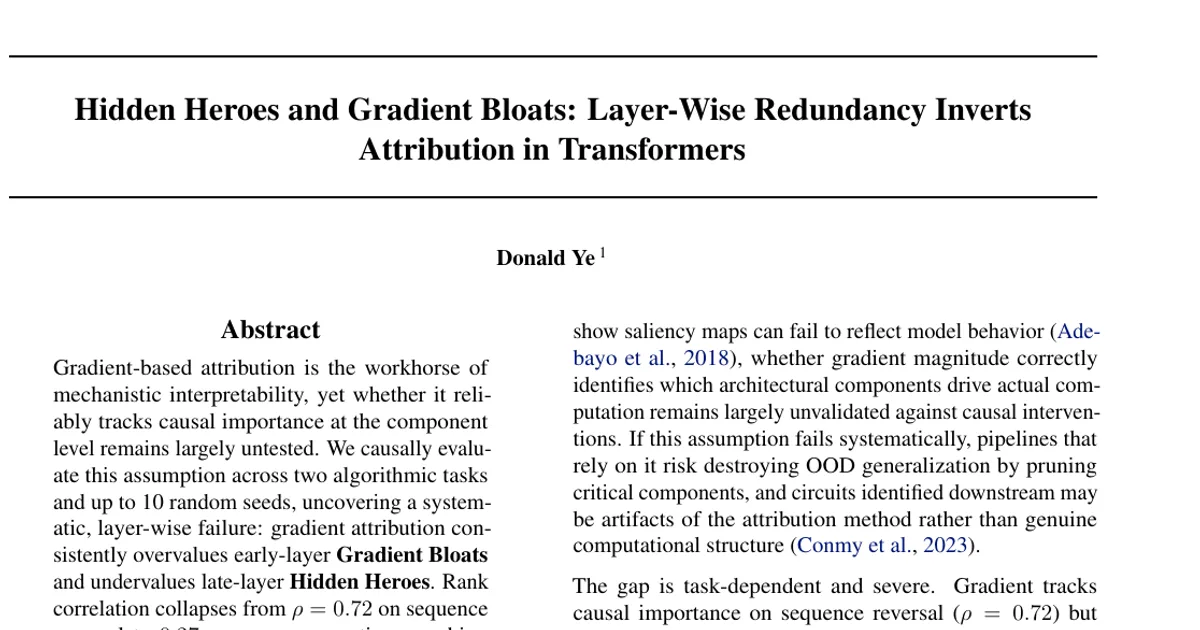

Authors’ abstract

Gradient-based attribution is the workhorse of mechanistic interpretability, yet whether it reliably tracks causal importance at the component level remains largely untested. We causally evaluate this assumption across two algorithmic tasks and up to 10 random seeds, uncovering a systematic, layer-wise failure: gradient attribution consistently overvalues early-layer \textbf{Gradient Bloats} and undervalues late-layer \textbf{Hidden Heroes}. Rank correlation collapses from $ρ= 0.72$ on sequence reversal to $0.27$ on sequence sorting, reaching $ρ= -0.18$ in individual seeds. This failure stems from first-order gradient attribution's inability to detect collective redundancy: joint Bloat ablation causes $14\times$ greater damage than individual results predict. Consequently, Bloats dominate gradient rankings despite negligible functional impact, while ablating Hidden Heroes destroys OOD accuracy ($-36.4\% \pm 22.8\%$). This systematic inversion of early-layer feature extraction and late-layer computation motivates causal validation as a prerequisite for circuit-level claims.
