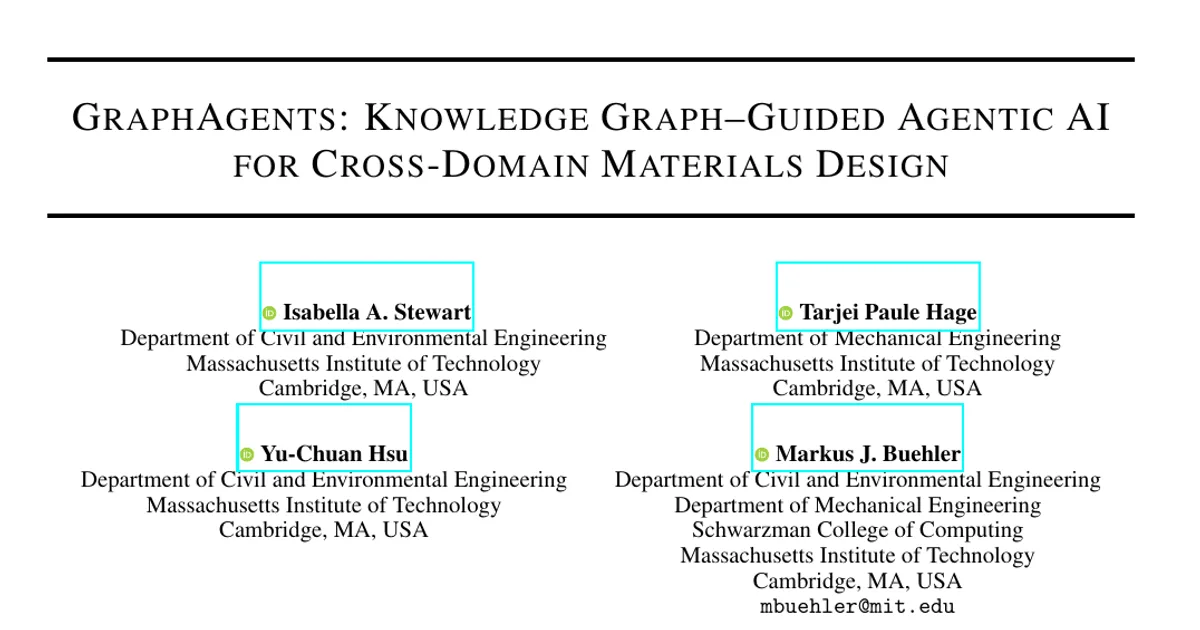

GraphAgents: Knowledge Graph-Guided Agentic AI for Cross-Domain Materials Design

AI summary

Overview

Research area: AI for science — specifically multi-agent large language model (LLM) systems coupled with knowledge graphs for materials discovery.

Technical level: Intermediate. The paper assumes familiarity with LLMs, retrieval-augmented generation (RAG), vector embeddings, and graph traversal algorithms (breadth-first and depth-first search). No specialized materials-science background is required to follow the main argument, though the design-parameter examples are domain-specific.

Scope in one sentence: The paper describes GraphAgents, a multi-agent framework that combines two knowledge graphs with five specialized LLM agents to generate evidence-grounded, traceable hypotheses for PFAS-free materials, demonstrated on the exemplar application of biomedical tubing.

What This Paper Is About

The bottleneck in AI-accelerated discovery is no longer access to scientific information but the ability to connect that information across disciplines — something human experts and single-agent LLMs both struggle with, and the latter are also prone to hallucination. The authors target per- and polyfluoroalkyl substances (PFAS), synthetic chemicals valued for durability, chemical resistance, and water- and oil-repellent properties but which face increasing regulatory attention due to environmental persistence, and for which few alternatives offer comparable property combinations. Their goal is a framework that decomposes a materials design problem into verifiable sub-questions, grounds each one in traceable evidence, and integrates cross-subtask constraints into a single testable hypothesis for a sustainable PFAS replacement.

Key Contributions

1. A five-agent architecture for structured hypothesis generation. The framework assigns distinct roles to a Planner (problem decomposition), a Hybrid GraphWeave agent (evidence retrieval), an Evaluator (design-parameter and metric extraction), a Creative GraphWeave agent (exploratory graph traversal), and an Engineer (hypothesis formulation). Agents selectively retrieve and incorporate earlier agents' responses as context for their own reasoning.

2. Dual knowledge graphs as controllable reasoning substrates rather than retrieval indices. Scientific corpora are distilled into a PFAS-Specific Knowledge Graph for depth in the target domain and a broader Material Properties Knowledge Graph for cross-domain exploration. Every edge in the PFAS graph is tagged with the originating text-chunk ID, giving full traceability, so that when nodes associated with an ID overlap they assemble into subgraphs. Knowledge is maintained independently of model weights, which the authors argue improves transparency, updateability, and reduces computational overhead.

3. Four heuristic graph-traversal strategies that tune the balance between exploitative and exploratory search. The paper builds on breadth-first search (BFS) and depth-first search (DFS), and operationalizes BFS through Shortest Simple Path and Top-N Shortest Simple Paths (default N = 5) algorithms. Shortest paths favor domain-critical outcomes; Top-N and DFS surface emergent cross-connections.

4. Ablation studies demonstrating the value of distributed specialization. The authors report that the full multi-agent pipeline outperforms single-shot prompting, which they attribute to distributed specialization and relational reasoning.

Main Findings

• The Planner decomposes the user query into design sub-questions. For the query about PFAS properties enabling biomedical tubing, the Planner produced three sub-questions covering tensile strength under pressure conditions, low friction coefficient and its role in reducing occlusions and improving flow rates, and thermal stability range under sterilization or varying temperatures. It also emitted keyword sets including tensile strength, friction coefficient, thermal stability, chemical inertness, biocompatibility, and kinking resistance, with synonyms such as surface energy, medical devices, and fluoropolymers.

• Hybrid retrieval weaves text and structure. The Hybrid GraphWeave agent embeds the query and retrieves the top k = 5 matching text chunks from the raw PFAS corpus stored in ChromaDB by cosine similarity, then links them to corresponding subgraphs in the PFAS-Specific Knowledge Graph. The paper reports a "path found ratio = 1.0" for the illustrated traversal case.

• Evaluator extraction preserves ranges but graph matching is imperfect. The Evaluator produced: tensile strength at 20–30 MPa; friction coefficient in range 0.1 to 0.3; thermal stability in range 250–400 °C; dimensional stability at temperatures below 300 °C; durability in biomedical tubing applications with exposure to sterilization processes and varying temperatures during medical procedures. These mapped to the nodes "Tensile strength," "friction coefficient," "temperature stability," and "Biological durability." The authors characterize the matching as a mix of successful semantic alignment and informative mismatches — for example, "thermal stability" collapsing to "temperature stability" blurs thermal response with resistance to temperature fluctuation, and the verbose durability keyword collapses to "Biological durability," stripping application-specific constraints such as sterilization compatibility and cyclic temperature exposure.

• Shortest Simple Path yields a PLA–CNF–PDA hypothesis. The proposed composite is a poly(lactic acid) matrix reinforced with cellulose nanofibers and functionalized with a thin polydopamine layer. Stated targets: tensile strength > 50 MPa, glass transition temperature Tg > 60 °C, gas permeability < 10⁻¹³ cm³·cm/cm²·s·Pa, and chemical resistance to various solvents and biological fluids. Expected experimental values: tensile strength = 55 MPa, modulus = 3.5 GPa, Tg = 65 °C, melting point = 180 °C, gas permeability = 5 × 10⁻¹⁴ cm³·cm/cm²·s·Pa, oxygen transmission rate = 100 cm³/m²·day, friction coefficient = 0.2, contact angle = 60°, resistance to pH 1–12 solutions.

• Shortest paths alone were too sparse. The authors observed self-referential or out-of-context edges such as "friction coefficient changes to friction coefficient" and "adhesion affects mechanical properties" dominating the shortest paths, which they call "hollow edges" that limit the Engineer's reasoning.

• Top-N Shortest Simple Paths (N = 5) produced a more multidimensional hypothesis. This version proposes a thermoplastic polyurethane matrix reinforced with cellulose nanocrystals and modified with a thin surface layer of alumina (Al₂O₃) nanoparticles. Stated targets: tensile strength > 50 MPa, temperature stability up to 250 °C, friction coefficient < 0.1. Expected values: tensile strength = 55 MPa, modulus = 1.2 GPa, Tg = 180 °C, melting point = 220 °C, gas permeability = 10⁻¹³ m³/m/s/Pa, oxygen transmission rate = 0.05 cm³/m²/day, friction coefficient = 0.08, contact angle = 60°. The authors attribute the richer result to capturing broader property domains including mechanical flexibility, thermal stability, protein resistance, and surface biocompatibility.

• DFS with a depth limit of five nodes produced a hierarchical composite. Applying DFS with a depth limit of five nodes per branch, the resulting hypothesis proposes a blend of natural biopolymers such as cellulose nanofibers or chitosan reinforced with multi-walled carbon nanotubes and functionalized with TiO₂ nanoparticles. The authors describe the architecture as distinctly hierarchical, with mechanical, thermal, electrical, and chemical properties building cumulatively rather than independently — whereas BFS tends to surface more direct associations through flatter paths — via natural biopolymers for a biocompatible flexible base with controlled protein adsorption, MWCNTs for mechanical reinforcement and electrical conductivity, and TiO₂ for microstructural stability, corrosion resistance, and biocompatibility. (The full text of this hypothesis is cut off in the provided content.)

• The system alternates between exploitative and exploratory search. By tailoring traversal strategy, the framework moves between searches focused on domain-critical outcomes and searches surfacing emergent cross-connections. The authors frame the imperfect keyword-to-node matching as a deliberate balance between precision when available and exploratory breadth when not.

Methodology in Plain English

The authors assembled a corpus of scientific literature on PFAS and distilled it into a structured knowledge graph in which concepts are nodes and their relationships are edges, tagging each edge with the ID of the text chunk it came from so any claim can be traced back. A second, broader knowledge graph covering material properties in general was built from corpora identified through PFAS property keywords selected by human polymer experts, providing a route to cross-domain inspiration.

Five agents then work in sequence, each reading the earlier agents' outputs as context. The Planner turns a broad user question into narrower design sub-questions. The Hybrid GraphWeave agent answers each sub-question two ways at once: it retrieves the top five most similar text chunks by vector similarity, and it pulls the matching subgraph from the PFAS knowledge graph, so responses rest on both prose evidence and explicit relationships. The Evaluator reads those answers and distills them into design keywords with concrete numbers or ranges. The Creative GraphWeave agent takes those keywords, embeds them into the same vector space used for the broader Material Properties Knowledge Graph, finds the closest matching nodes, and then runs a graph traversal algorithm across every pairing of those nodes — shortest path, top-five shortest paths, breadth-first, or depth-first with a depth limit of five — to assemble an expanded subgraph of adjacent fields and related concepts. Finally, the Engineer converts those graph relationships into a single hypothesis in a fixed format: a named material or composite, a justification mapped to design requirements, expected properties across mechanical, thermal, chemical, transport, and biological domains, foreseeable implementation challenges such as cost or scalability, and explicit citation of the knowledge graph paths used.

To test whether all this machinery earns its keep, the authors ran ablation studies comparing the full pipeline against single-shot prompting.

Why This Matters

Impact on research. The paper argues that the value of knowledge graphs in agentic systems is not just as retrieval indices but as controllable reasoning substrates whose traversal strategy can be deliberately tuned. Because the knowledge lives in the graph rather than in model weights, it stays transparent, updatable, and resistant to drift during inference. The framework also addresses a gap the authors identify in prior knowledge-graph idea-mining work: those approaches can surface novel associations but do not by themselves decompose a problem into verifiable sub-questions, ground each one in traceable evidence, or integrate cross-subtask constraints into a single testable hypothesis.

Real-world applications.

• PFAS-free biomedical tubing, the paper's exemplar case, where a candidate must simultaneously balance tribological performance, thermal stability, chemical resistance, and biocompatibility.
• Broader PFAS substitution efforts in industries that rely on PFAS for durability, chemical resistance, and water- and oil-repellent properties, a need sharpened by increasing regulatory attention.
• Cross-domain materials discovery more generally, since the framework was built to bridge polymers with ceramics, metals, biomaterials, and hybrid systems — areas the authors note human specialists often cannot span on their own.
• Any multi-objective, multi-scale design problem where a designer needs a traceable, evidence-linked hypothesis rather than an ungrounded suggestion, since the Engineer agent must cite the graph paths behind its reasoning.

Industry relevance. The output format is explicitly practical: each hypothesis includes expected property values for experimental evaluation and a list of foreseeable implementation challenges covering scalability, cost, interfacial adhesion, and regulatory barriers. That structure is aimed at giving experimental teams something testable rather than a purely conceptual proposal.

Future Directions

• Moving beyond the single exemplar. The authors state explicitly that they prioritize the biomedical tubing test case over the pursuit of a comprehensive PFAS substitute, concentrating on whether a proposed material can satisfy that application's critical requirements. Extending to other PFAS applications remains open.
• Improving keyword-to-node matching. The paper documents systematic mismatches — thermal stability collapsing to temperature stability, dimensional stability losing its dimensional aspect, and application-specific durability constraints being stripped away. Closing this semantic gap is a natural next step.
• Addressing sparse and hollow paths. The authors found that shortest-path traversal produced self-referential edges and out-of-context statements that limited the Engineer's reasoning, which motivated Top-N expansion. Whether other traversal or filtering strategies handle this more cleanly is unresolved.
• Validating the candidates experimentally. The hypotheses are stated as design candidates with expected metrics for experimental evaluation; the provided content does not report physical synthesis, testing, or measured performance for any of them. The paper also does not report a quantitative comparison beyond the statement that the full multi-agent pipeline outperforms single-shot prompting in ablation studies. Section 3 of the paper, which the abstract says concludes with future directions, and Section 4, covering implementation and experimental setup, fall outside the content available here.

Target Audience

Researchers and practitioners at the intersection of AI for science, multi-agent LLM systems, and knowledge graph reasoning benefit most, particularly those working on materials discovery, sustainable chemistry, or PFAS substitution. The paper is also useful for computational chemists and materials engineers evaluating whether agentic AI can produce actionable, traceable design hypotheses, and for AI researchers interested in how graph traversal strategy shapes the creativity and grounding of LLM-generated ideas. Readers wanting implementation details, quantitative ablation numbers, or experimental validation will need the full paper and its supplementary files, which the content here does not include.

Authors’ abstract

Large Language Models (LLMs) promise to accelerate discovery by reasoning across the expanding scientific landscape. Yet, the challenge is no longer access to information but connecting it in meaningful, domain-spanning ways. In materials science, where innovation demands integrating concepts from molecular chemistry to mechanical performance, this is especially acute. Neither humans nor single-agent LLMs can fully contend with this torrent of information, with the latter often prone to hallucinations. To address this bottleneck, we introduce a multi-agent framework guided by large-scale knowledge graphs to find sustainable substitutes for per- and polyfluoroalkyl substances (PFAS)-chemicals currently under intense regulatory scrutiny. Agents in the framework specialize in problem decomposition, evidence retrieval, design parameter extraction, and graph traversal, uncovering latent connections across distinct knowledge pockets to support hypothesis generation. Ablation studies show that the full multi-agent pipeline outperforms single-shot prompting, underscoring the value of distributed specialization and relational reasoning. We demonstrate that by tailoring graph traversal strategies, the system alternates between exploitative searches focusing on domain-critical outcomes and exploratory searches surfacing emergent cross-connections. Illustrated through the exemplar of biomedical tubing, the framework generates sustainable PFAS-free alternatives that balance tribological performance, thermal stability, chemical resistance, and biocompatibility. This work establishes a framework combining knowledge graphs with multi-agent reasoning to expand the materials design space, showcasing several initial design candidates to demonstrate the approach.
