GLACIA: Instance-Aware Positional Reasoning for Glacial Lake Segmentation via Multimodal Large Language Model

AI summary

Overview

Research area: Remote sensing / Earth observation computer vision — specifically glacial lake segmentation using multimodal large language models.

Technical level: Intermediate. The paper assumes familiarity with segmentation architectures (U-Net, Vision Transformers, foundation models), multimodal LLM pipelines such as LLaVA, and standard segmentation metrics (mIoU, Dice). The conceptual framing is accessible, but the architecture details involve attention-based feature fusion and parameter-efficient fine-tuning.

Scope (one sentence): The paper introduces GLACIA, a framework that unifies multispectral glacial lake segmentation with instance-aware positional reasoning, and releases the GLake-Pos dataset pipeline that generates spatially grounded question–answer pairs for this task.

What This Paper Is About

Glacial lakes are growing as glaciers melt, raising the risk of Glacial Lake Outburst Floods (GLOFs), but existing automated mapping methods based on CNNs and Vision Transformers only output pixel-level masks with no high-level scene semantics or human-interpretable reasoning. The authors build GLACIA, which combines a large language model with a segmentation decoder to produce both an accurate mask and a natural-language description of how many lakes are present and where each one sits in the image. They also construct the GLake-Pos pipeline because instance-aware positional reasoning data for remote sensing did not previously exist.

Key Contributions

1. The Glacial Lake Position Reasoning (GLake-Pos) dataset pipeline, which generates diverse, spatially grounded question–answer pairs for glacier lake segmentation.
2. GLACIA itself, described as the first position reasoning model that combines multimodal vision–language learning with a Prithvi-Res Encoder for glacial lake mapping.
3. Open-sourcing of the dataset pipeline, model, and codebase at https://github.com/lalitmaurya47/GLACIA to support community-driven LLM-assisted remote sensing applications.
4. Extensive experiments demonstrating GLACIA's effectiveness in position reasoning and referring segmentation for glacier lake detection and mapping, including comparisons against CNN, ViT, geo-foundation, and reasoning-based segmentation baselines.

Main Findings

• Segmentation superiority over classical and foundation models: GLACIA reaches IoU 69.38, mIoU 84.01, Dice 81.92, and mDice 90.62 for single glacial lakes, and IoU 75.70, mIoU 87.30, Dice 86.17, and mDice 92.81 for multiple lakes. In the single-lake case the paper reports it exceeds the next best model (TransNorm) by at least 12.65%.

• Baseline ranges in comparison (Table 1): CNN-based models (U-Net) score IoU 18.14–59.30 across settings; ViT-based TransNorm scores 39.10–64.51; geo-foundation models including Prithvi 100/300/600 and DOFA span IoU 28.53–75.10. Prithvi 600 gives the strongest geo-foundation result on multiple lakes (IoU 75.10, mIoU 87.10, Dice 85.78, mDice 92.66).

• Spectral input matters more than architecture for U-Net: U-Net using full spectral input (B-G-R-NIR-S-E) performs poorly (IoU = 18.14, Dice = 21.85), while U-Net trained only on RGB bands performs much better (IoU = 48.47), which the authors suggest may indicate that topographic inputs (slope and elevation) introduce noise or that the limited multi-spectral dataset size reduces convergence efficiency.

• Outperformance of reasoning-based segmentation models (Table 2): Against LISA 7B (single-lake mIoU 57.82, mDice 61.23; multiple-lake mIoU 60.12, mDice 67.16), LISA 13B (71.33 / 80.40; 75.66 / 84.26), and PixelLM (69.12 / 81.27; 74.32 / 84.01), GLACIA achieves mIoU 84.01, mDice 90.62 for single lakes and mIoU 87.30, mDice 92.81 for multiple lakes.

• Stronger language-level reasoning (Table 3): GLACIA records ROUGE 0.5606, METEOR 0.4775, BLEU-1 0.4272, BLEU-2 0.2623, BLEU-3 0.1665, and BLEU-4 0.1089, versus LISA 7B (ROUGE 0.3450, METEOR 0.3002, BLEU-4 0.0412), LISA 13B (0.4332, 0.3148, 0.0471), and PixelLM (0.3520, 0.3071, 0.0413).

• Fine-tuning and hybrid fusion both help (Table 4): Prithvi 100 frozen scores IoU 56.77 and mDice 85.77, versus Prithvi 100 fine-tuned at IoU 68.24 and mDice 90.23; Prithvi 300 frozen scores IoU 66.08 and mDice 89.45 versus fine-tuned at IoU 73.42 and mDice 92.07. The Prithvi-Res (FT) backbone with 137.14M parameters delivers the best result (IoU 75.70, mIoU 87.30, Dice 86.17, mDice 92.81).

• Multi-lake settings generally score higher for all models: The authors attribute this to the larger dataset supporting more stable convergence and providing stronger contextual cues, and note that GLACIA's instance-aware spatial reasoning uses lake counts and positional cues to reduce false detections.

• Qualitative robustness under difficult conditions: GLACIA segments lakes of varied sizes and turbidity and performs promisingly under shadows and cloud cover, where U-Net, DOFA, and LISA struggle. Minor boundary inaccuracies remain.

• Stated limitations: Segmentation challenges are most evident for small lakes (0.002–0.5 km²), cloudy conditions, and frozen lakes. CLIP-based vision encoders operate on reduced-resolution feature maps, which can cause small or thin lakes to be missed or merged, degrading instance separation, and language-level position descriptions may become inconsistent or hallucinatory when many visually similar lakes are present, compounded by hallucination tendencies in the LLaVA model.

Methodology in Plain English

The authors split the job into three cooperating parts. First, a Prithvi-Res encoder reads six-channel multispectral satellite imagery (band, green, red, near-infrared, slope, and elevation) using two parallel branches: a ResNet-34-style convolutional stem adapted for six-channel input that captures local textures and edges, and selected transformer layers from the Prithvi-EO v2 geo-foundation model (100 million parameters) that capture long-range context. Features from both branches are projected into a shared channel dimension, interpolated to a common resolution, concatenated, refined, and merged through an attention block and a feature pyramid network.

Second, a multimodal LLM in the style of LLaVA sees only the RGB bands. A CLIP ViT-H/14 visual encoder extracts image features, a projection layer maps them into the language model's input space, and a Mistral-7B tokenizer handles the text instruction. The LLM is adapted with LoRA rather than fully fine-tuned, and its final-layer embeddings produce special segmentation tokens.

Third, a Prompt Mask Decoder takes the multispectral features and the LLM's segmentation prompt tokens, projects both into a shared 256-dimensional latent space, and fuses them with multi-head cross-attention so the prompt highlights relevant image regions. Residual connections and LayerNorm stabilize training, self-attention refines global dependencies, a feed-forward network adds non-linearity, and transposed convolutions with batch normalization and ReLU upsample the result to the original resolution to produce the final mask. Training jointly minimizes a weighted sum of segmentation loss (binary cross-entropy plus Dice) and text generation loss (categorical cross-entropy), with both weights set to 1.0.

For the data, the authors used a Himalayan dataset (originally 300×300×10 with ten channels, reduced to six: B, G, R, NIR, slope, elevation) and built a comparable European Alps dataset from 2020 Sentinel-2 ablation-season imagery (July–September) with labels from a global lake dataset. To generate reasoning supervision, connected-component analysis extracts each lake's bounding box and centroid, each lake is assigned a quadrant label (top left, top right, bottom left, bottom right) plus a near-center or far-from-center descriptor, and unique identifiers (Lake 1, Lake 2, etc.) are inserted into 50 GPT-4-generated question and answer templates validated by domain experts.

Why This Matters

Impact on research: The paper argues that pixel-level remote sensing multimodal LLMs remain nascent and that all prior pixel-level attempts operate exclusively in the visible spectrum, leaving multispectral, hyperspectral, and SAR bands unaddressed in LLM-driven segmentation. GLACIA pushes segmentation beyond pixel-level prediction toward interpretable, instance-aware reasoning, and it supplies an open pipeline for generating positional reasoning data, which the authors identify as previously lacking for Earth observation.

Real-world applications:

• Disaster preparedness for Glacial Lake Outburst Floods (GLOFs), which the paper notes cause large-scale destruction and fatalities in downstream mountainous regions.
• Monitoring of glacial lakes in the Himalayas and European Alps, including lakes that vary in size and turbidity.
• Natural-language interaction with segmentation outputs, letting non-specialist users query lake counts and locations.
• Informed policy-making in rapidly changing glacial environments, where the paper frames GLACIA as transforming segmentation from a purely pixel-level task into a reasoning-driven process.

Industry relevance: The authors position GLACIA as a human-aligned assistant that answers user queries while visually indicating lake positions, which matters for remote sensing practitioners, geospatial analytics providers, and downstream users who currently must perform expert post-analysis to turn segmentation masks into actionable insights.

Future Directions

• Incorporate geospatial metadata such as latitude, longitude, and elevation to strengthen reasoning with environmental context.
• Use multi-temporal imagery to capture lake dynamics over time.
• Add synthetic aperture radar (SAR) data to improve performance under cloudy conditions.
• Address the stated failure modes: small lakes in the 0.002–0.5 km² range, frozen lakes, reduced-resolution CLIP features that merge or miss thin lakes, and language-level position descriptions that can become inconsistent or hallucinatory when many visually similar lakes are present.

Target Audience

Researchers and practitioners in remote sensing and Earth observation computer vision, particularly those working on segmentation, multimodal LLMs, and vision–language models applied to satellite imagery. It is also relevant to glaciologists and hazard analysts interested in automated glacial lake mapping, to engineers building interpretable geospatial decision-support tools, and to readers following the extension of LLM-guided segmentation paradigms into multispectral and multi-object remote sensing settings.

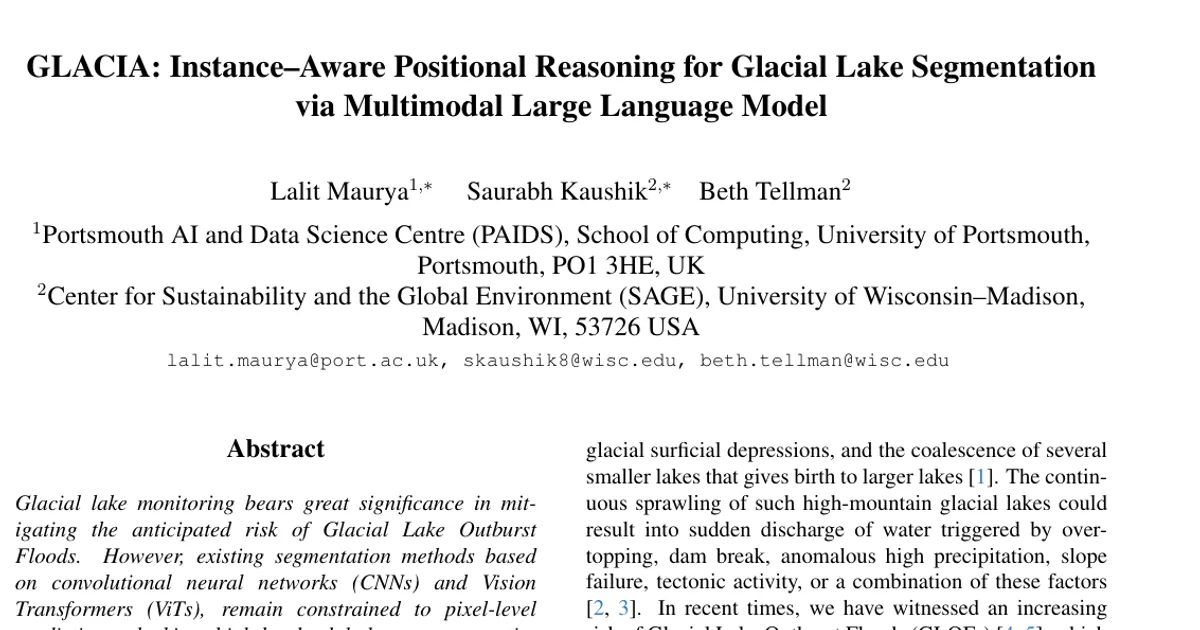

Authors’ abstract

Glacial lake monitoring bears great significance in mitigating the anticipated risk of Glacial Lake Outburst Floods. However, existing segmentation methods based on convolutional neural networks (CNNs) and Vision Transformers (ViTs), remain constrained to pixel-level predictions, lacking high-level global scene semantics and human-interpretable reasoning. To address this, we introduce GLACIA (\textbf{G}lacial \textbf{LA}ke segmentation with \textbf{C}ontextual \textbf{I}nstance \textbf{A}wareness), the first framework that integrates large language models with segmentation capabilities to produce both accurate segmentation masks and corresponding spatial reasoning outputs. We construct the Glacial Lake Position Reasoning (GLake-Pos) dataset pipeline, which provides diverse, spatially grounded question-answer pairs designed to overcome the lack of instance-aware positional reasoning data in remote sensing. Comparative evaluation demonstrate that GLACIA (mIoU: 87.30) surpasses state-of-the-art method based on CNNs (mIoU: 78.55 - 79.01), ViTs (mIoU: 69.27 - 81.75), Geo-foundation models (mIoU: 76.37 - 87.10), and reasoning based segmentation methods (mIoU: 60.12 - 75.66). Our approach enables intuitive disaster preparedness and informed policy-making in the context of rapidly changing glacial environments by facilitating natural language interaction, thereby supporting more efficient and interpretable decision-making. The code is released on https://github.com/lalitmaurya47/GLACIA
