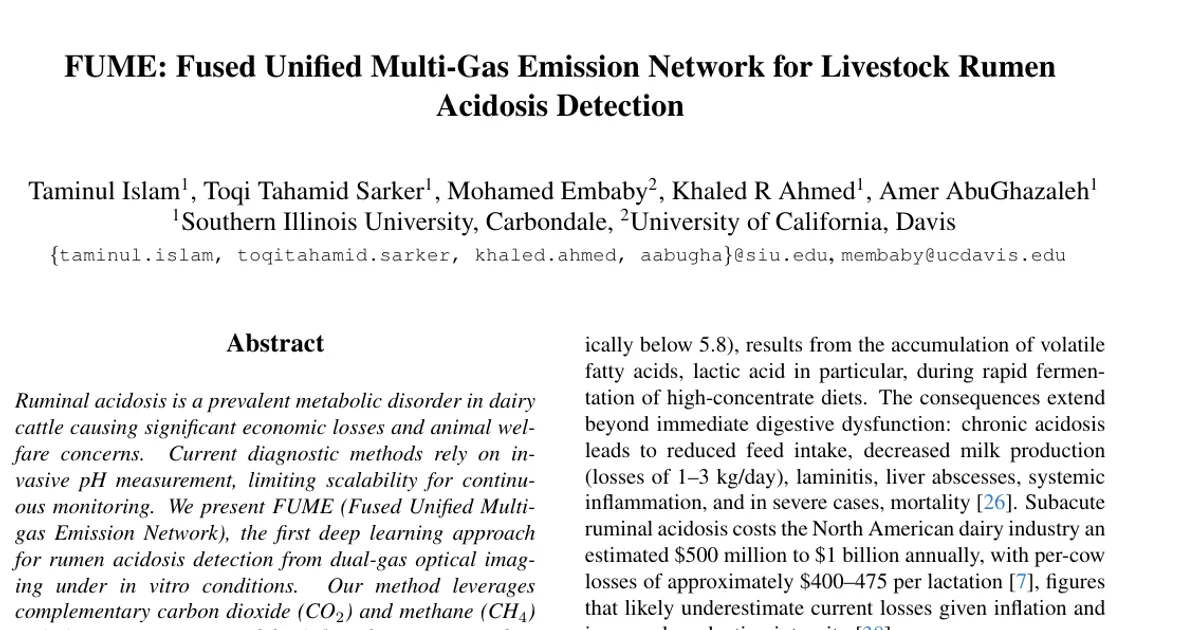

FUME: Fused Unified Multi-Gas Emission Network for Livestock Rumen Acidosis Detection

AI summary

Overview

• Research area: Agricultural computer vision / optical gas imaging (OGI) — specifically applying deep learning to thermal gas-emission imagery for livestock health assessment.
• Technical level: Intermediate (requires familiarity with semantic segmentation, multi-modal fusion, and multi-task learning, but the design choices are explained in accessible terms).
• Scope: The paper introduces FUME, a lightweight dual-stream network that jointly segments CO₂ and CH₄ gas plumes and classifies rumen health state (Healthy, Transitional, Acidotic) from paired infrared camera frames captured under controlled in vitro fermentation conditions.

What This Paper Is About

Ruminal acidosis is a costly metabolic disorder in dairy cattle, but the standard diagnostic — directly measuring rumen pH — is invasive, expensive, and impractical for continuous monitoring at scale. Gas emissions from rumen fermentation differ between healthy and acidotic animals (less methane, more CO₂ under acidosis), and infrared optical gas imaging can capture those emissions non-invasively, but reading them by eye is not feasible. This paper asks whether a deep learning model can learn the relationship between dual-gas emission patterns and pH-defined health states, and it does so as a first feasibility test under precisely controlled laboratory conditions.

Key Contributions

1. First dual-gas OGI dataset for rumen health assessment: 8,967 annotated frames across six pH levels (6.5, 6.2, 5.9, 5.6, 5.3, 5.0), containing 6,163 CO₂ frames and 2,804 CH₄ frames, each with pixel-level segmentation masks (background, tube, gas) and image-level health labels.
2. A dual-stream multi-task architecture (FUME): weight-shared Fast-SCNN encoders, modality-specific self-attention, channel attention fusion, and separate decoding heads for CO₂ segmentation, CH₄ segmentation, and health classification.
3. Physiologically motivated fusion design: channel attention instead of cross-modal spatial attention, based on the finding that CO₂ and CH₄ are correlated in aggregate statistics but do not share pixel-wise spatial correspondence.
4. Demonstration that CO₂ is the primary discriminative biomarker for acidosis detection, with CH₄ contributing complementary spatial refinement for boundary delineation.

Main Findings

• Segmentation performance: FUME reaches 80.99% mIoU and 89.23% Dice, outperforming the OGI-specific baselines Gasformer (62.09% mIoU), CarboFormer (54.95%), and GasTwinFormer (47.80%), as well as general segmentation baselines such as BiSeNetV2 (75.91%) and DDRNetSlim (56.97%).
• Classification performance: FUME achieves 98.82% accuracy, 97.49% macro F1, and 99.03% balanced accuracy, with the highest Acidotic-class F1 (99.15%). BiSeNetV2 records the single best reported accuracy at 99.04%.
• Boundary quality: Best reported HD95 (46.58 px) and ASD (14.00 px) among the compared methods.
• Efficiency: 1.28M parameters, 1.97G MACs, 3.06 ms latency, and 326.80 FPS — the lowest MACs in the comparison and roughly 10× lower computation than BiSeNetV2 (21.01G MACs). The paper reports FUME is 1.8–3× faster than the OGI baselines.
• Attention can hurt: Adding full cross-modal attention reduced mIoU by 1.68 percentage points and increased latency by 48%; self-attention only reduced mIoU by 0.63 pp and increased latency by 16%. The paper notes this may be sensitive to attention design and hyperparameters.
• CO₂ is essential, CH₄ is complementary: Removing CO₂ (CH₄ only) caused classification to collapse to 48.29% accuracy. Removing CH₄ (CO₂ only) cost 0.47 pp mIoU and 0.31 pp Dice, indicating CH₄ helps boundary delineation.
• Both tasks matter: Classification-only reached 97.86% accuracy with no segmentation ability; segmentation-only retained 71.21% mIoU but failed at classification with 33.65% accuracy.
• Data characteristics: Gas plumes occupy only 5.3% of pixels, and the unequal CO₂/CH₄ counts reflect that CH₄ is less visible at acidotic pH. Splits were stratified 70-15-15 (6,277 train / 1,346 val / 1,344 test), partitioned by pH level and by fermentation session to avoid leakage.

Methodology in Plain English

The researchers collected rumen fluid from fistulated cattle and ran in vitro fermentations at six fixed pH levels, keeping a CO₂-sensitive FLIR GF343 camera (4.2–4.4 μm) and a CH₄-sensitive FLIR GF320 camera (3.2–3.4 μm) side by side at 20 cm from the gas source, recording simultaneously at 256×256 resolution and upsampling to 512×512 for training.

They then built a network with two parallel branches, one for CO₂ and one for CH₄, sharing the same encoder weights so both gases are described by a common set of visual features. Each branch briefly refines its own deep features with self-attention. The two sets of features are then concatenated and reweighted by a channel attention module, which looks at global average statistics across the whole image and decides which feature channels from each gas deserve more weight — rather than trying to match CO₂ pixels to CH₄ pixels, which the authors found does not hold.

The fused features feed three outputs: a segmentation head for CO₂, a segmentation head for CH₄, and a classification head that predicts Healthy, Transitional, or Acidotic. Training is joint, combining Focal and Dice losses (weighted 0.5 each) for the two segmentation tasks with a Focal classification loss, using a multi-task weight of λ = 0.5. All models were trained in PyTorch on an NVIDIA A6000 with AdamW (lr=0.001), batch size 16, and 20 epochs with cosine annealing.

Why This Matters

• Research impact: This is the first work to frame gas-emission imaging as a metabolic-state inference problem rather than binary gas-presence detection, opening a bridge between industrial OGI segmentation research and agricultural computer vision. The released dataset (8,967 annotated frame pairs) gives the community a new benchmark where modality pairing is physiological, not just visual.
• Real-world applications:
  • Continuous, non-invasive herd health monitoring in dairy barns, replacing or supplementing rumenocentesis and indwelling bolus sensors.
  • Early-warning systems that flag transitioning animals before clinical acidosis develops.
  • Decision support for feed formulation and concentrate management in intensive feeding operations.
  • A low-cost, real-time platform (1.28M parameters, 326.80 FPS) suitable for edge deployment on farm hardware.
• Industry relevance: The paper cites that acidosis affects an estimated 19–26% of dairy cows in intensive systems, costs the North American dairy industry an estimated $500 million to $1 billion annually, and produces per-cow losses of approximately $400–475 per lactation. A passive, camera-based screening tool addresses a market with direct economic exposure.

Future Directions

• In vivo validation: The study is limited to controlled in vitro conditions; moving to live animals requires handling animal motion, environmental variability, and intermittent plume visibility.
• Temporal modeling: The current method operates on individual frames; the authors identify temporal modeling of gas emission sequences as a future direction.
• Domain adaptation: Bridging the gap between laboratory OGI capture and real farm environments with variable conditions is explicitly named as needed work.
• Attention design investigation: The counter-intuitive finding that attention hurt segmentation (and that it boosted classification accuracy by 0.43% even as mIoU dropped 1.68 pp) is flagged as needing further study across different attention variants and hyperparameter settings.

Target Audience

Agricultural computer vision and precision-livestock researchers; engineers building multi-modal segmentation and multi-task learning systems for resource-constrained deployment; animal scientists and dairy industry practitioners evaluating non-invasive acidosis monitoring; and dataset/benchmark developers interested in OGI-based physiological sensing.

Note: The code repository is listed at https://github.com/taminulislam/fume, and the dataset and code are stated to be released upon acceptance. The work was supported by USDA-NIFA Grant No. 2023-70001-40997.

Authors’ abstract

Ruminal acidosis is a prevalent metabolic disorder in dairy cattle causing significant economic losses and animal welfare concerns. Current diagnostic methods rely on invasive pH measurement, limiting scalability for continuous monitoring. We present FUME (Fused Unified Multi-gas Emission Network), the first deep learning approach for rumen acidosis detection from dual-gas optical imaging under in vitro conditions. Our method leverages complementary carbon dioxide (CO2) and methane (CH4) emission patterns captured by infrared cameras to classify rumen health into Healthy, Transitional, and Acidotic states. FUME employs a lightweight dual-stream architecture with weight-shared encoders, modality-specific self-attention, and channel attention fusion, jointly optimizing gas plume segmentation and classification of dairy cattle health. We introduce the first dual-gas OGI dataset comprising 8,967 annotated frames across six pH levels with pixel-level segmentation masks. Experiments demonstrate that FUME achieves 80.99% mIoU and 98.82% classification accuracy while using only 1.28M parameters and 1.97G MACs--outperforming state-of-the-art methods in segmentation quality with 10x lower computational cost. Ablation studies reveal that CO2 provides the primary discriminative signal and dual-task learning is essential for optimal performance. Our work establishes the feasibility of gas emission-based livestock health monitoring, paving the way for practical, in vitro acidosis detection systems. Codes are available at https://github.com/taminulislam/fume.
