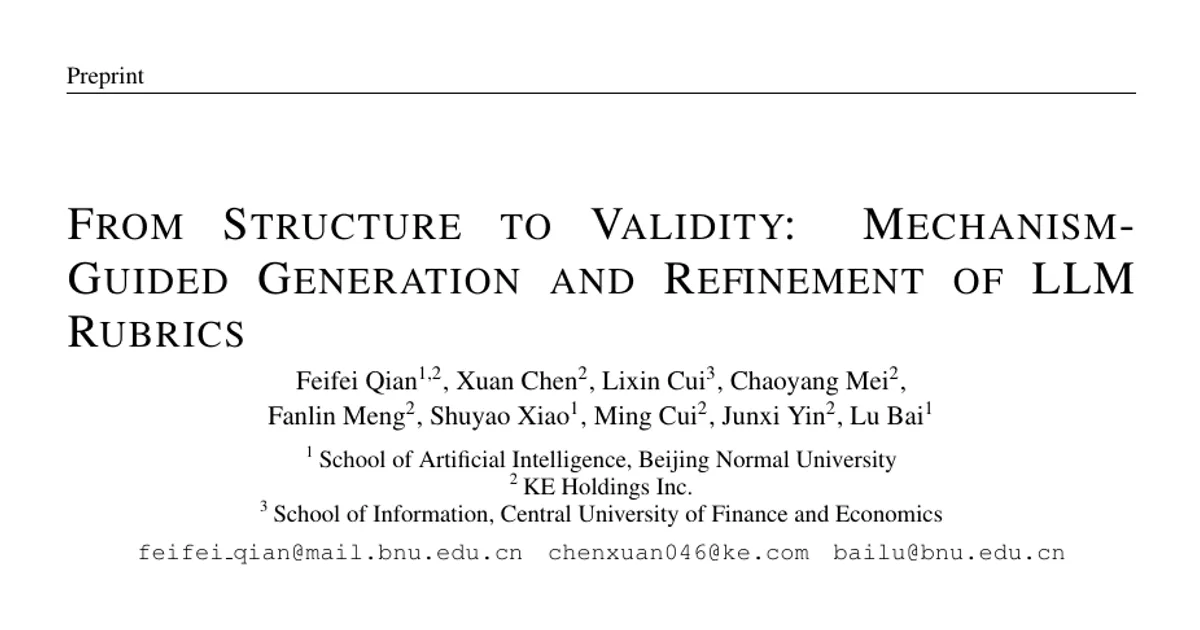

From Structure to Validity: Mechanism-Guided Generation and Refinement of LLM Rubrics

AI summary

Overview

Research area: Natural Language Processing — rubric-based evaluation of large language models (LLM-as-a-Judge), automatic rubric generation and refinement, and rubric-as-reward reinforcement learning.

Technical level: Advanced.

Scope: A mechanistic study of what makes evaluation rubrics effective (criterion organization, criterion operationalization, score aggregation) plus a framework, ARTS-Hybrid, that turns those findings into a rubric generation and refinement pipeline.

What This Paper Is About

Rubrics — explicit, task-specific evaluation criteria — are widely used to score and optimize language models on open-ended tasks, but prior work mostly focuses on generating better rubrics rather than understanding why a rubric design works. Because rubric effectiveness depends on several intertwined design choices, reported gains are hard to attribute to any one choice. The authors dissect rubric design in three stages and then build a construction method guided by the resulting evidence.

Key Contributions

1. A systematic mechanistic analysis of rubric effectiveness. The paper disentangles three interdependent factors: criterion organization, criterion operationalization, and score aggregation.
2. A mechanism-guided generation and refinement framework. The findings are translated into ARTS-Hybrid (Adaptive Rubric Tree Search with Hybrid refinement), which integrates structured decomposition with semantic-first, response-calibrated refinement.
3. Validation beyond rubric-based evaluation. The benefits transfer to a standalone rubric generator, and the generated rubrics provide effective reward signals for policy optimization.

Main Findings

• Structure helps criterion discovery, not just criterion count. Tree-structured generation beats flat generation on coverage and valid novelty under both judges, and the gains survive when generator calls are matched (Flat-Multi). With DeepSeek-V4-Flash-GA: Flat 52.17 / Flat-Multi 56.78 / Tree 57.39 coverage; novelty 9.69 / 9.16 / 11.46. With Llama3.1-405B-Instruct: 42.11 / 41.13 / 43.90 coverage; novelty 22.37 / 25.09 / 27.49.
• Top-down hierarchical routing hurts criterion-level judgment. On violation detection, Tree routing never beat Flat under either judge — e.g., DeepSeek-V4-Flash-GA cross-dimension dropped from 23.92 to 16.44 (−7.48). The authors attribute this to a parent-level routing bottleneck: one error at an internal node hides all violations in that branch.
• Full root-to-leaf paths beat flat evaluation everywhere. Path conditioning improved exact-match accuracy in all six settings, e.g., 26.84 → 30.77 (+3.93) for DeepSeek on single-leaf and 33.91 → 37.25 (+3.34) for Llama on single-leaf. A Shuffled-Path control (semantically mismatched intermediate dimensions at the same depth) generally performed worse, indicating the benefit comes from hierarchical semantics, not merely extra context length.
• Semantic specification alone barely changes criterion behavior. Compared with Direct, Semantic criteria moved discriminative power from 0.5105 to 0.5207 and judge variance only from 0.2749 to 0.2726, so the gains were marginal.
• Response-based calibration drives operational effectiveness but can produce invalid criteria. Calibration achieved the best discriminative power (0.5450) and lowest judge variance (0.2510), but 17.84% of selected candidates were semantically invalid. Combining semantic filtering first with calibration (Semantic + Calibration) removed invalid selections (0.00%) and reached the highest average pairwise accuracy (49.93%).
• Score aggregation adds little. With rubric leaves and criterion-level judgments held fixed, neither hierarchical aggregation nor global/local weighting (WU, from RRD) improved consistently. Flat led with DeepSeek-V4-Flash-GA (73.20%), and Flat + WU gained only 0.27 points under Llama3.1-405B-Instruct (73.27%).
• ARTS-Hybrid leads end-to-end on five of six benchmarks. JudgeBench 64.29, RM-Bench Chat 64.34, RB Chat 89.39, Chat-Hard 68.20, Focus 85.59, and PreciseIF 55.63 (competitive rather than best). It outperformed Q-World on five settings.
• ARTS-Hybrid produces better rubrics by intrinsic measures. With DeepSeek-V4-Flash as evaluator it scored highest on coverage (2.163), concreteness (2.871), non-redundancy (2.851), actionability (2.929), and overall (2.206).
• The pipeline can be distilled and used as a reward. Fine-tuning Qwen3-4B on ARTS-Hybrid rubrics reached 69.43% JudgeBench accuracy versus 69.14% for untrained Qwen3-4B, 66.86% for direct-prompt rubrics, 66.57% for OpenRubrics expert rubrics, and 64.86% for Q-World rubrics. Training Qwen3-4B with Dr.GRPO on 3,000 OpenRubrics instances yielded the best HealthBench scores (thinking 38.93, non-thinking 35.18) compared with the base model (38.14 / 34.86).

Methodology in Plain English

The paper first runs controlled experiments rather than leaderboard comparisons. The authors build a 1,500-instance analysis set by stratified sampling from HealthBench and RubricBench (750 each), both of which supply expert-authored atomic criteria treated as "gold rubric leaves." For each query they manually construct a gold rubric tree by grouping related leaves into higher-level dimensions.

The analysis has three questions. For organization, they compare tree-structured versus flat rubric generation with the same generator (GLM-4.7-Flash), adding Flat-Multi to match the number of generator calls, and measure coverage and valid novelty against gold rubrics. For judgment, they build counterfactual responses by minimal local edits that violate one leaf, several leaves in one dimension, or leaves across dimensions, then test whether judges detect exactly those violations under Flat, Tree, and Path uses of the hierarchy; a Shuffled-Path control checks whether length alone explains the gain. For individual criteria, they define effectiveness as discriminative power and judge stability, then compare Direct, Semantic, Calibration, and Semantic + Calibration selection on 750 RubricBench preference instances. Finally, they hold criteria and judgments fixed and vary only the aggregation scheme.

The findings feed into ARTS-Hybrid. It builds a rubric tree by best-first search over a priority queue, where priority is P(v) = I(v)γ^d_v for importance I(v) in {1,...,5} and depth discount γ in (0,1]. Each expansion first generates candidate child sets, filters them by multi-stage semantic validation for clarity, relevance, assessability, parent coverage, and non-redundancy, then scores surviving candidates on a panel of six calibration responses judged by two independent judges, using J(C) = α_D D(C) + α_A A(C) + α_S S(C) − λ_red R(C) to balance discrimination, cross-judge consistency, and redundancy. After the search, global validation repairs coverage, atomicity, and redundancy, and each leaf receives a directly estimated importance weight rather than a hierarchically propagated one.

Why This Matters

Impact on research. The paper reframes rubric design as an empirical question about mechanisms, not just generation quality. Its counterintuitive result — that hierarchical routing can hurt criterion-level judgment while hierarchical context helps — gives a concrete design rule that head-to-head benchmark comparisons cannot reveal. The finding that score aggregation contributes little also redirects effort toward criterion construction.

Real-world applications

• Content moderation, safety, and instruction-following evaluation, where rubrics must be auditable and cover multiple requirement dimensions.
• Medical and health response evaluation, drawing on the HealthBench-style physician-authored criteria used in the analysis.
• Preference data curation and model selection, where rubric-based judges replace or supplement expensive human review.
• Data sourcing and preference dataset construction, assembling rubric structures that generic generation overlooks.
• Post-training, where rubric-derived rewards extend reinforcement learning to open-ended tasks without programmatically verifiable outcomes.

Industry relevance. Rubric construction is typically an offline cost, and the distillation result (a small Qwen3-4B generator fine-tuned on ARTS-Hybrid rubrics outperforming directive prompting and expert rubrics on JudgeBench) suggests a practical path for teams that cannot run a full search pipeline per query.

Future Directions

• Making hierarchical routing safe. Since parent-level routing acts as a decision bottleneck, future work could add explicit recall safeguards so top-down pruning does not hide downstream violations.
• Reconciling semantic validity with operational effectiveness. Calibration-selected criteria had the best discriminative power and judge stability but a 17.84% semantic-invalidity rate; how to reduce this further while keeping the gains is unresolved.
• Reducing reliance on offline computation. Distillation to a standalone generator is a first step; whether further gains can be retained without repeated full pipeline execution is open.
• Generalizing the reward evidence. The policy-optimization results come from 3,000 OpenRubrics instances with Qwen3-4B and Dr.GRPO; the approach's behavior across other policies, objectives, and domains is not reported.
• Cross-judge robustness and ablation. The paper states these are examined in its appendix rather than the main text.

Target Audience

Researchers and engineers working on LLM evaluation, LLM-as-a-Judge systems, rubric generation and refinement, and rubric-based reinforcement learning or reward modeling. It is also relevant to practitioners building automated evaluation pipelines for open-ended tasks, and to readers interested in controlled mechanistic studies of prompt- and structure-level design choices rather than end-to-end benchmark gains.

Authors’ abstract

Rubrics have been widely used to evaluate and optimize language models on open-ended tasks. However, existing work primarily focuses on generating better rubrics, with limited understanding of what makes rubric design effective. In this work, we conduct a systematic mechanistic analysis of rubric design across criterion organization, criterion operationalization, and score aggregation. Our analysis shows that structural organization enables more comprehensive criterion construction, semantic specification alone does not ensure effective criterion-level judgments, and sophisticated score aggregation provides limited additional gains. Guided by these findings, we introduce Adaptive Rubric Tree Search with Hybrid refinement (ARTS-Hybrid), which combines adaptive tree construction with semantic-first, response-calibrated refinement. Experiments across benchmarks show that ARTS-Hybrid improves both end-to-end evaluation performance and intrinsic rubric quality. Further experiments suggest that, beyond evaluation, rubrics generated by ARTS-Hybrid provide effective signals for model optimization.
