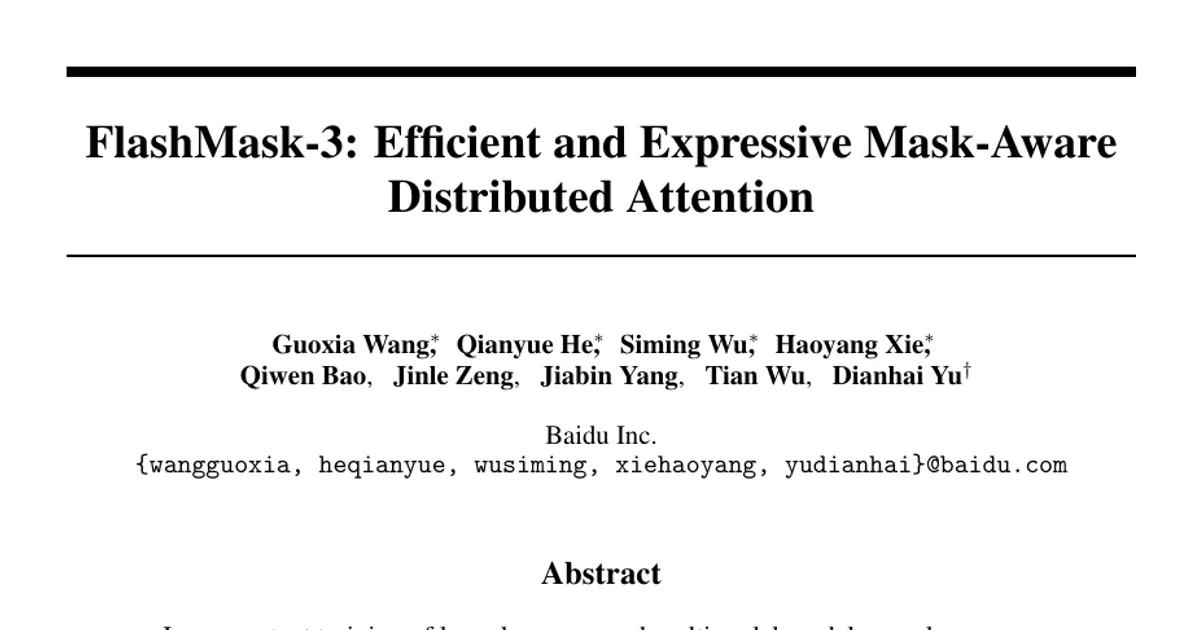

FlashMask-3: Efficient and Expressive Mask-Aware Distributed Attention

AI summary

Overview

• Research area: Efficient attention kernels and distributed training systems for long-context large language and multimodal models.
• Technical level: Advanced (assumes familiarity with FlashAttention-style tiled kernels, GPU warp specialization, and context parallelism).
• Scope: The paper presents FlashMask-3, a mask-aware Hopper attention kernel plus a distributed context-parallel extension built on FlashMask's column-wise sparse mask representation, and evaluates it on a single H100 GPU, at context-parallel degrees up to 32, and in end-to-end training of a 118B-A14B MoE model.

What This Paper Is About

Long-context training increasingly relies on structured attention masks (document, prefix-LM, share-question, sliding-window, block-sparse) to encode data semantics inside a packed batch, and training scales out with multi-node context parallelism. This combination turns the mask itself into a dominant bottleneck: masks must be materialized, scheduled, and balanced across ranks. The predecessor, FlashMask, compressed these masks to O(n) storage via four query-axis boundary vectors, but it was implemented for Ampere GPUs, does not use FlashAttention-3's TMA/WGMMA warp-specialized Hopper pipeline, and has no distributed support. FlashMask-3's goal is to close both gaps while keeping one mask abstraction and one kernel binary for single-GPU and multi-node execution.

Key Contributions

1. Mask-aware Hopper kernel. A three-role warp specialization (KV Index Generator, KV Loader, MMA Consumer) integrates column-wise sparse mask processing into the asynchronous TMA/WGMMA pipeline at near-zero overhead, complemented by a Preemptive Persistent Tile (PPT) scheduler that restores SM-level balance under irregular masks.
2. Zero-communication distributed mask transform. An elementwise clip–shift–max operation applied to the global boundary vectors produces rank-local mask tensors under any multi-chunk context-parallel assignment, with provable correctness (Theorem 1, Appendix C.1) and no cross-rank communication.
3. Mask-aware distributed extension. A Hierarchical Compute-Communication Iterative Pairwise Optimal (HCC-IPO) load balancer, plus a mask-aware compute-communication overlap whose forward all-gather uses topology-aware hierarchical routing, mask-driven communication pruning, and bitmask-AMO synchronization for the backward reduce-scatter overlapped with attention recomputation.
4. Empirical evaluation. Single-GPU kernel benchmarks over 12 structured masks and context lengths from 4K to 128K; context-parallel scaling from degree 4 to 32; and end-to-end training of a 118B-A14B MoE model at 128K context on 128 H100 GPUs.

Main Findings

• Single-GPU kernel speedups: On a single H100 GPU across 12 structured masks at context lengths from 4K to 128K, FlashMask-3 improves achieved TFLOPs over FlashMask by 45% to 141%, over FlexAttention by 34% to 71%, and over MagiAttention by 2% to 44%, outperforming all three baselines on every mask pattern and sequence length.
• Geometric-mean gains: The mean speedup is 82.6% over FlashMask and 55.3% over FlexAttention. Against MagiAttention it is 15.0% in geometric mean, excluding the Random Eviction mask, on which MagiAttention's block-sparse representation is ill-suited and results in over 50× slowdown.
• Speedup grows with sequence length: Over FlashMask, the gain rises from +66.2% to +97.3% going from 8K to 128K, which the authors attribute to compounding benefits as attention becomes increasingly memory-bound.
• Distributed scaling: Under context-parallel degrees from 4 to 32 with 8K sequence per device, FlashMask-3 attains 31% to 75% compute-communication overlap efficiency and improves throughput over Megatron-Core CP (ring) by 1.80× to 3.71×, over Megatron-Core CP (all-gather) by 1.71× to 2.92×, and over MagiAttention by 1.09× to 1.46×.
• Scaling example: On the Causal Document Mask, throughput increases from 430.5 TFLOPs/s at CP = 4 to 471.8, 491.8, and 501.6 TFLOPs/s at CP = 8, 16, and 32.
• End-to-end training: On a 118B-A14B MoE model at 128K context on 128 H100 GPUs (CP degree 16), throughput rises 7.3% / 7.7% / 11.0% over a Dual Chunk all-gather baseline at 70% / 80% / 86% average mask sparsity, with attention forward+backward 24.5% / 42.1% / 44.9% faster. At 70% sparsity, per-step time drops from 10900.5 ms to 8757.6 ms.
• Why the end-to-end gain is smaller: Attention accounts for only 43.5% / 25.8% / 24.4% of forward+backward compute time in the full configuration, and the end-to-end measurement also covers gradient synchronization and the optimizer update, which the method does not modify.
• Component breakdown: Balancing contributes 2.8% / 4.4% / 5.7%, overlap contributes 5.4% / 4.2% / 5.9%, and chunk-skip pruning adds 2.0% / 2.9% / 1.5%. With hierarchical routing disabled, balancing plus overlap falls to −1.7% / −1.5% / +1.9%, below overlap alone, because the balancer spreads chunks across nodes.
• Pipeline depth: The default of 4 backward pipeline stages follows the rule at P = 16; halving it to 2 costs up to 3.6%, while raising it to 8 yields no significant further gain.
• PPT scheduler: Across 12 mask configurations at sequence lengths of 8K, 32K, and 128K on a single H100 GPU, PPT consistently outperforms the static scheduler by up to 12%.
• Load balancing: IPO achieves the lowest peak-to-average ratio of per-device computation time across all three tested mask patterns, refining the LPT solution toward a more balanced assignment.
• Communication pruning: Skipping entirely masked-out KV chunks eliminates approximately 50% of all-gather/reduce-scatter traffic in typical causal document and prefix-LM document masks.
• Hierarchical routing: At P = 32 (G = 8 GPUs per node), inter-node pulls drop from (N−1)·G = 24 to N−1 = 3, a roughly 90% reduction.
• Exactness: FlashMask-3 computes exact attention; mask localization matches the global mask (Theorem 1), and the balancer, overlap, and pruning change only how work is placed, not what is computed.

Methodology in Plain English

FlashMask-3 keeps FlashMask's insight that most structured masks can be described by four boundary vectors, one per key position, that mark which query rows are masked. Because these vectors are indexed by key positions but store query-axis values, the researchers show that each rank in a context-parallel job can derive its own local mask by simply clipping each value to a chunk window, shifting it by the chunk offset, and taking the maximum across the chunks it owns. That is the "clip–shift–max" transform: no rank-to-rank exchange is needed, and the result plugs straight into the single-GPU kernel interface.

On the GPU side, rather than adding mask checks inside the main compute loop, they noticed that FlashAttention-3's Producer warp group leaves 96 of its 128 threads idle each iteration. They reuse those threads as a third role that scans the mask boundaries and emits a queue of blocks labeled fully-masked, partially-masked, or unmasked. A loader only issues TMA loads for listed blocks, and the compute role applies a row-interval mask only on partially masked ones. A preemptive persistent scheduler lets each CTA atomically claim its next query block, so irregular masks do not leave SMs straggling.

For distribution, they first balance compute across ranks with an iterative pairwise-optimal (IPO) procedure under a fixed per-rank chunk count, then reduce the worst-case inter-node KV traffic by swapping chunks between the busiest and least-busy nodes while holding compute balance within a tolerance, and finally restore balance within each node. The overlap design puts a single shared NVSHMEM buffer in place, lets a lightweight kernel mark fully masked KV chunks so the communication kernel skips them, and routes the forward all-gather in two phases — cross-node fetch first, then intra-node NVLink fetch — to account for RoCE being 5–10× slower per GPU than NVLink. In the backward pass, the reduce-scatter is split into segments and overlapped with the next segment's all-gather and recomputation, synchronized with bitmask atomic memory operations.

Why This Matters

• Research impact: The paper shows that a mask representation designed as a single-GPU memory optimization also serves as a natural interface for distributing expressive masks at zero communication, and that one kernel binary can serve both single-GPU and multi-node execution. This connects structured-mask expressiveness with Hopper-class kernel efficiency and with context parallelism in a way prior work treated separately.
• Real-world applications (grounded in the paper's mask families):
  • Packed long-context pretraining where document and prefix-LM masks keep samples from attending across each other.
  • Multimodal training with share-question masks, where image and text segments share a question prefix within one packed batch.
  • Efficient inference-time context handling using sliding-window and block-sparse patterns.
  • Production long-context training runs at hardware scale, such as the 128-H100, 128K-context MoE training evaluated here.
• Industry relevance: The reported end-to-end gain of 7.3%–11.0% in throughput at 128K context on 128 H100 GPUs translates directly into lower cost per training step for long-context models. The authors note in the broader impact section that improved throughput and energy efficiency lower the cost barrier for academic and open-source long-context multimodal research and reduce the carbon footprint of large-scale training.

Future Directions

• Extending mask coverage. The method covers the column-wise sparse mask family of Wang et al. [2024]; masks whose per-column masked rows do not decompose into two intervals require representation extensions.
• Porting beyond Hopper. The kernel exploits TMA/WGMMA and assumes Hopper-class architectures; retargeting the warp specialization is required for other architectures.
• Generalizing topology assumptions. The hierarchical overlap assumes per-node 8-GPU NVLink islands with same-rank IB topology; clusters with different topologies need a different inter-node mapping, and smaller contexts may not amortize the scheduler overhead.
• Applying hierarchical routing to the backward pass. Hierarchical routing is currently applied only to the all-gather; extending it to the backward reduce-scatter is left as future work.
• Broader configuration sweeps. The benchmarks cover a representative but not exhaustive set of QKV tensor configurations; a systematic sweep over batch sizes and query/key-value head ratios beyond those reported is left to future work.

Target Audience

This paper is most valuable to systems and kernel engineers building long-context training infrastructure, researchers working on attention kernel optimization for NVIDIA Hopper GPUs, and practitioners implementing or tuning context-parallel training for large language and multimodal models. It also benefits compiler and attention-library developers comparing structured-mask representations, since it positions FlashMask-3 against FlexAttention's JIT-compiled mask functions and MagiAttention's AttnSlice formulation. Readers need background in FlashAttention-style tiling, GPU warp specialization, and distributed training parallelism to follow the kernel and overlap details, though the high-level contributions are accessible to anyone familiar with long-context training costs.

Authors’ abstract

Long-context training of large language and multimodal models couples structured attention masks (document, prefix-LM, share-question, sliding-window, block-sparse) with multi-node context parallelism, making the mask a dominant bottleneck. FlashMask's column-wise sparse mask compresses them from $O(n^2)$ to $O(n)$ via four query-axis boundary vectors, covering broad structured patterns. Implemented for Ampere GPUs, it neither exploits FlashAttention-3's TMA/WGMMA warp-specialized pipeline on Hopper nor supports distribution. The column-wise sparse mask is indexed by key positions but stores query-axis interval boundaries. Under any multi-chunk context-parallel assignment, it reduces per-rank mask localization to a provably zero-communication \emph{clip--shift--max} on the boundary vectors, compatible with the single-GPU kernel. FlashMask-3 introduces a mask-aware Hopper kernel with three-role warp specialization atop FlashAttention-3's TMA/WGMMA pipeline, plus a mask-aware distributed extension: zero-communication mask localization, a sparsity-aware load balancer (HCC-IPO), and a mask-aware compute-communication overlap with mask-driven communication pruning, whose forward all-gather uses topology-aware hierarchical routing. On a single H100 across 12 masks at 4K--128K context, it improves achieved TFLOPs over FlashMask, FlexAttention, and MagiAttention by 45--141%, 34--71%, and 2--44%. At context-parallel degrees 4--32 with 8K sequence per device, it attains 31--75% compute-communication overlap efficiency and improves throughput over Megatron-Core CP ring, Megatron-Core CP all-gather, and MagiAttention by $1.80\times$--$3.71\times$, $1.71\times$--$2.92\times$, and $1.09\times$--$1.46\times$. In end-to-end training of a 118B-A14B MoE at 128K on 128 H100 GPUs, it raises throughput by 7.3--11.0% over a Dual Chunk all-gather baseline, with attention forward+backward 24.5--44.9% faster.
