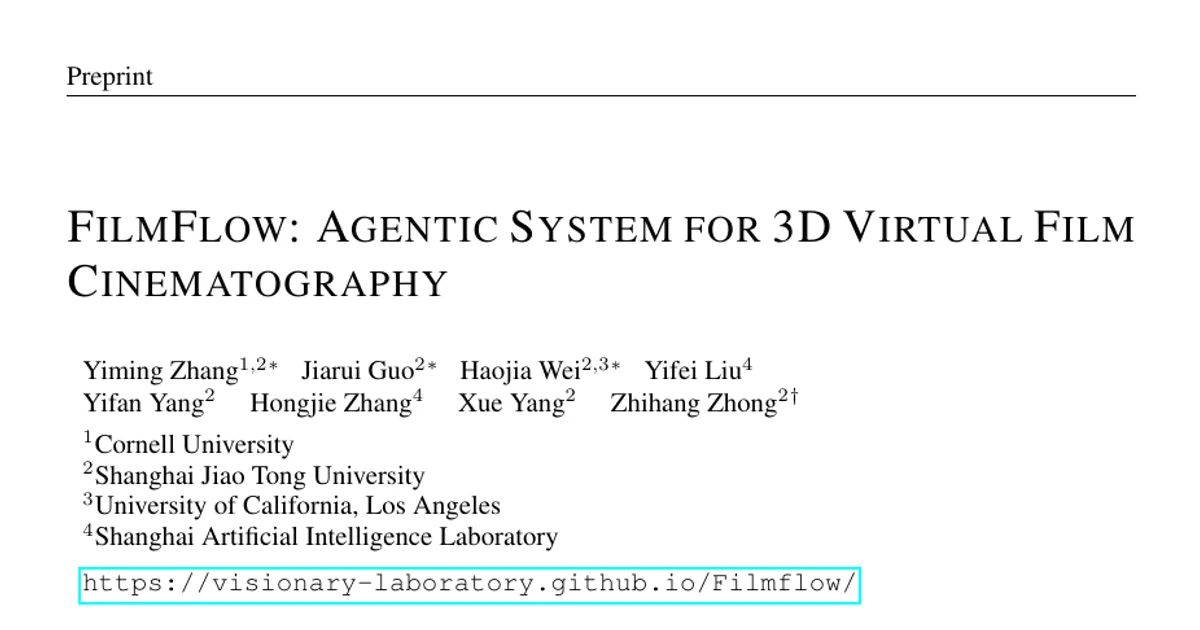

FilmFlow: Agentic System for 3D Virtual Film Cinematography

AI summary

Overview

Research area: Computer vision and computational cinematography, specifically multi-agent (LLM-based) camera planning for 3D scenes, with a new benchmark for evaluating generated camera trajectories.

Technical level: Advanced. The paper assumes familiarity with 3D rendering pipelines (Blender), camera parameterization (position, orientation, focal length), LLM agent design patterns, and video-quality metrics.

Scope: FilmFlow is a four-agent system that turns either a natural-language instruction or a reference video into an executable, refinable camera trajectory inside a dynamic 3D scene, evaluated on a new 150-scene benchmark called CinemaBench.

What This Paper Is About

Filmmakers describe shots in words or show reference footage, but the actual camera moves — where to stand, when to orbit, when to start pushing in — are left implicit. Turning that intent into a collision-free, well-composed, executable camera path in a 3D scene with moving subjects is hard, especially when several movements must overlap in time (for example, orbiting a walking subject while rising, then starting a push-in before the orbit ends). FilmFlow's goal is to produce those trajectories automatically, and to check the rendered result for composition and pacing rather than only geometric validity.

Key Contributions

1. An agentic cinematography framework for dynamic scenes. To the authors' knowledge, FilmFlow is the first agentic framework to unify text-directed and video-reference-directed camera generation in dynamic 3D scenes. A Director builds executable camera plans, supported by an Interpreter (scene-grounded intent extraction), a Scout (initial viewpoint selection), and a Critic (evaluation and feedback).

2. A concurrent atomic-operation representation. Camera plans are composed from 22 atomic operations grouped into position (Dolly In/Out, Truck, Pedestal Up/Down, Orbit, Path Follow, Position Follow, Height Follow, Distance Follow), orientation (Pan, Tilt, Aim Follow, Screen Position Lock, Roll, Horizon Lock), framing (Zoom, Frame Subject), focus (Focus Pull, Focus Follow), perturbation (Shake/Handheld), and hold (Static Shot). Each operation carries explicit parameters and a temporal interval, and intervals may overlap so several operations jointly drive the camera.

3. A Critic-guided refinement loop plus in-context learning. The Critic scores opening views on 3 criteria and motion plans on 6 criteria, adds hard checks for camera–scene collision and execution validity, and returns operation-level diagnoses the Director uses to revise operations, parameters, and timing. An example bank of previously accepted shots (built only from development scenes) is retrieved by keyword overlap to condition new plans.

4. CinemaBench. 150 Blender scenes (73 dynamic, 77 static), five graded camera instructions per scene for 750 text-directed tasks, and 60 reference videos for a subset of scenes, supporting both text-directed (T2V) and video-reference-directed (V2V) evaluation.

Main Findings

• Strongest automatic scores on text-directed tasks. On 500 T2V test tasks, FilmFlow reports VideoReward alignment -1.461, DOVER quality 47.60, VideoReward motion quality 0.555, and Probe 0.829, versus LAMP (-1.747 / 41.54 / 0.209 / 0.564), GenDoP (-1.768 / 39.63 / 0.257 / 0.597), and CinemaTraj (-1.788 / 44.65 / -0.068 / 0.618).

• Strongest automatic scores on reference-video tasks. On 40 V2V test tasks, FilmFlow reports -1.224 alignment, 41.77 quality, 0.289 motion quality, and 0.750 Probe, versus zero-shot VLM (-1.417 / 35.86 / 0.041 / 0.502), LingBot-Map (-1.472 / 35.55 / 0.278 / 0.521), and VGGT-Ω (-1.491 / 34.88 / 0.176 / 0.533).

• Every ablated component contributes. Removing any of Scout, concurrent (overlapping) operations, Critic, or ICL lowers T2V quality from 47.60 (w/o Scout 46.11, Sequential-only 45.06, w/o Critic 45.25, w/o ICL 46.12) and lowers T2V motion quality from 0.555 except for Sequential-only, which is close at 0.536. On V2V, quality falls from 41.77 to 40.77 (w/o Scout), 40.78 (Sequential-only), 37.21 (w/o Critic), and 39.04 (w/o ICL).

• One metric does not favor the full system. V2V Probe is slightly higher for w/o ICL (0.766) than for full FilmFlow (0.750); the authors note Probe is an auxiliary exploratory score and do not read the gap as evidence against ICL.

• Highest human preference. In a blinded study with 42 participants (420 T2V and 397 V2V completed rankings), FilmFlow has an 84.3% T2V pass rate and is ranked first in 61.0% of T2V judgments; on V2V it has an 82.1% pass rate and a 63.2% Top-1 rate. All other methods score at or below 77.3% pass rate and 21.2% Top-1 rate.

• Highest human ratings. On a five-point scale, FilmFlow receives 4.2 / 4.4 / 4.3 (alignment / quality / motion) on T2V and 4.0 / 4.3 / 4.0 on V2V, above CinemaTraj's 3.5 / 3.7 / 3.6 on T2V and VGGT-Ω's 3.4 / 3.6 / 3.5 on V2V.

• Qualitative behavior. In the shown examples, baselines mostly render walls or obstructed views, while FilmFlow reveals pedestrians, turns toward the boulevard, and brings a target green sedan into view; in the V2V example it keeps the moving subject visible where LingBot-Map misses the opening frames, VGGT-Ω crops late frames, and the zero-shot VLM loses the subject in the final frame.

• Evaluation uses external scorers only. All outputs are scored by off-the-shelf evaluators (VideoReward, DOVER, a CameraBench-based Probe) that share no weights, prompts, or training data with FilmFlow, to avoid rewarding agreement with its own Critic.

Methodology in Plain English

The pipeline runs in four stages for a single continuous shot.

Interpreter. Given an instruction or reference video plus the scene's object inventory, it produces a structured object description and a cinematographic script: intended camera behavior, duration, and target subjects. For video input it also analyzes the reference's motion and framing and attaches sampled frames plus relative camera poses estimated by LingBot-Map, which the paper treats as motion cues with unverified metric scale.

Scout. Before planning, it proposes candidate opening camera states, renders them, and has the Critic score each on three criteria (instruction alignment, subject readability, composition). Top candidates are perturbed using the Critic's suggested adjustments to position, orientation, and focal length, and the remaining slots are refilled with new samples. The best view is fixed for the rest of the shot, because a poor opening constrains everything after it.

Director. Given the frozen opening, it writes an operation timeline: a set of atomic operations, each with a method name, parameters, and a start/end interval. The executor expands each operation into an absolute camera-state sequence, extracts its relative change from its reference state, and composes the relative changes with a base state per frame, then bakes per-frame keyframes. Compatible operations whose intervals overlap therefore modify position, orientation, and focal length jointly.

Critic. It renders the executed plan, applies hard checks for camera–scene collision and execution validity, and scores motion on six criteria (the three view criteria plus spatial storytelling, motion coherence, and cinematic quality). Its feedback names specific operations, parameters, and timings to revise. Plans stop when they pass a score threshold and the Critic approves, or when the iteration budget runs out. Scores are judged relative to the script, so intentional occlusion is not penalized.

In-context learning. Accepted shots from 50 development scenes are stored with a retrieval key of up to three keywords from a shared vocabulary of visual goals, motion requirements, and framing requirements — deliberately not scene-specific object identities, so examples transfer across scenes. New tasks retrieve the most similar example by Jaccard similarity and concatenate it into the Director's context. Development and test scenes are disjoint.

Why This Matters

The work reframes camera generation as producing an editable, executable plan rather than a raw trajectory: because each operation keeps its own parameters and timing, feedback can be applied at the level of "shorten the orbit" or "raise the opening," which is closer to how a director gives notes.

Impact on research: CinemaBench supplies a paired text/video testbed with development and test splits, and the explicit trajectories are directly usable as conditioning for camera-controlled video generation models — the paper notes that such models condition on camera trajectories that FilmFlow can supply.

Real-world applications:

• Previsualization and animatics for film and animation, where shots currently must be blocked out by hand.
• Automated or assisted virtual production in game engines and Blender-based pipelines.
• Generating camera motion for camera-controlled video generation, using either a written shot description or existing footage as the reference.
• Rapid exploration of coverage options for a scene, with the Critic surfacing composition and pacing problems before rendering.

Industry relevance: The system targets off-the-shelf 3D scenes and requires no differentiable rendering or scene-specific training, and its plans are human-readable JSON-like timelines, which suits studios that need editable, inspectable output rather than opaque motion.

Future Directions

• Smaller models. The authors plan to investigate whether smaller models can reach comparable performance through task-specific fine-tuning; all FilmFlow agents here use gpt-6-astra with medium reasoning effort, and inference cost is not reported.
• Joint scene construction and camera planning. Extending FilmFlow to automate scene construction alongside camera planning is stated as future work.
• Multi-shot and editing-level control. The formulation in the paper covers a single continuous shot; how cuts, coverage, and continuity across shots would be planned is not addressed.
• Robustness of the auxiliary camera-motion signal. The V2V Probe result where the ablated variant edges out the full system leaves open how best to measure camera-motion fidelity, and the authors treat Probe as complementary rather than decisive.

Target Audience

Researchers and graduate students in computer vision, computer graphics, and computational cinematography; practitioners building LLM-agent systems that must act on and verify rendered output; and technical directors or animation/VFX engineers interested in automating camera blocking in Blender-based pipelines. Readers wanting implementation detail will find agent interfaces, prompt excerpts, and a worked example (a 10-second, 240-frame dolly zoom at 24 fps) in the appendix; the 22-operation codebook and the parameter-specific composition rules are the core artifacts to understand.

Authors’ abstract

Complex camera motion is central to visual storytelling, yet translating cinematographic intent into controllable, executable camera trajectories remains challenging. We introduce FilmFlow, an agentic framework that converts natural-language instructions or reference videos into explicit camera trajectories for dynamic 3D environments. To generate these trajectories, a Director agent constructs executable camera plans by composing high-level motions from concurrent atomic operations that jointly control translation, rotation, and framing. The Director is supported by three specialized agents: an Interpreter that extracts scene-grounded cinematographic intent, a Scout that selects initial viewpoints, and a Critic that evaluates rendered results and provides visual feedback for iterative plan refinement. We also introduce CinemaBench, comprising 150 Blender scenes from self-created and licensed sources, with five camera instructions per scene for 750 text-directed tasks and 60 reference videos associated with a subset of scenes. CinemaBench supports evaluation of both text-directed camera generation and video reference-directed camera generation. Across a diverse set of evaluated baselines, FilmFlow achieves the strongest benchmark performance and the highest user preference, demonstrating effective spatial reasoning, temporal coordination, and visual composition for executable 3D cinematography.
