EMoE: Eigenbasis-Guided Routing for Mixture-of-Experts

AI summary

Overview

Research area: Machine learning — sparse Mixture-of-Experts (MoE) architectures, routing/gating mechanisms, Vision Transformers, and efficient model scaling for computer vision.

Technical level: Intermediate. The reader needs some familiarity with Vision Transformers, the MoE "top-k gating" setup, and basic linear algebra (eigenvectors, covariance, orthonormality), though the paper explains its own formulation from scratch.

Scope: The paper proposes EMoE, an MoE routing scheme that replaces a learned gating network with a learned orthonormal eigenbasis, and evaluates it on ImageNet-1K classification, few-shot CIFAR-10/CIFAR-100/Tiny-ImageNet-200 probes, expert load-balance heatmaps, and a 3D MRI brain-age prediction task.

What This Paper Is About

Mixture-of-Experts models run only a few "expert" sub-networks per input, which lets a model hold far more parameters without a proportional jump in inference cost. In practice they break in two ways: routing collapses so a few experts get most of the traffic (the "rich get richer" problem, which creates a throughput bottleneck), while the standard fix — an auxiliary load-balancing loss — pushes traffic toward uniformity at the cost of making experts redundant (the paper cites prior reports of pairwise expert similarity as high as 99%). EMoE's goal is to get balanced expert usage and genuinely specialized experts at the same time by routing tokens geometrically along the principal directions of the feature distribution.

Key Contributions

1. An eigenbasis-guided router. The router maintains a learnable basis matrix U ∈ R^(D×r), with r ≪ D, intended to align with the top-r principal components of the empirical patch-token covariance C = (1/N)HᵀH, and routes each token by its alignment with those directions rather than by an unconstrained learned gate.
2. Elimination of the auxiliary load-balancing loss. Routing is driven by a geometric partition of the feature space, so the paper does not need the auxiliary load-balancing loss that it argues conflicts with expert specialization. The only auxiliary term described is an orthonormality regularizer L_ortho = λ_ortho ‖UᵀU − I_r‖²_F on each router's U.
3. A concrete EMoE-augmented ViT block. Each MoE branch contains one Eigen Router and 8 expert MLPs, runs in parallel with the ViT feed-forward layer, uses top-1 (single-expert) gating per token, and lets only patch tokens pass through the MoE branch while the class token bypasses the router.
4. Empirical validation across vision benchmarks and a medical task, including ImageNet-1K accuracy comparisons against V-MoE, Single-gated MoE, and DeepMoE, few-shot linear probes, expert–class routing heatmaps, and brain-age prediction from 3D structural MRI. Code is publicly available at https://github.com/Belis0811/EMoE.

Main Findings

• ImageNet-1K top-1/top-5 accuracy (Table 1): EMoE-ViT-H reaches 88.14% / 98.27%; EMoE-ViT-L reaches 86.70% / 97.34%; EMoE-ViT-B reaches 85.32% / 96.45%. Baselines: V-MoE 87.41% / 97.94%, Single-gated MoE 72.38% / 93.26%, DeepMoE 77.12% / 95.07%. The paper states EMoE-ViT-H establishes state-of-the-art performance among the evaluated methods.
• Advantage holds at smaller scale: the paper reports that even EMoE-ViT-B (85.32%) substantially outperforms both Single-gated MoE and DeepMoE by over 5%.
• One-shot CIFAR-10: EMoE-ViT-H achieves 96.1% top-1 and 97.0% top-5 with a single example per class (Figure 2, reported with ± 2% std).
• Few-shot linear probes (Table 2, top-1 %):
  • CIFAR-100 5-shot / 10-shot: V-MoE 89.49 / 91.26; Single-gated MoE 74.85 / 76.62; DeepMoE 68.81 / 70.58; EMoE-ViT-B 86.92 / 90.00; EMoE-ViT-L 88.83 / 91.37; EMoE-ViT-H 91.04 / 96.54.
  • Tiny-ImageNet-200 5-shot / 10-shot: V-MoE 81.12 / 83.16; Single-gated MoE 60.45 / 62.49; DeepMoE 55.46 / 57.49; EMoE-ViT-B 80.03 / 82.81; EMoE-ViT-L 82.05 / 89.97; EMoE-ViT-H 83.71 / 90.04.
  • The paper highlights a roughly 5% gain over V-MoE on CIFAR-100 10-shot (96.54% vs 91.26%) and a gap of almost 7% on Tiny-ImageNet-200 10-shot (90.04% vs 83.16%).
• Load balance (Figure 3 heatmaps of average routed tokens per expert–class pair): on CIFAR-10 and CIFAR-100, a few experts are preferred for coherent subsets of classes but all eight experts remain active with no row collapsing to near-zero usage; on Tiny-ImageNet and ImageNet, routing becomes visibly denser and more distributed, with each class processed by multiple experts and each expert serving a broad, overlapping slice of classes — close to uniform at scale.
• Adaptive routing behavior: the paper reports that the router dispatches inputs to distinct specialists on datasets with clear conceptual separation, and forms a more collaborative, ensemble-like allocation on datasets with high inter-class similarity.
• Brain age prediction from 3D structural MRI: adapting EMoE to a 3D CNN backbone with eigenbasis-guided routing over volumetric patch features yields a Mean Absolute Error of 2.16 years, versus 2.41 years for a standard backpropagation-trained 3D CNN — reported as a 10.4% reduction in prediction error.
• Not reported: absolute accuracy numbers for CIFAR-10/CIFAR-100/Tiny-ImageNet full-dataset training, parameter counts, FLOPs or wall-clock cost, the value of r, the value of λ_ortho, the number of ViT blocks augmented with MoE branches, per-dataset hyperparameters, and any scalar quantitative load-balance metric (the load analysis is presented only as heatmaps and qualitative description).

Methodology in Plain English

A standard MoE block needs a gate that decides which expert sees which input, and training that gate usually requires a balancing loss to stop it from sending almost everything to one or two experts. EMoE removes the gate as such. Instead, each router keeps a small set of directions — the eigenbasis U — meant to describe the dominant axes of variation in the patch-token features coming out of the ViT block. For every token, the router measures how much of that token's feature energy falls along each of those directions (equation 1), giving a short vector per token. A small learned matrix Π, plus per-direction scales γ and per-expert biases b, turns that vector into one score per expert (equation 2); a softmax with temperature τ = 1 converts scores to probabilities, and the highest-probability expert's MLP processes the token. The expert output is scaled by a learned α and added back through the residual stream. Only patch tokens are routed; the class token follows the ordinary transformer path. To keep the basis well-behaved, an orthonormality penalty (equation 3) is applied to U, and the basis is continuously re-orthogonalized during training. Each MoE branch holds 8 expert MLPs, each a lightweight two-layer feed-forward network with a linear bottleneck and GELU nonlinearity. Experiments train ViT backbones on ImageNet-1K and compare against V-MoE, Single-gated MoE, and DeepMoE under, per the paper, identical datasets, training strategy, and hyperparameter settings; further probes cover one-shot and 5/10-shot linear classification on CIFAR-10, CIFAR-100, and Tiny-ImageNet-200, plus brain-age regression from 3D MRI.

Why This Matters

Impact on research. The paper attacks a recognized tension in MoE training — the auxiliary load-balancing loss buys even expert usage but, per prior analyses it cites, can push experts toward redundant representations. If routing can instead be derived from the geometry of the feature distribution, that removes one objective from the training recipe and reframes routing as a data-structure problem rather than a purely learned classification problem. The reported results also suggest the benefit is not restricted to the largest backbone, since EMoE-ViT-B outperforms two baselines by over 5% on ImageNet top-1.

Real-world applications:

• Large-scale image classification and serving, where MoE throughput is dictated by the busiest expert and imbalance wastes capacity.
• Few-shot visual recognition, where labeled data is scarce; EMoE-ViT-H reaches 96.1% one-shot top-1 on CIFAR-10 and 96.54% on CIFAR-100 10-shot.
• Medical imaging with heterogeneous, high-dimensional inputs, demonstrated by brain-age prediction from 3D structural MRI (MAE 2.16 years versus 2.41 years for a standard 3D CNN).
• Biomedical routing of distinct inputs to dedicated experts, which the paper proposes as a fit for routing different brain regions or imaging modalities to specialists while keeping usage balanced.

Industry relevance. MoE is a mainstream strategy for decoupling model capacity from inference FLOPs, and training compute is described as doubling roughly every six months since 2010. A routing mechanism that avoids both expert monopolization and redundant experts addresses both the serving-bottleneck and model-quality sides of that economics. The authors release code publicly, which lowers the barrier to reproducing and adopting the approach.

Future Directions

1. Broader biomedical evaluation. The conclusion states that future work will evaluate EMoE on biomedical challenges, building on the brain-age result and on the idea of routing brain regions or imaging modalities to dedicated experts.
2. Scaling and architecture coverage. The paper evaluates ViT-B, ViT-L, and ViT-H on ImageNet-1K and a 3D CNN on MRI; whether the eigenbasis routing holds for other backbones, larger expert counts than 8, and non-vision modalities (such as language MoE) is left open.
3. Cost and stability accounting. No parameter counts, FLOPs, or the eigenbasis hyperparameters (r, λ_ortho) are reported, leaving open how much the eigenbasis computation and re-orthogonalization cost per step and how stable the basis is across batches.
4. Quantifying load balance. The load-balance evidence is presented as expert–class heatmaps rather than a scalar imbalance metric, so a direct numerical comparison of balance against the LBL-trained baselines — alongside the specialization claim — remains to be established.

Target Audience

Researchers and engineers working on efficient deep learning, sparse MoE architectures, and Vision Transformers will get the most from this paper, along with practitioners who serve MoE models and care about routing collapse and throughput bottlenecks. It is also relevant to applied machine-learning teams in medical imaging, given the 3D MRI brain-age experiment, and to readers interested in eigenvalue- or PCA-based approaches to representation learning. A background in transformer blocks and basic linear algebra is assumed by the method section but not by the results.

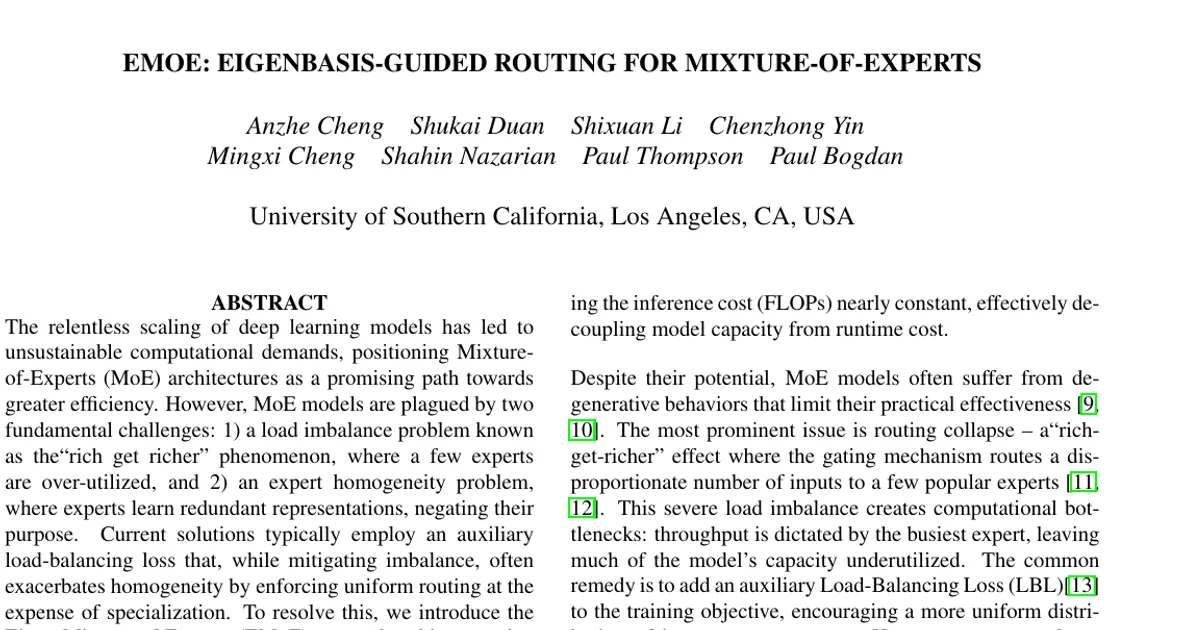

Authors’ abstract

The relentless scaling of deep learning models has led to unsustainable computational demands, positioning Mixture-of-Experts (MoE) architectures as a promising path towards greater efficiency. However, MoE models are plagued by two fundamental challenges: 1) a load imbalance problem known as the``rich get richer" phenomenon, where a few experts are over-utilized, and 2) an expert homogeneity problem, where experts learn redundant representations, negating their purpose. Current solutions typically employ an auxiliary load-balancing loss that, while mitigating imbalance, often exacerbates homogeneity by enforcing uniform routing at the expense of specialization. To resolve this, we introduce the Eigen-Mixture-of-Experts (EMoE), a novel architecture that leverages a routing mechanism based on a learned orthonormal eigenbasis. EMoE projects input tokens onto this shared eigenbasis and routes them based on their alignment with the principal components of the feature space. This principled, geometric partitioning of data intrinsically promotes both balanced expert utilization and the development of diverse, specialized experts, all without the need for a conflicting auxiliary loss function. Our code is publicly available at https://github.com/Belis0811/EMoE.
