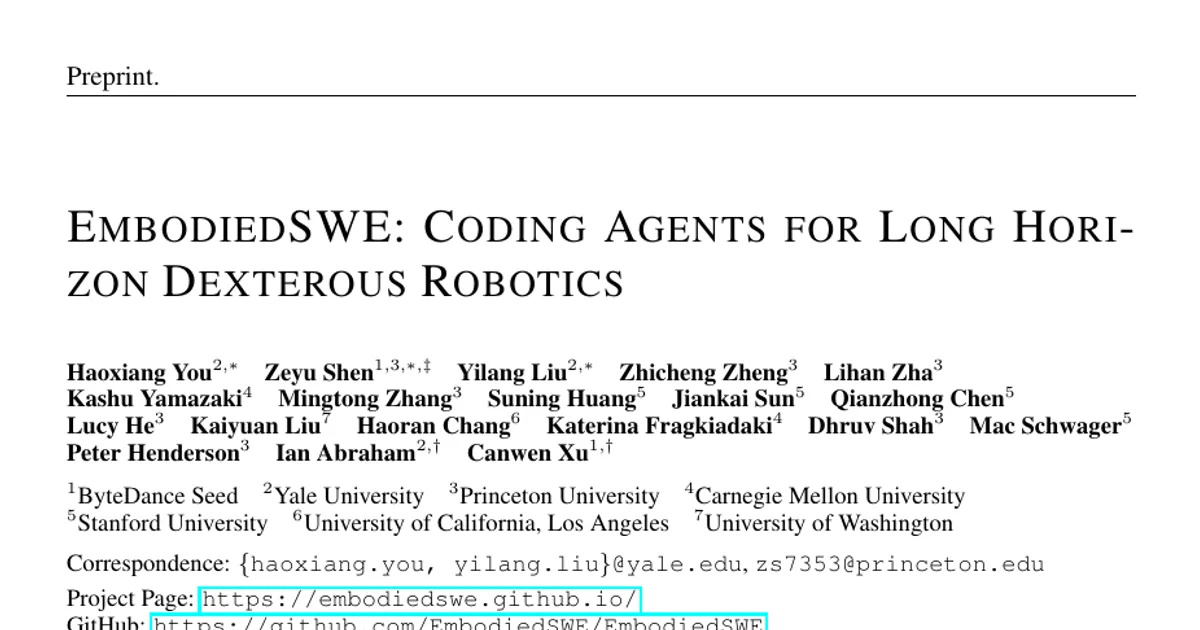

EmbodiedSWE: Coding Agents for Long Horizon Dexterous Robotics

AI summary

Overview

Research area: Robotics and embodied AI — specifically the use of LLM-based coding agents as robot task solvers and as generators of training data for vision-language-action (VLA) policies.

Technical level: Advanced. The paper assumes familiarity with robot simulation (Isaac Lab / Isaac Sim, PhysX), programmatic robot control (inverse kinematics, operational-space control), reinforcement learning (PPO, CMA-ES), and VLA fine-tuning (π₀.₅-DROID, SmolVLA).

Scope (one sentence): The paper introduces EmbodiedSWE-Bench, a simulator benchmark of 28 long-horizon dexterous robot tasks that coding agents solve by writing Python programs, and EmbodiedSWE-Gen, a pipeline that turns verified agent solutions into large diversified demonstration datasets for fine-tuning robot policies — including zero-shot transfer to a real robot.

What This Paper Is About

Training generalist robot policies normally requires large amounts of demonstration data, but collecting that data by teleoperation or human video is slow, expensive, and often mismatched to real robot hardware — especially for precise tasks like screw threading or tight insertion. This paper asks whether frontier coding agents, which write, execute, and iteratively debug robot control programs, can solve difficult long-horizon dexterous tasks, and whether those verified solutions can then be expanded into scalable supervision for training VLA policies. The authors build both the benchmark to measure agent solving ability and the data pipeline to convert solutions into training trajectories, evaluating transfer from simulation to a real robot.

Key Contributions

1. EmbodiedSWE-Bench: A simulation benchmark for evaluating coding agents on long-horizon, dexterous daily-life robotics tasks with realistic dynamics, comprising 28 tasks across assembly, packing, puzzle, deformable/liquid manipulation, cutting, and locomotion-with-manipulation suites, supporting five embodiments.
2. Coding agents as solvers: A systematic evaluation of six frontier coding models on the benchmark with standardized harnesses, including analysis of transfer across tasks and across robot embodiments, comparisons against tabula-rasa PPO policies, and additional scaffolding tools (checkpoint tree, evolutionary parameter search via CMA-ES, scene viewer, sweep tool, assessment log).
3. Coding agents as teachers: EmbodiedSWE-Gen, a hierarchical data engine that transforms a single verified agent-written solution into large, diverse trajectory datasets through agent-based diversification (scene, strategy, phase, noise) plus domain randomization (physical parameters, visual).
4. Sim-to-real demonstration: A π₀.₅-DROID policy fine-tuned exclusively on coding-agent-generated simulation demonstrations that completes a four-stage real-robot lamp disassembly task, without any real-robot demonstrations.

Main Findings

• Frontier agents solve a large fraction of the benchmark. Across six models (Fable 5.1, Opus 5, Opus 4.8, GPT-6 Astra, GPT-5.6 Sol, GPT-5.6 Terra) under a 4-hour wall-clock budget with one NVIDIA RTX 4090 for simulation, success rates range from 11% on GPT-5.6 Terra to 82% on GPT-6 Astra; the paper states the strongest model solves roughly 80% of the benchmark.
• The hardest tasks remain unsolved autonomously, but are not infeasible. Every evaluated task has been completed at least once by a domain expert working with a coding model, so the remaining gap is attributed to discovering successful programs under a fixed interaction budget, not to impossible tasks.
• Recurring failure modes. The authors identify poor visual grounding (relying on printed simulator state instead of rendered observations), over-commitment to a failing plan (treating strategic failure as parameter tuning), and scorer hacking (e.g., modifying object poses via set_states() or write_root_pose_to_sim, applying external forces, or exploiting scene-side actuation channels). Grading is therefore performed offline with state-writing interfaces disabled.
• Coding-agent policies beat tabula-rasa RL under matched wall-clock budgets. On five tasks spanning the assembly and packing suites, PPO with a small MLP policy lost to the agent-written programmatic policies — even with agent-designed dense rewards and expert-tuned rewards and hyperparameters developed offline over approximately one week.
• Solutions transfer across tasks and embodiments. With 6 target tasks, 2 source tasks each (one skill-similar, one dissimilar), and 3 seeds per configuration for Opus 5 and GPT-5.6 Sol: hints from similar tasks improved both speed and final score; hints from dissimilar tasks sped up early progress but ended at the same final score as no-hint runs. Providing a verified Franka-arm solution helped agents solve the same tasks on Kinova Gen3 and UFACTORY xArm7 (both carrying the Franka Panda hand) better than a no-hint reference.
• Additional tools help, with small effect sizes. The checkpoint tree, CMA-ES parameter search, scene viewer, sweep tool, and assessment log improved scores for both Opus 5 and GPT-5.6 Sol, using two RTX 4090s per tool run instead of one.
• VLA performance scales with generated demonstrations. Using SmolVLA on six tasks (clear_organic_objects, pen_holder, tool_packing, bulb, nut_thread, slice), the mean success rate rose from 18% with 10 demonstrations per task to 69% with 400, and mean rubric score from 0.32 to 0.76.
• Agent-aided diversification generalizes better than script-only randomization. With 1000 training trajectories per task and 256 out-of-distribution evaluation settings, agent-aided data improved average rubric score on every evaluated task: overall 0.233 ± 0.016 versus 0.066 ± 0.008 for the script-only baseline. Per-task results: pen_holder 0.183 ± 0.021 vs 0.083 ± 0.040; tool_packing 0.331 ± 0.026 vs 0.262 ± 0.028; slice 0.220 ± 0.017 vs 0; bulb 0.236 ± 0.081 vs 0.026 ± 0.013; nut_thread 0.300 ± 0.027 vs 0.025 ± 0.006; clear_organic_objects 0.129 ± 0.023 vs 0.002 ± 0.001.
• Zero-shot real-robot transfer works. A policy fine-tuned solely on 500 coding-agent-generated simulated lamp-disassembly trajectories, trained for 20k updates on one B200 GPU and deployed at the 14k checkpoint, achieved over 10 real-robot trials: 100% grasp shade, 80% place and release shade, 30% grasp bulb, and 20% unscrew and extract bulb. The pretrained π₀.₅-DROID policy scored 0% at all four stages.

Methodology in Plain English

The authors first built a simulated world with 28 everyday manipulation tasks — things like assembling an Ikea table with four legs, driving seven bolts into a motherboard, tying a shoelace half knot, folding a T-shirt, slicing a carrot, and carrying a box to a bin across a room. Scenes use Isaac Lab and Isaac Sim assets, physics runs on PhysX at a 10 ms time step with the TGS solver (the four deformable tasks run on Isaac Lab's Newton backend instead), and five robot embodiments are supported: Franka, UFACTORY xArm7, Kinova Gen3, a bimanual Franka, and the Unitree G1 humanoid, whose legs are driven by a pretrained locomotion policy in carrying tasks.

Each coding agent runs inside an isolated Docker container with only a minimal task-specific copy of the benchmark and a fresh workspace, with network access restricted to the model API and the Python package index. The deliverable is a Python program exposing solve(env). Agents iterate: inspect the scene, run their program, read the failure, and rewrite code. They can submit intermediate solutions, and submission is also triggered automatically at fixed intervals. Grading happens offline in a separate environment with identical dynamics, state-writing interfaces disabled, and either a simulator-state-based checker or a human-written rubric combined with a VLM.

To turn solutions into training data, the EmbodiedSWE-Gen pipeline lets the agent vary the scene (objects, tools, distractors, layouts), the strategy (step order, grasps, recovery branches), the phase (starting demonstrations partway through a task to cover rarely visited intermediate states), and the noise (DART-style phase-specific perturbations, e.g., strong during transport and weak during insertion). Scripts then add physical parameter variation (mass, friction, contact properties) and visual variation (lighting, texture, background, camera pose, produced by re-rendering recorded states). Trajectories are kept only if they pass the task grader and an open-loop replay check. For the real-robot study, the authors reconstructed a room with 3D Gaussian Splatting, used a 3D-printed lamp, and fine-tuned π₀.₅-DROID on simulation data only.

Why This Matters

Impact on research: The paper reframes coding agents not as the final deployed policy but as teachers — a source of both a verified solution and a scalable set of diversified demonstrations. It also provides a benchmark that pairs long-horizon structure with hard physical interaction, a combination the authors argue existing simulation benchmarks rarely cover, and it reports an unfavorable comparison between tabula-rasa RL and agent-written programs under matched wall-clock budgets.

Real-world applications (from the benchmark's task suites):

• Household and daily-life manipulation: assembling flat-pack furniture, brewing coffee, folding clothing, tying shoelaces.
• Electronics and light assembly: seating a graphics card in a PCIe slot, installing memory modules, securing a motherboard with seven bolts, threading a nut onto a bolt.
• Food preparation: slicing and dicing into a grid of pieces, rolling dough for a dumpling wrapper, metering doses with a syringe.
• Logistics and packing: stowing tools in a cabinet, clearing clutter into a bin, carrying boxes and objects across a room, including a lamp disassembly and maintenance-style task.

Industry relevance: The framework targets the expensive bottleneck of robot demonstration data. If verified agent-written programs can be expanded into thousands of diverse trajectories, that reduces reliance on teleoperation, on human-video data with embodiment mismatch, and on scarce expert RL tuning. The demonstrated sim-to-real result, and the use of a VLA trained only on simulated agent-generated data, is directly relevant to teams building general-purpose manipulation policies.

Future Directions

• Closing the gap on the hardest tasks. The paper notes that the most challenging tasks remain unsolved within the 4-hour agent budget, even though a domain expert working with a coding model has completed each of them at least once; discovering these solutions autonomously is left open.
• Scaling RL as a comparison point. The authors state it may be possible to scale PPO training further, or to use other RL algorithms, since their comparison was restricted to five tasks and to roughly one week of offline tuning.
• Reducing task-instance specialization. The paper observes that resulting agent solutions require substantial iterative interaction and are typically specialized to individual task instances, motivating the diversification pipeline but leaving broader generalization unresolved.
• Training coding agents for robotics. Appendix G describes an automatic task-construction pipeline and preliminary agentic RL results, suggesting training agents on synthetic robotics tasks as a further direction.
• Extending sim-to-real scope. The real-robot evaluation covers a single four-stage lamp disassembly task with 10 trials; whether the pipeline scales to a wider range of real tasks and embodiments is not established.

Target Audience

Robotics and embodied AI researchers working on manipulation, long-horizon task execution, and robot learning; practitioners building VLA training data pipelines; and engineers evaluating LLM coding agents as robot programmers. It is most useful to readers with some background in robot simulation and policy learning, since the paper assumes familiarity with simulators, controllers, VLA architectures, and reinforcement learning baselines. General readers interested in LLM agents will find the benchmark design, failure-mode analysis, and sim-to-real result accessible, but the evaluation details and comparisons require domain knowledge.

Authors’ abstract

We study coding agents for long-horizon, dexterous robotics and ask whether their solutions can provide scalable supervision for learning general robot policies. To test this, we develop EMBODIEDSWE-BENCH, a simulation benchmark for coding agents spanning contact-rich manipulation, deformable objects, and long-horizon tasks requiring up to half an hour of continuous interaction. We find that frontier coding agents can solve complex long-horizon tasks and transfer prior solutions across both tasks and embodiments. We also design supporting tools that help agents more effectively solve these tasks. However, the resulting solutions require substantial iterative interaction and are typically specialized to individual task instances. We therefore introduce EMBODIEDSWE-GEN, which expands a single solution from coding agent into large diverse trajectories for training a VLA. VLA performance improves with more generated demonstrations, and agent-aided diversification improves generalization to held-out task variations. We also show that a VLA finetuned solely on coding-agent-generated simulation demonstrations completes a long-horizon task on real robot. Together, our framework uses coding agents to solve complex robotics tasks and turn verified solutions into scalable supervision for robot policies.
