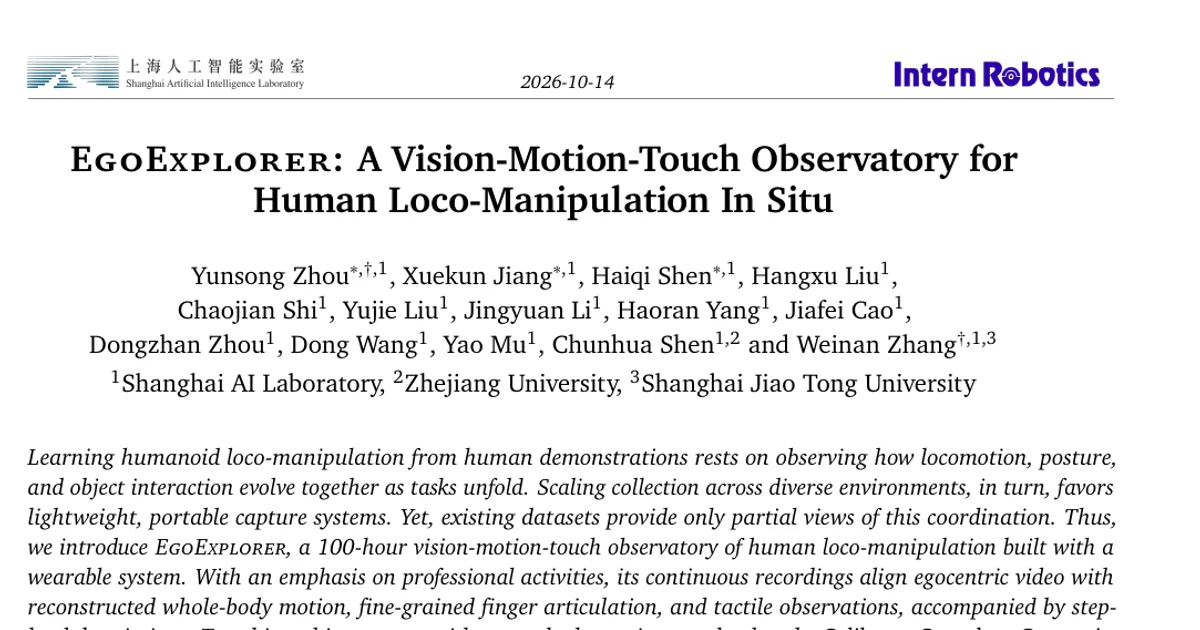

EgoExplorer: A Vision-Motion-Touch Observatory for Human Loco-Manipulation In Situ

AI summary

Overview

Research area: Robotics — egocentric multimodal human-motion capture, whole-body motion reconstruction from sparse wearable sensors, and data for humanoid loco-manipulation learning.

Technical level: Advanced. The paper combines a hardware rig, a calibration-and-optimization pipeline over SMPL-X kinematics, learned motion priors, and preliminary generative/retargeting studies.

One-sentence scope: EgoExplorer is a 100-hour, 2,715-recording egocentric dataset that synchronizes first-person video, reconstructed whole-body motion, glove-measured finger articulation, and tactile readings for human loco-manipulation, produced by a lightweight five-tracker wearable rig and a Calibrate-Complete-Constrain (C3) reconstruction pipeline.

What This Paper Is About

Learning humanoid loco-manipulation from human demonstrations requires data that shows how locomotion, posture, and object interaction evolve together, but existing egocentric datasets give only partial views: video-only sets leave the body unobserved, body-tracking sets lack fine finger articulation or measured contact, and hand-focused sets omit whole-body movement. The authors build a portable vision-motion-touch capture system and a reconstruction pipeline so that all these signals can be recorded together outside instrumented studios. The goal is a dataset that preserves the coupling between moving, positioning the body, manipulating objects, and relocating during continuous professional tasks.

Key Contributions

1. EgoExplorer dataset: a vision-motion-touch egocentric dataset of 2,715 recordings totaling 100 hours, collected across ten task templates and five environments (laboratories, factories, homes), aligning first-person video with reconstructed body motion, glove-measured finger articulation, tactile observations, and step-level descriptions.
2. The C3 (Calibrate-Complete-Constrain) pipeline: a method that decouples fixed body-sensor geometry from time-varying motion, using protocol-guided calibration, a temporal motion prior for completion, and three layered constraints (skeletal motion, participant-specific surface clearance, body-ground consistency) to recover metric whole-body motion from five sparse trackers.
3. Annotation-quality experiments: an Evaluation Subset and Natural Recordings evaluation showing reduced body-point error (18.0 mm), improved hand capture (0.4 mm hold RMS, 100% kinematic target recovery), and improved regional contact estimation (0.915 IoU) relative to evaluated baselines.
4. Preliminary training-utility studies: Cosmos3-Edge-based joint multimodal generation and conditioning experiments, plus human-to-robot retargeting to a Unitree G1 tracked with a ZeroWBC-style whole-body controller in simulation.

Main Findings

• Body reconstruction accuracy: EgoExplorer achieves 18.0 mm body-point error, 20.3 mm at non-tracked points, 13.3 PA-MPJPE, 25.9 mm root error, and 83.0 mm/s velocity error on the Evaluation Subset. Against tracker-fitted references, this reduces body-point error by 71.9% relative to the strongest evaluated baseline.
• Comparison to baselines: For body points (mm), AvatarPoser scores 128.5, AGRoL 119.6, EgoPoser 155.5, AvatarJLM 117.9, SAGE 114.7, SparsePoser 219.2, raw-tracker AvatarPoser 235.3, raw-tracker AGRoL 227.5, locally trained AvatarPoser 64.1, and locally trained HMD-Poser 136.7, versus 18.0 for EgoExplorer.
• Hand capture quality: The glove setting reaches 9.5 mm fingertip error, 0.4 mm holding RMS, 0.0% missing, 0.00 s 95th-percentile gap, and 100% success, versus HaWoR (27.1 mm tip, 4.5 mm hold RMS, 7.9% missing, 2.13 s gap, 47% success) and HandFlow (30.7 mm tip, 11.3 mm hold RMS, 7.8% missing, 2.09 s gap, 67% success).
• Contact estimation: The glove setting reaches 0.915 IoU and 0.956 F1 on frame-region labels, versus 0.621 IoU / 0.766 F1 for RGB-based HACO and 0.324 IoU / 0.490 F1 for hand-pose-only inference.
• Text annotation audit: Expert review of model-generated step annotations finds 11.09% factual errors, 2.46% unsupported claims, 8.16% missed steps, 2.05% extra steps, 3.08% boundary errors, and 0.82% unjudgeable segments, motivating manual verification before release.
• Joint multimodal generation: With sampled predictions at 5K training steps, joint generation improves video PSNR from 15.94 to 16.62 dB and contact F1 from 0.610 to 0.694 over separate models, with action MSE falling from 0.059 to 0.044.
• Conditioning helps action prediction: Conditioning action generation on recorded video reduces action MSE from 0.0478 to 0.0277; adding touch reduces it further to 0.0264.
• Ablations on calibration: Using mean body shape and scale instead of calibrated shape raises body-point error from 18.0 to 59.5 mm and floor violations from 6.0% to 50.9%. Omitting mount calibration during training raises body-point error to 95.0 mm; omitting it only at test time yields 98.1 mm.
• Ablations on layered constraints: Adding Layers 1–3 drops body-point error from 79.0 mm (proposal only) to 16.1 mm (Layer 1), crossing pairs from 72.8 to 38.7 per frame, and floor violations from 61.4% to 6.0%. The full configuration has the lowest average (28.4, the mean of nine reported values) despite higher body-point error and jerk than Layer 1 alone.
• Comparison to prior datasets: Table 1 lists Ego4D at 3,670 h, Ego-Exo4D at 221 h, Nymeria at 300 h, EgoDex at 829 h, EgoVerse at 1,362 h, Open-AoE at 2,000 h, EgoLive at 1,680 h, Xperience-10M at 1,059 h, Egocentric-10K at 10,000 h, EgoTouch at 20 h, and OpenTouch at 5 h; EgoExplorer is the only listed dataset marked with full support across body state, non-visual anchors, observed feet, articulated hand state, non-visual hand anchors, touch, mobile capture, loco-manipulation, and step labels.
• Capture hardware specification: GoPro HERO13 Black with Media Mod at 30 Hz and 1920 × 970 pixels (intrinsics fx 1012.0, fy 1016.0, cx 960.0, cy 430.0); five VIVE Ultimate Trackers at 60 Hz; MANUS Metagloves Pro or Wuji gloves with five 6-DoF fingertip EMF sensors per glove at 120 Hz nominal; Wuji tactile configuration with a 24 × 31 matrix, 744 taxels per hand and 526 retained by the evaluation health mask at 120 Hz nominal.
• Limitations stated by the authors: Reconstruction cannot guarantee exact recovery of all joints, tactile sensing has variable reliability, and the preliminary studies leave benefits for real-world humanoid learning unverified.

Methodology in Plain English

The authors built a portable rig: a head-mounted camera coupled to a tracker, trackers on the wrists and ankles, and instrumented gloves that record finger articulation and, in one glove configuration, tactile signals. This gives direct measurements at only a few body points, which leaves most of the body's motion unknown.

To fill that gap, they separate two things that are usually entangled: the fixed geometry between a sensor and the body part it sits on, and the body's changing pose. Their C3 pipeline does this in three stages. First, calibration — participants perform a prescribed movement protocol (standing, A- and T-poses, arm extensions, head and wrist rotations, elbow flexion, shallow squats, leg raises, ankle motion), and these movements are matched by phase to a reference motion library. From these correspondences the system fits each participant's body shape and metric scale, along with the translation and rotation relating each device to its anatomical anchor. The profile is reusable as long as the mounts are not moved.

Second, completion — a transformer-based temporal prior, adapted from AvatarPoser and trained on AMASS, generates an initial whole-body trajectory from the five calibrated anchors, filling in joints the sensors never see.

Third, constraints — that proposal is refined under three layers at once: skeletal measurement agreement (plus priors on temporal smoothness and joint limits), participant-specific surface clearance to discourage the body from intersecting itself, and body-ground consistency that penalizes any posed body vertex below the estimated ground plane. The solver optimizes through SMPL-X forward kinematics and skinning in temporal chunks while keeping the calibrated profile fixed. Finally, glove finger geometry is fused into the SMPL-X hands, tactile readings are aligned in time to hand regions, and vision-language-model tools conditioned on video, task instructions, and expert skill documents produce subtask segments that human operators then review for alignment and semantic consistency.

Why This Matters

Impact on research: The paper argues that loco-manipulation data needs vision, whole-body motion, hand articulation, and measured contact on the same timeline, and that sparse portable sensing can supply this without an instrumented studio. It offers both a dataset and a reconstruction method whose components (mount calibration, mean-body substitution, individual constraint layers) are ablated, giving other groups a template for wearable capture. It also provides an initial, explicitly preliminary signal that synchronized modalities help multimodal generation and that the recordings can be retargeted to a simulated humanoid.

Real-world applications (as suggested by the paper's framing and setup):

• Collecting manipulation and mobility demonstrations in factories, laboratories, and homes without installing a multi-camera motion capture volume.
• Building training data for humanoid or mobile robot policies via human-to-robot motion retargeting and whole-body control.
• Studying professional workflows at the level of subtask boundaries, tool and object roles, and observed outcomes using the step-level annotations.
• Capturing contact-rich tasks such as grasping and holding, where tactile sensing adds information that appearance alone cannot reveal.

Industry relevance: The rig uses commercially available components (VIVE Ultimate Trackers, GoPro HERO13, MANUS or Wuji gloves) and the authors state that calibration is reused across recordings as long as mounts remain fixed, which favors repeated deployment. The paper also reports cost and deployment trade-offs in its appendix, though those figures are not included in the content available here. The contact and hand-quality results are relevant to anyone producing robot-learning datasets where physical interaction is the bottleneck.

Future Directions

• Closing the gap between simulated retargeting (two recordings to a Unitree G1 under a ZeroWBC-style controller) and verified real-world humanoid learning, which the authors explicitly leave unverified.
• Improving reconstruction so that exact recovery of all joints is guaranteed, and making tactile sensing reliability more consistent.
• Reducing the residual text-annotation errors (11.09% factual errors, 8.16% missed steps) and the manual verification burden they impose.
• Extending the multimodal generation and conditioning studies beyond the reported 5K-step sampled predictions and a small set of retargeting demonstrations.

Target Audience

Researchers and engineers working on egocentric and wearable motion capture, human-to-humanoid motion retargeting, whole-body control, and multimodal robot-learning datasets. It is most useful to readers already comfortable with SMPL-X body models, kinematic optimization, and motion-prior architectures, though the dataset description, hardware table, and comparison table are accessible to practitioners who mainly need to know what signals are available and how accurate they are.

Authors’ abstract

Learning humanoid loco-manipulation from human demonstrations rests on observing how locomotion, posture, and object interaction evolve together as tasks unfold. Scaling collection across diverse environments, in turn, favors lightweight, portable capture systems. Yet, existing datasets provide only partial views of this coordination. Thus, we introduce EgoExplorer, a 100-hour vision-motion-touch observatory of human loco-manipulation built with a wearable system. With an emphasis on professional activities, its continuous recordings align egocentric video with reconstructed whole-body motion, fine-grained finger articulation, and tactile observations, accompanied by step-level descriptions. To achieve this coverage with sparse body sensing, we develop the Calibrate-Complete-Constrain pipeline. Concretely, reusable calibration fixes participant geometry and sensor attachments before motion inference to disentangle mounting offsets from articulation. A temporal prior then completes unobserved joint motion, while layered constraints promote measurement agreement, temporal continuity, and geometric consistency, properties that motion plausibility alone does not guarantee. Against tracker-fitted references, the method reduces body-point error by 71.9% relative to the strongest baseline; matched evaluations also show gains in hand stability and contact estimation. Preliminary studies explore multimodal generation and conditioning alongside humanoid retargeting with whole-body control in simulation.
