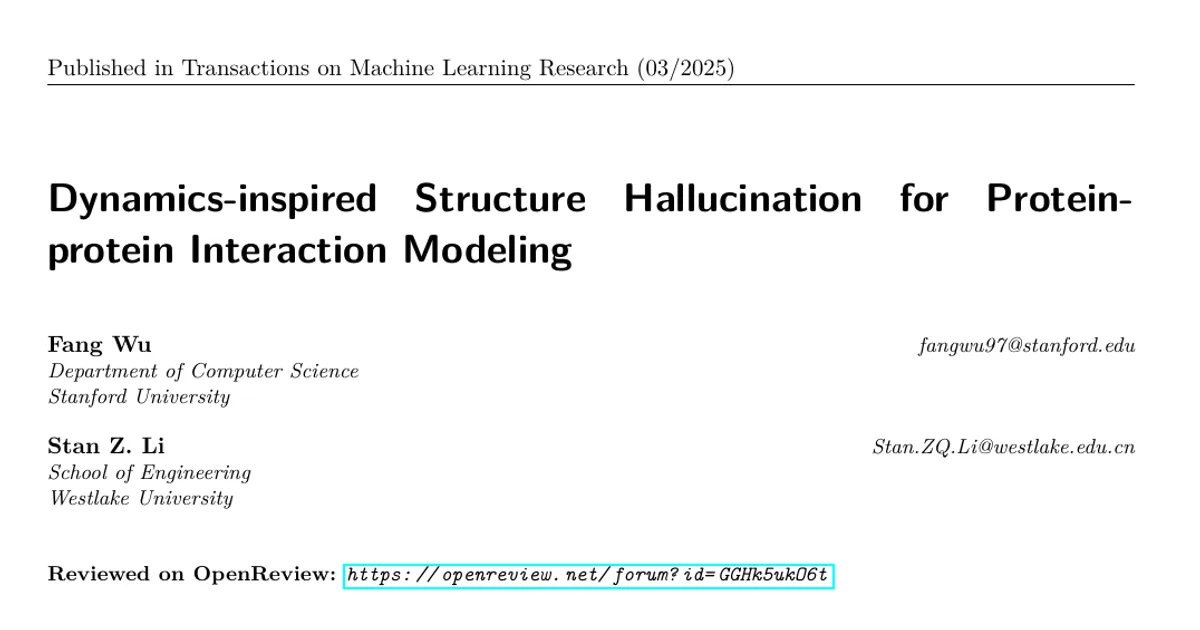

Dynamics-inspired Structure Hallucination for Protein-protein Interaction Modeling

AI summary

Overview

Research area: Machine learning for structural biology — specifically geometric deep learning applied to protein-protein interaction (PPI) modeling and mutation effect prediction.

Technical level: Advanced. The paper assumes familiarity with equivariant graph neural networks, Gaussian probability distributions over 3D coordinates, and binding free energy (ΔΔG) benchmarks.

Scope: The paper introduces Refine-PPI, a framework that predicts mutant protein complex structures it never observes and models conformational dynamics, in order to improve prediction of mutation-induced changes in binding free energy.

What This Paper Is About

Predicting how a mutation changes the strength of binding between two proteins (measured as ΔΔG) matters for drug design and protein engineering, but deep learning methods face two obstacles: the 3D structure of the mutated complex is usually unknown, and existing architectures treat proteins as frozen, single conformations even though binding is a dynamic process. The authors build a system that learns to "hallucinate" plausible mutant structures by refining structures it can observe (wild-type), and simultaneously models each atom as a spread-out probability cloud rather than a fixed point. The goal is a single model that predicts both structure and binding free energy change jointly.

Key Contributions

1. A structure refinement module trained by mask mutation modeling (MMM). Instead of using external software (e.g., FoldX) to sample mutant structures at high computational cost, Refine-PPI masks a segment of residues around the mutation site in an available wild-type structure and trains a network to reconstruct that region. The same corruption mechanism is then applied at inference to initialize an unseen mutant structure, which is iteratively refined.

2. Joint training of structure prediction and ΔΔG prediction. Rather than relying on external energy-based folding tools, the framework couples the refinement objective with the free-energy objective in one loss (L = L_ΔΔG + λ · L_refine), so that predicted structural changes inform the energy prediction and vice versa.

3. Probability Density Cloud Network (PDC-Net). A new geometric GNN in which each particle is represented as a probability density cloud following a Gaussian N(μ_i, Σ_i). It propagates the distributions of atomic positions through message passing rather than deterministic coordinates, and is built on an EGNN backbone. The covariance starts isotropic and is allowed to evolve into a full covariance matrix.

4. State-of-the-art results on SKEMPI.v2 and a zero-shot evaluation on ProteinGym, including a demonstration that a from-scratch Refine-PPI outperforms several pretrained baselines on correlation metrics.

Main Findings

• Correlation performance on SKEMPI.v2: Refine-PPI (with pretraining) reaches per-structure Pearson 0.4561 and per-structure Spearman 0.4374, overall Pearson 0.6592, overall Spearman 0.5608, RMSE 1.5643, MAE 1.1093, and AUROC 0.7542. The authors state per-structure correlations are their primary metrics because correlations within one specific protein complex matter most in practice.

• From-scratch model beats pretrained baselines on per-structure metrics: Refine-PPI without pretraining achieves per-structure Pearson 0.4475 and Spearman 0.4102, compared with RDE-Net (0.4448 / 0.4010), MIF-Net (0.3965 / 0.3509), and ESM-IF (0.2241 / 0.2019). Its overall Spearman of 0.5394 is, however, below RDE-Net's 0.5584.

• Largest gains on the multi-mutation subset: Multiple point mutations are often needed for affinity maturation. On the multi-mutation subset, Refine-PPI (pretrained) achieves per-structure Pearson 0.4558, per-structure Spearman 0.4289, overall Pearson 0.6458, overall Spearman 0.6091, RMSE 2.0601, MAE 1.554, and AUROC 0.8064. The authors attribute this to RDE-Net and DDGPred perceiving mutant structures as identical to wild-type, making them unable to detect the larger structural differences that multiple mutations produce.

• Single-mutation subset: Refine-PPI (pretrained) reaches per-structure Pearson 0.4701, per-structure Spearman 0.4459, overall Pearson 0.6658, overall Spearman 0.5153, RMSE 1.2978, MAE 0.9287, and AUROC 0.7481. The from-scratch variant reaches overall Pearson 0.6667, Spearman 0.5338, RMSE 1.2963, MAE 0.9179, and AUROC 0.7431.

• Structure recovery error tracks ΔΔG error: The scatter plot in Figure 4B shows that the recovery error of the wild-type structure has a positive relationship with the error of ΔΔG prediction.

• Zero-shot ProteinGym results, with an internal inconsistency worth flagging: The running text states Refine-PPI achieves "the highest Spearman correlation of 0.411," a 4.5% improvement over vanilla ESM-IF, and that this surpasses even the best-performing sequence-based method, VESPA. Table 4, however, lists Refine-PPI's Spearman as 0.441 (AUC 0.746, MCC 0.343, NDCG 0.769, recall 0.229), with ESM-IF1 at 0.422. Even at 0.441, Table 4 lists TranceptEVE L at 0.456 and GEMME at 0.455 as higher Spearman scores, so the "highest correlation" claim is not consistent with the table as printed.

• Position among inverse folding methods: Refine-PPI does exceed all methods the paper categorizes as inverse folding — ESM-IF1 (0.422), MIF-ST (0.401), and ProteinMPNN (0.258) — on Spearman in Table 4.

• Reported baseline uncertainty: Rosetta (Cartesian ΔΔG) and FoldX are the two energy-function baselines; in Table 1 Rosetta scores per-structure Pearson 0.3284 / Spearman 0.2988 and FoldX 0.3789 / 0.3693.

Methodology in Plain English

A protein complex is described as a graph whose nodes are residues (represented by the backbone atoms N, Cα, C, O plus Cβ) with coordinates and features, and whose edges are split into internal edges within each partner and external edges across the interface. The wild-type and mutant complexes are assumed to have the same number of residues, and the task is to map a wild-type structure plus information about which residue mutates and into what, to a ΔΔG value.

The pipeline has three learned parts: a backbone encoder that embeds the complex, a refinement module that fixes up the geometry, and a predictor that produces ΔΔG.

Training the refiner. The authors take a wild-type structure and deliberately corrupt a segment of length (l + r) around the mutation site. Two corruption strategies are explored: adding zero-mean Gaussian noise to the original coordinates, or treating the masked region as entirely unknown and interpolating its coordinates evenly between the residues immediately before and after the masked segment — with fallback rules for when one of those flanking residues does not exist. The network must then recover the true coordinates of the masked region. Because coordinate data is noisy, they use a Huber loss (following the MEAN approach) instead of RMSD loss to avoid numerical instability.

Producing the mutant structure. At inference, the same corruption is applied to a wild-type structure to create a rough starting point for the mutant, and the refiner iterates to produce a refined mutant structure. This step does not backpropagate gradients. The wild-type and refined mutant are then encoded, pooled into graph-level representations, and passed to the predictor. Training combines the ΔΔG loss with the refinement loss, weighted by a hyperparameter λ.

Modeling dynamics. Each atom is treated as a Gaussian distribution over space rather than a fixed point. Because the difference of two independent Gaussian variables is itself Gaussian, the squared distance between atoms follows a generalized chi-squared distribution with mean and variance expressible in closed form from the means and covariances. PDC-Net message passing updates node embeddings, mean positions (as a weighted sum of relative differences between neighbors), and covariances (as a weighted sum of neighbor covariance additions) — mirroring how the mean and variance of a difference of normal variables are computed. The paper states the architecture maintains equivariance (proof in Appendix D), and notes PDCs are a statistical modeling abstraction, not a quantum-mechanical description.

Evaluation. SKEMPI.v2 contains manually curated binding data for 7,085 mutations, split into 3 folds by structure with no shared complexes across folds; two folds train/validate and the third tests, giving three independently trained models and testing every data point once. Pretraining data comes from PDB-REDO, clustered at 50% sequence identity into 38,413 chain clusters, split 95% / 0.5% / 4.5% into train/validation/test. Five metrics are used: Pearson and Spearman correlations, minimized RMSE, minimized MAE, and AUROC (computed by classifying mutations by the direction of their ΔΔG). Per-structure correlations are computed by grouping mutations by structure and excluding groups with fewer than 10 mutation data points. For the zero-shot ProteinGym evaluation, AlphaFold-2 was used to predict wild-type 3D structures, and ESM-IF was integrated with Refine-PPI to produce final scores, because Refine-PPI does not directly output a probability distribution over amino acid types.

Why This Matters

Impact on research. The paper argues that two widely cited weaknesses of deep learning for mutation effect prediction — missing mutant structures and the neglect of protein dynamics — can be addressed within a single trained model rather than by bolting on external sampling software. If the reported correlations hold, it suggests that learning to generate the missing structure and learning to predict the energetic consequence of a mutation reinforce each other, and that representing atoms as distributions rather than points is a viable design choice for geometric GNNs. It also reframes "hallucinated" structure not as a liability but as a supervised, useful intermediate.

Real-world applications:

• Antibody optimization: the paper's opening example is antibodies that bind pathogen surface proteins and trigger immune responses; Refine-PPI is framed as a way to guide mutations that improve affinity and specificity.
• Drug design: prioritizing which interface mutations to pursue before committing to experiments.
• Protein engineering: identifying mutations that strengthen or weaken binding for designed complexes.
• Computational triage: the mutation space is described as too vast to test exhaustively in the lab, so models are needed to nominate the small number of mutations worth testing.

Industry relevance. Affinity maturation typically requires multiple simultaneous mutations, which is exactly the subset where the authors report the largest margins over DDGPred and RDE-Net and where AUROC reaches 0.8064. Any pipeline that must rank candidate mutations — therapeutic antibody development, biologics optimization, enzyme engineering — is a direct beneficiary. The cost argument also matters operationally: the paper explicitly positions its approach against energy-based folding tools that "dramatically increase overall computational time."

Future Directions

• Closing the amino acid probability gap. The authors state as "a notable limitation" that Refine-PPI predicts mutant structures but does not directly output a probability distribution over amino acid types, which is why they had to couple it with ESM-IF for the zero-shot ProteinGym evaluation. A native solution would remove that dependency.

• Scaling the corruption and refinement scheme to many simultaneous mutations. The paper notes both initialization strategies extend easily to multiple mutations and that multi-mutation performance is where the method shines, but the reported setup illustrates single mutations.

• Better calibrating the variance/covariance modeling. The authors reference an alternative mechanism for updating variance (Appendix B.2) that gave a slight improvement, three different approaches for initializing Σ (Appendix 4.4.1), and an analysis of the correlation between variance and atomic uncertainty (Section 4.4, truncated in the provided content). Which initialization and update rule is best, and whether the covariance should remain interpretable, is left open.

• Extending PDC to other geometric backbones. The paper states the PDC idea "can be generalized to any geometric architecture" but validates it only with EGNN as the backbone, leaving the generality claim untested here.

Target Audience

This paper is best suited to machine learning researchers working on geometric and equivariant graph neural networks, computational biologists and bioinformaticians working on protein-protein interactions and mutation effect prediction, and structural biology or protein engineering groups evaluating computational tools for affinity maturation. Readers need comfort with probability distributions over 3D coordinates and with standard ΔΔG benchmarking practice; the paper is not written as an introduction for newcomers. Practitioners interested only in the headline benchmark comparisons should read Tables 1–4 with care, since the text and Table 4 disagree on Refine-PPI's ProteinGym Spearman value (0.411 in the text versus 0.441 in the table).

Authors’ abstract

Protein-protein interaction (PPI) represents a central challenge within the biology field, and accurately predicting the consequences of mutations in this context is crucial for drug design and protein engineering. Deep learning (DL) has shown promise in forecasting the effects of such mutations, but is hindered by two primary constraints. First, the structures of mutant proteins are often elusive to acquire. Secondly, PPI takes place dynamically, which is rarely integrated into the DL architecture design. To address these obstacles, we present a novel framework named Refine-PPI with two key enhancements. First, we introduce a structure refinement module trained by a mask mutation modeling (MMM) task on available wild-type structures, which is then transferred to produce the inaccessible mutant structures. Second, we employ a new kind of geometric network, called the probability density cloud network (PDC-Net), to capture 3D dynamic variations and encode the atomic uncertainty associated with PPI. Comprehensive experiments on SKEMPI.v2 substantiate the superiority of Refine-PPI over all existing tools for predicting free energy change. These findings underscore the effectiveness of our hallucination strategy and the PDC module in addressing the absence of mutant protein structure and modeling geometric uncertainty.
