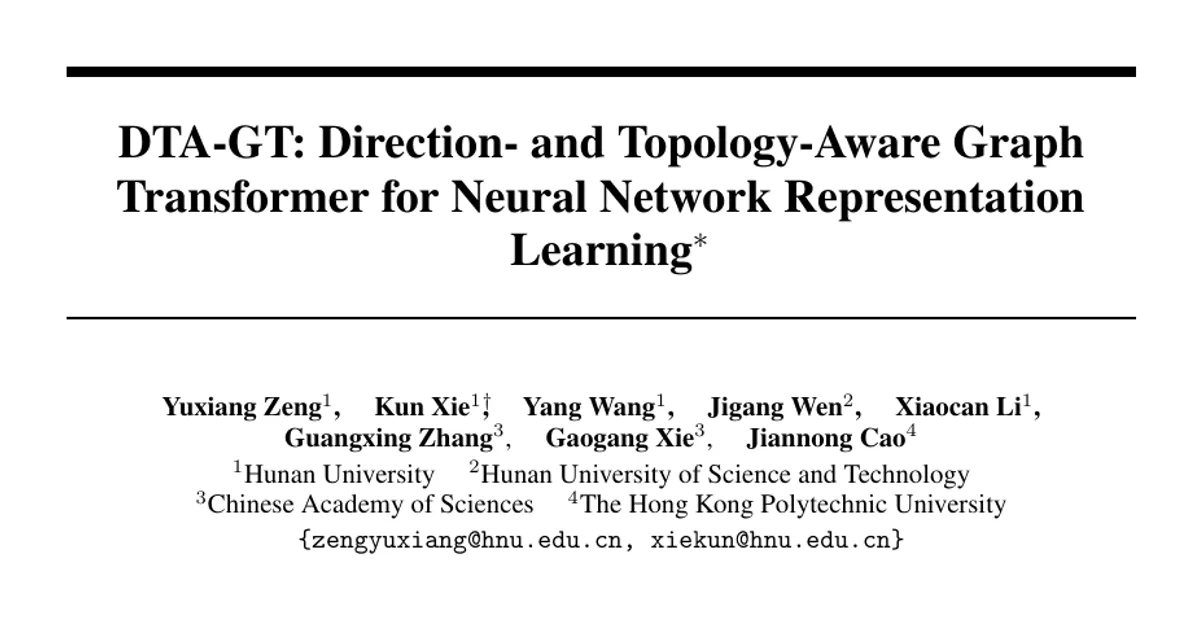

DTA-GT: Direction- and Topology-Aware Graph Transformer for Neural Network Representation Learning

AI summary

Overview

Research area: Neural architecture search (NAS) performance prediction — specifically, learned predictors that estimate an architecture's accuracy or latency without training or profiling it. The paper sits at the intersection of graph representation learning, graph transformers, and spectral graph methods.

Technical level: Advanced. The paper assumes familiarity with graph neural networks, transformer attention, Laplacian spectral encodings, and rank-based evaluation metrics.

Scope: The paper proposes DTA-GT, a graph transformer whose encoder preserves edge-direction semantics at every stage, and evaluates it on accuracy and latency prediction over NAS-Bench-101 and NAS-Bench-201 under limited training budgets.

What This Paper Is About

Neural architectures are operation-labeled directed acyclic graphs (DAGs), where an edge u → v means the output of operation u feeds into operation v, so direction carries the actual computational flow. Existing predictors — sequence-based, GNN-based, and transformer/hybrid — capture direction only as a local or stage-specific structural cue, which means upstream/downstream roles, split/merge structure, and forward dependencies can be blurred. The authors argue that direction must instead be preserved throughout the encoder, a principle they call encoder-wide directional consistency, and they build DTA-GT to implement it.

Key Contributions

1. Formulates encoder-wide directional consistency as a design principle for architecture DAG representation, shifting direction modeling from an isolated structural cue to coordinated preservation of directed computational semantics across the entire encoder.

2. Introduces DTA-GT, integrating four coordinated modules: direction- and topology-aware node initialization (operation label, indegree, outdegree, forward depth, reverse depth), Magnetic Laplacian spectral encoding, direction-dual structural attention over six directional relation channels, and a Direction-Sensitive MoE-FFN with self/predecessor/successor experts.

3. Provides a unified evaluation of accuracy and latency prediction over NAS-Bench-101 and NAS-Bench-201 against eleven representative baselines (ReNAS, NAO, BRP-NAS, NNLP, Graphormer, TNASP, NAR-Former, PINAT, GraphTrans, NAR-Former V2, NN-Former), using Kendall's τ and MAPE.

4. Supports the design with ablations, Magnetic spectral controls, and mechanistic diagnostics that probe edge-reversal sensitivity, role-aligned MoE routing, and per-relation-channel attention enrichment.

Main Findings

• Full direction-aware model beats its undirected counterpart on every reported ablation metric. On NAS-Bench-101 accuracy at @100 training architectures, the directed model reaches Kendall's τ 0.6954 / MAPE 0.0327 versus 0.5882 / 0.0408 undirected. On NAS-Bench-101 latency @100: 0.8646 / 0.0758 versus 0.8062 / 0.1074. On NAS-Bench-201 accuracy @156: 0.8015 / 0.0244 versus 0.7215 / 0.0617. On NAS-Bench-201 latency @156: 0.8375 / 0.0305 versus 0.8178 / 0.0349.

• Removing any single direction-aware stage degrades performance. Without directed node features, NAS-Bench-101 accuracy @100 drops to 0.6522 τ / 0.0361 MAPE. Without Magnetic spectral encoding: 0.6894 / 0.0341. Without direction-dual structural attention: 0.6552 / 0.0331. Without the MoE-FFN: 0.6542 / 0.0331. The corresponding NAS-Bench-201 accuracy @156 values are 0.7198 / 0.0729, 0.7452 / 0.0600, 0.6123 / 0.1037, and 0.7248 / 0.0418.

• Readout and objective choices matter. Replacing attention pooling with a CLS-style readout lowers NAS-Bench-101 accuracy @100 to 0.6701 τ / 0.0399 MAPE, and training with MSE only gives 0.6720 / 0.0356, both below the full configuration. The authors attribute the readout result to avoiding virtual nodes that would alter structural relations and the Magnetic Laplacian computation.

• Magnetic Laplacian encoding outperforms symmetric Laplacian controls and no directional encoding on all reported metrics. Symmetric Laplacian encoding gave limited and task-dependent gains, and substituting it inside the directed encoder also weakened performance — suggesting the benefit comes from preserving edge-orientation asymmetry rather than generic undirected spectral information.

• Main results across all four tasks and budgets. The paper reports that DTA-GT achieves the highest Kendall's τ and lowest MAPE across all four tasks (NAS-Bench-101 accuracy, NAS-Bench-101 latency, NAS-Bench-201 accuracy, NAS-Bench-201 latency) and all training budgets (0.02% @100, 0.04% @172, 0.1% @424, 1% @4236). Per-baseline numbers appear in the paper's Table 3 and are not reproduced in the provided content.

• Mechanistic diagnostics. At q = 0.25 the Magnetic encoding shows edge-orientation-sensitive spectral responses under A → Aᵀ (compared with q = 0), MoE routing shows its most pronounced role-aligned pattern on NAS-Bench-201 accuracy prediction, and structural attention assigns different enrichment to the predefined relation channels. The authors describe these as behavioral diagnostics, not direct performance attribution.

Methodology in Plain English

The authors treat architecture prediction as a graph-to-scalar regression problem: an encoder h_φ maps a DAG G to a graph embedding z_G, and a simple linear head p_ψ predicts accuracy or latency from it. The design goal is to keep direction visible at every step of the encoder.

Node initialization. Each node is described by five discrete features — operation label, indegree, outdegree, forward depth (longest directed path from an input to the node), and reverse depth (longest directed path from the node to an output). These are one-hot encoded, projected, concatenated, and fused. The depth pair is chosen deliberately over topological-order indices, because a DAG admits multiple valid topological orders and indices could introduce ordering artifacts.

Global spectral prior. From the directed adjacency matrix A, the method builds a symmetrized support A_s = ½(A + Aᵀ), an antisymmetric orientation phase Θ^(q) = 2πq(A − Aᵀ), and a degree matrix D_s, then forms the Magnetic Laplacian L_mag^(q) = D_s − A_s ⊙ exp(iΘ^(q)). Because A_s is symmetric and Θ^(q) is antisymmetric, this matrix is Hermitian and can be eigendecomposed with real eigenvalues. The authors keep the k lowest-frequency eigenvectors and retain both real and imaginary parts, giving a two-channel feature per spectral component; these are embedded and aggregated per node with self-attention over the spectral dimension, then added to the node initialization.

Pairwise interaction. Attention is split into six directional relation channels built from three paired relation families: local adjacency (A and Aᵀ), directed reachability (R_fwd and its transpose R_bwd), and shared successors/predecessors (AAᵀ and AᵀA). In the six-head configuration, each head is assigned one relation channel; the channel defines which key nodes are structurally admissible for a query, while learned query–key compatibility weights those admissible keys.

Feature update. A standard FFN applies the same transformation to every node, which would erase the predecessor/successor distinctions just established. Instead, three experts compute a self-context transform, a predecessor-context aggregation (Aᵀ Ĥ), and a successor-context aggregation (A Ĥ), and a node-wise softmax gate mixes them. A negative-entropy regularizer on the gate is added to avoid sharp collapse onto one expert.

Readout and training. Attention-weighted pooling over the existing nodes produces z_G, deliberately without adding a virtual token, since the structural relation channels and Magnetic Laplacian are all computed from the original cell topology. Training combines an MSE loss for value calibration, a pairwise ranking loss over non-tied architecture pairs to align with Kendall's τ, and the routing regularizer: L_total = λ_mse L_mse + λ_rank L_rank + λ_aux L_aux.

Evaluation setup. NAS-Bench-101 contains 423,624 unique cell-based architectures with at most 7 nodes and 9 edges per cell; NAS-Bench-201 contains 15,625 candidate cells with 4 nodes and 6 edges per cell. NAS-Bench-201 labels come from 200-epoch CIFAR-10 training with latency measured at batch size 256; NAS-Bench-101 has accuracy labels but no latency labels, so latency was measured by the authors on an NVIDIA RTX 4090 with batch size 1. Each method is evaluated over five runs with five shared random seeds, with a validation set of 1,024 architectures, and metrics are computed over the full benchmark architecture set. Experiments ran on PyTorch 2.4.0, Ubuntu 22.04, an Intel Core i9-13900K with 64 GB RAM and one RTX 4090 (24 GB); large-DAG scalability experiments used a separate NVIDIA A800-SXM4-80GB.

Why This Matters

The paper reframes a common assumption in architecture prediction: that adding graph structure is enough. It argues, with ablation evidence, that where and how consistently direction is modeled matters, and it offers a concrete recipe for doing so — direction-aware initialization, an orientation-sensitive spectral prior, relation-specialized attention heads, and role-conditioned feed-forward updates. If direction-aware encoders generalize, they offer a stronger inductive bias for the limited-budget regime that matters most in practice, where only a tiny labeled subset can be evaluated.

Real-world applications:

• Hardware-aware NAS for edge and mobile deployment, where latency predictors must rank candidate architectures cheaply on target devices.
• Cloud and data-center model serving, where architecture latency prediction supports selection under service-level constraints.
• AutoML platforms and model zoos, where a predictor can score and screen candidate pools before expensive downstream training.
• Efficient model design workflows in general, wherever full training or profiling of every candidate is prohibitive.

Industry relevance: The stated motivation — accuracy requiring full training and latency requiring hardware measurement or profiling — maps directly onto industrial NAS pipelines, where evaluation cost dominates the search budget. Reducing the number of architectures that need real evaluation translates into compute savings and faster design cycles. The paper also flags a caveat relevant to deployment: since latency labels are benchmark- and device-specific, latency magnitudes are compared only within the same benchmark setting.

Future Directions

• Cross-space transfer. The paper notes that transferring to other search spaces requires aligned operation vocabularies and dependency semantics, because graph nodes may represent computations at different granularities, and proposes investigating a shared operation-level representation for cross-space pretraining and adaptation.

• Scalability to larger graphs. Dense directed-relation masks and pairwise attention incur quadratic storage and attention costs as graph size grows. The authors propose sparse or hierarchical attention with compact reachability representations, and report separate large-DAG scalability experiments.

• End-to-end NAS integration. The effect of improved predictor ranking on end-to-end NAS remains to be evaluated. The plan is to integrate DTA-GT into NAS pipelines and evaluate selected architectures and total search cost under a fixed end-to-end evaluation budget.

• Hyperparameter and sensitivity behavior. The paper reports sensitivity analyses for the number of spectral components k, the number of layers L, the embedding dimension d, and the Magnetic phase parameter q (with q = 0.25 used in the mechanistic analysis), in its appendices.

Target Audience

This paper is most useful to researchers and practitioners working on neural architecture search, performance prediction, and graph representation learning — particularly those already comfortable with GNNs and transformers who want a concrete design principle for encoding directed DAG structure. It is also relevant to engineers building hardware-aware or budget-constrained model selection pipelines, and to readers interested in spectral graph methods such as the Magnetic Laplacian applied to directed graphs. Readers seeking a fully tutorial-style introduction to NAS or graph transformers would need background reading first, given the heavy use of spectral and attention notation.

Authors’ abstract

Architecture attribute predictors reduce the cost of neural architecture search by estimating accuracy or latency from a small set of evaluated candidates. The key difficulty is that neural architectures are operation-labeled DAGs: edge direction defines computational flow, but existing predictors often treat direction as a local structural cue. We propose DTA-GT, a Direction- and Topology-Aware Graph Transformer based on encoder-wide directional consistency, which preserves directed computational semantics across node initialization, global spectral encoding, pairwise interaction, and feature update. DTA-GT realizes this principle with direction- and topology-aware node initialization, Magnetic Laplacian spectral encoding, direction-dual structural attention, and a Direction-Sensitive MoE-FFN. Across accuracy and latency prediction on NAS-Bench-101 and NAS-Bench-201, DTA-GT consistently outperforms representative sequence-, GNN-, Transformer-, and hybrid predictors under limited-budget settings. Ablations and Magnetic spectral controls show that the improvements come from coordinated direction-aware stages and edge-orientation-sensitive spectral information, while mechanistic diagnostics confirm that the modules exhibit the intended directional behavior. These results support encoder-wide directional consistency as an effective design principle for architecture DAG representation.
