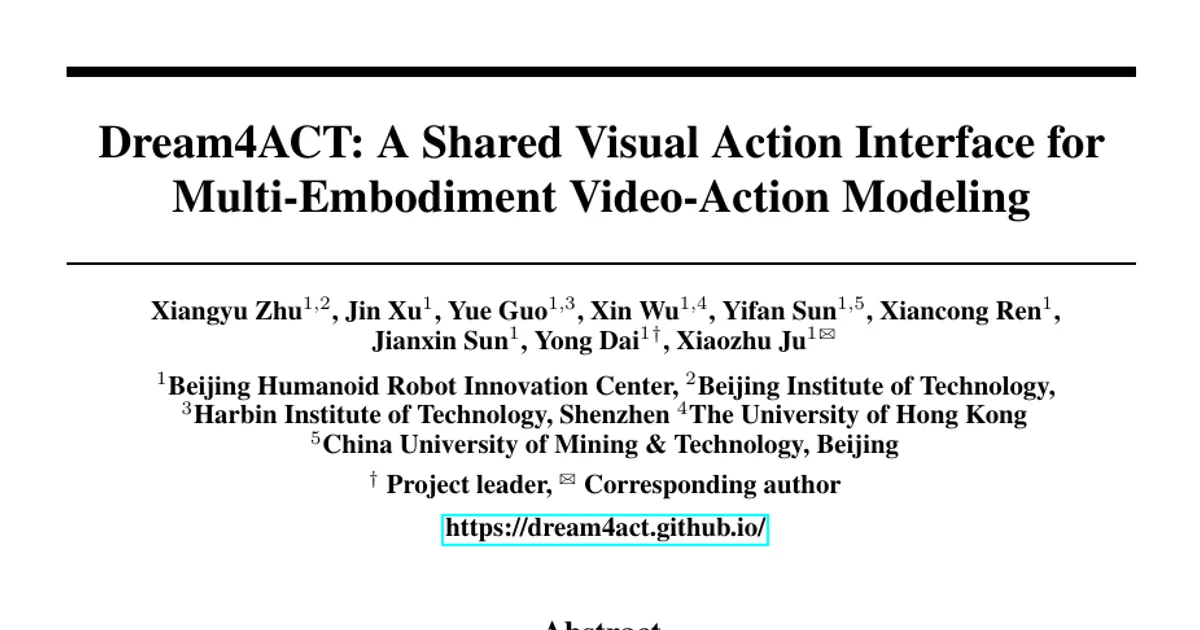

Dream4ACT: A Shared Visual Action Interface for Multi-Embodiment Video-Action Modeling

AI summary

Overview

• Research area: Robotics / embodied AI — video-action world models for cross-embodiment robot manipulation.
• Technical level: Advanced. The paper assumes familiarity with diffusion transformers, flow matching, video autoencoders, URDF kinematics, and visual servoing.
• Scope: One-sentence summary — Dream4ACT renders target robot joint configurations as images from four fixed virtual cameras so that observations and actions can be modeled by a single shared video model, then recovers executable joint targets from those generated images without a learned robot-specific decoder.

What This Paper Is About

Video generation models carry strong spatiotemporal priors that could help robots predict and control, but raw joint-space action vectors have no explicit image-space structure and differ in dimensionality and semantics from robot to robot, so they cannot be fed to a video model in a shared way. The authors' goal is a single world model that supports predicting future observations from candidate controls (forward dynamics), inferring controls from observed future frames (inverse dynamics), and generating both jointly, across multiple embodiments, using one set of weights. Their answer is to convert target joint configurations into a shared visual "action view" representation and to recover joint targets from predicted views through geometry rather than a trained decoder.

Key Contributions

1. Action views: a fixed-shape multiview image representation of target joint configurations, produced by URDF-based forward kinematics and rendering from four prescribed virtual cameras. Heterogeneous joint spaces (different dimensions and semantics) share one video-modeling interface while embodiment-specific articulated geometry is preserved.
2. Training-free, URDF-constrained multiview recovery: predicted action views are matched against URDF-rendered candidate configurations across all four cameras to recover joint targets for execution, with no learned embodiment-specific action decoder head.
3. Masked flow matching over shared tokens: a single jointly trained model supports forward dynamics, inverse dynamics, and joint generation by varying which future streams are corrupted (mask set M), with a shared video autoencoder and diffusion transformer across RGB observations and action-view streams, conditioned on instruction-grounded scene features.
4. Empirical validation: closed-loop simulation on RoboTwin 2.0, action-conditioned multiview generation on TriWorldBench, a multi-embodiment evaluation with one fixed checkpoint across five simulated robots, real-world evaluation on four platforms, and a controlled ablation against camera-aligned skeleton conditioning on DROID.

Main Findings

• RoboTwin 2.0 success: Dream4ACT reaches 90.50% on clean and 87.46% on randomized tasks, averaging 88.98%. The paper reports that this exceeds π0.5 by 7.76 and 10.7 percentage points and is slightly higher than Motus, while LingBot-VA and Fast-WAM score higher.
• Baseline comparison on RoboTwin 2.0 (clean / randomized / average): π0.5 82.74 / 76.76 / 79.80; Motus 88.66 / 87.02 / 87.80; LingBot-VA 92.90 / 91.50 / 92.20; Fast-WAM 91.88 / 91.78 / 91.80; Ours 90.50 / 87.46 / 88.98.
• TriWorldBench overall score: 65.66, obtained with the same checkpoint without benchmark-specific fine-tuning, in forward dynamics mode, comparable to BWM's 65.54. Per-dimension scores: TVC 81.63, TA 84.22, P3D 61.30, MQ 41.66, TC 64.88, VQ 31.42.
• TriWorldBench baseline scores (overall): Ctrl-World 38.98, Motus 42.35, Genie Envisioner 40.73, DreamDojo 51.72, BWM 65.54. BWM's per-dimension scores are TVC 81.87, TA 86.05, P3D 60.40, MQ 41.29, TC 62.81, VQ 31.42.
• Claimed per-dimension leads: the paper states Dream4ACT obtains the highest reported P3D, MQ, and TC among the listed methods and ties BWM on VQ, while its TVC (81.63) and TA (84.22) are below BWM's 81.87 and 86.05 respectively.
• Multi-embodiment checkpoint: one jointly trained checkpoint, with parameters unchanged, is evaluated on five embodiments (Aloha-Agilex, ARX-X5, Franka-Panda, Piper, UR5-Xsg) over 31 shared RoboTwin 2.0 tasks, with 25 trials per task per robot in each setting (775 trials per setting). Averages: Aloha-Agilex 82.19%, Piper 81.94%, ARX-X5 81.23%, Franka-Panda 63.48%, UR5-Xsg 30.97%.
• Recovery error from ground-truth action views (position mm / rotation degrees): Aloha-Agilex 1.39 / 1.57; Piper 1.66 / 1.71; ARX-X5 1.22 / 1.95; Franka-Panda 4.11 / 9.45; UR5-Xsg 11.85 / 21.39. Higher success correlates with lower recovery error.
• Real-world results with one shared checkpoint: over 20 trials per embodiment–task pair under scene variations, the "Common" average over place_block and wipe_plate is 87.5% (Aloha-Agilex), 85.0% (TienYi2.5 Pro), 87.5% (Franka Research 3), and 90.0% (UR5e). Four-task averages on the bimanual platforms are 61.3% (Aloha-Agilex) and 66.3% (TienYi2.5 Pro).
• Weak real-world tasks: stack_blocks and storage_item are much harder — 20.0% and 50.0% for Aloha-Agilex, 30.0% and 65.0% for TienYi2.5 Pro — compared with 85.0–95.0% on place_block and wipe_plate.
• Ablation on DROID: training two variants on the same 1,000 trajectories (excluding CLVR and RAD), evaluated with the 10k checkpoint on 50 held-out CLVR/RAD trajectories predicting 41-frame RGB sequences, action-view rendering improves PSNR from 23.19 to 24.33 dB and SSIM from 0.899 to 0.906, and reduces LPIPS from 0.105 to 0.093 relative to camera-aligned skeleton rendering.
• Data scale used for evaluation: RoboTwin 2.0 has 50 bimanual tasks; the authors collect 2,500 clean and 25,000 randomized demonstrations (50 and 500 per task). TriWorldBench evaluation uses the official 500-episode test set.
• Training configuration: 16 × Nvidia B200 GPUs, batch size 16, AdamW, weight decay 1 × 10⁻², learning rate 1 × 10⁻⁵ with cosine schedule and 1,000 warmup steps. Mode sampling probabilities are 0.2 forward dynamics, 0.2 inverse dynamics, 0.6 joint generation; 0.7 image-to-video and 0.3 video-to-video. Inference latency and inference compute cost are not reported.

Methodology in Plain English

The core idea in one line: instead of handing a video model a list of joint angles, hand it pictures of the robot in the target pose.

Step 1 — Turn configurations into pictures. For a given robot described by a URDF file, the authors run forward kinematics on a target joint configuration and render the arm and gripper links from four fixed virtual cameras (roles: front, top, left, right) at 320 × 224 pixels. Because the cameras are virtual and preset, no physical camera calibration is needed to build these views. Base-to-arm links are rendered yellow, arm nodes blue, and grippers range from green (open) to red (closed), with camera-space depth modulating color intensity. The result is a fixed-shape tensor regardless of how many joints a particular robot has, so different robots can share the same tokenizer and model.

Step 2 — Condition on the task. A frozen vision-language model, Qwen3.5-VL 9B, processes the task instruction together with the current head-camera image. The last four hidden layers are split into visual and language token groups, projected, and compressed by four learnable queries through cross-attention and then self-attention, producing a semantic conditioning vector for the generative backbone.

Step 3 — Tokenize everything with one encoder. RGB observations (head and wrist cameras) and the four action-view streams are each encoded by a shared Wan2.2 VAE into latent tokens with 16× spatial and 4× temporal downsampling. Each stream gets a modality embedding (rgb or action) and a view embedding, plus rotary position embeddings where the spatial coordinate is offset per stream so different streams do not collide.

Step 4 — Train one model in three modes. A diffusion transformer with joint self-attention over all streams, cross-attention to the semantic condition, and a feed-forward network is trained with conditional flow matching. A binary mask decides which future streams are corrupted (noised) and which stay clean; since the mask selects the mode, one shared network learns forward dynamics (generate future RGB, condition on action views), inverse dynamics (generate action views, condition on RGB), and joint generation (generate both). Only corrupted positions contribute to the loss.

Step 5 — Get joint targets back without a decoder. Predicted action views are thresholded and dilated, then compared against renderings of candidate joint configurations sampled within URDF joint limits. The cost combines a silhouette-overlap term (1 − IoU summed over four views) and a one-sided Chamfer distance between foreground pixels, weighted by λ. Optimization is run per frame with warm starts from the previous frame, using Levenberg–Marquardt with 32 initializations per frame in the reported GPU path, anchor frames at stride 3, and Gauss–Newton refinement. This means execution comes from geometric optimization against the robot's own kinematic model, not from a learned per-robot head.

Why This Matters

Impact on research. The paper separates two design choices that are often conflated in video-action models: how modalities are coupled (masking and conditioning schedule) and how actions are represented. It argues that a full-joint visual representation can be shared across embodiments without a trained action head, and it demonstrates one checkpoint controlling five simulated robots and four real platforms. It also removes physical-camera extrinsic calibration from the action-view construction pipeline, which prior URDF-rendered conditioning approaches such as BridgeV2W and GeniWorld require.

Real-world applications (as demonstrated or directly implied by the evaluations):

• Bimanual tabletop manipulation, including placing blocks and wiping plates on Aloha-Agilex and TienYi2.5 Pro hardware.
• Single-arm manipulation on Franka Research 3 and UR5e, including wipe_plate reaching 95.0% on UR5e.
• Multi-robot fleets where one model must drive robots with different kinematics (Aloha-Agilex, ARX-X5, Franka-Panda, Piper, UR5-Xsg) without per-robot retraining.
• Action-conditioned video prediction for synchronized head and wrist cameras, useful for policy visualization, simulation-to-reality checks, and generating rollouts from logged action trajectories.

Industry relevance. A single weight set spanning embodiments lowers the cost of adding a new robot to an existing manipulation stack, since the main per-robot input is its URDF and a saved virtual camera preset rather than a new dataset and a new action head. The training-free recovery step is also attractive for deployment because it requires no additional learned module. The caveats matter for industry: the paper's own results show the approach is far weaker on the hardest real tasks (stack_blocks at 20.0–30.0%), and one simulated embodiment (UR5-Xsg) averages only 30.97% with 11.85 mm / 21.39° recovery error.

Future Directions

1. Close the gap on weak embodiments. UR5-Xsg (30.97% average, 11.85 mm position error, 21.39° rotation error) and Franka-Panda (63.48%) lag Aloha-Agilex, Piper, and ARX-X5, all above 81%. The causes of this spread and whether recovery or generation is limiting are open questions.
2. Improve hard real-world tasks. stack_blocks and storage_item remain far below place_block and wipe_plate, so the interface's behavior on tasks needing long-horizon or precise assembly is unresolved.
3. Push single-model performance past specialized baselines. LingBot-VA (92.20 average) and Fast-WAM (91.80 average) still outperform Dream4ACT's 88.98% on RoboTwin 2.0, and BWM leads on TriWorldBench TVC and TA (81.87 and 86.05 versus 81.63 and 84.22).
4. Extend conditioning and horizons. Training already mixes video-to-video prefixes (one fifth of a simulation clip, one quarter of a real-world clip) although all reported inference uses image-to-video with the single-frame mask; whether longer clean prefixes or longer prediction horizons (beyond the reported k = 40 simulation and k = 80 real-world action chunks) change success rates is not tested. Inference latency and inference cost are also not reported.

Target Audience

Robotics and embodied-AI researchers working on world models, video-action models, and cross-embodiment policy learning; engineers building manipulation stacks that must span multiple robot arms; and graduate students already comfortable with diffusion models, flow matching, and kinematic modeling who want a concrete example of replacing joint-vector action spaces with a visual interface. Readers looking for a beginner-level introduction to robot learning, or for deployment-level latency and compute benchmarks, will find this paper assumes substantial background and does not report those engineering figures.

Authors’ abstract

Video generation models (VGMs) offer strong spatiotemporal priors for embodied observation--action modeling. However, joint-space action vectors lack explicit image-space structure and vary in dimensionality and semantics across embodiments, making it challenging to directly leverage the rich spatiotemporal priors of VGMs. End-effector visualizations provide an alternative but do not specify the full articulated configuration needed for robot execution. We present Dream4ACT, a world model built for joint video-action modeling across embodiments. To unify action representations across embodiments, we introduce a shared visual action interface, called action views, which render target joint configurations from four prescribed virtual cameras using URDF-based forward kinematics. This shared visual representation preserves embodiment-specific articulated geometry while allowing observation and action sequences to share a video autoencoder and diffusion transformer. Through masked flow-matching, our model supports forward dynamics, inverse dynamics, and joint observation--action generation within a single jointly trained model by varying which future sequences are corrupted. To recover executable action sequences from predicted action views, we propose a training-free, URDF-constrained multiview recovery mechanism, without a learned embodiment-specific decoder. Dream4ACT achieves an average success rate of 88.98\% on RoboTwin~2.0 and an overall score of 65.66 on TriWorldBench, supporting effective closed-loop manipulation and competitive action-conditioned multiview prediction through the visual action interface.
