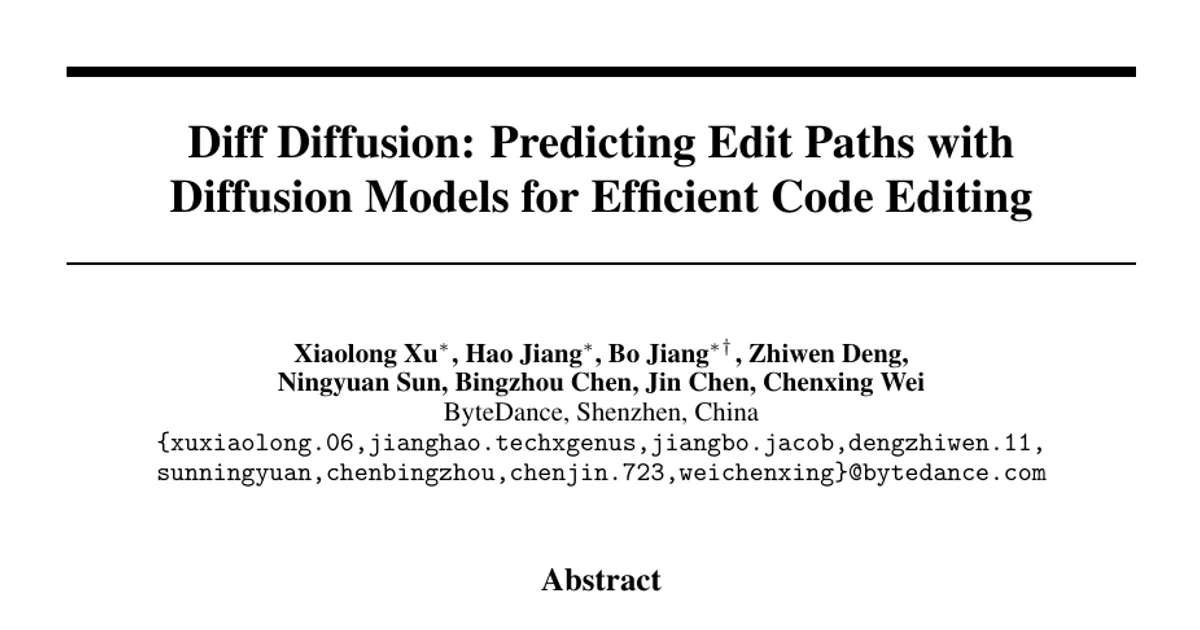

Diff Diffusion: Predicting Edit Paths with Diffusion Models for Efficient Code Editing

AI summary

Overview

• Research area: Software engineering (cs.SE), specifically code intelligence — diffusion language models applied to AI-assisted IDE code edit prediction.
• Technical level: Advanced. The paper assumes familiarity with diffusion language models, masked diffusion, preference optimization (DPO), reinforcement learning (GRPO/AGRPO), KV-cache mechanics, and RoPE position correction.
• Scope: One sentence: The paper proposes a diffusion-inspired framework that predicts structured code edit paths (same, delete, insert, replace, mask-fill actions) instead of regenerating whole code segments, and validates it on public edit-completion benchmarks, an in-house IDE edit-prediction benchmark, and production online A/B traffic.

What This Paper Is About

Autoregressive models used in IDEs must output entire code segments token by token, including all the parts that did not change, which is slow and cannot handle several edits at once. Existing masked diffusion models are also a poor fit, because they denoise a full sequence even when only a small local change is needed. Diff Diffusion instead treats denoising as a sequence of explicit edit operations that transform an original snippet into its revised form, so computation focuses only on changed regions.

Key Contributions

1. A source-conditioned edit-path diffusion framework. Diff Diffusion explicitly models and predicts code edit paths from an original snippet to its revised form, rather than reconstructing a corrupted full sequence.
2. A structured edit action space for in-IDE prediction. The model uses same, delete, insert, replace, and mask-to-token actions, which avoids repeated decoding of unchanged code and supports multi-position parallel modification as well as variable-length output.
3. A multi-stage training paradigm plus efficient parallel decoding. Training proceeds through large-scale git-commit continuous pretraining (CT), code-editing supervised fine-tuning (SFT), and advanced post-training with Diff-DPO and AGRPO, paired with block-wise parallel edit decoding and approximate KV-cache reuse.
4. Evaluation across public benchmarks, an IDE-specific benchmark, and production. The paper reports public edit-completion results, an in-house IDE edit-prediction evaluation with Act, Stay, Multi-line, Roll-back, and Delete metrics, inference-latency measurements, and online A/B validation.

Main Findings

• Public edit-completion (C3PO). Diff Diffusion reached 81.33% result accuracy versus 83.18% for the AR baseline, while reducing average decoding steps per sample from 14.62 to 3.90. Inference time per sample fell from 403 ms to 145 ms, a 2.78× speedup. The paper attributes the small accuracy gap to dLLMs benefiting from larger-scale training and more optimization epochs, while the C3PO training set is relatively small.
• IDE edit-prediction benchmark, base model. After CT only, Diff Diffusion scored 41.80% Act, 89.21% Stay, 68.42% Multi-line, 7.0% Roll-back, and 0.5% Delete. The paper states this improves over Mercury-Coder (31.97% Act, 54.32% Stay, 36.84% Multi-line, 52.5% Roll-back, 19.5% Delete) on all five metrics, and already matches AR on Multi-line while reducing both Roll-back and Delete (AR: 45.90, 91.73, 68.42, 9.0, 1.0).
• Post-training improves recommendation quality. SFT raised Act to 49.18% and Multi-line to 73.68% (Stay 89.21%, Roll-back 9.5%, Delete 0.5%). Adding DPO gave 49.18% Act, 92.45% Stay, 68.42% Multi-line, 7.5% Roll-back, 0.5% Delete. AGRPO produced the strongest Act and Stay: 50.00% Act, 96.40% Stay, 73.68% Multi-line, 10.0% Roll-back, 0.5% Delete.
• Short rewrite ranges: few-step parallel editing drives the gain. For a 140-token edit range, diffusion decoding compressed generation from 126 AR decoding steps to 4.90 edit steps and cut total time from 3964 ms to 415 ms. Adding PIE gave 5.00 steps and 420 ms — PIE did not help this short case because both variants are memory-bound at that scale, and suffix-cache bookkeeping plus position correction slightly outweighed the saved computation. Output length was 126 tokens for AR versus 110 for both Diff Diffusion variants.
• Long rewrite ranges: suffix-cache reuse adds savings. At a 1024-token edit range, Diff Diffusion took 7.56 decoding steps and 784 ms with output length 1008; with PIE it took 8.78 steps and 676 ms with output length 1012.
• Online A/B production results. Diff Diffusion achieved a 24.0% acceptance rate versus 23.8% for AR, CPO of 1.05 versus 1.06, accepted lines of 102.6 versus 93.6, and P50 model latency of 70.8 ms versus 116 ms. This corresponds to a 9.6% increase in accepted lines per user and a 39.0% reduction in P50 model inference latency. The paper reports that the latency advantage holds across edit-distance buckets.
• Training data scale. Stage I used a CommitPack multi-language subset (Python, C++, Java, JavaScript, Go, Rust) of 87B tokens; Stage II/III used 30M high-quality next-edit examples; C3PO comprised 39K train / 5K eval examples from C# code in 53 GitHub projects. The in-house edit-prediction evaluation set contained 122 / 278 / 19 / 200 / 200 examples for Act, Stay, Multi-line, Roll-back, and Delete respectively.
• Training configuration. Weighted cross-entropy used weight 1 for ordinary token and same predictions and weight 5 for insert, delete, and replace; prompt tokens were excluded from the loss. Diff-DPO used β = 0.1; AGRPO sampled G = 8 trajectories, sampling 25 transitions when a trajectory exceeded 25 denoising steps. Inference used a 5.5K-token context window, 356 max generation length, and 178 max iterations.

Methodology in Plain English

The authors start from Dream-Coder, a masked-diffusion code model, and keep its Transformer architecture but change what the model is asked to predict: instead of filling in masked tokens to rebuild a sequence, it predicts a diff describing how the current code state should change. Each token in the current state receives an edit label — keep it unchanged, delete it, insert a mask before it, replace it with a mask, or fill a mask with a predicted code token. Applying the predicted labels produces the next state, and the loop repeats until the edited content stops changing.

Because real edits preserve most source tokens, the model needs far fewer steps than from-scratch generation. Intermediate training states are built from the original and target code using LCS alignment, and the training scheduler samples initial, target, and intermediate states with different probabilities to stabilize learning. Since edit labels are rare and imbalanced, rare structural actions are up-weighted in the loss.

Training happens in three stages: continuous pretraining on git commit diffs (CommitPack), supervised fine-tuning on IDE-format edit-prediction examples (including the C3PO training set), and post-training that treats each predicted diff as a modification direction. The post-training uses Diff-DPO with paired good and bad next states, and AGRPO, which optimizes over denoising transitions with a terminal reward (exact match to the target snippet minus a repetition penalty) converted into group-relative advantages.

For serving, the authors build a dedicated inference engine: block-wise parallel edit decoding applies high-confidence edits within local blocks using unchanged tokens as anchors, insertion length is adaptive so one insert action can emit several consecutive tokens, and two levels of approximate KV-cache reuse cover stable prefixes/converged blocks and long unchanged suffixes via RoPE position correction following PIE.

Why This Matters

Impact on research. The paper argues that aligning diffusion models with the intrinsic properties of edit prediction — locality, incrementality, and context dependence — is more productive than regenerating whole sequences, and frames edit paths as discrete modification directions over denoising transitions, which makes preference learning and reinforcement learning applicable to edit directions rather than left-to-right token emissions. It also positions itself against prior dLLM work with edit operations (Seed Diffusion, LLaDA2.1, LLaDA2.2, Edit Flows, DID, DreamOn) by focusing on edit latency and quality with production-grade deployment.

Real-world applications.

• In-IDE next-edit prediction, where the system suggests local rewrites from recent edits, the current file, and cursor-local context.
• Latency-sensitive code completion and infilling in editor tabs and inline suggestion features.
• Large-file refactoring and multi-line synchronized rewrites, such as consecutive changes to function parameters, call chains, or repeated patterns.
• Production code-assistant serving, where P50 latency and acceptance rate must be optimized together.

Industry relevance. The work was conducted at ByteDance, evaluated in a real IDE A/B experiment, and reports both model-quality metrics (acceptance rate, CPO, accepted lines) and serving metrics (P50 latency), showing that a 39.0% P50 latency reduction and a 9.6% increase in accepted lines per user transferred from local decoding advantages to the production path. It also reports that both AR and Diff Diffusion were served with tensor parallel size 4 and FP8 quantization, with NGram speculative sampling additionally enabled for AR.

Future Directions

• Developing a deeper theoretical analysis of edit-path diffusion, which the authors list as a current limitation.
• Extending the framework beyond latency-critical IDE edit prediction to broader editing settings.
• Applying it to instruction-guided editing.
• Applying it to repository-level changes and to agent workflows that combine planning, tool use, and human review.

Target Audience

Researchers and engineers working on diffusion language models, code intelligence, and AI-assisted development tools, particularly those focused on low-latency inference for interactive IDEs. It is also relevant to practitioners who need to evaluate whether edit-path modeling and approximate KV-cache reuse can replace or augment autoregressive edit-prediction systems in production, though the heavy diffusion, RL, and serving-system content makes it Advanced-level reading.

Authors’ abstract

Diffusion large language models (dLLMs) are appealing for code generation because they can update many tokens in parallel, yet many are optimized for sequence synthesis rather than edit prediction. This setting is poorly matched to modern AI-assisted IDEs, where edit prediction must infer the next code change from recent edits, the current file, and cursor-local context. Such changes are usually sparse and preserve most source tokens, so regenerating a full code segment wastes computation. We propose Diff Diffusion, a diffusion-inspired LLM framework for code editing that predicts edit paths from an original snippet to its revised form. Diff Diffusion represents denoising as structured edit operations, and combines this formulation with multi-stage training and efficient parallel decoding. By focusing computation on changed regions, Diff Diffusion supports accurate low-latency edits and multi-position parallel modification. Across public edit-completion benchmarks, edit-prediction evaluations, and online validation, Diff Diffusion matches or leads autoregressive baselines while delivering 2.78 times faster inference on public edit-completion benchmarks and a 39.0% P50 model-latency reduction in production. This work provides a new modeling perspective for AI applications that require high accuracy and low latency.
