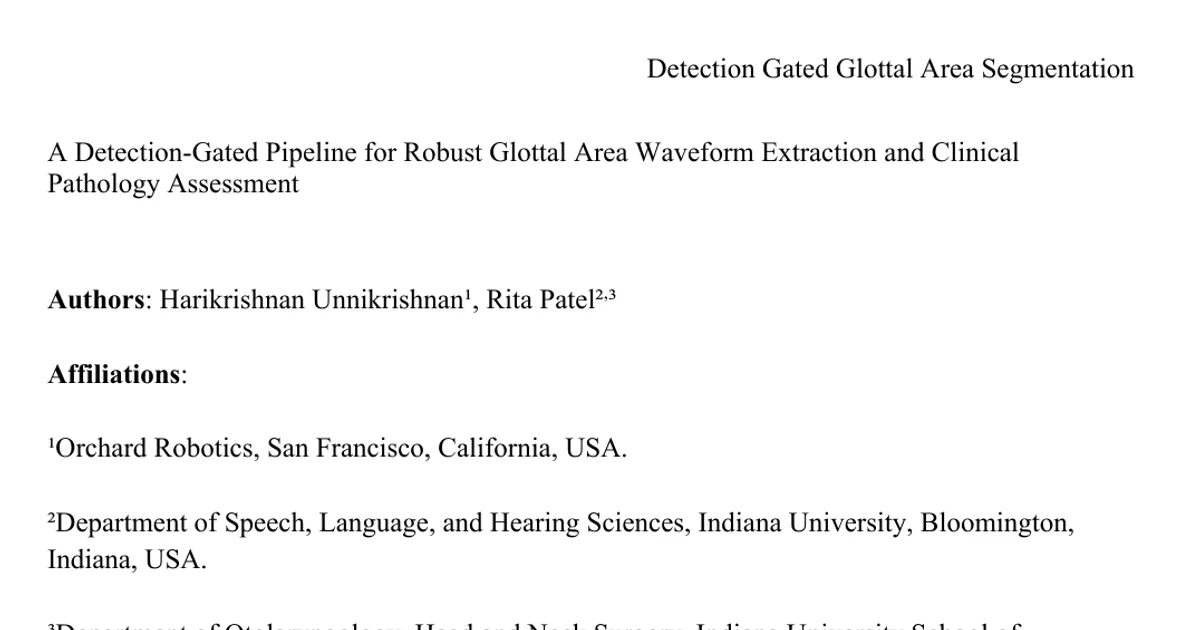

Detection-Gated Glottal Segmentation with Zero-Shot Cross-Dataset Transfer and Clinical Feature Extraction

AI summary

Overview

Research area: Medical computer vision, specifically glottal segmentation in high-speed videoendoscopy (HSV) of the vocal folds, with downstream clinical kinematic analysis.

Technical level: Advanced. The paper assumes familiarity with object detection, semantic segmentation, domain shift, and clinical laryngeal measurements.

Scope (one sentence): The paper proposes a two-stage detection-plus-segmentation pipeline with a temporal consistency wrapper, trained on a small GIRAFE subset and evaluated for zero-shot transfer to BAGLS, then validated against a clinical cohort.

What This Paper Is About

Deep learning models for glottal segmentation in high-speed videoendoscopy tend to produce spurious predictions on frames where the glottis is not visible or is obstructed, and they often fail to generalize outside the specific clinical setting they were trained on. The authors' goal is a pipeline that only segments when the glottis is reliably detected, holds up under zero-shot transfer to a different dataset, and still produces kinematic measurements consistent with clinical expectations. The end aim is a lightweight system usable in real-time clinical practice.

Key Contributions

1. Detection-gated architecture: A pipeline coupling a YOLOv8-based detector with a U-Net segmenter, so segmentation is gated by detection rather than applied unconditionally.
2. Temporal consistency wrapper: A post-processing stage that suppresses false positives specifically during glottal closure and instrument occlusion, when spurious segmentations are most likely.
3. Demonstrated zero-shot cross-dataset transfer: Training on a limited GIRAFE subset (600 frames) and evaluating on the large-scale BAGLS dataset without institutional fine-tuning.
4. Clinical downstream validation and release: Automated kinematic features (Open Quotient, coefficient of variation) checked against clinical benchmarks on a 65-subject cohort, with code, trained weights, and evaluation scripts released publicly.

Main Findings

• Benchmark performance: The pipeline reportedly achieved state-of-the-art performance on the GIRAFE benchmark with a DSC of 0.81, as claimed by the authors.
• Cross-dataset generalizability: On BAGLS, the pipeline reached a DSC of 0.85, which the abstract describes as in-distribution, without any institutional fine-tuning.
• Minimal training data sufficed: The model was trained on only 600 frames from GIRAFE, a limited subset of that dataset.
• Clinical feature consistency: On a 65-subject clinical cohort, automated kinematic features — Open Quotient and coefficient of variation — remained consistent with established clinical benchmarks.
• A statistically significant marker: The coefficient of variation of the glottal area distinguished healthy from pathological vocal function at p=0.006.
• Computational efficiency: The pipeline runs at approximately 35 frames/s, which the authors frame as sufficient for real-time clinical use.

Note: the abstract does not report comparisons against specific baseline models beyond the claim of state-of-the-art, nor does it detail the ablation or statistical methodology behind the reported figures.

Methodology in Plain English

The system works in two stages rather than one. First, a detector (YOLOv8) decides whether a glottis is actually present and visible in a given video frame. Only if the detector fires does a segmentation network (U-Net) draw the precise outline of the glottis. This gating step is what prevents the segmenter from hallucinating a glottis in frames where none is visible.

On top of that, a temporal consistency layer looks across neighbouring frames in the video sequence. Because videoendoscopy is a continuous recording, brief moments occur when the vocal folds are fully closed or when a clinical instrument blocks the view. During those moments, any segmentation output is treated as suspect and suppressed. This exploits the fact that glottal behaviour is smooth over time, so isolated flickers of detection are more likely errors than real anatomy.

For evaluation, the authors deliberately limited training to 600 frames from GIRAFE, then tested the model unchanged on the much larger BAGLS dataset to see whether it would transfer without fine-tuning to the new setting. Finally, they extracted clinical measurements — how much the glottis opens and how much that opening varies over time — from a 65-subject clinical cohort and compared those measurements against established clinical reference values.

Why This Matters

Impact on research: The paper argues that robustness gaps — spurious outputs and poor cross-site generalization — are what keep deep learning segmentation from being standardized across laryngeal imaging. A pipeline that transfers zero-shot points toward shared, comparable biomarkers across institutions rather than per-site bespoke models.

Real-world applications:

• Clinical laryngeal assessment: Extracting objective kinematic biomarkers from high-speed videoendoscopy to support diagnosis of vocal fold disorders.
• Healthy-versus-pathological screening: Using the coefficient of variation of glottal area as a quantitative discriminator between normal and disordered vocal function.
• Multi-site and multi-device studies: Pooling endoscopy data across hospitals and platforms without re-training or re-annotating for each site.
• Real-time intraoperative or office use: At roughly 35 frames/s, the pipeline is positioned for live feedback during examination rather than offline batch analysis.

Industry relevance: The work targets the medical device and clinical software space, where compute efficiency, deployability without per-site calibration, and reproducible measurement standards are commercial requirements. The public release of code and trained weights lowers the barrier for vendors and researchers to build on the pipeline.

Future Directions

• Closing the generalization gap further: The reported DSC of 0.85 on BAGLS is characterized as in-distribution, which raises the question of how the pipeline performs under genuinely out-of-distribution shift across scanners, illumination, and patient populations.
• Extending the clinical validation: The 65-subject cohort is the only clinical evidence reported; larger, multi-center, prospectively collected cohorts would be needed to confirm the CV-of-glottal-area marker.
• Broadening the feature set: Beyond Open Quotient and coefficient of variation, other kinematic biomarkers of laryngeal function could be extracted and validated with the same automated pipeline.
• Generalizing the detection-gated design: The architecture could be tested on other video-based medical segmentation tasks where segmentation should be conditionally suppressed, and its behaviour during total glottal closure and instrument occlusion examined in more detail.

Target Audience

Researchers and engineers working on medical image and video analysis, particularly those dealing with videoendoscopy, laryngeal imaging, or vocology. It also suits clinical scientists who need objective, automated vocal fold measurements, and machine learning practitioners interested in conditional or detection-gated segmentation, domain shift, and zero-shot transfer in small-data medical settings.

Authors’ abstract

Background: Accurate glottal segmentation in high-speed videoendoscopy (HSV) is essential for extracting kinematic biomarkers of laryngeal function. However, existing deep learning models often produce spurious artifacts in non-glottal frames and fail to generalize across different clinical settings. Methods: We propose a detection-gated pipeline that integrates a YOLOv8-based detector with a U-Net segmenter. A temporal consistency wrapper ensures robustness by suppressing false positives during glottal closure and instrument occlusion. The model was trained on a limited subset of the GIRAFE dataset (600 frames) and evaluated via zero-shot transfer on the large-scale BAGLS dataset. Results: The pipeline achieved state-of-the-art performance on the GIRAFE benchmark (DSC 0.81) and demonstrated superior generalizability on BAGLS (DSC 0.85, in-distribution) without institutional fine-tuning. Downstream validation on a 65-subject clinical cohort confirmed that automated kinematic features (Open Quotient, coefficient of variation) remained consistent with established clinical benchmarks. The coefficient of variation (CV) of the glottal area was found to be a significant marker for distinguishing healthy from pathological vocal function (p=0.006). Conclusions: The detection-gated architecture provides a lightweight, computationally efficient solution (~35 frames/s) for real-time clinical use. By enabling robust zero-shot transfer, this framework facilitates the standardized, large-scale extraction of clinical biomarkers across diverse endoscopy platforms. Code, trained weights, and evaluation scripts are released at https://github.com/hari-krishnan/openglottal.
