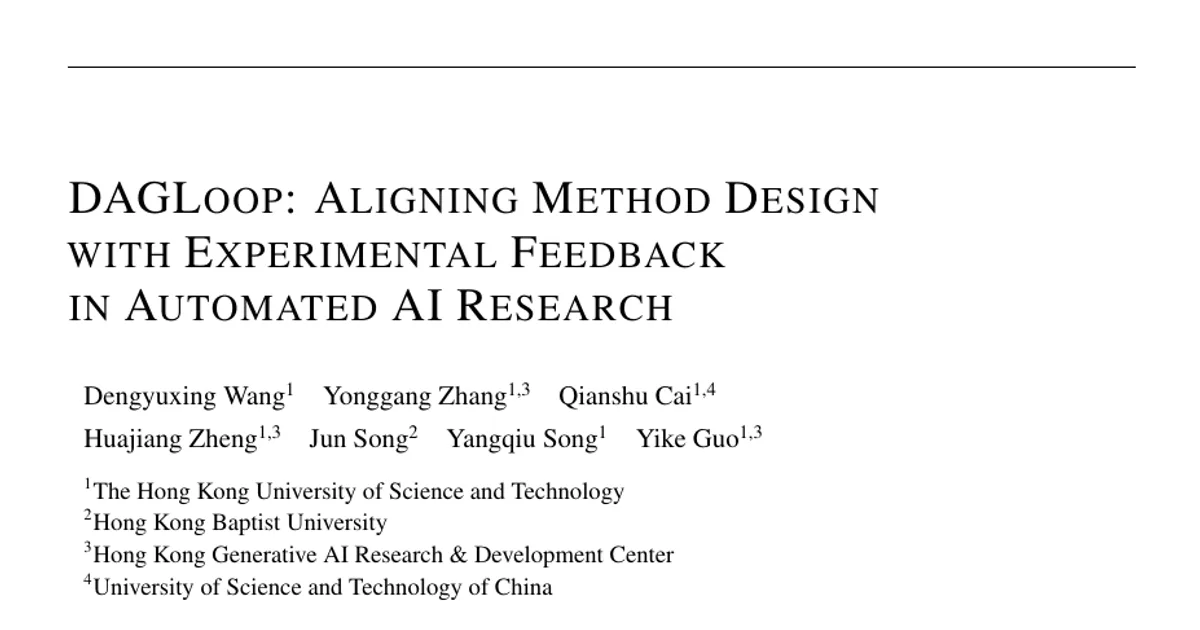

DAGLoop: Aligning Method Design with Experimental Feedback in Automated AI Research

AI summary

Overview

Research area: Automated AI research — LLM-based agents that propose, implement, and experimentally evaluate improvements to machine learning methods.

Technical level: Advanced. The paper formalizes the research loop (task tuples, marginal decision effects, dependency graphs, acceptance criteria) and assumes familiarity with ablation studies, agent benchmarks, and LLM-driven code search.

Scope (one sentence): DAGLoop is a research system that turns each design decision in a candidate method into a targeted, prerequisite-preserving experiment, plans those experiments as a dependency DAG, and stores the outcomes as structured memory that guides which decisions to keep, revise, or test further.

What This Paper Is About

Automated research agents usually judge a candidate method only by its overall score, but a candidate bundles many design decisions at once, so the score alone cannot say which decision worked, whether its preconditions held, or what should be changed next. The paper argues that testing decisions in isolation is also wrong, because removing one decision can destroy the conditions another decision needs (for example, an objective that is meaningless without the representation it operates on). DAGLoop solves this by comparing implementations with and without a decision while deliberately keeping that decision's prerequisites in the control, and by chaining these comparisons through a dependency graph.

Key Contributions

1. Problem diagnosis: The authors identify a mismatch between evaluating complete candidates and revising individual design decisions, and motivate experiments that retain a decision's prerequisites so decision-level evidence is meaningful.
2. The DAGLoop system: A research loop that translates each decision's rationale into an experimental specification (rationale, expected effect, required conditions, and a concrete test), builds a dependency DAG whose nodes pair decisions with tests and whose edges encode prerequisites, and plans targeted ablations from that graph.
3. Structured research memory: Each outcome is recorded with the tested decision, its expected effect, its required conditions, and the saved control implementation, so the agent can retain supported decisions, revise unsupported ones, and plan more experiments when evidence is unresolved. Effects that require several decisions together are tested jointly and attributed to the group.
4. Empirical validation: On all 36 official AutoLab tasks (25 CPU, 11 GPU), DAGLoop reaches a mean task score of 0.6459 versus 0.5831 for Terminus-2 with the same model (GLM-5.2, maximum reasoning effort), with higher means on both the CPU and GPU splits and under reasoning-disabled settings for GLM-5.2 and DeepSeek-V4-Flash.

Main Findings

• Primary benchmark result: With GLM-5.2 at maximum reasoning effort, DAGLoop averages 0.6459 across all 36 AutoLab tasks versus 0.5831 for Terminus-2; on the 25 CPU tasks it scores 0.6539 versus 0.6247, and on the 11 GPU tasks 0.6277 versus 0.4885.
• Reasoning disabled, GLM-5.2: DAGLoop averages 0.5485 versus 0.4266 overall (CPU 0.5918 versus 0.4502; GPU 0.4503 versus 0.3730).
• Reasoning disabled, DeepSeek-V4-Flash: DAGLoop averages 0.5340 versus 0.4202 overall (CPU 0.5045 versus 0.4492; GPU 0.6010 versus 0.3542).
• Per-task win/loss in the primary comparison: DAGLoop scores higher on 19 tasks, ties on seven, and scores lower on ten.
• Large per-task gaps: DAGLoop scores 0.7378 versus 0.0006 on online language-model serving, 0.4637 versus 0.2403 on agent tool routing, and 0.8134 versus 0.6040 on concurrent key-value storage.
• Where the baseline wins: Terminus-2 leads on instruction-following data selection (0.8581 versus 0.6177) and on SSTable compaction (0.3479 versus 0.1780). Five tasks tie at 1.0000: BM25, multilingual optical character recognition, stack-machine golf, Toy ISA, and VLIW scheduling.
• Ablation chains show prerequisite structure: In the bounding-volume hierarchy (BVH) raytracer, the surface-area-heuristic (SAH) build passes its property check (zero failed checks), SAH leaf-size selection cuts its matched control from 16.9169 s to 0.167806 s, and the integrated candidate reaches 0.157895 s.
• Correctness prerequisites separated from speedups: For AES-128 CTR, the AES-NI key schedule first passes a property check, the 8-way counter-mode implementation reduces runtime from 8.2557 s to 0.044184 s, and the joint run reaches 0.047219 s.
• Joint tests for interacting decisions: For hash join, direct-index build passes its check, AVX2 batch probing reduces its matched parent from 0.029695 s to 0.018936 s, and the end-to-end build-plus-probe run reaches 0.0191 s from a recorded baseline of 75.7664 s.
• Search-style gains tracked across stages: Adversarial splay raises rotations from 48,656 to 67,008 with the BR sequence, a simulator replica passes its check, local-search refinement adds 2,839 rotations to 69,847, and the joint result is 69,847 from a 48,656 baseline.
• Theoretical grounding: The appendix proves that baseline and complete-candidate evaluations alone cannot determine the marginal improvement of a decision, and that the ancestor set used for the control is the smallest set satisfying the declared dependencies.

Methodology in Plain English

The system treats a research task as a baseline method, an experimental environment, an official evaluator, and a finite budget. Starting from the user's research question, it clarifies objectives, retrieves literature, and proposes a candidate method composed of individual design decisions.

For each decision, the agent writes down what the decision is supposed to achieve and under what conditions, then designs a small experiment: what code change to make, how to run it, what quantity to measure, and what result would count as success. A critic agent reviews whether each test actually measures the claimed effect under the claimed conditions, and the plan must also pass a graph check before it is accepted.

The dependency graph is the core mechanism. Nodes are decisions (or groups of decisions tested together); an edge says one decision needs another. To test a decision, the system rebuilds a control from the baseline plus all of that decision's ancestors — every prerequisite, directly or indirectly required — and compares it against the same control with the decision added. Decisions that supply an intermediate property to others are judged by a "property check" on that property rather than by standalone task score, which prevents a useful enabling step from being discarded for lacking solo gains. When an effect only appears if several decisions act together, they are merged into one node with a shared test, and the credit goes to the group.

Every run is recorded with its decision, expectation, conditions, control implementation, and result. That memory is fed back into revision: supported decisions are kept, unsupported ones are reworked, and unresolved cases trigger further experiments. Implementation failures are treated as debugging input. Once all components are accepted, their checkpoints are assembled into a complete candidate and scored by the same official evaluator, and only candidates that pass the task checks can replace the current best.

Why This Matters

Research impact. The paper reframes feedback in automated research from "did the score go up" to "which decision produced its expected effect, under which prerequisites." This gives agent systems a principled way to attribute credit and to avoid the classic ablation error of removing a component and destroying the conditions another component depends on. It also connects automated method search to the ablation-planning literature and to benchmarks such as AbGen and AblationBench.

Real-world applications.

• Automated performance engineering: kernel and runtime optimization where a data-structure change (e.g., a direct index) enables a vectorized compute change (e.g., AVX2 batch probing).
• Compiler and systems tuning: the paper's tasks include stack-machine golf, Toy ISA, and VLIW scheduling.
• Model development pipelines, where data transformations, representations, objectives, and optimization rules must be changed together rather than one at a time.
• Auditable research assistance: the recorded memory documents which expectations were supported, under which conditions, and which remain unresolved.

Industry relevance. Teams running large-scale experiment loops need evidence that survives handoffs and re-runs; DAGLoop's memory ties each result to the code context that produced it and only reuses an implementation when its specification, prerequisites, and execution context remain compatible. The paper also reports gains under reasoning-disabled settings for GLM-5.2 and DeepSeek-V4-Flash, which matters when compute or latency budgets constrain agent deployments.

Future Directions

• More reliable decision-level evidence: The authors note that reliability depends on the decomposition, the prerequisite graph, the chosen observable, and the experiment's statistical power, and that the method does not identify a unique causal explanation. Better decomposition and power-aware testing are open problems.
• Isolating members of joint tests: When an effect requires several decisions to act together, the result is attributed to the merged component; finding ways to assign credit within such groups is left open.
• Context-aware evidence reuse: Reuse currently depends on recorded context, and changes to data, hardware, evaluation, or upstream decisions can force new experiments. Managing invalidation and re-validation at scale is a natural next step.
• Beyond executable benchmarks: The paper flags that broader scientific generalization and revision of the research agent itself require separate evaluation, and that repeated optimization against a fixed evaluator can overfit task artifacts.

Target Audience

Researchers and engineers working on LLM agents for automated machine learning, program synthesis, and empirical method development; practitioners building evaluation harnesses and experiment-tracking infrastructure for AI systems; and readers interested in ablation methodology and experimental attribution. It is most useful to those comfortable with agent benchmarks and formal experimental design, since the paper's contribution is as much about what counts as evidence as about the system itself.

Authors’ abstract

Automated AI research agents aim to improve machine learning methods by iteratively proposing, implementing, and evaluating candidate methods. Existing work uses the outcome of each evaluation to determine how the next candidate should be revised for performance improvement. However, a candidate often combines multiple design decisions, and its overall outcome alone does not reveal which decisions produced their expected effects, whether their required conditions were satisfied, or which decisions should be retained or revised. Inspired by ablation studies in the machine learning community, we propose DAGLoop to test the expected effect of a design decision by comparing implementations with and without that decision while preserving the other decisions it requires. Specifically, DAGLoop translates each design decision's rationale into a testable expectation and pairs it with a targeted experiment, forming an experimental specification for assessing the expected effect under its required conditions. Using these specifications, we formulate ablation planning as the construction of a directed acyclic graph (DAG) from the candidate method's design: nodes associate decisions with tests, and edges encode dependencies. The DAG specifies which decisions each experiment must retain and supports joint tests when an expected effect requires several decisions to act together. Outcomes are recorded with the tested decisions, expectations, and conditions to form structured research memory. This memory guides the agent in retaining experimentally supported decisions, revising unsupported ones, and planning further experiments when the evidence is unresolved. Experiments on dozens of research tasks demonstrate substantial performance improvements achieved by DAGLoop across diverse executable research settings. Code and evaluation scripts are available at https://github.com/deng34567/DAGLoop.
