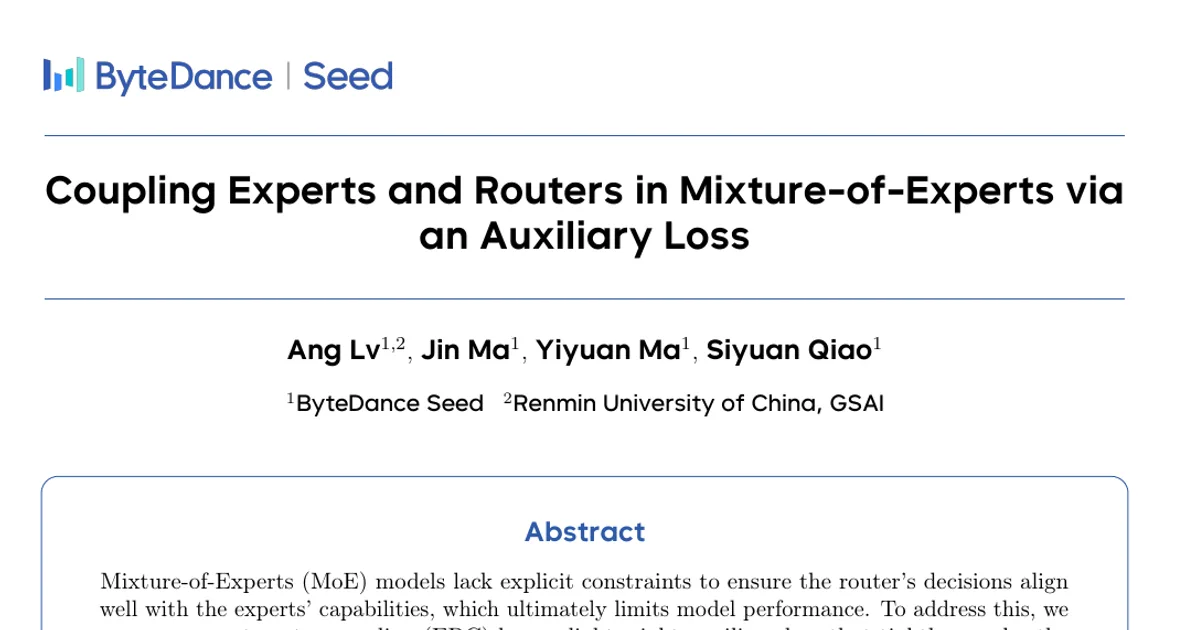

Coupling Experts and Routers in Mixture-of-Experts via an Auxiliary Loss

AI summary

Overview

Research area: Natural language processing / large language model architecture, specifically the training dynamics of Mixture-of-Experts (MoE) models.

Technical level: Intermediate. Understanding this work requires familiarity with MoE architectures, token routing, expert specialization, and auxiliary training losses.

Scope: A single-sentence scope: the paper proposes and evaluates a lightweight auxiliary loss — expert-router coupling (ERC) loss — designed to keep an MoE router's decisions aligned with what individual experts can actually do, validated by pre-training MoE-LLMs from 3B to 15B parameters.

What This Paper Is About

Mixture-of-Experts models route each token to a small subset of experts, but nothing in standard training explicitly forces the router's choices to match what those experts are actually good at handling. The authors argue this missing alignment constraint ultimately limits model performance. Their goal is to add a cheap training signal that ties router decisions and expert capabilities together, so that router embeddings genuinely represent their experts and experts genuinely specialize in the tokens routed to them.

Key Contributions

1. The ERC loss itself. A new auxiliary loss that explicitly couples the router's decisions with expert capabilities, described as lightweight and suitable for large-scale pre-training.

2. A proxy-token formulation. Each expert's router embedding is treated as a stand-in ("proxy token") for the tokens assigned to that expert, and perturbed versions of these router embeddings are passed through the experts to obtain intermediate activations for the loss to act on.

3. Two symmetric constraints. The loss enforces (a) each expert activates more strongly for its own proxy token than for any other expert's proxy token, and (b) each proxy token elicits stronger activation from its own expert than from any other expert. Together these are claimed to make router embeddings faithful representatives of expert capability and to drive expert specialization.

4. A fixed, batch-independent compute cost. The ERC loss operates only on n² activations, where n is the number of experts, in contrast to prior coupling methods whose cost scales with the number of tokens (often millions per batch). The authors also report that the loss allows flexible control and quantitative tracking of expert specialization during training.

Main Findings

• Improved MoE training at scale: The authors pre-train MoE-LLMs ranging from 3B to 15B parameters and conduct extensive analysis over trillions of tokens, and report that the ERC loss is effective. The abstract does not include specific benchmark scores, baselines, or comparisons against named alternatives.

• Router embeddings become capability-faithful: By constraining activation patterns in both directions, the loss is intended to ensure that each router embedding actually represents the corresponding expert's capability, rather than being an arbitrary learned vector.

• Experts specialize on their routed tokens: The second constraint pushes each expert to respond most strongly to its own proxy token, which the authors frame as specialization in the tokens genuinely routed to it.

• Cost efficiency: Because the loss touches only n² activations, its cost is fixed and independent of batch size — a contrast the authors draw explicitly against prior coupling methods that scale with tokens per batch.

• Control and observability: The ERC loss is described as offering flexible control over, and quantitative tracking of, expert specialization levels during training. The abstract does not specify what those measurements look like or what values were observed.

Methodology in Plain English

The idea rests on giving each expert a representative "token" to be judged against. The router already stores an embedding per expert — the vector used to decide routing. The authors treat that embedding as a proxy for the tokens that expert receives, then add a small perturbation and push the perturbed embedding through the expert network to see what activations come out.

Two checks are then applied to those activations. First, an expert's own proxy should light it up more than any other expert's proxy does. Second, a proxy should light up its own expert more than it lights up any other expert. These two directions are mirror images: one says experts should prefer their own proxy, the other says proxies should prefer their own expert. Training with this as an auxiliary loss nudges the router embeddings and the experts toward mutual agreement.

Because the loss is computed only over pairs of experts (hence n² activations), it does not grow with batch size. Prior approaches that couple routers and experts were reported to scale with the token count, which can reach millions per batch. The authors validated the approach by pre-training MoE-LLMs at 3B and up to 15B parameters and analyzing training behavior over trillions of tokens. The abstract does not describe the datasets, architectures, baselines, or evaluation protocols in detail.

Why This Matters

Impact on research: Router–expert misalignment is a known but loosely addressed issue in MoE training. A cheap, batch-independent auxiliary loss gives researchers a knob that is practical to use at scale, and the ability to track specialization quantitatively could make MoE training dynamics easier to study and diagnose.

Real-world applications:

• Efficient large-model serving: MoE models are used precisely because only a fraction of parameters activate per token; better router–expert alignment could translate into more reliable quality per unit of compute.
• Multi-domain and multilingual systems: Stronger specialization is directly relevant when a single model must serve distinct languages, domains, or task families through different experts.
• Search, ranking, and recommendation: These systems often use MoE-style conditional computation where routing quality directly affects output relevance.
• Cost-constrained deployments: Any training-time improvement that doesn't add batch-dependent overhead is attractive to teams with fixed compute budgets.

Industry relevance: MoE is a mainstream architecture for frontier-scale language models, where training runs span trillions of tokens and millions of dollars. An auxiliary loss whose cost depends only on the number of experts — not on batch size — is a practical addition to an existing training pipeline rather than an architectural overhaul.

Future Directions

• Scaling beyond the studied range: The abstract covers 3B to 15B parameter MoE-LLMs; whether the ERC loss behaves the same way at substantially larger scales is left open.
• Interaction with load-balancing losses: MoE training typically already uses auxiliary losses for load balancing; how ERC interacts with, complements, or conflicts with those is not addressed in the abstract.
• Specialization tracking as a diagnostic tool: The authors present quantitative tracking of specialization as an insight into MoEs — a natural next step is using it for interpretability or for early detection of routing collapse.
• Transfer to other modalities and architectures: The work is framed around NLP MoE-LLMs; whether the proxy-token formulation extends to vision, multimodal, or other conditional-computation settings is unaddressed.

Target Audience

Researchers and engineers working on Mixture-of-Experts architectures, large-scale LLM pre-training, and efficient conditional computation. It is also relevant to practitioners who train or fine-tune MoE models and want a low-overhead way to influence routing behavior, and to those studying expert specialization and interpretability in sparse models. Readers without prior exposure to MoE routing and auxiliary losses will need background reading first.

Authors’ abstract

Mixture-of-Experts (MoE) models lack explicit constraints to ensure the router's decisions align well with the experts' capabilities, which ultimately limits model performance. To address this, we propose expert-router coupling (ERC) loss, a lightweight auxiliary loss that tightly couples the router's decisions with expert capabilities. Our approach treats each expert's router embedding as a proxy token for the tokens assigned to that expert, and feeds perturbed router embeddings through the experts to obtain intermediate activations. The ERC loss enforces two constraints on these activations: (1) Each expert must exhibit higher activation for its own proxy token than for the proxy tokens of any other expert. (2) Each proxy token must elicit stronger activation from its corresponding expert than from any other expert. These constraints jointly ensure that each router embedding faithfully represents its corresponding expert's capability, while each expert specializes in processing the tokens actually routed to it. The ERC loss is computationally efficient, operating only on $n^2$ activations, where $n$ is the number of experts. This represents a fixed cost independent of batch size, unlike prior coupling methods that scale with the number of tokens (often millions per batch). Through pre-training MoE-LLMs ranging from 3B to 15B parameters and extensive analysis on trillions of tokens, we demonstrate the effectiveness of the ERC loss. Moreover, the ERC loss offers flexible control and quantitative tracking of expert specialization levels during training, providing valuable insights into MoEs.
