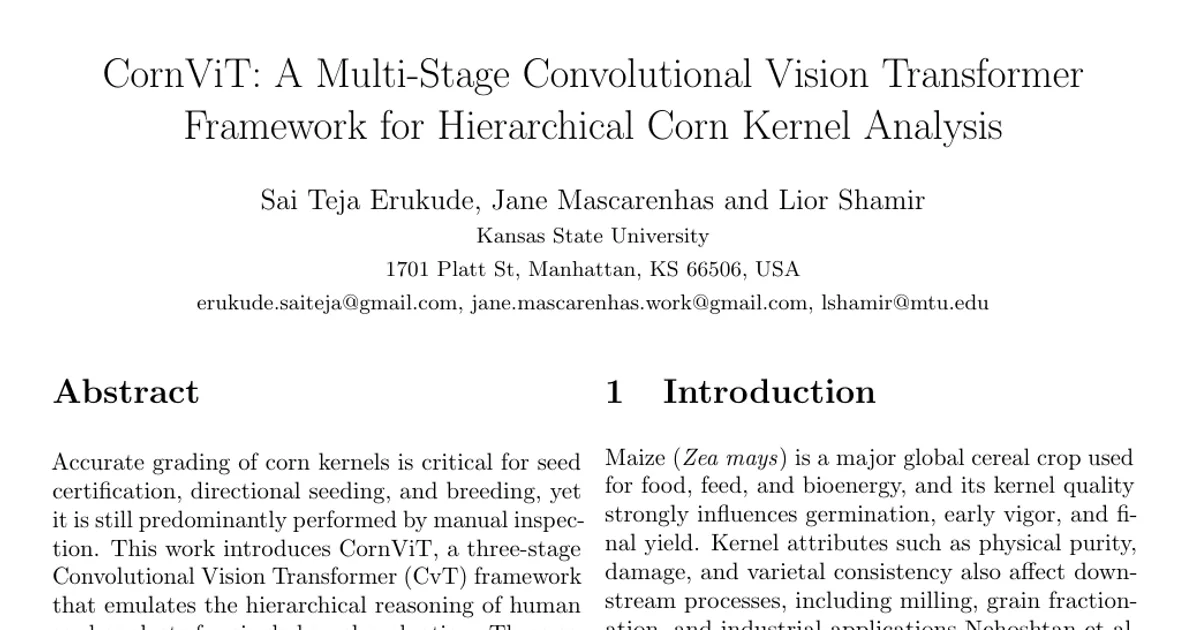

CornViT: A Multi-Stage Convolutional Vision Transformer Framework for Hierarchical Corn Kernel Analysis

AI summary

Overview

Research area: Computer vision and deep learning applied to precision agriculture, specifically automated seed and grain quality assessment.

Technical level: Intermediate. The paper is accessible to readers with basic familiarity with convolutional neural networks, but it assumes some knowledge of Vision Transformers and standard classification metrics.

Scope: The paper introduces CornViT, a three-stage Convolutional Vision Transformer (CvT) pipeline that classifies individual corn kernels by purity, shape, and embryo orientation, and packages it as a deployable web application.

What This Paper Is About

Grading corn kernels for seed certification, directional seeding, and breeding is still largely done by trained human inspectors, which is slow, resource-intensive, and hard to scale. Existing automated methods typically use a single monolithic classifier that collapses multiple quality attributes into one label and offers little interpretability, and most rely on CNN or handcrafted feature pipelines that struggle with global shape and subtle structural cues. This paper asks whether a multi-stage Convolutional Vision Transformer can mimic the step-by-step reasoning of a human seed analyst: first checking purity, then morphology, then embryo orientation.

Key Contributions

1. A three-stage CvT-based framework (CornViT) that mirrors human hierarchical reasoning for kernel purity, morphology, and embryo orientation, with each stage implemented as an independent CvT-13 binary classifier.
2. Three curated, stage-specific annotated corn kernel datasets, built by manually inspecting and relabeling images from a public Kaggle corn seed collection: 7265 kernels for purity, 3859 pure kernels for morphology, and 1960 pure–flat kernels for embryo orientation, released as benchmarks.
3. Competitive performance against strong CNN baselines under identical training conditions, with test accuracies of 93.76% (purity), 94.11% (shape), and 91.12% (embryo orientation), compared to ResNet-50 at 76.56–81.02% and DenseNet-121 at 86.56–89.38%.
4. A ready-to-use Flask-based web application that performs stage-wise inference and exposes interpretable outputs through a browser interface, with source code and data publicly available.

Main Findings

• Dataset curation was substantial: From the original Kaggle download of 17,801 single-kernel images, 10,536 were identified as duplicates and discarded, leaving 7265 retained images. Approximately 50% of the retained images required a class relabel during manual curation, because the original dataset's four classes (broken, discolored, pure, silkcut) contained misplaced and mislabeled images.

• Stage 1 (purity) results: On 1090 test images, both pure and impure classes achieved F1 scores above 0.93, indicating balanced performance across classes. Test accuracy for this stage was 93.76%.

• Stage 2 (shape) results: The pure/flat vs. pure/round classifier reached 94.11% test accuracy on 578 test images.

• Stage 3 (embryo orientation) results: The embryo up vs. down classifier reached 91.12% test accuracy on 293 test images — the lowest of the three stages, consistent with the paper's note that embryo orientation is the visually subtlest task.

• CNN baselines fell well short: Under identical preprocessing, augmentation, splits, and comparable training settings, ResNet-50 scored 76.56% (Stage 1), 78.21% (Stage 2), and 81.02% (Stage 3). DenseNet-121 scored 86.56%, 87.05%, and 89.38% respectively, outperforming ResNet-50 but still trailing CornViT at every stage.

• Head-only fine-tuning was sufficient: Freezing the entire ImageNet-22k pretrained CvT-13 backbone and updating only the final 2-unit linear classification head produced the reported accuracies, with the paper citing smaller curated datasets, reduced training time and GPU memory, and stable comparable features across stages as the motivations.

• Training configuration was uniform across stages: AdamW optimizer, learning rate 1×10⁻⁴, weight decay 0.05, SoftTargetCrossEntropy loss, label smoothing 0.1, CosineLRScheduler with 5 warm-up epochs (warmup_lr_init = 1×10⁻⁵), minimum LR 1×10⁻⁶, and 20 total epochs, implemented in PyTorch 2.9.0.

• Skipped-stage behavior is built in: Impure kernels terminate after Stage 1, and pure-round kernels terminate after Stage 2, so no downstream classification is attempted where it would be visually meaningless.

• Detailed per-class metrics for Stages 2 and 3 are not reported in the available paper content; the results section is truncated after the Stage 1 discussion.

Methodology in Plain English

The researchers started from a public corn seed image collection on Kaggle and found it unusable as-is: the four original class folders contained misplaced, mislabeled, and duplicate images. They manually inspected all 17,801 single-kernel images, discarded 10,536 duplicates, and hand-reassigned classes where needed, keeping 7265 images. From this clean pool they built three nested datasets, one per decision. The purity dataset contains all 7265 kernels split into pure and impure (broken, discolored, or silkcut). The shape dataset contains only the 3859 pure kernels, split into flat and round. The embryo orientation dataset contains only the 1960 pure-flat kernels, split into embryo up and embryo down. Each split follows a 70/15/15 train/validation/test ratio.

Every image is resized to 384×384 RGB. During training, images get random horizontal and vertical flips, color jitter on brightness, contrast and saturation, and small rotations up to 15 degrees, then are normalized with standard ImageNet statistics (mean [0.485, 0.456, 0.406], standard deviation [0.229, 0.224, 0.225]).

For each of the three decisions, the team took an official Microsoft CvT-13 backbone pretrained on ImageNet-22k, replaced its final layer with a fresh two-unit classification head, froze the rest of the network, and trained only that head. CvT was chosen because it blends convolutional token embedding and convolutional projections in self-attention with the global context modeling of Transformers, letting it capture both fine surface texture and overall kernel shape. To check whether this architecture actually mattered, they ran ResNet-50 and DenseNet-121 baselines through the exact same splits, augmentation pipeline, and comparable training settings. At inference time, a new kernel image flows through Stage 1; if it is judged impure, the pipeline stops; otherwise it proceeds to Stage 2, and if it is judged round, the pipeline stops; only pure-flat kernels reach Stage 3. The whole thing is served through a Flask web app.

Why This Matters

Impact on research: The paper argues that decomposing kernel grading into explicit intermediate decisions produces interpretable outputs that agronomists and seed analysts can inspect, unlike monolithic "good/defective/impurity" classifiers. It also provides evidence that convolution-augmented self-attention outperforms strong CNN backbones for fine-grained agricultural vision, in a domain where the paper states Vision Transformer use for kernel-level analysis remains limited. The released stage-wise datasets address what the authors describe as an extremely limited supply of public corn kernel image datasets for these tasks.

Real-world applications:

• Seed certification and quality control: automated purity screening to separate acceptable kernels from broken, discolored, and silkcut ones.
• Directional seeding: the paper cites field trials by Toler et al. (1999) showing that manipulating seed orientation for across-row leaf alignment increased yields by 10 to 20 percent through improved light interception, making automated embryo-orientation detection directly actionable.
• Breeding programs: scalable kernel-level phenotyping where manual inspection cannot keep pace with high-throughput demand.
• Grain processing and milling: purity and varietal consistency affect milling and grain fractionation downstream.

Industry relevance: The paper frames manual kernel evaluation as time-consuming, resource-intensive, and unable to scale to commercial seed production and modern breeding. CornViT's Flask deployment and public code repository (accessed 19 December 2025) are presented as the path to practical adoption. The paper also notes closer-to-deployment precedents such as Rocha et al.'s real-time system on a self-propelled forage harvester that counts whole kernels and estimates Kernel Processing Score with strong agreement to laboratory sieve analysis.

Future Directions

• Partial unfreezing. The authors explicitly state that unfreezing the final transformer stage may offer additional performance gains — particularly for the visually subtle Stage 3 embryo-orientation task — and leave this for future work.
• Broader CNN baselines. The paper notes that a survey including lightweight CNNs such as EfficientNet or MobileNet would be valuable and is left as complementary future work, orthogonal to the main question of whether CvT helps. The authors state their goal was not an exhaustive CNN benchmark but a comparison against a representative pair of strong, widely used backbones.
• Extension to new quality attributes and imaging setups. The modular stage design is described as adaptable to different imaging setups or extendable to additional quality attributes, though no specific new attributes are named.
• Cross-setup robustness. Several prior handcrafted orientation systems reviewed in the paper are described as sensitive to variation in lighting, seed appearance, and camera conditions because they depend on device-specific geometric and color features; CornViT's claim of greater robustness is architectural, and empirical testing across imaging conditions is not reported.

Target Audience

This paper is most useful to computer vision and machine learning researchers working on agricultural and plant-phenotyping applications, particularly those interested in Vision Transformer versus CNN comparisons on fine-grained tasks. It also serves agricultural engineers and seed industry practitioners looking for an automated, deployable alternative to manual kernel grading, and dataset builders who need a curated multi-stage corn kernel benchmark. Readers with no background in deep learning will find the high-level framing accessible, but the architectural and training details require intermediate familiarity with classification models.

Authors’ abstract

Accurate grading of corn kernels is critical for seed certification, directional seeding, and breeding, yet it is still predominantly performed by manual inspection. This work introduces CornViT, a three-stage Convolutional Vision Transformer (CvT) framework that emulates the hierarchical reasoning of human seed analysts for single-kernel evaluation. Three sequential CvT-13 classifiers operate on 384x384 RGB images: Stage 1 distinguishes pure from impure kernels; Stage 2 categorizes pure kernels into flat and round morphologies; and Stage 3 determines the embryo orientation (up vs. down) for pure, flat kernels. Starting from a public corn seed image collection, we manually relabeled and filtered images to construct three stage-specific datasets: 7265 kernels for purity, 3859 pure kernels for morphology, and 1960 pure-flat kernels for embryo orientation, all released as benchmarks. Head-only fine-tuning of ImageNet-22k pretrained CvT-13 backbones yields test accuracies of 93.76% for purity, 94.11% for shape, and 91.12% for embryo-orientation detection. Under identical training conditions, ResNet-50 reaches only 76.56 to 81.02 percent, whereas DenseNet-121 attains 86.56 to 89.38 percent accuracy. These results highlight the advantages of convolution-augmented self-attention for kernel analysis. To facilitate adoption, we deploy CornViT in a Flask-based web application that performs stage-wise inference and exposes interpretable outputs through a browser interface. Together, the CornViT framework, curated datasets, and web application provide a deployable solution for automated corn kernel quality assessment in seed quality workflows. Source code and data are publicly available.
