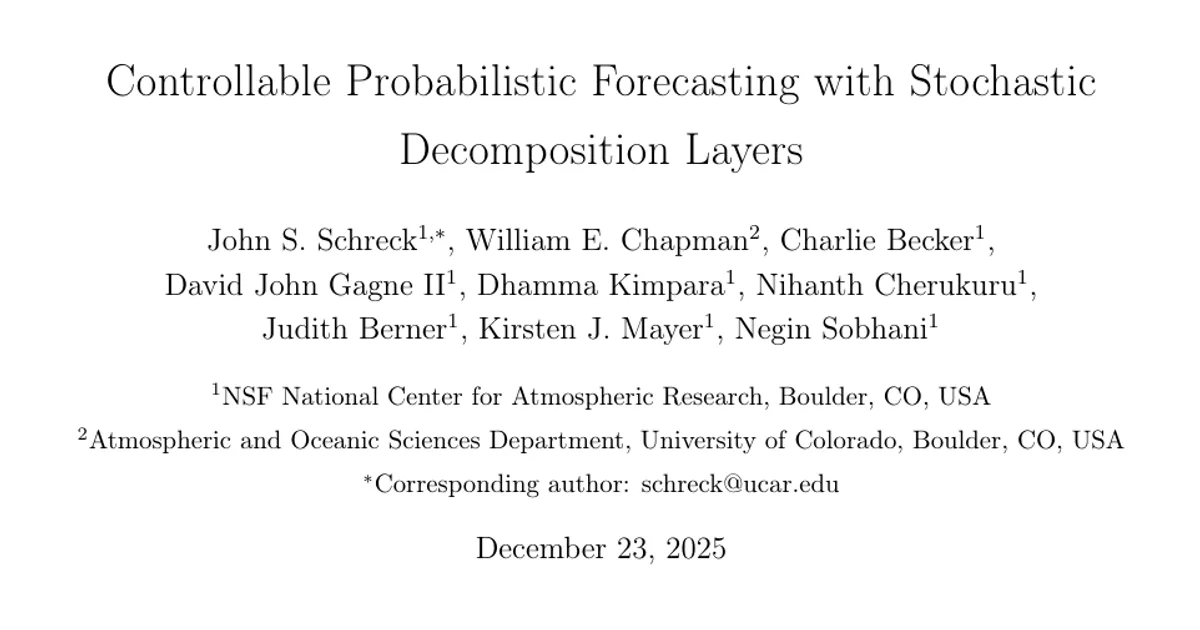

Controllable Probabilistic Forecasting with Stochastic Decomposition Layers

AI summary

Overview

Research area: Machine learning for weather prediction, specifically generative/probabilistic ensemble forecasting architectures. Technical level: Advanced (requires familiarity with neural network architecture design, CRPS-based training, power spectra, and ensemble verification metrics). Scope: The paper introduces Stochastic Decomposition Layers (SDL) — adapted from StyleGAN's hierarchical noise injection — as a computationally cheap way to convert a deterministic machine learning weather model (WXFormer) into a well-calibrated probabilistic ensemble system with controllable, scale-dependent uncertainty.

What This Paper Is About

Modern machine learning weather models are accurate but mostly deterministic, while operational forecasters need ensembles that quantify uncertainty. Diffusion-based probabilistic models produce realistic ensembles but are expensive because they require iterative denoising at inference (at least 20-50 refinement steps per forecast) and long training over hundreds of denoising timesteps. This paper asks whether a small set of learned stochastic layers injected at three decoder scales can turn an existing deterministic model into a calibrated, controllable, and reproducible ensemble at a tiny fraction of the training cost.

Key Contributions

1. Stochastic Decomposition Layers (SDL): A new layer that combines three multiplicative components — a latent-derived "style" tensor, a learnable channel modulation parameter, and per-pixel Gaussian noise — to inject controlled stochasticity into feature maps at multiple decoder scales.
2. Transfer-learning conversion of a deterministic model: SDL is inserted into WXFormer, and all weights are fine-tuned jointly from a pre-trained deterministic checkpoint, requiring approximately 1.61% of the computational cost needed to train the baseline WXFormer from scratch (the abstract states below 2%).
3. Compact, manipulable latent representation: Each ensemble member is generated from three independent latent tensors totaling roughly 5 MB in float32, enabling exact reproducibility and post-inference spread adjustment through latent rescaling and interpolation.
4. Demonstration of hierarchical, scale-dependent uncertainty control: Systematic scaling of per-layer latent factors (β₁, β₂, β₃) shows that coarse layers modulate synoptic patterns while fine layers control mesoscale variability, verified through spatial anomaly maps and kinetic energy spectra.

Main Findings

• Calibration competitive with an operational ensemble: On the 2022 ERA5 test period, SDL-WXFormer spread-skill ratios approach unity (labeled ≈ 1.0), and rank histograms progressively flatten toward uniformity through medium-range forecasts, achieving calibration competitive with operational IFS-ENS. Rank histograms are U-shaped at 6 h (indicating initial underdispersion) and flatten by day 10-15.
• Strong skill on moisture and dynamic fields: CRPS for upper-air winds (U700, V850), geopotential height (Z500), and temperature (T850) remains comparable to IFS-ENS through 15-day forecasts. Specific humidity at 850 hPa (Q850) shows lower CRPS than IFS-ENS throughout the forecast window.
• Deterministic base model retains skill: The underlying deterministic WXFormer tracks or in some cases outperforms IFS HRES through the 10-day IFS window and maintains stable skill through day 15. Q850 shows consistently lower deterministic RMSE than IFS HRES at all lead times.
• Calibration degrades with altitude: Lower-tropospheric model levels (100-137) achieve SSR near unity and flatter rank histograms, while upper-tropospheric levels (10-60) show persistent underdispersion (SSR < 1.0), reflecting the model's 16-level vertical discretization (e.g., level 90 ≈ 500 hPa, level 110 ≈ 850 hPa).
• Hierarchical scale separation: Varying β₁ produces large, spatially coherent Z500 anomalies exceeding ±600 m concentrated at synoptic scales (wavenumbers n = 2-10); β₂ dominates at meso-α scales (n = 10-20); β₃ produces anomalies typically below ±200 m at meso-β scales (n > 20-30).
• Wavenumber-dependent energy redistribution: For β₁, values of β = -3 maximally increase kinetic energy at n = 1, while β = 3 produces the largest amplification at the spectral peak (n ≈ 4) — evidence that coarse-layer perturbations redistribute energy rather than scale it uniformly.
• Exact reproducibility with a small archive footprint: Storing the computed noise perturbations reproduces an ensemble member with a maximum absolute difference below 0.01 hPa, at roughly 5 MB per member per forecast time versus roughly 35 MB for complete atmospheric state fields.
• Case study behavior: For Winter Storm Izzy (valid January 17, 2022 at 18:00 UTC), the 10-day lead ensemble spans more than 30 hPa in central pressure and several hundred kilometers in storm position; at 2-day lead, all sampled members show central pressures below 980 hPa offshore of the Northeast coast.
• Post-inference interpolation: Latent tensors from two members can be linearly blended (Z_e = (1-e)Z₁ + eZ₂, e ∈ [0,1]) to generate intermediate forecasts at each forecast step.
• Ensemble generation cost scales with member count only: Generating 50 members requires 50 forward passes with different latent samples and no architectural changes or iterative refinement.

Methodology in Plain English

The team started with a deterministic weather model called WXFormer, which uses an encoder-decoder structure with transformer blocks and U-Net-style skip connections to predict weather at multiple spatial resolutions. They added a new layer — the Stochastic Decomposition Layer — at three points in the decoder, positioned after each upsampling operation but before skip connection concatenation.

Each SDL works by adding noise to the feature maps, but not plain noise. The noise is multiplied by two learned quantities: a "style" tensor computed from a small random latent vector through a linear layer, and a fixed learned channel-wise modulation parameter. A non-trainable scalar (α = 0.235, chosen from preliminary experiments) sets the overall noise scale. Independent latent vectors are sampled at each of the three injection points, deliberately unlike StyleGAN's correlated noise across levels, so that different atmospheric scales can carry distinct uncertainty.

Training starts from the pre-trained deterministic WXFormer weights and fine-tunes all weights jointly using the almost fair Continuous Ranked Probability Score (afCRPS) with α = 0.95, generating M = 10 ensemble members per input. The loss is averaged across variables, vertical levels, and spatial locations with latitude weighting. The data is ERA5 reanalysis coarsened to 1° horizontal resolution (360×181 grid) spanning 1979-2022, with 16 of ERA5's 137 model levels, surface variables, static fields, and solar irradiance — 74 input variables total. The split follows an earlier study: training 1979-2017, validation 2018-2019, testing 2020-2022 (00Z initializations from 2022).

Verification compared the SDL-WXFormer ensemble against ECMWF's IFS-ENS using CRPS, ensemble-mean RMSE, spread-skill ratio, and rank histograms, all on a common 192×288 grid. Additional experiments scaled individual latent vectors by factors β₁, β₂, β₃ across the range [-3, 3] (21 configurations, seven values per parameter) to test whether the learned uncertainty decomposes by atmospheric scale.

Why This Matters

Impact on research: The paper offers an alternative to diffusion-based ensemble weather models that avoids iterative denoising at inference and avoids training on full denoising trajectories. It also challenges the common practice of injecting noise globally throughout a network via conditional normalization, arguing that hierarchical, architecturally localized noise is both cheaper and more physically interpretable. The demonstration that latent scaling produces scale-dependent spectral responses links machine learning ensemble design to established understanding of multi-scale atmospheric error growth.

Real-world applications:

• Operational ensemble weather forecasting, where centers must generate 50+ member ensembles quickly and archive them for verification and audit trails.
• Ensemble post-processing and recalibration, since forecasters can adjust spread after inference without regenerating forecasts when verification reveals systematic over- or underdispersion.
• Scenario exploration for forecasters, who can amplify or suppress specific synoptic-scale patterns to understand downstream regional impacts.
• Climate and long-range applications that need interpretable uncertainty quantification, given the authors' stated aim of providing this for "operational forecasting and climate applications."

Industry relevance: Weather-sensitive sectors — energy trading, aviation, agriculture, insurance, and logistics — depend on probabilistic forecasts and on the ability to reproduce a specific ensemble member exactly. The roughly 5 MB per member storage requirement and the ability to interpolate between members are practical advantages for organizations archiving large ensembles under cost constraints.

Future Directions

1. Encoder-side SDL injection: The architecture supports six injection levels (three encoder, three decoder), but only the three decoder positions were used. The paper notes this is a deliberate constraint for experimentation within computational limits.
2. Testing the claimed 400-800 km and 100-200 km scale correspondence more deeply: The paper maps SDL levels onto synoptic/meso-α and meso-β regimes through spectral and spatial analysis; broader verification of that mapping is a natural extension.
3. Improving upper-tropospheric calibration: Persistent underdispersion at model levels 10-60 remains, tied to the 16-level vertical discretization.
4. Operational-scale deployment questions: The paper demonstrates efficiency relative to training from scratch; whether the approach scales to full operational ensemble systems, longer lead times, and other base architectures is left open.

Target Audience

This paper is most useful to machine learning researchers working on generative weather and climate models, meteorological ensemble developers at forecast centers, and atmospheric scientists interested in how architectural choices map onto physical predictability scales. It will also interest practitioners evaluating transfer learning and parameter-efficient fine-tuning, since the central efficiency claim (approximately 1.61% of baseline training cost) is a transfer-learning result rather than a from-scratch training result. Readers without background in ensemble verification metrics such as CRPS, spread-skill ratio, and rank histograms will need supplementary reading, as the paper assumes familiarity with all three.

Authors’ abstract

AI weather prediction ensembles with latent noise injection and optimized with the continuous ranked probability score (CRPS) have produced both accurate and well-calibrated predictions with far less computational cost compared with diffusion-based methods. However, current CRPS ensemble approaches vary in their training strategies and noise injection mechanisms, with most injecting noise globally throughout the network via conditional normalization. This structure increases training expense and limits the physical interpretability of the stochastic perturbations. We introduce Stochastic Decomposition Layers (SDL) for converting deterministic machine learning weather models into probabilistic ensemble systems. Adapted from StyleGAN's hierarchical noise injection, SDL applies learned perturbations at three decoder scales through latent-driven modulation, per-pixel noise, and channel scaling. When applied to WXFormer via transfer learning, SDL requires less than 2\% of the computational cost needed to train the baseline model. Each ensemble member is generated from a compact latent tensor (5 MB), enabling perfect reproducibility and post-inference spread adjustment through latent rescaling. Evaluation on 2022 ERA5 reanalysis shows ensembles with spread-skill ratios approaching unity and rank histograms that progressively flatten toward uniformity through medium-range forecasts, achieving calibration competitive with operational IFS-ENS. Multi-scale experiments reveal hierarchical uncertainty: coarse layers modulate synoptic patterns while fine layers control mesoscale variability. The explicit latent parameterization provides interpretable uncertainty quantification for operational forecasting and climate applications.
