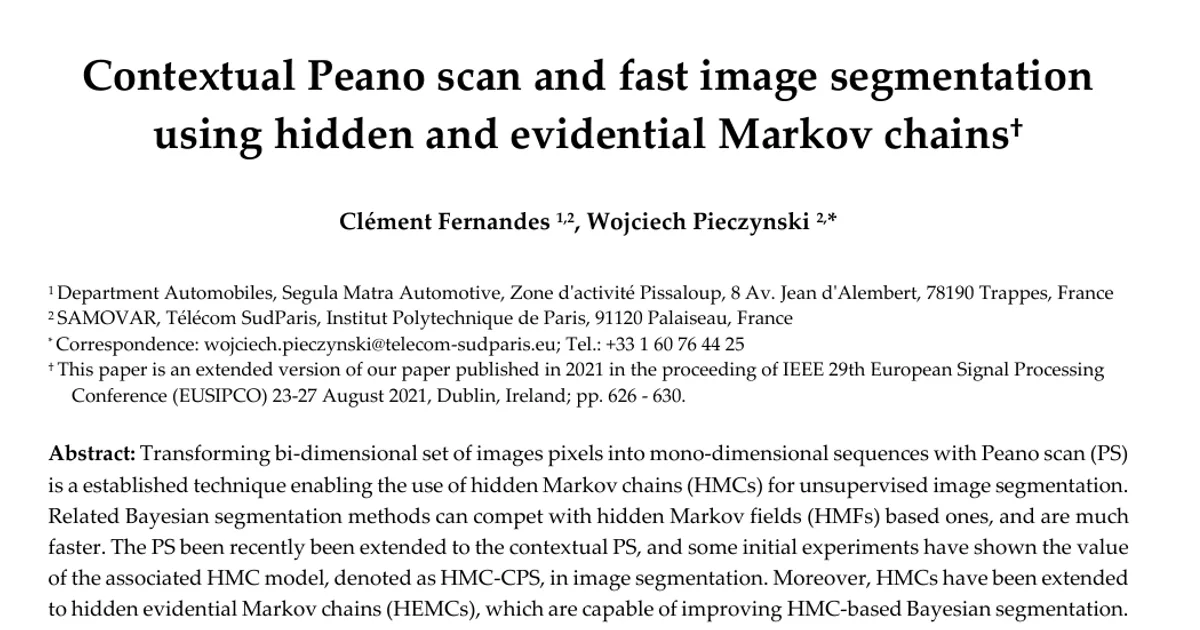

Contextual Peano Scan and Fast Image Segmentation Using Hidden and Evidential Markov Chains

AI summary

Overview

Research area: Computer vision / statistical image processing — specifically unsupervised Bayesian image segmentation using Markov chain models.

Technical level: Advanced. The abstract assumes familiarity with hidden Markov chains, Markov fields, Bayesian maximum posterior mode (MPM) estimation, evidential models, and the stochastic expectation–maximization (SEM) algorithm.

Scope: The paper combines two previously separate extensions of hidden Markov chain segmentation — a contextual Peano scan and an evidential hidden Markov chain — into a single model, and reports that it performs effectively for unsupervised image segmentation.

What This Paper Is About

Images are two-dimensional grids of pixels, but hidden Markov chains are one-dimensional models. A Peano scan solves this mismatch by tracing the image into a single sequence so these faster one-dimensional models can be applied. The paper asks whether that scan can be made "contextual" and simultaneously paired with an evidential form of hidden Markov chain, producing a model that segments images better than either idea alone while remaining unsupervised.

Key Contributions

1. A new combined model, HEMC-CPS. The authors bring together the recently proposed contextual Peano scan (CPS) and the hidden evidential Markov chain (HEMC) into one framework, rather than treating them as independent extensions.
2. Unsupervised Bayesian MPM segmentation with this model. Segmentation is performed by maximum posterior mode without supervision, with the model parameters learned from the data itself via the stochastic expectation–maximization (SEM) method.
3. Demonstration on synthetic and real images. The authors report that the new model is effective for these segmentation tasks, following earlier initial experiments on the HMC-CPS (non-evidential) version.
4. A claim of generality beyond standard images. The abstract positions both HMC-CPS and HEMC-CPS as applicable to any spatially correlated data, and points to three-dimensional and multi-sensor multi-resolution imagery as promising targets.

Main Findings

• The combined model works for segmentation: The abstract states that HEMC-CPS is shown to be effective for Bayesian MPM segmentation on both synthetic and real images. No performance figures, comparisons, or dataset details are given in the abstract.
• Unsupervised operation is preserved: Parameters are estimated through SEM, meaning no manual labeling or supervised training is required, consistent with earlier HMC-based approaches.
• Both components contribute: Contextual Peano scan and evidential hidden Markov chains had each previously been shown to help HMC-based segmentation separately; the paper's claim is that using them together is worthwhile.
• Speed advantage is inherited: The abstract notes that Peano-scan-based Bayesian methods can compete with hidden Markov field (HMF) methods while being much faster, which is the broader context for this work.
• Generalization is asserted, not yet demonstrated: The potential for 3D, multi-sensor multi-resolution, and non-image spatially correlated data is framed as potential for future work rather than as a reported result.

Methodology in Plain English

The researchers flatten a two-dimensional image into a one-dimensional sequence using a Peano scan. Their "contextual" version of this scan is designed to preserve more of the spatial relationships between neighboring pixels than the original scan did. On top of that sequence they place a hidden Markov chain, in which unseen states correspond to the classes or regions being segmented, while the visible data are the pixel values. The "evidential" variant replaces the standard probabilistic treatment of the chain's transitions with an evidential (belief-function-style) one; the abstract does not spell out the internal details of this replacement.

Model parameters are not given in advance. Instead, an iterative estimation procedure — stochastic expectation–maximization — alternates between guessing the hidden states and refining the parameters until the model fits the image. Once fitted, the final segmentation is produced by maximum posterior mode, i.e., each pixel is assigned to whichever class is most probable given the whole observed sequence. The abstract states the model was tested on synthetic and real images but does not describe the experimental setup, image sizes, or evaluation metrics.

Why This Matters

The work sits in a line of research trying to get the accuracy of hidden Markov field segmentation — which naturally respects two-dimensional neighborhood structure — at the computational cost of much cheaper chain-based models. Combining a richer scan order with an evidential chain suggests a way to close that accuracy gap further without paying the field-model price. If the claimed generality holds, the same machinery could be reused well outside photography.

Potential real-world applications, drawn from the abstract's own framing:

• Three-dimensional image segmentation, such as medical or volumetric scans where the same sequence-flattening idea would need to extend to a third dimension.
• Multi-sensor and multi-resolution imagery, where several images of the same scene at different scales or from different sensors must be segmented jointly.
• Remote sensing and Earth observation, which are the typical settings for multi-resolution, multi-sensor image stacks.
• Any spatially correlated data, not just pictures — the authors explicitly say the models are not limited to image segmentation.

Industry relevance: Faster unsupervised segmentation is attractive wherever labeling data is expensive or unavailable — medical imaging pipelines, satellite image processing, industrial inspection, and any setting where large volumes of imagery must be partitioned automatically and quickly.

Future Directions

• Extending HEMC-CPS to three-dimensional images, which the authors name as a promising direction but do not carry out here.
• Applying the model to multi-sensor and multi-resolution imagery, where combining several correlated views of the same scene raises new modeling questions.
• Testing the models on non-image spatially correlated data, given the claim that the approach is not specific to images.
• Detailed comparative validation, since the abstract reports effectiveness but gives no performance numbers, baselines, or comparisons against hidden Markov field methods — an important open question is exactly how much the contextual scan and evidential chain each contribute.

Target Audience

Researchers and graduate students working on statistical image segmentation, Markov random field and Markov chain models, evidential (belief-function) reasoning, or unsupervised learning for images. It is also relevant to practitioners in medical imaging, remote sensing, and any domain with large volumes of spatially structured data who are willing to engage with the underlying Bayesian and evidential formalism — the abstract presupposes that background rather than introducing it.

Authors’ abstract

Transforming bi-dimensional sets of image pixels into mono-dimensional sequences with a Peano scan (PS) is an established technique enabling the use of hidden Markov chains (HMCs) for unsupervised image segmentation. Related Bayesian segmentation methods can compete with hidden Markov fields (HMFs)-based ones and are much faster. PS has recently been extended to the contextual PS, and some initial experiments have shown the value of the associated HMC model, denoted as HMC-CPS, in image segmentation. Moreover, HMCs have been extended to hidden evidential Markov chains (HEMCs), which are capable of improving HMC-based Bayesian segmentation. In this study, we introduce a new HEMC-CPS model by simultaneously considering contextual PS and evidential HMC. We show its effectiveness for Bayesian maximum posterior mode (MPM) segmentation using synthetic and real images. Segmentation is performed in an unsupervised manner, with parameters being estimated using the stochastic expectation--maximization (SEM) method. The new HEMC-CPS model presents potential for the modeling and segmentation of more complex images, such as three-dimensional or multi-sensor multi-resolution images. Finally, the HMC-CPS and HEMC-CPS models are not limited to image segmentation and could be used for any kind of spatially correlated data.
