Compressed Map Priors for 3D Perception

AI summary

Overview

• Research area: Computer vision for autonomous driving — 3D perception, multi-view camera-based 3D object detection, and spatial scene representations.
• Technical level: Intermediate. The paper builds on familiar concepts from multi-view 3D detectors (BEV representations, transformer queries) and neural scene representations (multi-resolution hash encodings), but explains them clearly enough for readers with basic deep learning background.
• Scope in one sentence: The paper introduces a compact, learnable, hash-based memory of previously traversed locations and shows it improves 3D object detection across three different camera-based perception architectures on nuScenes.

What This Paper Is About

Autonomous vehicles almost never drive somewhere truly new — they repeatedly cover the same mapped, geo-fenced roads, yet most perception systems treat every frame as a first encounter and infer both static and moving scene structure from sensors alone. This paper proposes Compressed Map Priors (CMP), a way to learn a persistent spatial memory of static scene structure from past traversals and feed it into existing 3D detectors. The goal is to improve 3D object detection at negligible memory and compute cost, without depending on ground-truth HD maps at inference time.

Key Contributions

1. A compressed, learnable map prior. CMP uses a multi-resolution spatial hash encoding whose embeddings are binarized in the channel dimension, requiring only 32 KB/km² — described as a 20× reduction compared to dense storage — with roughly 3% computational overhead.
2. End-to-end differentiable prior learning. Gradients flow from the detection loss into the underlying spatial embedding through the straight-through estimator, so the prior is trained jointly with the perception system rather than being stored or retrieved in a non-differentiable way.
3. A detector-independent fusion design. Two lightweight fusion variants are proposed: a residual convolutional concatenation-and-fusion for dense BEV detectors, and a cross-attention layer for sparse query-based transformer detectors.
4. Consistent gains across architectures. CMP is integrated into BEVDet, BEVFormer, and PETR on nuScenes, improving NDS and mAP in every case, and it is also compared against traditional ground-truth map priors, BEVMap, and NMP.

Main Findings

• Detection improvements across all three baselines (nuScenes val): BEVDet improves from 0.383 to 0.426 NDS and 0.302 to 0.323 mAP (reported as 11% relative NDS and 7% relative mAP); BEVFormer improves from 0.425 to 0.447 NDS and 0.329 to 0.366 mAP (5% relative NDS and 11% relative mAP); PETR improves from 0.403 to 0.422 NDS and 0.339 to 0.349 mAP.
• BEV-based architectures benefit most: The paper attributes this to the fact that the prior features align spatially with the model's internal BEV representation.
• CMP beats traditional and learned priors: With BEVFormer, a ground-truth map prior (732.4 KB/km²) reaches 0.435 NDS and 0.335 mAP, while CMP (31.6 KB/km²) reaches 0.447 NDS and 0.366 mAP. Against learned priors at w = h = 100 resolution, CMP reaches 0.434 NDS, 0.355 mAP, and 0.690 mIoU, compared to baseline 0.394/0.323/0.444, BEVMap 0.398/0.319/0.711, and NMP* 0.409/0.341/0.501.
• The prior alone encodes map structure: A reconstruction probe on prior features only, with hash table sizes varying, yields mIoU of 0.636 (T = 2^15), 0.670 (T = 2^16), 0.752 (T = 2^17), and 0.785 (T = 2^18); large structures such as "road" reach 0.894–0.930 IoU even at smaller capacities, while "divider" improves from 0.405 to 0.662.
• Binarization is nearly free in accuracy: Binarized embeddings give BEVDet 0.426 NDS / 0.323 mAP at 32 KB/km² versus 0.431 / 0.322 at 640 KB/km² with full precision, and BEVFormer 0.447 / 0.366 versus 0.450 / 0.365 at 640 KB/km².
• Gains grow with repeated traversals: Performance is broken out by 0, 1–3, 4–6, and 7–17 training traversals; CMP improves over the baseline in all groups and the margin grows with more traversals, degrading gracefully to baseline in areas with no prior traversals.
• Stronger at longer range: Across close (0–10 m), medium (10–25 m), and far (25–50 m) thresholds for the "car" class, both methods perform similarly up close, while CMP degrades less with distance.
• Robust under input loss: With zero camera views dropped, NDS is 0.419 without prior and 0.438 with prior; dropping 1 view gives 0.379 vs 0.399, 2 views 0.351 vs 0.367, 3 views 0.327 vs 0.341, and dropping all 6 views gives 0.015 vs 0.077 — described as a 5× improvement from the prior alone.
• Low overhead: Prior sampling takes 7.63 ± 0.09 ms (2.50% of total) and prior fusion 1.57 ± 0.03 ms (0.51%), against a full forward pass of 305.17 ± 0.37 ms, measured over 100 samples on a single A5000 GPU at batch size 1.

Methodology in Plain English

The method works like a lookup table for space. The area around the vehicle is divided into a regular grid, and each grid cell is converted into global coordinates using the vehicle's pose. For each point, the system looks up learned embeddings at four surrounding corners across four different spatial resolutions (from 1 m² cells up to 25 m² cells), interpolates them, concatenates the multi-scale result, and passes it through a small MLP (3 layers, projecting to 128 channels). This produces the prior feature map.

The key efficiency trick is binarization: instead of storing each embedding value at full precision, the sign of the value is stored. This matches the discrete nature of HD map labels. During training the real-valued parameters are kept so gradients can flow through (using a straight-through estimator); at inference the values are binarized. To teach the model not to over-rely on the prior, random patches of the prior features are masked out and replaced with a learned mask token (masking ratio 0.25), so the model keeps working in locations it has never seen.

The prior is then fused into the detector: for dense BEV detectors like BEVDet and BEVFormer, the prior is resized to match the BEV feature size, concatenated, and fused with a single 3×3 convolution plus ReLU (with positional embeddings added to both sides); for transformer detectors like PETR, cross-attention lets the sparse sensor queries attend to the prior features. All models are trained for 24 epochs with AdamW at a learning rate of 2×10⁻⁴ with warmup and cosine annealing, on a single node with 8 Titan-V GPUs and a total batch size of 8, taking approximately 1 day. Backbones are ResNet-101 (BEVDet and BEVFormer, initialized from FCOS3D) and VoVnet-99 (PETR, initialized from DD3D).

Why This Matters

The work argues that repeated traversal is the norm rather than the exception in autonomous driving, and that perception stacks should exploit it. Unlike HD-map priors, CMP needs no map annotations at inference, and unlike some prior work it is trained end-to-end and stores its learned prior persistently rather than rebuilding it online.

Real-world applications:

• Autonomous vehicle perception in geo-fenced fleets that repeatedly drive the same routes, where a persistent prior can sharpen distant-object detection.
• Robustness under sensor degradation — e.g., occluded or failed cameras, where the prior alone provides a measurable signal (0.077 NDS with all six views dropped versus 0.015 without).
• Fleet-scale map memory storage, where 32 KB/km² matters for vehicles with limited onboard storage and bandwidth for map updates.
• Joint detection and map segmentation pipelines, since the same prior representation supports both tasks in the reported experiments.

Industry relevance: The 20× memory reduction, ~3% latency overhead, and detector-agnostic fusion design make the approach plausible as a drop-in addition to production multi-camera perception stacks rather than a new architecture. The paper also notes that adapting to new environments can be done by freezing most parameters (backbone, fusion modules, detector head) and optimizing only the prior parameters.

Future Directions

• Adaptation to changing or entirely new environments: The paper states that CMP requires additional training for new areas, and proposes freezing most parameters while optimizing priors — but does not report results for this adaptation procedure.
• How the prior is maintained over time: The paper does not report how the learned embeddings would be updated as the world changes (new construction, road closures, moving static objects).
• Extension beyond 3D detection and map segmentation: The method is validated on detection and on three segmentation classes (divider, pedestrian crossing, road boundaries); other perception tasks are not reported.
• Sensitivity to representation design choices: The paper varies hash table size T and shows an optimum at 2^16, but the interaction between resolution levels (1 m² to 25 m²), embedding dimension, and downstream task performance across more architectures is left for further study.

Target Audience

Researchers and engineers working on autonomous driving perception, camera-based 3D object detection, and multi-view/BEV architectures will get the most from this paper. It is also useful for readers interested in compact spatial representations and hash-based encodings borrowed from neural rendering, and for practitioners evaluating whether persistent map priors are worth the storage budget in a deployed fleet.

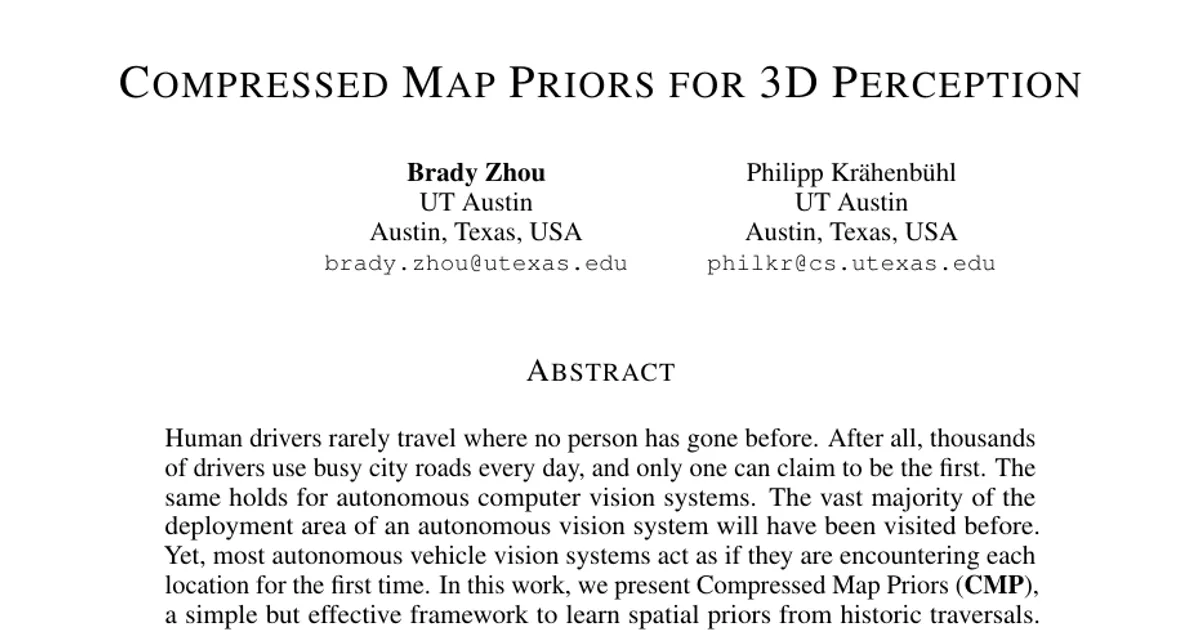

Authors’ abstract

Human drivers rarely travel where no person has gone before. After all, thousands of drivers use busy city roads every day, and only one can claim to be the first. The same holds for autonomous computer vision systems. The vast majority of the deployment area of an autonomous vision system will have been visited before. Yet, most autonomous vehicle vision systems act as if they are encountering each location for the first time. In this work, we present Compressed Map Priors (CMP), a simple but effective framework to learn spatial priors from historic traversals. The map priors use a binarized hashmap that requires only $32\text{KB}/\text{km}^2$, a $20\times$ reduction compared to the dense storage. Compressed Map Priors easily integrate into leading 3D perception systems at little to no extra computational costs, and lead to a significant and consistent improvement in 3D object detection on the nuScenes dataset across several architectures.
