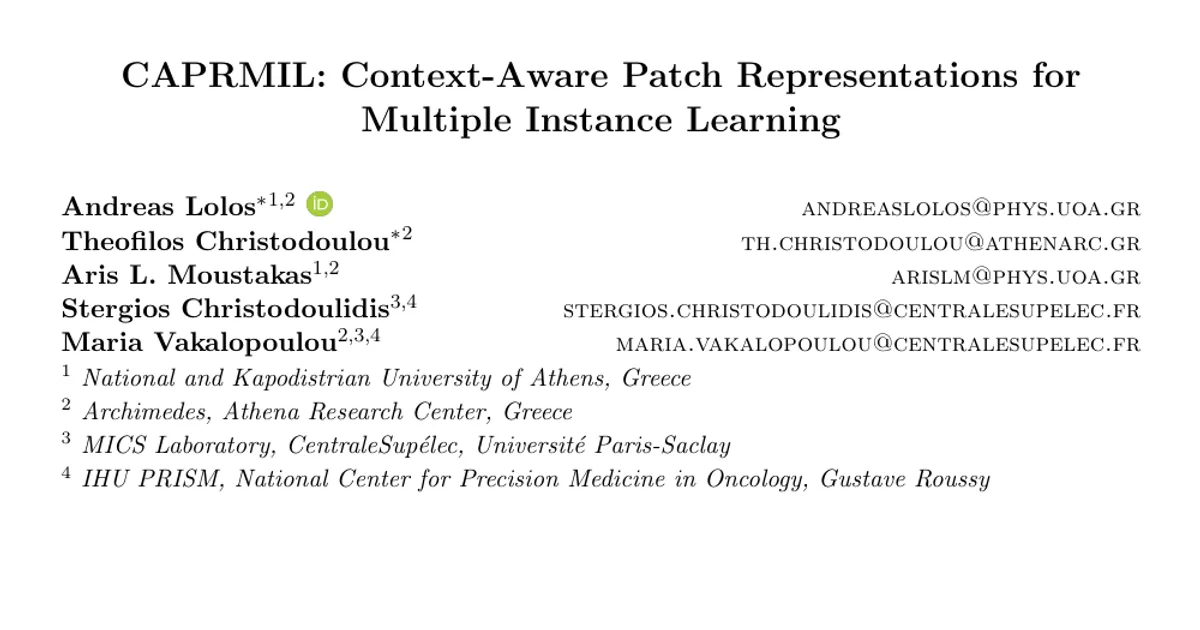

CAPRMIL: Context-Aware Patch Representations for Multiple Instance Learning

AI summary

Overview

Research area: Computational pathology and whole-slide image (WSI) analysis, specifically Multiple Instance Learning (MIL) architectures for slide-level classification.

Technical level: Advanced — the paper assumes familiarity with MIL, transformer attention, soft clustering, and computational complexity analysis.

Scope: The paper introduces CAPRMIL, an aggregator-agnostic MIL framework that replaces attention over patches with attention over a small set of context-aware global tokens, and evaluates it on four public pathology benchmarks.

What This Paper Is About

Whole-slide images are gigapixel-scale, and pathology datasets typically carry only slide-level labels rather than pixel-level annotations, so MIL has become the standard training framework. Existing MIL methods rely on increasingly complex attention-based aggregators to learn correlations between patches, which brings quadratic computational cost in the bag size, overfitting risk, and limited interpretability.

The authors take inspiration from neural Partial Differential Equation (PDE) solvers — where long-range correlations over millions of mesh points are handled by the Transolver architecture's "Physics-Attention" — and ask whether the correlation learning can be moved out of the MIL aggregator and into the patch representations themselves.

Key Contributions

1. A new MIL setting based on the Transolver architecture. CAPRMIL inserts a bottleneck before the attention operator consisting of (a) soft clustering of patch embeddings and (b) aggregation of each cluster into a context-aware token. Multi-Head Self-Attention is then applied over these tokens, giving linear computational complexity with respect to the bag size and producing morphology/context-aware patch representations.

2. A highly parameter-efficient formulation. The authors report performance on par with state-of-the-art MIL heads while reducing total trainable parameters by 48% compared to ABMIL and up to 92.8% compared to SOTA transformer-based MILs, with corresponding reductions in time, FLOPs, and memory.

3. A scalable, aggregator-agnostic formulation. The CAPRMIL block is independent of the final MIL aggregator, so it can be combined with different commonly used MIL heads at small computational overhead.

4. Empirical validation on four public pathology benchmarks (CAMELYON16, TCGA-NSCLC, BRACS, PANDA), where CAPRMIL paired with a simple MeanMIL aggregator matches SOTA performance while leading on efficiency metrics.

Main Findings

• Competitive slide-level performance with simple mean pooling: CAPRMIL +Mean reaches AUC .975±.006 / ACE .028±.006 on CAMELYON16, AUC .978±.016 / ACE .033±.021 on TCGA-NSCLC, κ .944±.053 / ACE .021±.024 on PANDA, and AUC .850±.031 / ACE .189±.026 on BRACS. The authors state that performance differences versus state-of-the-art MIL methods are consistently within one standard deviation.

• Parameter and compute reductions: CAPRMIL uses 0.314 M trainable parameters and 0.628 G FLOPs. This corresponds to a 52% to over 99% reduction in inference FLOPs compared with ABMIL, TransMIL, and DGRMIL, and up to 88% and 92.8% parameter reduction versus TransMIL and DGRMIL respectively. FLOPs are measured per forward pass for a bag of 1000 patch embeddings at inference.

• Naive mean aggregation fails on large bags: A baseline using only a linear projection, mean pooling, and a linear classifier (0.130 M parameters, 0.260 G FLOPs) underperforms by 44% on CAMELYON16 and 35.5% on BRACS, where bags contain 4k–20k instances. On PANDA (average bag size ∼500) this baseline performs comparably to other methods, with a similar trend on TCGA-NSCLC. This baseline achieves the highest reported TCGA-NSCLC AUC of .979±.015.

• Tokens capture coherent histology: Visualizations from a CAMELYON16 test slide show Token 1 predominantly capturing adipose-rich regions (low cellular content in its top-8 assigned patches), Token 2 aggregating malignant epithelial regions, Token 3 capturing stromal or tumor-associated connective tissue, and Token 4 representing benign tissue with more homogeneous cellular organization. A limited subset of instances dominates each token's construction.

• Aggregation choice is largely non-critical: Swapping mean aggregation for attention or gated attention within CAPRMIL gives broadly comparable results (within one standard deviation). On the more challenging multiclass tasks PANDA and BRACS, attention-based aggregators give an increase from 0.8% up to 2.4%, at the cost of increased parameterization (0.331 M for +Attn, 0.347 M for +GAttn versus 0.314 M for +Mean).

• Resource efficiency: CAPRMIL shows a substantially lower GPU memory footprint and shorter training time than transformer-based approaches. In the timing table, CAPRMIL reports 6.3 s training time (averaged over 30 epochs) and 0.8 s inference time for the full 129-slide CAMELYON16 test set, versus 13.4 s / 1.2 s for TransMIL and 16.7 s / 1.5 s for DGRMIL. ABMIL reports the fastest training at 5.5 s and 0.8 s inference.

• Hyperparameter robustness (CAMELYON16 ablations): Varying the number of clusters M ∈ {2, 4, 8, 16} at H=8 and MLP ratio 4 gives AUC from .971±.009 to .975±.006 with no consistent gains beyond small-to-moderate values. Increasing heads from 2 to 8 improves performance (.971±.010 to .975±.006) but saturates thereafter, with H=12 giving .972±.009. MLP ratio 1 gives .973±.008 at 0.215 M parameters, ratio 2 gives .969±.011 at 0.248 M, and ratio 4 gives .975±.006 at 0.314 M. The chosen configuration is M=4, H=8, MLP ratio 4.

• Linear scaling design: Attention over N patch embeddings would cost O(N²); CAPRMIL attends to M context-aware tokens for an overall complexity of O(MND + M²D), which is linear in N since M ≪ N.

Methodology in Plain English

A whole-slide image is first tessellated into patches, which are encoded into patch embeddings by a frozen pre-trained encoder (UNIv1 in all experiments). Those embeddings are projected into a lower-dimensional latent space D ≪ D_in through a linear layer, Layer Normalization, GELU activation, and Dropout.

The core of the method is the CAPRMIL Block, which follows a transformer encoder design with H attention heads and shared projection matrices. Each CAPRMIL Attention head works in four stages:

1. Soft clustering — patch embeddings are mapped into M clusters per head using learnable projections and a softmax over cluster logits, giving an assignment weight matrix W where each patch's weights over the M clusters sum to 1. A learnable temperature τ per head controls assignment entropy, and the cluster projection is initialized orthogonally.

2. Token aggregation — each cluster is aggregated into a single token, computed as a weighted combination of the input embeddings divided by the sum of the assignment weights plus a small epsilon.

3. Self-attention over tokens — queries, keys, and values are obtained from the head-wise token embeddings through shared linear projections, and standard multi-head self-attention is applied over the M tokens.

4. Context broadcasting — the updated tokens are projected back to the input latent space using the same assignment weights, reconstructing each patch representation as a weighted combination of the transited tokens.

Head-wise outputs are concatenated and linearly projected to the model dimension. The block uses residual connections and Dropout around both the attention and the MLP sub-layers. After T blocks, the context-aware patch representations are mean-pooled into a slide-level embedding and passed to a final linear classifier. Because the paper's key argument is that the block already encodes contextual and discriminative information at the patch level, the final pooling step can remain as simple as a mean.

Training uses cross-entropy on slide-level labels, AdamW with a base learning rate of 2×10⁻⁴, weight decay of 1×10⁻⁵, momentum 0.9, cosine annealing with a 6-epoch warm-up starting at 1×10⁻⁵ and minimum learning rate of 1×10⁻⁷, early stopping with patience of 20 epochs and a performance threshold of 10⁻⁴, up to 30 epochs on a single A100 GPU in FP32 (MeanMIL was trained up to 50 epochs).

Why This Matters

Impact on research. The paper argues against a prevailing assumption in computational pathology — that increasingly sophisticated attention pooling is necessary to capture patch correlations. By demonstrating that rich context-aware instance representations plus simple mean pooling match state-of-the-art methods, it redirects effort toward representation learning before aggregation. It also introduces a cross-domain transfer from neural PDE solvers to digital pathology, which the authors state has not been explored before to the best of their knowledge. The linear scaling in bag size and the aggregator-agnostic design make the approach a candidate building block for other MIL pipelines.

Real-world applications:

• Tumor detection and metastasis identification in sentinel lymph node sections (the CAMELYON16 task).
• Lung cancer subtyping between adenocarcinoma and squamous cell carcinoma (the TCGA-NSCLC task).
• Coarse breast lesion classification into benign, atypical, and malignant categories (the BRACS task).
• Prostate cancer ISUP grading from core needle biopsies (the PANDA task).

Industry relevance. The efficiency profile — 0.314 M parameters, 0.628 G FLOPs, lower peak GPU memory, and shorter training times than transformer-based MIL methods — matters for deployment and for training on the large slide collections typical of clinical and industrial pathology pipelines. Reduced parameter counts and FLOPs lower the cost of training, inference, and hardware requirements, while the modularity of the block allows teams to keep an existing MIL head and adopt only the representation stage.

Future Directions

• Multimodal extension. The authors state as an explicit current limitation that the work focuses only on unimodal visual inputs, and identify evaluating scalability and robustness in larger multimodal pipelines as an interesting direction.
• Scaling the framework further. The ablation figures reference sweeps over clusters, heads, and input projection dimensionality; the natural follow-up is testing how far the token-based bottleneck scales as bags and datasets grow.
• Interpretability and uncertainty. The paper notes that attention-based MIL for WSI is susceptible to overfitting and offers limited interpretability, and that such methods often lack principled uncertainty quantification. While token assignment heatmaps provide some morphological interpretability, extending context-aware representations with calibrated uncertainty is left open.
• Deployment at whole-slide scale. Peak GPU memory versus accuracy trade-offs are analyzed (Figure 4b), but translation to clinical deployment conditions — including the multimodal and larger-scale settings mentioned above — remains untested in this paper.

Target Audience

This paper is most useful to machine learning researchers and graduate students working on MIL, computational pathology, or efficient attention architectures; to biomedical engineers building slide-level classification pipelines who care about parameter counts, FLOPs, memory, and training time; and to readers interested in cross-domain transfer of architectural ideas from scientific machine learning (neural PDE solvers) into medical image analysis. Clinical translation teams should note that the work reports slide-level classification metrics (AUC, ACE, κ) on public research datasets rather than clinical validation. Familiarity with transformer attention and MIL terminology is helpful; the methodology section is mathematically dense but the central idea — cluster patches into tokens, attend over tokens, broadcast context back — is conceptually simple.

Authors’ abstract

In computational pathology, weak supervision has become the standard for deep learning due to the gigapixel scale of WSIs and the scarcity of pixel-level annotations, with Multiple Instance Learning (MIL) established as the principal framework for slide-level model training. In this paper, we introduce a novel setting for MIL methods, inspired by proceedings in Neural Partial Differential Equation (PDE) Solvers. Instead of relying on complex attention-based aggregation, we propose an efficient, aggregator-agnostic framework that removes the complexity of correlation learning from the MIL aggregator. CAPRMIL produces rich context-aware patch embeddings that promote effective correlation learning on downstream tasks. By projecting patch features -- extracted using a frozen patch encoder -- into a small set of global context/morphology-aware tokens and utilizing multi-head self-attention, CAPRMIL injects global context with linear computational complexity with respect to the bag size. Paired with a simple Mean MIL aggregator, CAPRMIL matches state-of-the-art slide-level performance across multiple public pathology benchmarks, while reducing the total number of trainable parameters by 48%-92.8% versus SOTA MILs, lowering FLOPs during inference by 52%-99%, and ranking among the best models on GPU memory efficiency and training time. Our results indicate that learning rich, context-aware instance representations before aggregation is an effective and scalable alternative to complex pooling for whole-slide analysis. Our code is available at https://github.com/mandlos/CAPRMIL
