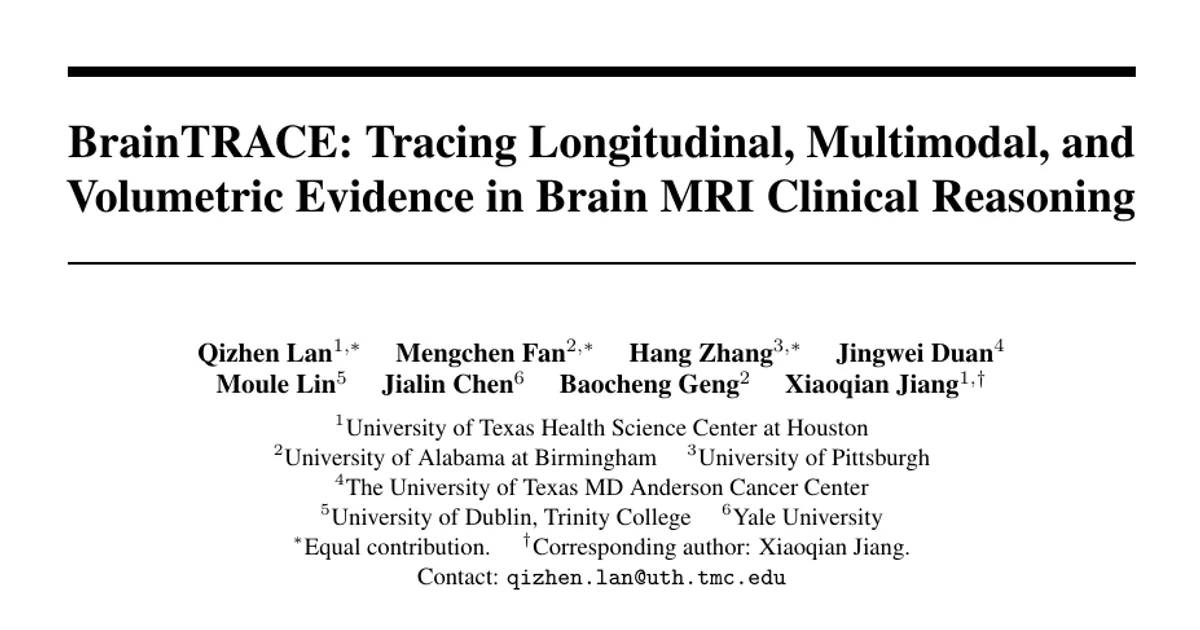

BrainTRACE: Tracing Longitudinal, Multimodal, and Volumetric Evidence in Brain MRI Clinical Reasoning

AI summary

Overview

• Research area: Medical computer vision / vision-language model (VLM) evaluation, specifically longitudinal brain MRI clinical reasoning.
• Technical level: Advanced. The paper assumes familiarity with 3D medical imaging, vision-language models, VQA benchmarks, and clinical radiology workflow terminology.
• Scope: The paper introduces BrainTRACE, a report-grounded benchmark of 7,273 scored VQA instances for testing whether vision-language models can trace evidence across serial brain MRI studies, multiple MRI sequences, volumetric anatomy, and report-derived clinical references.

What This Paper Is About

Interpreting brain MRI in a follow-up setting is a reasoning problem: radiologists compare a patient's current scan to earlier ones, combine information from different MRI sequences, localize findings inside 3D anatomy, and ground conclusions in the radiology report. Existing medical VQA and 3D imaging benchmarks mostly evaluate isolated images, static volumes, or ungrounded report-style answers, which hides where a model's evidence chain breaks. BrainTRACE is built to test whether a VLM can trace that evidence structure, not merely produce a fluent description of a single image.

Key Contributions

1. A formalization of brain MRI VLM evaluation as longitudinal evidence tracing, where clinical validity depends on comparing serial studies and grounding conclusions in imaging and clinical references rather than on surface plausibility.
2. The BrainTRACE benchmark itself: 7,273 scored instances from 1,778 longitudinal patients, 7,299 MRI studies, and approximately 29k co-registered 3D MRI sequence volumes, with hidden report- and measurement-derived references, two-axis diagnostic annotation (clinical reasoning depth and evidence demand), three evaluation tracks, exact closed-form scoring, and factual audit scoring for open-ended and case-level answers.
3. A structured evaluation of 20 model configurations spanning open-weight general VLMs, open-weight medical VLMs, closed-source frontier VLMs, and native-volume medical baselines (e.g., M3D-LaMed, RadFM).
4. Release of benchmark specification, evaluation lists, scoring implementation, scoring rubrics, and audit-record format, plus a Croissant machine-readable RAI metadata file, to support reproducible evaluation.

Main Findings

• Closed-form accuracy is fragmented across clinical skills. GPT-5 obtains the best broad-compatible closed-form score at 41.9%, and GPT-5.4 obtains the best 3D-evidence score at 42.2%. Aggregate scores hide large variation: for example, Qwen3.5-27B reaches 81.5% on acquisition recognition (ACQ) but 13.9% on burden (BUR), and GPT-5 reaches 88.8% on ACQ but 10.7% on BUR.
• Open-ended clinical acceptability is much lower than recognition accuracy. GPT-5.4 is strongest on this axis but passes only 19.8% of broad open-ended questions and 15.6% of 3D-evidence open-ended questions.
• Failures are clinically material, not stylistic. The paper reports that models often mention a relevant abnormality but omit disease status, reverse interval direction, assign evidence to the wrong time point, or add unsupported anatomy.
• Case-level reasoning fails by evidence attrition. The best aggregate Step Pass is 24.5%, but only two model rows complete any full case, both at 1.4% Case Success. Local successes in anchor localization or a single interval rarely survive through the latest-status interpretation and final synthesis across all six decomposed steps.
• Evidence-channel ablations confirm dependence on the retained evidence. On 120 matched diagnostic items with a constructed 50.0% full-evidence baseline, removing longitudinal evidence (latest timepoint only) drops accuracy by 37.5 points for Qwen and 23.3 points for GPT; restricting inputs to a single T2 sequence drops it by 20.8 and 11.7 points; removing images entirely drops it by 35.0 and 40.8 points.
• Volumetric access alone is not the bottleneck. The paper concludes that the composition gap persists under current 3D-evidence and native-volume interfaces, suggesting volumetric access is insufficient without stronger multi-sequence, temporal, and evidence-grounded reasoning.
• Human sanity check. One board-certified professional (ABR diplomate oncologist) confirmed that the selected cases are clinically answerable under expert reading; this was a separate 10-case image-grounded MCQ check, not a directly comparable model baseline.
• Cohort breadth caveat. The retained cohort spans pediatric through older-adult age groups, nearly half have follow-up beyond two years, and acquisition metadata includes multiple vendors and both 1.5T and 3.0T scans. The authors state these are not prevalence or population-representativeness claims; upstream MR-RATE contains 83,425 patients, 98,334 MRI studies, and 705,254 MRI series/metadata rows, and BrainTRACE retains 1,778 patients, 7,299 MRI studies, and 65,974 series-level metadata rows.

Methodology in Plain English

The benchmark is built on top of the publicly released MR-RATE corpus. The researchers keep only patients with at least three MRI studies that have paired imaging, radiology reports, and segmentation-derived anatomical measurements — enough longitudinal context for evidence-chain questions. Each retained study is centered on a T1-weighted acquisition and may include co-registered T2-weighted, FLAIR, SWI, or other relevant sequences.

Every item is split into three parts. The model-facing input contains only the permitted rendered visual evidence, the question, the required answer format, and non-leaking metadata. The hidden reference contains the target answer, required facts, accepted variants, and clinically material contradictions used for scoring. The diagnostic labels record the clinical reasoning depth, evidence demand tag, and evaluation track, so a failure can be attributed to the wrong clinical operation, missing evidence use, or an unsupported synthesis.

Construction is human-in-the-loop. The pipeline first identifies report-supported evidence statements (findings, anatomical locations, interval relations, burden statements, disease status language, quantitative measurements), then template eligibility rules decide which statements can support a task, and eligible evidence becomes a task card with question, answer format, hidden target or rubric, labels, and rendered visual input. Human reviewers check report support, timepoint alignment, visual evidence availability, answer format validity, redaction, and scoring consistency. The case reasoning track received item-level review by an American Board of Radiology (ABR) certified radiation oncologist covering the question, ground truth, and audit rubric for each decomposed step.

Three evaluation tracks are used: a broad compatible track of 5,653 instances rendered into standard image inputs; a 3D-evidence track of 1,200 items using rendered multi-slice evidence or supported native-volume inputs; and a case reasoning track of 70 longitudinal cases decomposed into 420 VQA steps (anchor localization, early interval change, interval characterization, burden trajectory, latest status, final synthesis).

Scoring is exact match after light normalization for closed-form answers, with inline reasoning blocks uniformly removed. Open-ended and case-level answers are graded by a fixed factual clinical audit whose judge sees the question, final answer, and item rubric but not the source report, segmentation tables, evidence quotes, or hidden reference record. The item-level pass indicator is a product of required fact coverage, critical slot coverage, absence of critical error, and absence of a clinically material unsupported claim; Case Success requires all six steps in the same case to pass. All 20 models were evaluated zero-shot, one attempt per item, with malformed outputs, refusals, and abstentions kept in the denominator.

Why This Matters

For research, BrainTRACE reframes a question the field has been answering partially: rather than asking whether a VLM can describe an isolated brain MRI, it asks whether the model can assemble an auditable evidence chain across time, sequences, and volume. Its two-axis annotation makes errors diagnosable, and its separation of model-facing evidence from hidden clinical references makes leakage and groundedness testable. It also shows concretely that native volumetric input by itself does not close the gap.

Real-world applications:

• Clinical decision support for follow-up reads, where a system must state whether a finding is new, improved, stable, or progressive rather than describe only the current study.
• Radiology report drafting and quality checks, where outputs must be grounded in prior studies and sequence-specific appearance rather than plausible-sounding prose.
• Regulatory and procurement evaluation of medical VLMs, using a scored, rubric-based benchmark with released evaluation lists and audit records.
• Education and trainee assessment, since the five-level taxonomy mirrors the progression from acquisition recognition to case-level synthesis.

Industry relevance centers on anyone building or buying medical VLMs. The paper's headline numbers — 41.9% best broad closed-form accuracy, 19.8% best broad open-ended clinical pass, and 1.4% best case success — give vendors and hospital deployers a concrete gauge of how far current models are from composing longitudinal evidence. The released specification, scoring implementation, and audit-record format also give teams a shared basis for comparing models instead of relying on internal, incomparable evaluations.

Future Directions

• Closing the longitudinal evidence composition gap. The paper's central claim is that local perception and interval reasoning are necessary but not sufficient; how to build models whose per-step successes survive through final synthesis remains open.
• Beyond volumetric access. Because 3D-evidence and native-volume interfaces did not resolve the gap, the open question is what architectural or training changes (as opposed to input modality changes) would improve multi-sequence and temporal grounding.
• Expanding the case reasoning track. The case-level analysis rests on 70 longitudinal cases and 420 decomposed VQA steps; whether the attrition pattern holds at larger scale is not established by this paper.
• Cohort and scope generalization. BrainTRACE targets longitudinal brain MRI follow-up studies from MR-RATE rather than non-longitudinal referrals or the full neuroradiology spectrum, and the authors explicitly caution against reading the cohort summaries as population-representativeness claims. Extending to other corpora and clinical settings is a natural next step.

Target Audience

Medical AI researchers and benchmark designers working on vision-language models, radiology AI engineers evaluating or deploying brain MRI models, radiologists and clinical informatics specialists interested in how model errors map onto real interpretation steps, and reviewers or regulators who need a rubric-based, report-grounded way to judge whether a model's answer is clinically supported. Readers do not need to implement the models, but they should be comfortable with VQA benchmarks, MRI sequence names, and longitudinal radiology workflow.

Authors’ abstract

Brain MRI interpretation is a longitudinal clinical reasoning problem: radiologists compare serial studies, integrate information across MRI sequences, localize findings within volumetric anatomy, and translate this evidence into report-grounded assessments. Existing medical VQA and 3D imaging benchmarks capture important parts of this workflow, but often evaluate brain MRI through isolated images, static volumes, or ungrounded report-style answers, thereby obscuring failures in the evidence chain that support clinical validity. We introduce BrainTRACE, a report-grounded benchmark for evaluating whether vision-language models can trace the evidence structure required for longitudinal brain MRI interpretation. BrainTRACE contains 7,273 scored VQA instances derived from 1,778 longitudinal patients, 7,299 MRI studies, and approximately 29k co-registered 3D MRI sequence volumes. The benchmark is organized by five levels of clinical reasoning, from acquisition recognition to case-level synthesis, and by evidence demands covering longitudinal comparison, report-grounded references, multi-sequence integration, and volumetric spatial evidence. BrainTRACE supports rendered inputs compatible with standard VLM interfaces, a 3D-evidence condition, and a decomposed case-reasoning track that audits six steps in a longitudinal evidence chain. Evaluation of 20 VLM configurations shows that current systems can identify isolated visual cues but rarely compose them into grounded longitudinal interpretations. We release the benchmark specification, evaluation lists, scoring implementation, scoring rubrics, and audit-record format to support reproducible progress in brain MRI VLM evaluation.
