Overview

Research area: Efficient transformer inference, specifically sparse attention mechanisms and GPU kernel optimization for long-context large language models.

Technical level: Advanced. The paper assumes familiarity with scaled dot-product attention, FlashAttention's tiled/online-softmax computation, GPU memory hierarchies (SRAM vs. HBM), and CUDA kernel design.

Scope: The paper proposes Block-Sparse FlashAttention (BSFA), a training-free, threshold-calibrated block-sparse attention kernel that computes all query-key scores exactly but skips loading and multiplying the value blocks whose maximum scores fall below per-layer, per-head, per-position thresholds, and evaluates it on Llama-3.1-8B across RULER, LongBench, and needle-in-a-haystack tasks.

What This Paper Is About

Attention cost grows quadratically with sequence length, and in long-context inference it can consume the majority of inference time and over 90% of total FLOPs. Existing sparse attention methods usually decide which blocks to skip before computing query-key scores, which risks discarding important but unpredictable long-range dependencies. BSFA takes the opposite approach: compute every query-key score exactly, then use those exact scores to decide which value blocks are worth loading and multiplying.

Key Contributions

1. Exact-score-based block gating. A block-sparse attention method that determines importance from the true maximum score s_max^(i,j) of each query-key block tile, rather than from a predictive or approximate importance estimator.

2. A calibrated threshold tensor. Thresholds are stored per sparsity level, layer, head, and query-block position: T ∈ R^(S × L × H × ⌈N_max/B_M⌉). Calibration is a one-time, training-free offline procedure on a small dataset that requires no weight updates or architectural changes.

3. A fixed-k workload design. Rather than skipping blocks whose post-softmax contribution is numerically zero (the SpargeAttention approach), BSFA targets a fixed number k of retained off-diagonal blocks per position, which the authors argue reduces thread workload variance and therefore improves GPU utilization, since kernel time is bounded by the slowest thread.

4. A drop-in CUDA kernel. An implementation extending FlashAttention-2 that adds a single threshold check after each score tile is computed but before values are loaded, requiring only a conditional branch in the existing kernel. The code is released at https://github.com/Danielohayon/Block-Sparse-Flash-Attention.

Main Findings

• Speedups on reasoning-style benchmarks: On Llama-3.1-8B, BSFA achieves up to 1.10× speedup on real-world reasoning benchmarks while maintaining above 99% baseline accuracy.

• Larger gains on retrieval tasks: The abstract reports up to 1.24× speedup for needle-in-a-haystack retrieval tasks.

• Extreme sparsity works for targeted retrieval: On the 64K needle-in-a-haystack task, BSFA maintains 99% accuracy even at extreme sparsity of k = 32 blocks while achieving 1.24× speedup (Figure 2).

• RULER 32K results: Dense FlashAttention-2 scores 85.98%. BSFA with k = 64 scores 84.94% (−1.2%) at 1.07× speedup with predicted/measured density 0.24/0.28 ± 0.04; k = 96 scores 85.52% (−0.5%) at 1.04× (0.35/0.38 ± 0.05); k = 128 scores 86.00% (+0.0%) at 1.03× (0.45/0.47 ± 0.05); k = 192 scores 86.42% (+0.5%) at 1.00× (0.62/0.62 ± 0.05).

• RULER 64K results: Dense FlashAttention-2 scores 84.96%. BSFA with k = 192 scores 83.08% (−2.2%) at 1.13× speedup (0.35/0.36 ± 0.05); k = 256 scores 83.39% (−1.8%) at 1.09× (0.44/0.45 ± 0.05); k = 384 scores 84.24% (−0.8%) at 1.05× (0.62/0.61 ± 0.05).

• Occasional accuracy improvement: Certain configurations improve accuracy over the dense baseline by focusing on the most relevant content — for example, 86.00% (+0.0%) and 86.42% (+0.5%) at 32K, where BSFA matches or exceeds the 85.98% dense baseline.

• SpargeAttention often slow or degraded: The concurrent state-of-the-art baseline produced 0.86×–0.99× speedups in these experiments despite aggressive optimizations including INT8 quantization. At 32K it measured 0.91× at τ = 0.6 (75.62% accuracy, −12.1%), 0.88× at τ = 0.75 (85.83%, −0.2%), and 0.87× at τ = 0.85 (86.18%, +0.2%).

• Calibrated thresholds generalize: Predicted density tracks measured density closely across all reported configurations, and thresholds calibrated on one group of RULER task categories were reused for LongBench without any dataset-specific tuning.

• Negligible storage overhead: With N_max = 65,536, Llama-3.1-8B requires approximately 5.2 × 10⁵ threshold values for a single sparsity level, which is 0.007% of the model's 8B parameters.

• Not reported in the supplied content: The 128K RULER accuracy and speedup figures, and the numerical results of the LongBench comparison table (Table 2), are cut off in the provided text. The paper states that accuracy was measured on the full RULER and LongBench benchmarks using lm-evaluation-harness.

Methodology in Plain English

The starting point. Standard attention computes, for every query, a score against every key, then uses those scores to weight the values. FlashAttention-2 already avoids materializing the full N × N score matrix by processing the computation in tiles and keeping running statistics on-chip, but it still performs the full quadratic arithmetic.

The key observation. Attention distributions are naturally sparse: most tokens put nearly all their weight on a small number of positions. Crucially, this sparsity shows up at the block level — if no query-key pair inside a block tile has a high enough similarity, the whole block contributes almost nothing after softmax normalization. That means the entire value block can be skipped.

The mechanism. BSFA partitions queries into blocks of size B_M = 128 and keys/values into blocks of size B_N = 64. For each block pair (i, j), it computes the exact scaled dot-product scores S_ij = Q_i K_j^T / √d and takes the maximum s_max^(i,j). If that maximum falls below a calibrated threshold T^(k)_{ℓ,h,i} (specific to layer ℓ, head h, and query-block position i), the block is skipped: its values are never loaded from HBM and the PV multiplication is never performed, and the block does not participate in the running softmax statistics. Diagonal blocks (i, i) bypass gating entirely and are always processed, preserving causal correctness and local dependencies.

Why this is cheaper. The skipped PV multiplication costs the same 2 B_M B_N d FLOPs as the QK computation, and since keys and values are the same size, skipping value loading avoids half of the key-value memory traffic. Together this accounts for approximately 50% of attention FLOPs and 50% of HBM bandwidth. The maximum operation and threshold comparison are negligible by comparison. QK scores are always computed exactly, so importance ranking is never a guess.

Calibration. Thresholds are learned offline on a small dataset. For each query position, off-diagonal blocks are sorted by maximum score and the threshold retaining exactly the top-k blocks is selected; thresholds are then averaged across calibration samples. Multiple sparsity levels are stored so the latency-accuracy trade-off can be adjusted at deployment without recalibrating.

Experimental design. All experiments ran on NVIDIA A100 80GB GPUs with CUDA 12.1, using FP16 throughout. Calibration and evaluation data are disjoint: 16 samples from one group of RULER task categories are used for calibration, while timing uses 10 samples per sequence length from held-out categories. LongBench latency uses the 10 longest samples. TTFT is averaged over 10 runs after warmup, and accuracy and latency are measured on identical samples and sequence lengths rather than extrapolated. Baselines are Dense FlashAttention-2 (FlashAttention-3 was excluded because it targets Hopper/H100, not the A100 used here), SpargeAttention, and a sliding-window pattern using the same token budget as BSFA's block budget (e.g., 80 blocks × 64 tokens = 5,120 tokens) to show that BSFA is not merely converging to trivial local attention.

Why This Matters

Impact on research. BSFA challenges the assumption that you must prune before scoring to get speedups. It demonstrates that computing exact QK scores and gating only the PV path can yield real, consistent speedups while keeping accuracy near the dense baseline. It also provides evidence that variable-sparsity kernels (whose slowest thread dictates kernel time) can be outpaced by fixed-k designs, which is a useful lesson for kernel-level efficiency work. The training-free calibration procedure shows that attention block-importance distributions are stable enough across inputs and datasets to be learned once and reused.

Real-world applications:

• Retrieval-augmented generation and document QA, where prompts pack many long documents and only a small number of passages matter — the needle-in-a-haystack results show up to 1.24× speedup at 99% accuracy even at k = 32.
• Long-document summarization and analysis over the LongBench categories the paper targets.
• Multi-document reasoning pipelines that must fit very long contexts within a latency budget.
• Production inference serving, where BSFA can be swapped in as a drop-in FlashAttention replacement, and where the stored sparsity levels let operators pick a speed/accuracy point per request type — the same thresholds were reused across datasets without retuning.

Industry relevance. Because the contribution is a kernel-level change requiring no retraining and no architecture modification, it can be adopted incrementally on existing deployed models. The reported threshold storage cost of 0.007% of model parameters is operationally negligible. Quantization is orthogonal to the method, so it can be combined with BSFA for further gains — relevant because the strongest baseline relied on INT8 quantization and still often failed to beat dense attention on speed.

Future Directions

• Results at 128K and beyond. The provided text truncates before the 128K RULER numbers; whether the accuracy-speedup trade-off holds at the longest tested sequence length is the natural next question, and the paper notes that sequences exceeding N_max simply reuse the thresholds from position N_max.

• Combining with quantization. The authors explicitly state that quantization is orthogonal to their sparsity approach and could be combined with BSFA for additional speedups — a direct path to larger gains than sparsity alone provides.

• Bidirectional and non-causal settings. The paper states BSFA extends naturally to bidirectional attention, but does not report results for it.

• Robustness of calibration. Thresholds are calibrated once and reused across datasets; understanding how far the calibration transfers to materially different domains, models, or serving conditions remains an open question, as does the effect of using a different calibration set than the 16 RULER samples.

• Closing the gap to the theoretical ceiling. BSFA skips roughly 50% of attention FLOPs and HBM bandwidth by design; the paper does not claim the QK computation itself can be skipped, so the remaining exact-score path sets a floor on achievable speedup.

Target Audience

This paper is most useful to ML systems and kernel engineers working on long-context LLM inference, researchers studying sparse and efficient attention mechanisms, and practitioners who need to reduce prefill latency (TTFT) in deployed models without retraining or changing model architecture. Readers will get the most from it with prior familiarity with FlashAttention's tiled online-softmax algorithm, GPU memory hierarchy, and the standard sparse-attention literature (SpargeAttention, Quest, H2O, StreamingLLM, SparseK). Those purely interested in attention accuracy or interpretability will find less here, as the focus is squarely on kernel-level compute and memory savings.

Authors’ abstract

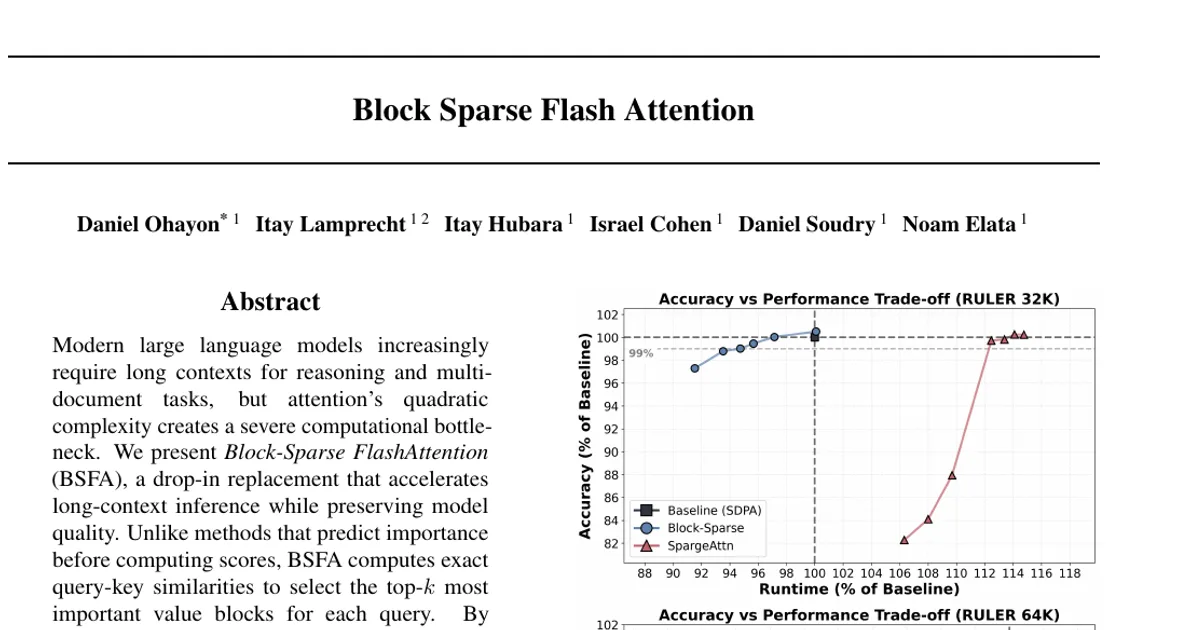

Modern large language models increasingly require long contexts for reasoning and multi-document tasks, but attention's quadratic complexity creates a severe computational bottleneck. We present Block-Sparse FlashAttention (BSFA), a drop-in replacement that accelerates long-context inference while preserving model quality. Unlike methods that predict importance before computing scores, BSFA computes exact query-key similarities to select the top-k most important value blocks for each query. By comparing per-block maximum scores against calibrated thresholds, we skip approximately 50% of the computation and memory transfers for pruned blocks. Our training-free approach requires only a one-time threshold calibration on a small dataset to learn the per-layer and per-head attention score distributions. We provide a CUDA kernel implementation that can be used as a drop-in replacement for FlashAttention. On Llama-3.1-8B, BSFA achieves up to 1.10x speedup on real-world reasoning benchmarks and up to 1.24x for needle-in-a-haystack retrieval tasks while maintaining above 99% baseline accuracy, with certain configurations even improving accuracy by focusing on the most relevant content, substantially outperforming existing sparse attention methods. The implementation is available at https://github.com/Danielohayon/Block-Sparse-Flash-Attention
