Bio-Inspired Palette Evolution in Indirectly Encoded Substrates: Timescale Compatibility Shapes Activation Function Discovery

AI summary

Overview

Research area: Neuroevolution and evolutionary meta-learning, specifically the discovery of activation functions in indirectly encoded neural networks (CPPN/HyperNEAT-style substrates).

Technical level: Intermediate. The paper assumes familiarity with evolution, neural networks, and basic meta-learning concepts, but its central ideas — that some problems need oscillatory activations and that a mechanism's speed must match its evaluation budget — are intuitive.

Scope: The paper designs and benchmarks 13 palettes-modifying strategies (11 bio-inspired, plus baseline and oracle controls) across more than 3,000 runs to determine how evolution should discover which activation functions a network needs when the right functions are unknown in advance.

What This Paper Is About

In neuroevolution with indirect encoding, a network can assign a different activation function to each node, drawn from a configurable set called a "palette." The problem is that the correct functions are rarely known in advance: palettes containing only standard monotonic functions (tanh, sigmoid, ReLU) make problems like parity mathematically unsolvable, yet throwing every available function into the palette performs worse than a carefully curated one. This paper treats the question of which functions to make available as a meta-learning problem, borrowing mechanisms from biology — circadian rhythms, immune memory, critical developmental periods, and others — to adapt the palette during evolution rather than fixing it.

Key Contributions

1. A taxonomy of 13 palette-evolution strategies organized across six biological categories (temporal credit assignment, oscillatory gating, immune memory, developmental windows, ecological dynamics, homeostatic regulation), each translating a biological principle into an operator that adds or removes activation functions between generations.
2. A large-scale empirical benchmark of over 3,000 runs (30 replications per condition, with a 60-replication replication study) comparing these strategies on parity and non-parity problems, both with activation palettes alone and with jointly co-evolving activation and aggregation palettes.
3. The timescale compatibility finding: strategy effectiveness correlates significantly with whether a mechanism's characteristic operating timescale fits inside the evolutionary evaluation window, supported by a causal rescaling experiment that improves the slowest strategy tenfold.
4. A demonstration that the oscillatory barrier is not absolute: once the slowest strategy is rescaled, all nine solutions solve parity using only non-oscillatory activations paired with min or max aggregation, opening a route previously assumed closed.

Main Findings

• Speed, not ceiling: Bio-inspired strategies match the solve rate of a carefully tuned random-mutation baseline (83.3%) but converge up to twice as fast. Circadian rhythm halved total compute (735 generations across 30 seeds versus 1,517 for the baseline).
• Circadian rhythm tops the parity ranking: On activation-only Parity-4 it reached 97% solve rate with a median of 20 generations, ahead of Hebbian, Critical Period, and STDP (all 90%). The high-reliability tier held under an independent 60-seed replication, with Circadian significantly above baseline (95% vs. 65%).
• The oscillatory class, not sine specifically, is what matters: All 194 solved activation-only runs contained at least one oscillatory function, but only 62.9% contained pure sine. Composite functions such as burst and osc_adapt solved parity at 100%, while resonator reached only 63.3%.
• Discovery overhead is small: A sine-only oracle solved 100% at a median of 3.5 generations; Circadian paid only about 3 percentage points and 17 extra generations for not knowing the answer. An unrestricted all-18-function palette solved only 70%, confirming that over-inclusive palettes hurt.
• Rankings reverse across problem types: Predator-Prey reached 100% on Concentric Circles where Circadian fell to 77% and Hebbian to 53%; on Two Moons, Circadian was weakest at 83.3%. No strategy dominated all domains, and difficulty, not strategy identity, determined how much choice mattered.
• Timescale compatibility predicts success: Strategies with characteristic timescales of roughly 20 generations or less mostly reached 80% or higher, while Glial Modulation (~50 generations, 47%) and Gene Regulatory Network (far over 100 generations, 3%) collapsed. The rank correlation was significant (Spearman rho = -0.69, p = 0.019).
• Rescaling works, but naive acceleration does not: Compressing the GRN timescale from over 100 generations to about 10 improved its solve rate from 3% to 30%. Over-compressing Glial Modulation made it worse (47% to 27%), indicating that timescale matching is necessary but not sufficient.
• Circadian degrades gracefully: Varying its period across a fourfold range produced 67% (period 10, over-churning), 90% (period 20), and 90% (period 40), suggesting compatibility is continuous rather than a hard threshold.
• Recurrence preserves the rankings: A topology-sensitivity check with fully recurrent substrates kept the same ordering and raised solve rates (Circadian improved from 90% to 100%, with median convergence dropping from 33 to 5 generations).

Methodology in Plain English

The researchers built on EMR-HyperNEAT, a system where a Compositional Pattern Producing Network generates a neural network's topology, weights, and — in this extended version — the activation function assigned to each individual node. Nodes select from a pool of 18 candidate functions, but the initial palette contains only four standard monotonic functions (identity, tanh, sigmoid, ReLU); no oscillatory function is available at the start.

Into this setup they plugged 13 strategies that modify the palette after each generation based on the population's fitness statistics. Each strategy encodes a different biological idea: STDP credits functions that were present before a fitness improvement, Hebbian learning rewards all functions active during successful generations, Circadian rhythm cycles functions in and out on a fixed 20-generation clock, Clonal Selection locks in functions that sustain high fitness correlation, and so on. The strategies were chosen to span different feedback types (intrinsic, reactive, scheduled) and different timescales.

They ran each strategy 30 times on each problem, starting with single-task Parity-4 where aggregation was fixed to sum, then expanding to parity scaling (Parity-5, Parity-6) and four non-parity problems with the aggregation palette co-evolving alongside. Statistics were non-parametric throughout (Kruskal-Wallis, Mann-Whitney U with Bonferroni correction, Fisher's exact test), with Wilson confidence intervals and rank-biserial effect sizes. Controls included a tuned random-mutation baseline and oracle palettes that pre-included the answer. A separate failure-analysis experiment and a causal rescaling test of the slowest strategy probed the timescale hypothesis directly.

Why This Matters

Impact on research: The paper reframes activation function selection as an evolutionary meta-learning problem rather than a fixed design choice, and it supplies a predictive design rule — match the adaptation mechanism's timescale to the evaluation budget — that may transfer to other outer-loop/inner-loop meta-learning systems. The finding that parity can be solved without oscillatory functions, once min or max aggregation is available, challenges a representational claim that prior work treated as settled.

Real-world applications:

• Automated machine learning under compute budgets: The convergence-speed gains translate directly into cheaper architecture and hyperparameter searches, where the number of generations is the dominant cost.
• Scientific and tabular modeling: Problems with XOR-like or cyclic structure (chemical property prediction, parity-coded data, periodic signals) benefit from automatic discovery of the right activation class rather than hand-picked functions.
• Signal and time-series processing: Oscillatory activations capture periodic structure naturally; letting evolution decide when to deploy them avoids manual tuning.
• Edge and heterogeneous deployment: Per-node function assignment allows different parts of a network to use functions suited to different hardware or accuracy constraints.

Industry relevance: The results give practitioners a concrete heuristic for choosing an adaptation mechanism based on the training budget available, and they show that a simple fixed-schedule mechanism (Circadian) can outperform more sophisticated fitness-reactive schemes at equal or lower cost. The released source code, configurations, and result data make the benchmark directly reusable.

Future Directions

1. Investigate the non-oscillatory pathway. Why does rescaling the Gene Regulatory Network strategy produce parity solutions built from band_pass and integrate activations with min or max aggregation, and does that route generalize to other problems and setups?
2. Move beyond Boolean and classification tasks. The authors call for testing palette evolution on regression, reinforcement learning, and high-dimensional domains, where the oscillatory-versus-monotonic distinction may play out differently.
3. Combine complementary mechanisms. Pairing a discovery-oriented strategy (Circadian) with a retention-oriented one (Clonal Selection) is proposed as a way to get fast exploration without losing proven functions.
4. Strengthen statistical confidence and generality. Most conditions used 30 replications and top-tier differences were not significant after correction; the authors estimate that 55 to 120 replications would be needed for 80% power, and whether the timescale rule transfers to other meta-learning domains remains open.

Target Audience

Researchers and graduate students in neuroevolution, evolutionary computation, and meta-learning will find the core contributions most relevant, particularly those working on HyperNEAT-style indirect encoding or activation function search. Practitioners building AutoML or neural architecture search systems will benefit from the timescale-matching guideline and the compute-efficiency results. Readers without a background in evolutionary algorithms can still follow the biological analogies and the central practical takeaway, though the statistical detail and substrate terminology assume some familiarity with the field.

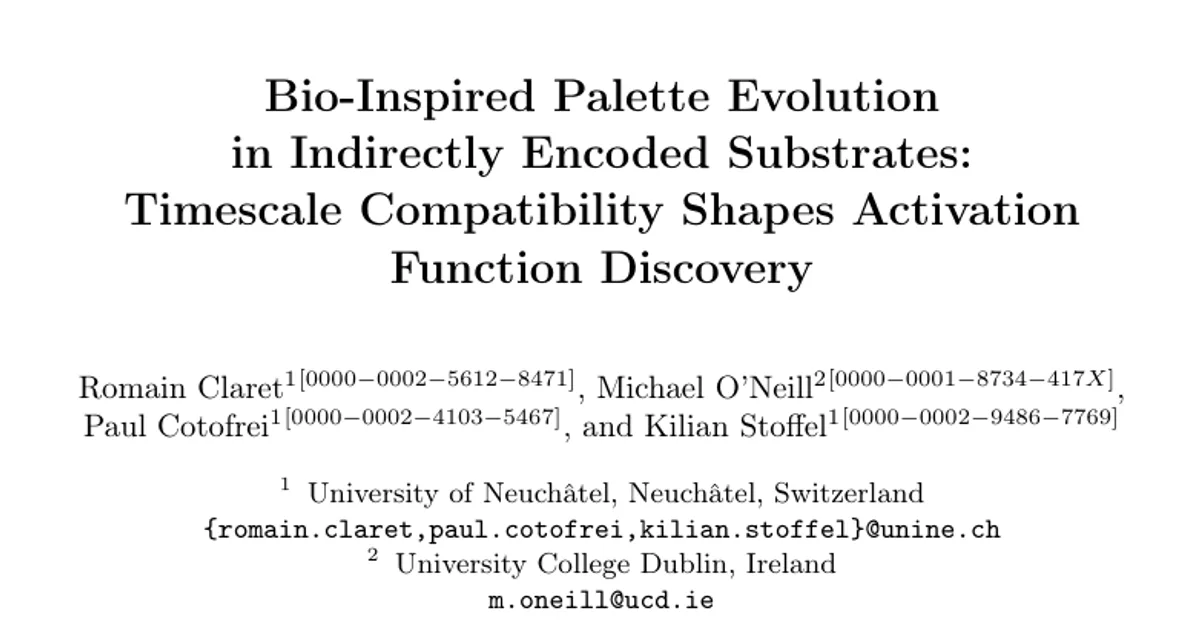

Authors’ abstract

Indirectly encoded neural networks can assign different activation functions to individual nodes, but the right functions are rarely known in advance. When the available set contains only standard monotonic functions, problems like parity become unsolvable, yet an all-inclusive palette underperforms a curated one. How should evolution discover which functions to use? We address this as a meta-learning problem, designing 13 strategies (11 inspired by biological adaptation mechanisms, plus baseline and oracle controls) that modify the set of available activation functions during evolution. Each strategy translates a biological principle into an evolutionary operator: for example, circadian-inspired oscillatory gating cycles functions in and out of the palette on a fixed schedule, while immune-inspired Clonal Selection permanently protects functions that consistently correlate with fitness. We evaluate all strategies across more than 3,000 runs on parity and non-parity problems, first evolving the activation palette alone, then co-evolving a per-node aggregation palette on harder problems; an independent replication with new seeds confirms a stable high-reliability tier, with Circadian holding its top rank. Bio-inspired strategies match the solve rate of a tuned baseline but converge up to twice as fast, with Circadian halving total compute. Strategy rankings reverse across problem types, with no strategy dominating all domains. Strategy success is largely shaped by timescale compatibility: strategies whose characteristic timescale matches the evolutionary evaluation window consistently outperform those that operate too slowly. The practical guideline: match the mechanism's timescale to the evaluation budget. Rescaling the slowest strategy bypasses the oscillatory barrier entirely: all nine solutions solve parity with non-oscillatory activations paired with min or max aggregation.
