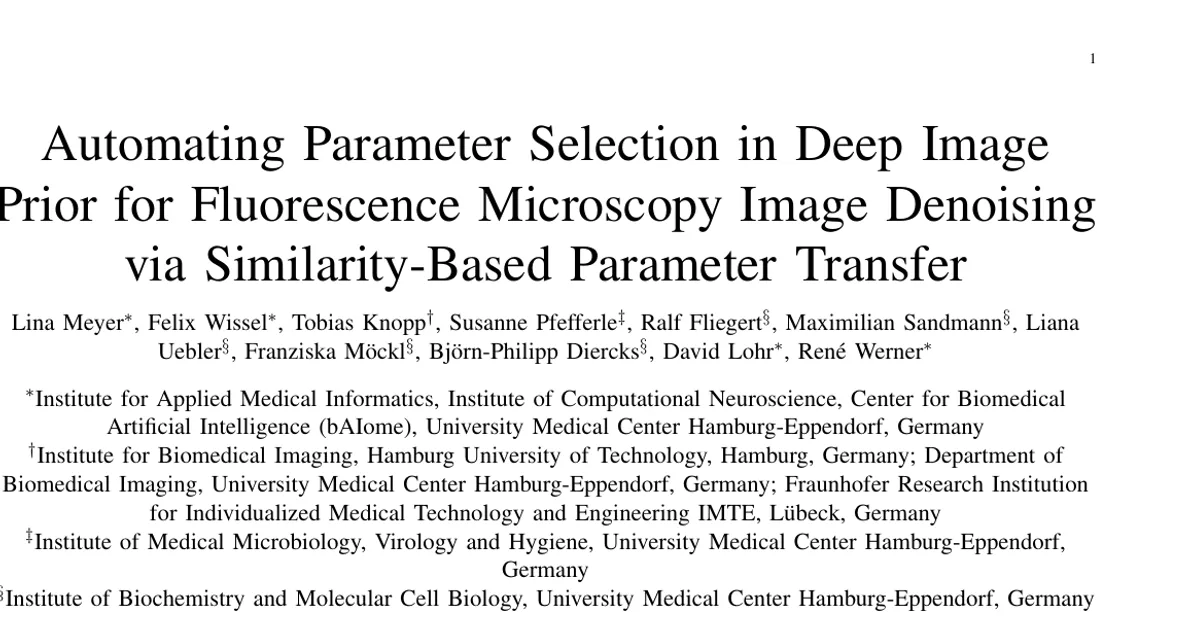

Automating Parameter Selection in Deep Image Prior for Fluorescence Microscopy Image Denoising via Similarity-Based Parameter Transfer

AI summary

Overview

Research area: Unsupervised deep learning for image restoration, applied to fluorescence microscopy denoising. The work sits at the intersection of computer vision (Deep Image Prior), hyperparameter optimization, and biomedical imaging.

Technical level: Intermediate. The paper assumes familiarity with convolutional neural networks, U-net architectures, early stopping, and quantitative image quality metrics (PSNR, SSIM, LPIPS, MSE, MAE), but the core idea — reusing a good parameter setting found for a similar image — is conceptually simple.

Scope: The paper tests whether optimal Deep Image Prior (DIP) denoising parameters can be transferred between similar fluorescence microscopy images instead of being re-optimized for every new image, and packages this into a pipeline called AUTO-DIP.

What This Paper Is About

DIP denoises an image by training a randomly initialized network on the noisy image itself and stopping early, but its results depend heavily on the chosen network architecture and stopping point, and finding good values for each new image requires an expensive grid search. The authors ask whether fluorescence microscopy images that are similar to one another also share similar optimal DIP parameters, so that a parameter configuration can simply be transferred from a reference image rather than searched for. They build a calibration set, exhaustively search the parameter space on it, and then test different ways of matching a new image to a calibration image.

Key Contributions

1. A joint search over architecture and stopping point for microscopy DIP. The authors optimized U-net depth (4–8), width (16–512 feature maps, plus a progressively widening v_512 variant reaching 512 feature maps at the deepest layer), the presence of skip connections, and the number of training iterations (100 to 3000 in steps of 100), specifically for fluorescence microscopy rather than natural images.

2. A systematic comparison of parameter-transfer strategies. Three families were evaluated on a calibration set (n=110) and validation set (n=55) drawn from the FMD dataset: group-based transfer using image metadata (microscope type, specimen type, or both), metric-based transfer using quantitative image similarity (MAE, MSE, PSNR, SSIM, LPIPS, and Euclidean distance in a UMAP embedding of the calibration images), and a hybrid that restricts metric comparison to images of the same group.

3. The AUTO-DIP pipeline. A concrete, released implementation (https://github.com/IPMI-ICNS-UKE/AUTO-DIP) that takes a new input image, finds the most similar calibration image or group, and applies the corresponding pre-computed optimal DIP configuration — removing per-image optimization.

4. A combined PSNR-plus-LPIPS selection criterion. Because no single quality measure selected DIP configurations that preserved both structure and pixel intensities, the authors ranked configurations by both LPIPS (lowest is best) and PSNR (highest is best) and picked the configuration with the lowest sum of the two ranks.

Main Findings

• Metadata similarity beats quantitative image similarity. The best transfer strategy was the most restrictive group-based one — using only calibration images of the same specimen acquired with the same microscope type — reaching a mean PSNR of 34.99 and mean LPIPS of 0.098 on the FMD validation set. Restricting the metric-based search to images of the same microscope type, specimen, or both also improved results, but the authors could not show that any quantitative similarity measure outperformed simple metadata grouping.

• Transfer gets close to the per-image optimum. The image-specific optimum from the full grid search on the validation set was a mean PSNR of 35.56, versus 34.99 for the best transfer strategy. The weakest strategy — naively applying the globally best average configuration across the whole calibration set — still gave 33.72, which beat the original DIP configuration (31.90).

• Transfer roughly triples denoising speed. Transferred configurations ran approximately three times faster than the original DIP parameter setting. The full parameter grid search over the calibration and validation sets took 33 days of wall-clock time, run on an AMD EPYC 7513 32-core processor (3.6 GHz) with an NVIDIA A40 GPU (48 GB VRAM).

• AUTO-DIP improves test-set denoising, especially for very noisy inputs. On the public test sets, the transfer configuration produced the best overall performance, with the largest gains over the original DIP for widefield acquisitions in the FMD and Hagen sets. Examples include FMD Test "raw" (noisy 27.22/0.364, original DIP 28.97/0.264, AUTO-DIP 32.38/0.119 in PSNR/LPIPS) and W2S human cells channel 3 (noisy 29.44/0.508, original DIP 32.91/0.348, AUTO-DIP 38.11/0.069).

• The advantage grows with noise level. For low-noise images all approaches performed well, but at high noise levels substantial noise remained in the original DIP and sparsity-based denoising outputs, while the transfer configuration still produced high-quality results.

• The sparsity-based variational reference is competitive only on sparse structures. The reference method matched or beat the DIP variants for sparse, background-separated structures such as BioSR clathrin-coated pits (32.26/0.089 versus original DIP 29.97/0.141 and AUTO-DIP 27.44/0.178) and FMD FISH, but performed worse on fine, dense structures.

• A few cases favored the original DIP. For FMD mitochondria in confocal microscopy the original DIP was slightly better (36.57/0.031 versus AUTO-DIP 36.50/0.034), and on the Shah tubulin test set the original DIP scored 30.13/0.144 versus AUTO-DIP 29.18/0.353.

• Optimal architectures vary systematically with image complexity. Images with higher mean gradients tended to benefit from shallower but wider networks (up to width 128), while lower-gradient images performed best with deeper, narrower configurations; beyond depth 5 and width 128 the trend became only marginal. Optimal architectures varied considerably even between patches of the same image, meaning a single universal architecture is not necessarily suitable for microscopy data.

• Skip connections almost always helped. Across nearly all evaluated configurations, architectures with skip connections performed better.

• Stopping points depend strongly on imaging modality. Widefield images often converged within 300–500 iterations, while confocal and two-photon images required longer optimization, in some cases up to 2,900 iterations.

• Measure selection matters. Choosing configurations by MAE or SSIM produced very smooth outputs that lost almost all structural detail within cells; MSE- and PSNR-optimal outputs were also very smooth; LPIPS-optimal outputs retained more detail but also more noise. The combined LPIPS-plus-PSNR ranking gave the smallest differences in mean image gradient between denoised and reference images.

• Internal SARS-CoV-2 imaging supported the approach. On internally acquired A549-A/T cells infected with recombinant SARS-CoV-2, both original and transferred configurations reduced noise, but transfer without specifying the microscope type achieved greater noise reduction at the cost of some fine detail.

Methodology in Plain English

The authors start from the FMD (Fluorescence Microscopy Denoising) open dataset and pick 110 images as a calibration set and 55 as a validation set, chosen to cover different microscope types, specimens, and levels of semantic similarity. For every calibration image, they run DIP denoising for every combination in a defined grid — five network depths, six fixed widths plus one progressively widening architecture, skip connections on or off, and iteration counts from 100 to 3000 in steps of 100 — and score each result against the ground truth. Because no single score captured quality well, they rank each configuration by both PSNR and LPIPS and sum the ranks to pick a winner.

That gives an "optimal configuration" for every calibration image, and by averaging over groups, for each microscope/specimen group. When a new image arrives, AUTO-DIP does not search at all: it looks up the most similar calibration image or group, using either metadata (which microscope, which specimen) or a quantitative similarity measure computed between images, and applies that stored configuration.

On the validation set they compare this against two references: the best possible per-image result from the grid search (an upper bound) and the original DIP parameter configuration from Ulyanov et al. (depth 5, width 128, iterations 1800). They then confirm the findings on five additional datasets plus locally acquired microscopy data, adding a state-of-the-art sparsity-based variational denoising method — itself grid-searched for fair comparison — as a further reference. Multi-channel images are processed channel by channel; images larger than 512×512 pixels are split into overlapping patches with 128-pixel overlap and reassembled by averaging the overlapping regions, and Hagen and BioSR images are registered and intensity-adjusted before evaluation.

Why This Matters

The work removes the main practical obstacle to using DIP in microscopy: the need for a long, computationally costly search for architecture and stopping point on every new image. It also delivers a counterintuitive and useful result — simple metadata such as microscope and specimen type is a better guide for parameter transfer than quantitative image-similarity metrics — which makes the approach cheap to implement in practice. Since DIP needs no training data and no approximated ground truth, AUTO-DIP extends unsupervised denoising to settings where supervised learning is not applicable.

Real-world applications:

• Live-cell and dynamic fluorescence imaging, where short exposure times are required to limit photodamage and capture rapid dynamics, producing inherently low-signal-to-noise images.
• High-throughput microscopy screening, where many images must be processed and per-image parameter optimization is not feasible.
• Cross-modality microscopy workflows (confocal, widefield, two-photon, super-resolution spinning disk), where models trained on one dataset often fail to generalize.
• Virology and cell biology studies that rely on resolving fine structures and protein localization, as demonstrated with the internally acquired SARS-CoV-2-infected A549-A/T cell images.

Industry relevance: microscope and imaging-software vendors could embed dictionary-like parameter lookup into acquisition or post-processing pipelines, and core imaging facilities could pre-compute calibration configurations once and reuse them across many users' samples, cutting GPU time and turnaround.

Future Directions

• Enriching the calibration basis. The transfer quality is bounded by the calibration set; a larger, more diverse reference library across microscopes, specimens, and staining protocols would likely narrow the gap to the 35.56 per-image optimum.
• Explaining why metadata outperforms image-similarity metrics. The authors could not demonstrate superiority of any quantitative similarity measure, including UMAP-embedding distance, which leaves open the question of what similarity notion the denoising problem actually depends on.
• Handling the failure cases. Original DIP occasionally outperformed AUTO-DIP (for example FMD mitochondria in confocal microscopy and the Shah tubulin set), so a criterion for detecting when transfer is inappropriate — or a fallback to per-image optimization — is a natural next step.
• Broadening beyond the tested measure pair. The combined PSNR-plus-LPIPS ranking was chosen empirically for this data; whether a different combination generalizes to other microscopy modalities, and how the approach extends to color or multi-channel joint denoising rather than channel-by-channel processing, remains open. The paper's discussion section is truncated in the provided content, so its own full list of future directions is not reported here.

Target Audience

Biomedical imaging researchers and microscopy facility staff who need practical denoising without curated training data; computer vision and machine learning researchers interested in DIP hyperparameter selection, transfer, and architecture search; and applied scientists working with fluorescence microscopy who want a deployable denoising pipeline — including the released AUTO-DIP code — rather than a new network design. Readers without a background in deep learning will find the high-level strategy accessible, but the evaluation metrics and architecture search details require some machine learning familiarity.

Authors’ abstract

Unsupervised deep image prior (DIP) addresses shortcomings of training data requirements and limited generalization associated with supervised deep learning. The performance of DIP depends on the network architecture and the stopping point of its iterative process. Optimizing these parameters for a new image requires time, restricting DIP application in domains where many images need to be processed. Focusing on fluorescence microscopy data, we hypothesize that similar images share comparable optimal parameter configurations for DIP-based denoising, potentially enabling optimization-free DIP for fluorescence microscopy. We generated a calibration (n=110) and validation set (n=55) of semantically different images from an open-source dataset for a network architecture search targeted towards ideal U-net architectures and stopping points. The calibration set represented our transfer basis. The validation set enabled the assessment of which image similarity criterion yields the best results. We then implemented AUTO-DIP, a pipeline for automatic parameter transfer, and compared it to the originally published DIP configuration (baseline) and a state-of-the-art image-specific variational denoising approach. We show that a parameter transfer from the calibration dataset to a test image based on only image metadata similarity (e.g., microscope type, imaged specimen) leads to similar and better performance than a transfer based on quantitative image similarity measures. AUTO-DIP outperforms the baseline DIP (DIP with original DIP parameters) as well as the variational denoising approaches for several open-source test datasets of varying complexity, particularly for very noisy inputs. Applications to locally acquired fluorescence microscopy images further proved superiority of AUTO-DIP.
