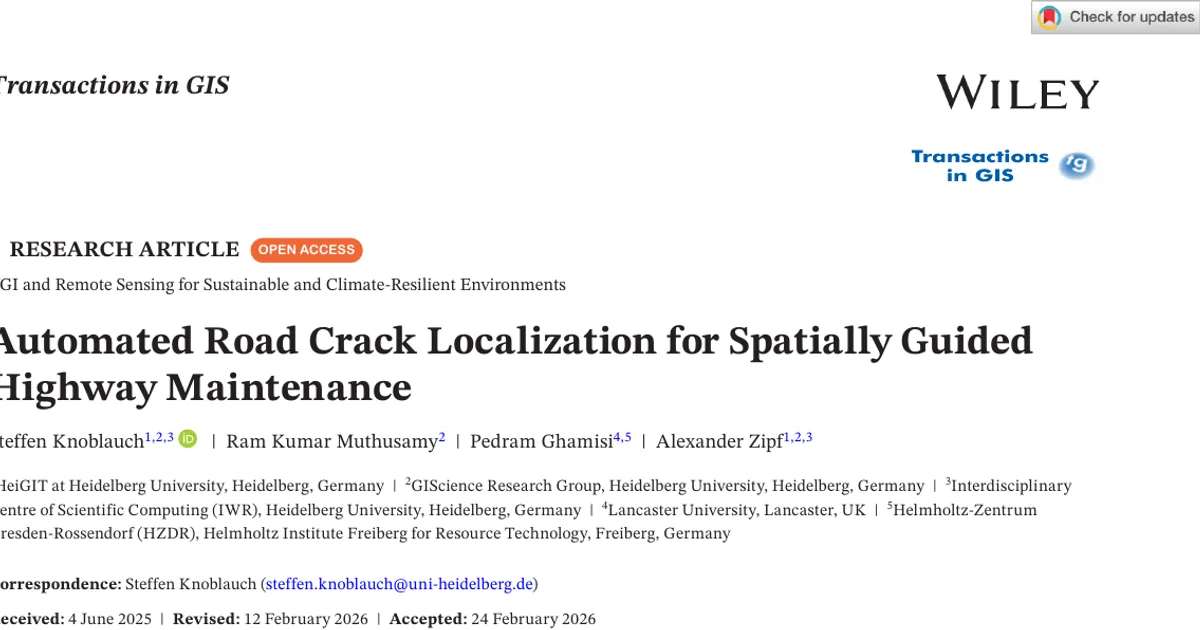

Automated Road Crack Localization for Spatially Guided Highway Maintenance

AI summary

Overview

Research area: Computer vision applied to infrastructure asset management — specifically, automated detection of road surface cracks from airborne imagery, combined with open geospatial data for maintenance planning.

Technical level: Intermediate. The paper assumes familiarity with object detection models (YOLO family), remote sensing imagery, geospatial data sources, and correlation-based spatial analysis, though the framing is application-oriented rather than methodologically deep.

Scope: The paper proposes a framework that fine-tunes YOLOv11 on airborne imagery to localize highway cracks and uses the resulting detections to compute a nationwide Swiss crack-density index for maintenance guidance.

What This Paper Is About

Highway pavement deteriorates under climate-driven temperature swings, and maintenance budgets are stretched, so agencies need to know where cracks actually are rather than inspecting networks uniformly. This study asks whether freely available data — airborne imagery plus OpenStreetMap — can be combined to automatically find highway cracks and turn those detections into a spatial index that prioritizes maintenance. The goal is a reproducible, open-data-driven pipeline rather than a proprietary or sensor-heavy one.

Key Contributions

1. An open-source data framework for highway maintenance guidance that integrates airborne imagery with OpenStreetMap, positioning freely shared data as a substitute for expensive dedicated survey campaigns.
2. Fine-tuning of YOLOv11 for highway crack localization, adapting a general object detector to the specific task of identifying crack presence in road imagery.
3. A Swiss Relative Highway Crack Density (RHCD) index, calculated at national scale to convert per-image detections into a spatial planning signal.
4. A comparative spatial analysis testing whether the new index is redundant with existing environmental and traffic datasets (land surface temperature amplitude and traffic volume), reported as weak correlations.

Main Findings

• Crack classification performance was strong and asymmetric: the model reached an F1-score of 0.84 for the positive class (crack) and 0.97 for the negative class (no crack), indicating more reliable performance on the majority/negative class than on cracks themselves.
• The RHCD index was largely independent of existing explanatory datasets: correlations with Long-term Land Surface Temperature Amplitudes (Pearson's r = −0.05) and Traffic Volume (Pearson's r = 0.17) were weak, which the authors present as evidence that the index carries information these datasets do not.
• Spatial pattern concentrated near human activity: significantly high RHCD values clustered around urban centers and intersections, which the authors treat as contextual validation that the model's predictions track plausible real-world crack locations.
• Open data sharing has practical public-sector value: the authors frame the results as a demonstration that open-source data can drive innovation and more efficient maintenance solutions in the public sector.
• Note on scope of evidence: the abstract does not report dataset sizes, imagery resolution, geographic coverage, training details, or comparisons against alternative detection models, so the strength of the framework relative to other approaches cannot be judged from it.

Methodology in Plain English

The researchers assembled two open data sources: airborne (aerial) imagery of highway corridors and OpenStreetMap, which supplies road geometry and contextual information about the network. They took a pretrained YOLOv11 object detection model and fine-tuned it on this imagery so it could distinguish road cracks from intact pavement, evaluated using F1-scores for the crack and no-crack classes.

The detections were then aggregated geographically rather than left as individual image-level hits. By combining detection locations with road network information, the team computed a Relative Highway Crack Density index across Switzerland — essentially a per-area measure of how crack-dense a stretch of highway is relative to the network. To test whether this new index adds anything, they correlated it against two datasets one might expect to explain pavement damage: long-term land surface temperature amplitude (a proxy for climate-driven thermal stress) and traffic volume. Both correlations came out weak. Finally, they examined where high RHCD values appeared geographically to see whether the pattern made intuitive sense.

Why This Matters

Impact on research: The paper argues that open geospatial data plus a fine-tuned detector can substitute for specialist survey infrastructure, and it introduces a derived spatial index as a research artifact others can replicate or contest. The weak correlations are a notable claim: if crack density is not well explained by temperature amplitude or traffic alone, then existing proxy-based maintenance models may be missing a dimension that direct visual detection captures.

Real-world applications:

• Maintenance prioritization: highway agencies could rank road segments by crack density instead of scheduling inspections uniformly.
• Inspection targeting: drone or vehicle surveys can be dispatched to high-RHCD areas rather than covering whole networks.
• Budget justification: a quantitative, reproducible spatial index supports evidence-based allocation arguments to funders.
• Low-cost national monitoring: countries without dedicated pavement-sensing fleets could adopt an imagery-plus-OSM approach.

Industry relevance: Road authorities, infrastructure consultancies, insurance and logistics operators dependent on highway condition, and geospatial/remote-sensing vendors all have stakes in cheaper crack mapping. The open-data emphasis also matters for public-sector procurement, where proprietary imagery and closed platforms carry recurring costs.

Future Directions

• Identifying what actually drives crack density, given that temperature amplitude and traffic volume explained little — the work invites inclusion of pavement age, construction materials, drainage, and heavy-vehicle load distribution.
• Validating RHCD against ground-truth field inspections, since the abstract reports contextual validation via urban/intersection clustering rather than direct physical confirmation.
• Improving positive-class crack detection, where the F1 of 0.84 trails the 0.97 achieved on the no-crack class — a gap that matters most for the rare, actionable cases.
• Transferring the framework beyond Switzerland, to test whether the pipeline and the index behave comparably in different climates, road standards, and imagery availability regimes.

Target Audience

Researchers and practitioners in remote sensing, computer vision for infrastructure, and geoinformatics; highway and transportation agency engineers responsible for pavement maintenance planning; and public-sector data or GIS teams interested in whether open data (imagery plus OpenStreetMap) can support operational decisions. Readers seeking a fully specified benchmark comparison or detailed model architecture will not find it in the abstract, which reports outcomes and the index concept rather than methodological depth.

Authors’ abstract

Highway networks are crucial for economic prosperity. Climate change-induced temperature fluctuations are exacerbating stress on road pavements, resulting in elevated maintenance costs. This underscores the need for targeted and efficient maintenance strategies. This study investigates the potential of open-source data to guide highway infrastructure maintenance. The proposed framework integrates airborne imagery and OpenStreetMap (OSM) to fine-tune YOLOv11 for highway crack localization. To demonstrate the framework's real-world applicability, a Swiss Relative Highway Crack Density (RHCD) index was calculated to inform nationwide highway maintenance. The crack classification model achieved an F1-score of $0.84$ for the positive class (crack) and $0.97$ for the negative class (no crack). The Swiss RHCD index exhibited weak correlations with Long-term Land Surface Temperature Amplitudes (LT-LST-A) (Pearson's $r\ = -0.05$) and Traffic Volume (TV) (Pearson's $r\ = 0.17$), underlining the added value of this novel index for guiding maintenance over other data. Significantly high RHCD values were observed near urban centers and intersections, providing contextual validation for the predictions. These findings highlight the value of open-source data sharing to drive innovation, ultimately enabling more efficient solutions in the public sector.
