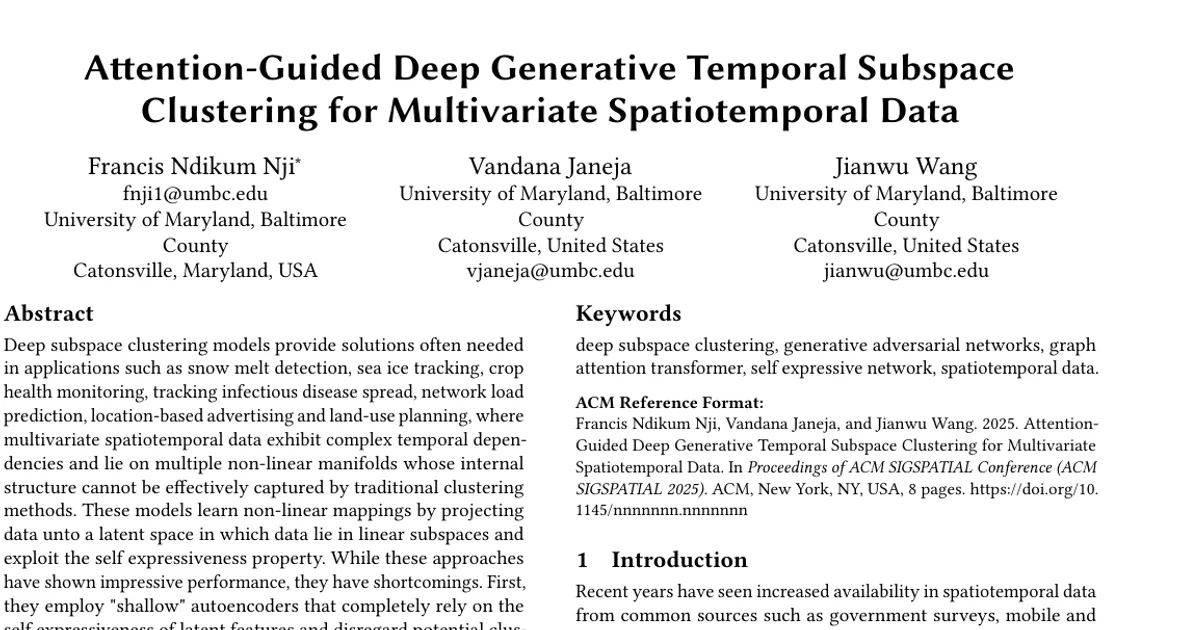

Attention-Guided Deep Adversarial Temporal Subspace Clustering (A-DATSC) Model for multivariate spatiotemporal data

AI summary

Overview

Research area: Unsupervised deep subspace clustering for 4D (time × longitude × latitude × variable) multivariate spatiotemporal data, combining generative adversarial learning, graph attention, and self-expressive representation learning.

Technical level: Advanced. The paper assumes familiarity with deep subspace clustering, self-expression matrices, generative adversarial networks, ConvLSTM architectures, graph attention networks, and DEC-style soft clustering.

Scope: The paper introduces A-DATSC (Attention-Guided Deep Adversarial Temporal Subspace Clustering), an end-to-end unsupervised model that couples a spatiotemporal encoder-decoder generator with a subspace-energy discriminator, and evaluates it against several deep clustering baselines on three real-world climate/atmospheric reanalysis datasets without ground-truth labels.

What This Paper Is About

Multivariate spatiotemporal datasets are high-dimensional but usually lie on multiple non-linear low-dimensional subspaces, and traditional clustering methods cannot capture their spatial, temporal, and cross-variable dependencies. Deep subspace clustering helps, but the authors argue existing models rely on "shallow" autoencoders, ignore local features, miss long-range dependencies and positional information, and are rarely applied to 4D data. The goal is a single unsupervised model that learns spatially and temporally coherent latent subspaces, clusters timesteps into K groups, and reconstructs the input, all supervised by a discriminator that judges clustering quality rather than by ground-truth labels.

Key Contributions

1. A-DATSC model for 4D multivariate spatiotemporal data. A generator built on a U-Net-inspired encoder-decoder with stacked TimeDistributed ConvLSTM2D layers is claimed to preserve spatial and time-wise structural integrity, reduce the number of trainable parameters, and improve generalization. The generator outputs cluster labels, a self-expressive coefficient matrix, and reconstructed data.
2. A unified graph attention transformer-based self-expressive network. This component is designed to capture local spatial relationships, global dependencies, and both short- and long-range correlations, using a bidirectional temporal graph attention (Bi-TGAT) bottleneck plus a per-timestep self-expressive layer.
3. An energy-based, time-varying mini-batch discriminator. The discriminator learns one subspace basis per cluster, measures projection residual energy of latent points, and uses those residuals to distinguish real from fake feature sequences. It is trained with a hinge objective plus orthogonality and cross-subspace separation regularizers, and feeds quality information back to the generator.
4. Empirical evaluation on three real-world datasets, comparing against DEC, DSC, ClusterGAN, InfoGAN, DTC, DASC, DSC-Net-L2, and DSC-DAG, with an ablation study isolating the self-expressive layer, the ConvLSTM2D design, and the Bi-TGAT placement.

Main Findings

• ERA5 results: On ERA5 (labeled "7 optimal clusters" in the results table), A-DATSC reported Silhouette 0.3268, DB 1.5009, CH 98.8211, RMSE 13.5158, Variance 0.1038, and I-CD 7.4839. For comparison, DSC reported Silhouette 0.2903, DB 1.6741, CH 102.2887, RMSE 13.6154, Variance 0.1033, and I-CD 6.8481. The paper states A-DATSC outperformed all baselines on ERA5 as reported by Silhouette, DB, RMSE, and I-CD.
• CARRA results: On CARRA (labeled "5 optimal clusters" in the results table, while the text states k = 7 was used for CARRA), A-DATSC reported Silhouette 0.2767, DB 1.5089, CH 69.7729, RMSE 5.5424, Variance 0.0105, and I-CD 3.0912. DSC reported the best CH (78.7826) and the lowest RMSE (5.8789) on this dataset among the listed models in the table, though the paper does not discuss this row in detail.
• NCAR Reanalysis 1 results: A-DATSC reported Silhouette 0.6541, DB 0.7612, CH 868.7555, RMSE 3.1180, Variance 0.1770, and I-CD 0.9098. All six listed models show Variance 0.1770 on this dataset. DEC reported the highest Silhouette (0.6454) among baselines and DTC the lowest DB (0.7570).
• Ablation on ERA5: Removing or replacing components reduced performance relative to full A-DATSC. The self-expressive-only variant (A-DATSC_sel) scored Silhouette 0.2124, DB 2.1486, CH 84.6793, RMSE 14.4220, I-CD 6.1603. Replacing the TimeDistributed ConvLSTM2D with CNN blocks plus an LSTM unit (A-DATSC_cnn-lstm) scored Silhouette 0.1965, DB 1.9576, CH 91.9739, RMSE 14.0709, I-CD 5.6349. Moving Bi-TGAT to the dense layer (A-DATSC_gat) scored Silhouette 0.2827, DB 1.6941, CH 99.9202, RMSE 13.716, I-CD 6.2759. Full A-DATSC achieved the best Silhouette (0.3268), DB (1.5009), RMSE (13.5158), and I-CD (7.4839) of the four ablation rows, while A-DATSC_gat had the highest CH (99.9202).
• Evaluation without ground truth: The authors report six internal cluster validation measures (Silhouette, Davies-Bouldin, Calinski-Harabasz, average inter-cluster distance, average variance, and average RMSE) because ground-truth labels were not available.
• Hardware and tooling: Experiments ran on AWS with 20GB of S3 storage and a 30 GB ml.g4dn.xlarge GPU, using Keras 2.11 and TensorFlow 2; the paper also describes testing on a Google Colab notebook with a 12 GB A100 GPU and reference hardware of a macOS Sonoma 14.4.1, 16 GB, M1 Pro machine (a separate description mentions macOS Ventura 13.3 and the same 16 GB M1 Pro).

Methodology in Plain English

The model has two networks that compete, in the spirit of a GAN.

The generator is an autoencoder shaped like a U-Net. Its encoder applies ConvLSTM2D layers (convolutions that also carry memory across time) arranged in residual temporal blocks with 64, 128, 256, 512 filters, using spatial pooling that keeps temporal resolution intact and downsamples space to H/8 × W/8. The compressed tensor is cut into non-overlapping patches so that each frame becomes a set of N nodes with 512 features, which keeps the attention computation tractable. A bidirectional temporal graph attention layer then lets each node gather information from nodes at times t+1 and t−1, producing per-timestep embeddings that blend local spatial context with directed temporal cues. A self-expressive layer learns a T × T coefficient matrix with an L1 penalty so that each timestep embedding is reconstructed as a combination of other timesteps, optionally weighted by temporal proximity and cluster-assignment similarity. A DEC-style clustering head assigns each timestep soft probabilities over K clusters using a Student's t-distribution with trainable centers, sharpened by a temperature parameter that is annealed during training, and balanced by a KL penalty toward a near-uniform marginal plus a redundancy penalty. A decoder mirroring the encoder, with skip connections, reconstructs the original input.

The sampling layer produces real and fake latent feature sequences per cluster, and the discriminator learns one orthonormal-style subspace basis per cluster and measures the projection residual energy of a latent point onto that subspace. It minimizes a hinge loss pushing real energies below fake energies by a margin, with penalties for non-orthogonal bases and for overlap between different clusters' subspaces. The generator is trained to reduce the fake residuals, so the latent space is shaped into a union of subspaces.

Training alternates generator and discriminator steps: the generator step optimizes reconstruction, clustering divergence, balancing, self-expression, and adversarial losses, while the discriminator step samples the highest-responsibility real points per cluster and updates the subspace bases. At test time, hard labels are the argmax of the soft assignments, with optional spectral clustering on an affinity built from the self-expression matrix. Data were preprocessed by replacing nulls with the dataset mean, Min-Max normalization to [0,1], and reshaping from 4D to 2D tabular form [time, (lon, lat, var)] for the baselines.

Why This Matters

Impact on research: The paper targets a gap the authors say is currently unfilled — applying joint subspace clustering and deep learning specifically to multidimensional multivariate spatiotemporal data. It also argues that adversarial supervision can compensate for the over-reliance on self-expression that limits prior deep subspace clustering, and that attention over time and space is needed for position-aware, long-range spatiotemporal structure. Its claim that existing large-scale subspace clustering methods have quadratic time and space complexity because of the self-expression matrix points to efficiency as an open research concern.

Real-world applications (as listed in the paper):

• Snow melt detection and sea-ice tracking, where clustering affected regions can support sea-level rise prediction and early warning systems.
• Crop health monitoring and land-use planning.
• Tracking infectious disease spread, including revealing emerging transmission hotspots for timely interventions.
• Network load prediction and location-based advertising.

Industry relevance: The datasets used — CARRA Arctic regional reanalysis, ECMWF ERA-5 global reanalysis, and daily atmospheric observations — are climate and weather products, so the model is directly relevant to geoscience and environmental analytics. The authors also frame the work around decision support in high-stakes domains and around making deep models interpretable enough for domain experts to trust.

Future Directions

1. Feature Matching and One-Sided Label Smoothing. The conclusion explicitly names these two techniques as planned improvements to model performance.
2. Ground-truth-based evaluation. All results rest on internal validation indices because the authors state no ground truth was available; validating against labeled regimes would test whether the reported clustering quality corresponds to physically meaningful groupings.
3. Clarifying the cluster-count protocol. The text states k = 7 was used for ERA5, NCAR, and CARRA based on the elbow method, while the results table labels the CARRA row "5 optimal clusters"; resolving this discrepancy and testing sensitivity to K is a natural next step.
4. Scaling and efficiency. Since quadratic complexity of self-expressive matrices motivates the paper, further work could test the model on larger-than-one-year, multi-dataset archives and on the broader baseline set (InfoGAN, DSC-Net-L2, DSC-DAG) that is described but not shown in the results table.

Target Audience

Researchers and graduate students in machine learning, spatiotemporal data mining, and remote sensing/climate informatics who work on unsupervised representation learning; practitioners in geoscience, epidemiology, and urban analytics who need clustering of 4D data without labels; and reviewers or engineers interested in GAN-based and attention-based alternatives to traditional self-expressive subspace clustering. Readers should already be comfortable with autoencoders, ConvLSTM, attention mechanisms, GAN objectives, and internal cluster validation metrics.

Authors’ abstract

Deep subspace clustering models are vital for applications such as snowmelt detection, sea ice tracking, crop health monitoring, infectious disease modeling, network load prediction, and land-use planning, where multivariate spatiotemporal data exhibit complex temporal dependencies and reside on multiple nonlinear manifolds beyond the capability of traditional clustering methods. These models project data into a latent space where samples lie in linear subspaces and exploit the self-expressiveness property to uncover intrinsic relationships. Despite their success, existing methods face major limitations: they use shallow autoencoders that ignore clustering errors, emphasize global features while neglecting local structure, fail to model long-range dependencies and positional information, and are rarely applied to 4D spatiotemporal data. To address these issues, we propose A-DATSC (Attention-Guided Deep Adversarial Temporal Subspace Clustering), a model combining a deep subspace clustering generator and a quality-verifying discriminator. The generator, inspired by U-Net, preserves spatial and temporal integrity through stacked TimeDistributed ConvLSTM2D layers, reducing parameters and enhancing generalization. A graph attention transformer based self-expressive network captures local spatial relationships, global dependencies, and both short- and long-range correlations. Experiments on three real-world multivariate spatiotemporal datasets show that A-DATSC achieves substantially superior clustering performance compared to state-of-the-art deep subspace clustering models.
