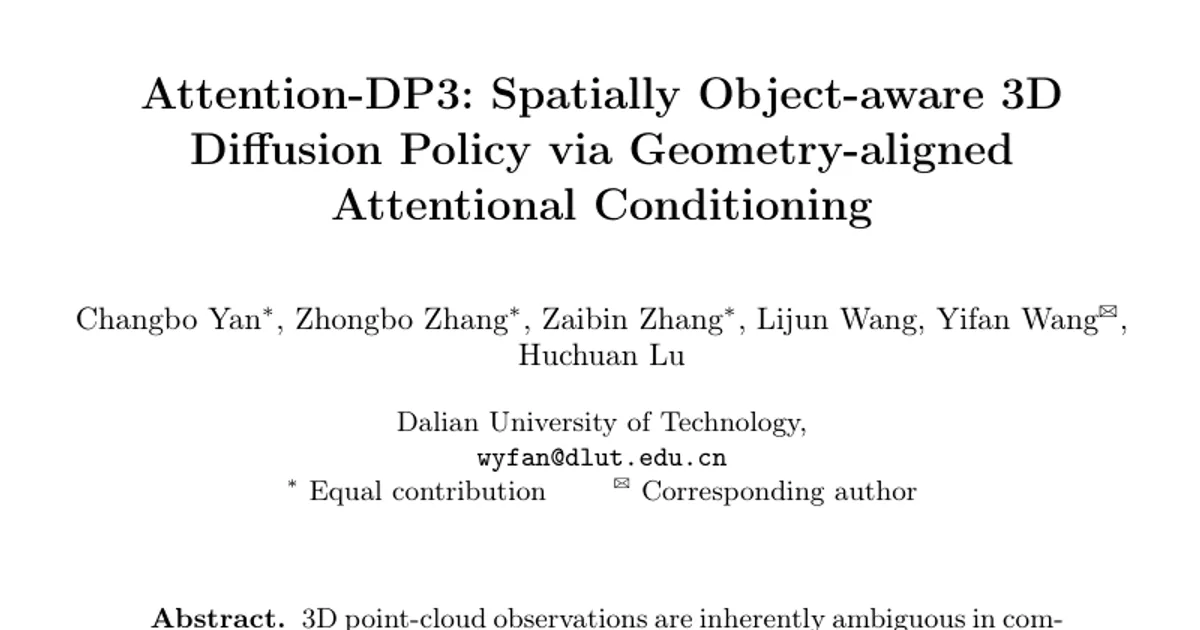

Attention-DP3: Spatially Object-aware 3D Diffusion Policy via Geometry-aligned Attentional Conditioning

AI summary

Overview

Research area: Robotics and embodied AI — specifically 3D diffusion policies for language-conditioned robotic manipulation.

Technical level: Advanced. The paper assumes familiarity with diffusion models, imitation learning, point clouds, and camera projection geometry.

Scope: The paper introduces Attention-DP3, a method that injects object-level semantic cues from 2D vision into a 3D point-cloud diffusion policy without altering the underlying diffusion backbone, achieving state-of-the-art results across four benchmarks and improved robustness to visual clutter.

What This Paper Is About

3D diffusion policies (like DP3) generate robot actions by conditioning on point clouds, which supply precise spatial information but no semantics. In cluttered scenes, sparse point clouds become ambiguous — a target object may be occluded or surrounded by visually similar distractors, so the policy cannot reliably tell which points belong to the object named in the language instruction, and actions drift toward the wrong geometry. Attention-DP3 solves this by extracting object masks from RGB images with an open-vocabulary segmentation model, lifting those masks onto the 3D points using calibrated camera geometry, and feeding the resulting object-aware signals into the policy as soft attention rather than as fused visual features.

Key Contributions

1. Spatially object-aware prompting for 3D diffusion policies. The method lifts open-vocabulary 2D object masks into 3D using calibrated camera intrinsics and extrinsics, producing geometry-aligned attentional prompts. The DP3 diffusion formulation itself is left untouched, so the contribution is a conditioning mechanism rather than a new architecture.

2. Tri-Field Attentional Conditioning (LTFA). Object-aware guidance is decomposed into three complementary per-point scalar fields appended as extra channels to the point cloud: a targetness field anchoring the queried object, an intra-target saliency field emphasizing structurally central or contact-relevant regions inside the target, and a backgroundness field that suppresses distractors while retaining scene context. The fields are deterministic and training-free; only a lightweight field encoder is learned.

3. Consistent benchmark gains plus clutter robustness. The method improves over DP3 on Adroit, DexArt, MetaWorld, and the real-world SO101 platform, and remains stable under systematically scaled-up distractor objects where DP3 collapses.

4. Extensive diagnostics. Ablations isolate the value of each field, the fusion strategy, and perceptual-model choice, while failure-mode analysis separates grounding errors from physical-feasibility failures.

Main Findings

• MetaWorld: Attention-DP3 reaches 0.726 overall average success versus 0.669 for DP3 and 0.683 for VITA. The largest gains appear on spatial-reasoning tasks: Push-Wall improves by +0.43 (0.92 vs. 0.49) and Pick-Place by +0.42 (0.54 vs. 0.12).

• Adroit and DexArt: Average success rises from 0.68 to 0.78 on Adroit and from 0.52 to 0.56 on DexArt.

• Real-world SO101: Average success improves from 0.52 (DP3) to 0.73, with the biggest single gain on Push Cube (0.30 to 0.65).

• Clutter robustness is the headline result: In Adroit Hammer with 4–6 distractor nails and MetaWorld Stick-Push with up to 5 distractor blocks, DP3 degrades monotonically while Attention-DP3 stays nearly flat, outperforming DP3 by up to 31% under heavy clutter. On real-world clutter (adding clips, sticks, and extra objects), DP3 falls from 0.52 to 0.13 while Attention-DP3 falls only from 0.73 to 0.45.

• All three fields matter: Single-field and two-field variants top out at 0.595 average across four tasks, whereas the full three-field configuration reaches 0.72.

• Late fusion with separate encoders is critical: Encoding each field with its own encoder and combining late with the DP3 geometry features scores 0.72; a single shared attention encoder drops to 0.52, and naive early concatenation of attention with point coordinates collapses to 0.255.

• Overhead is modest: Mean effective control-step latency is 0.198 s versus 0.122 s for DP3, but the policy-side cost is only +0.001 s per step, +3.8M parameters, and 0.01 GB peak memory. The remaining cost comes from the frozen Grounding DINO + SAM2 perception branch, which can be reduced by swapping in a Swin-T backbone (0.100 s to 0.044 s).

• Graceful degradation under bad segmentation: When the mask is wrong, Attention-DP3 performs about the same as DP3 (29/134 vs. 30/134 successful rollouts); when the mask is correct, it substantially outperforms DP3 (233/366 vs. 155/366). Random mask dropout still beats DP3 even at a 90% dropout rate (0.456 vs. 0.370).

• Failures are not purely a perception problem: In Coffee-Push and Peg-Unplug-Side, most Attention-DP3 failures coincide with Grounding DINO misses, but in Reach-Wall the grounding is always correct while DP3 still fails 10/10 — pointing to physical feasibility as a separate bottleneck.

Methodology in Plain English

The system takes three inputs at each timestep: an RGB image, a point cloud, and the robot's proprioceptive state, along with a fixed text description of the target object.

A frozen vision pipeline (Grounding DINO for detection plus SAM2 for segmentation) produces a 2D mask of the named object in the image. Using the known camera calibration, each 3D point in the cloud is projected onto the image plane and looked up in that mask. Points landing on the mask are labeled as target; the rest are labeled as background.

From this binary labeling, three per-point numbers are computed and appended to each point as extra channels — the 3D coordinates themselves are never modified, so geometric precision is preserved. The targetness channel is simply the mask label. The intra-target saliency channel multiplies the mask label by a normalized distance transform inside the mask, so points near the object's center score higher, which helps when masks are fragmented or miss thin parts. The backgroundness channel is the complement of the mask, keeping context available rather than discarding it.

These three channels are fed through a small learned encoder (a shared per-point MLP followed by symmetric pooling) to produce one attention vector. That vector joins the encoded point cloud and the encoded robot state as the conditioning signal for a standard DP3 diffusion denoiser — a conditional U-Net trained with the usual noise-prediction objective. Only the field encoder and the downstream DP3 components are trained; segmentation, mask lifting, and field construction are all frozen.

Why This Matters

Impact on research. The paper argues against the prevailing instinct to solve 3D perception problems with heavier cross-modal feature fusion. It shows that an explicit, training-free geometric lifting of 2D semantics into 3D produces a stronger and more interpretable conditioning signal than learned RGB–3D alignment, and that this can be added to an existing policy without retraining the diffusion backbone. The three-field decomposition — anchor the target, highlight structure within it, and keep background as context rather than noise — is a reusable design pattern for any policy that must bind language to geometry.

Real-world applications:

• Warehouse and logistics picking, where bins contain many similar objects and the policy must grasp the specific item named in a pick list.
• Household and service robots operating on cluttered tables or shelves with unrelated objects in the workspace.
• Surgical or laboratory automation, where tools are thin, partially occluded, and surrounded by visually similar instruments.
• Agricultural and field robotics, where crops overlap with foliage and weeds that act as distractors.

Industry relevance. The method is a drop-in conditioning module rather than a new policy architecture, and the added parameters and policy-side latency are negligible, which makes it attractive for teams already running DP3-style pipelines. The demonstrated resilience to a smaller grounding model and to noisy masks means the approach does not lock practitioners into expensive perception backbones.

Future Directions

• Closing the physical-feasibility gap. The Reach-Wall diagnostic shows cases where grounding is perfect but the policy still fails, indicating that better perception alone will not solve all manipulation failures. Combining attention conditioning with explicit feasibility or contact reasoning is a natural extension.

• Removing dependence on camera calibration. The lifting step relies on accurate intrinsics and extrinsics. Handling uncalibrated or moving cameras, or estimating correspondence online, would broaden applicability.

• Improving the segmentation backbone or handling multi-object queries. The failure analysis attributes many cluttered-task failures to Grounding DINO misses. Stronger open-vocabulary grounding — or reasoning over multiple simultaneously named objects and spatial relations ("the cube left of the bowl") — is an obvious next step.

• Extending beyond a single target per episode and to longer horizons. The current formulation anchors one target per task with a fixed prompt. Generalizing to subtask-level prompts that change as a manipulation proceeds, and testing on multi-stage long-horizon tasks, would test whether the field-based conditioning scales.

Target Audience

Robotics and embodied-AI researchers working on imitation learning, diffusion policies, and visuomotor control will find the technical core directly relevant. Practitioners building manipulation systems who already use point-cloud policies and want a lightweight way to add language grounding will benefit most from the method and its latency analysis. Students entering the field will find the paper a clear example of combining foundation-model perception with classical geometric projection, though the diffusion and point-cloud background makes it better suited to readers past the introductory stage.

Authors’ abstract

3D point-cloud observations are inherently ambiguous in complex, cluttered manipulation scenes, where target objects may be partially occluded or tightly intermingled with visually similar distractors. As a result, standard 3D diffusion policies often struggle to localize and exploit task-relevant geometry as scene complexity grows. We propose \textbf{Attention-DP3}, a spatially object-aware 3D diffusion policy that injects object-level geometric cues via attention while keeping the DP3 diffusion backbone unchanged. Our pipeline performs open-vocabulary 2D segmentation on RGB images, then lifts predicted target masks into 3D using calibrated camera geometry to obtain object-centric geometric priors. We incorporate these cues through Tri-field Attentional Conditioning, which constructs three complementary fields: (i) a targetness field to anchor the target object, (ii) an intra-target saliency field to emphasize task-relevant geometry within the target, and (iii) a backgroundness field to suppress distractors and clutter. Experiments on Adroit, DexArt, MetaWorld, and the real-world SO101 platform show consistent improvements over DP3, achieving state-of-the-art performance across benchmarks. Notably, as distractor objects increase, DP3 drops sharply, whereas Attention-DP3 remains stable and outperforms DP3 by up to 31\% under heavy clutter. The code is publicly available at https://github.com/zhangzhongbo2213/Attention-DP3.
