Area-Optimal Control Strategies for Heterogeneous Multi-Agent Pursuit

AI summary

Overview

Research area: Multi-agent systems, specifically pursuit-evasion games, cooperative control, and geometric game theory.

Technical level: Advanced. The work combines Apollonius-circle geometry, zero-sum game formulations, and analytical gradient derivation to produce optimal control laws.

Scope: A single paper proposing closed-form, geometrically motivated heading-control strategies that let a team of faster-but-differently-fast pursuers cooperatively shrink the region a slower evader can safely reach.

What This Paper Is About

The paper studies a pursuit-evasion game in which several pursuers chase one evader. The pursuers are all faster than the evader, but they have different speeds from one another, so they cannot simply follow identical strategies. The goal is to define a single geometric quantity — the area of the region the evader can still safely reach — and derive control rules that let the pursuers shrink that area together while the evader tries to keep it large.

Key Contributions

1. A geometric definition of the evader's safety. The evader's "safe-reachable set" is defined as the intersection of Apollonius circles, one constructed for each pursuer-evader pair. This turns a complex multi-agent situation into a single measurable region.

2. A zero-sum game formulation of capture. Capture is recast as a game in which the pursuers cooperatively minimize the area of the safe-reachable set and the evader maximizes it, framing pursuit as spatial containment rather than a race to a point.

3. Analytical gradients of the safe region's area. The authors derive how the area of the safe-reachable set changes with respect to each agent's position, giving a direct sensitivity measure for control.

4. Closed-form instantaneous optimal heading laws. Using those gradients, the paper obtains explicit control laws for each agent's heading that are described as computationally efficient enough for real-time use.

Main Findings

• Area minimization as the objective: The paper claims that shrinking the evader's safe-reachable set provides a clear geometric objective for cooperative capture, in contrast to less explicit cooperative pursuit criteria.

• Heterogeneous speeds are handled by construction: Because each pursuer-evader pair contributes its own Apollonius circle, pursuers with different speeds can be incorporated into one shared geometric formulation.

• Closed-form optimal controls are achievable: The gradient derivation is claimed to yield instantaneous optimal control laws in closed form rather than requiring numerical optimization at each step.

• Computational efficiency for real-time use: The resulting strategies are described as computationally efficient, which the authors present as enabling real-time implementation.

• Simulation evidence: Simulations are reported to show that the gradient-based controls steer pursuers to systematically shrink the evader's safe region, which the abstract states leads to guaranteed capture. The abstract does not report quantitative performance figures, comparisons against baselines, or specific simulation parameters.

Methodology in Plain English

The approach starts by giving the evader a formal notion of "where I can still safely go." For any one pursuer, the set of positions the evader could reach before that pursuer intercepts it is a circle-like boundary known as an Apollonius circle. With several pursuers, the evader is only truly safe where all of these constraints are satisfied at once, so the safe region becomes the overlap of several such circles.

The researchers then ask: how does the size of that overlap change if an agent moves a little? By computing this mathematically — the gradient of the area with respect to each agent's position — they get a direct signal telling each agent which way to turn. Since the pursuers want the overlap small and the evader wants it large, the problem becomes a zero-sum game, and the gradients translate into steering commands. Because the commands come out as closed-form expressions, they can be computed on the fly rather than solved iteratively. The authors then test the resulting behavior in simulation.

Why This Matters

Impact on research: The paper offers a task-level geometric objective for cooperative pursuit — minimizing a measurable area — that extends naturally to pursuers with unequal speeds. That is a step beyond formulations that assume identical agents or that define capture only in terms of reaching a point. The use of analytical gradients to get closed-form controls also connects geometric games to practical real-time control.

Real-world applications:

• Drone and robot interception: Teams of unmanned aerial or ground vehicles with different maximum speeds coordinating to corner a target.
• Security and surveillance: Surrounding or containing an intruder using multiple patrol assets.
• Maritime or border enforcement: Coordinating vessels of differing speeds to restrict where another vessel can maneuver.
• Autonomous safety systems: Shaping the reachable set of an adversarial or unpredictable agent to keep it out of protected zones.

Industry relevance: The emphasis on computational efficiency and closed-form controls makes the approach appealing for embedded and onboard systems, where optimization-based planning may be too slow. Any industry deploying multiple autonomous platforms with dissimilar capabilities — defense, logistics, aerospace, robotics — has a natural interest in coordination rules that are cheap to compute and come with a geometric guarantee of containment.

Future Directions

• Validation beyond simulation. The abstract reports simulation evidence only; physical or higher-fidelity testing with real vehicle dynamics would test whether the guarantees hold under sensing noise, delays, and actuator limits.

• Robustness to imperfect information. The formulation appears to assume agents know positions and speeds; extending it to partial observability or estimation error is an open question.

• Richer evader and pursuer models. Handling acceleration limits, obstacles, or evaders with their own strategic sophistication would broaden applicability beyond the stated speed-based setup.

• Scalability and team composition. How the approach behaves as the number of pursuers grows, and whether additional or slower pursuers contribute meaningfully to shrinking the safe region, are natural follow-ups.

Target Audience

This paper suits researchers and graduate students in multi-agent systems, control theory, robotics, and game theory who work on pursuit-evasion, cooperative control, or reachability-based planning. Practitioners building multi-robot or multi-vehicle interception and containment systems will also find the real-time, closed-form control angle relevant. Readers need comfort with geometric set constructions and gradient-based control to follow the derivations, though the core idea — shrink the area the evader can safely occupy — is accessible to a broader technical audience.

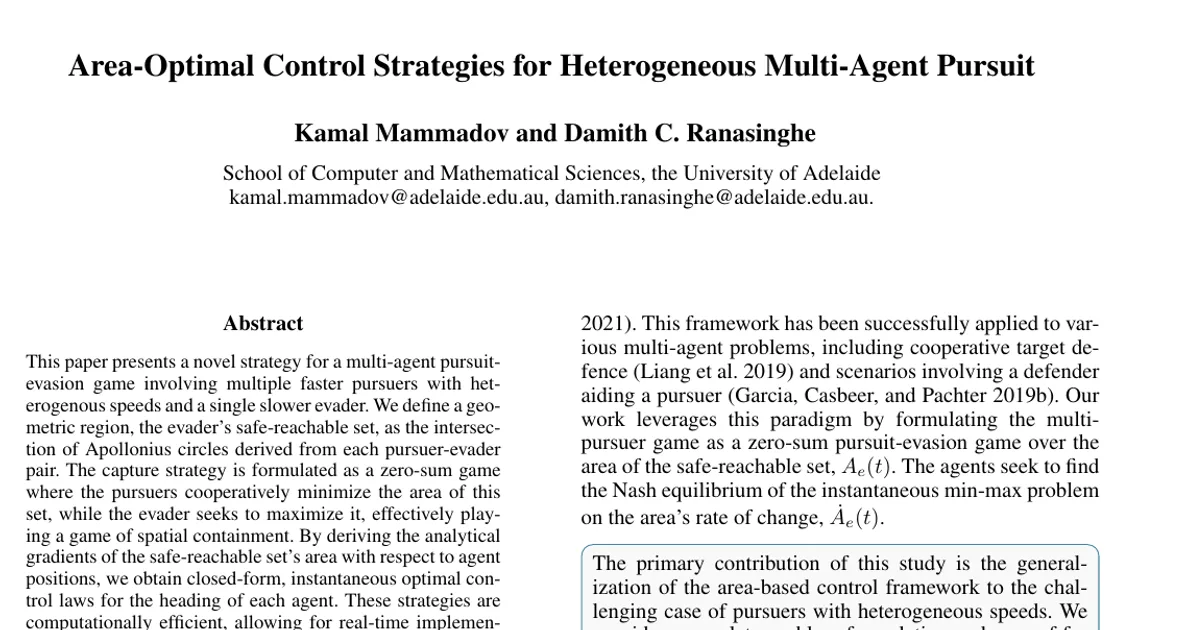

Authors’ abstract

This paper presents a novel strategy for a multi-agent pursuit-evasion game involving multiple faster pursuers with heterogenous speeds and a single slower evader. We define a geometric region, the evader's safe-reachable set, as the intersection of Apollonius circles derived from each pursuer-evader pair. The capture strategy is formulated as a zero-sum game where the pursuers cooperatively minimize the area of this set, while the evader seeks to maximize it, effectively playing a game of spatial containment. By deriving the analytical gradients of the safe-reachable set's area with respect to agent positions, we obtain closed-form, instantaneous optimal control laws for the heading of each agent. These strategies are computationally efficient, allowing for real-time implementation. Simulations demonstrate that the gradient-based controls effectively steer the pursuers to systematically shrink the evader's safe region, leading to guaranteed capture. This area-minimization approach provides a clear geometric objective for cooperative capture.
