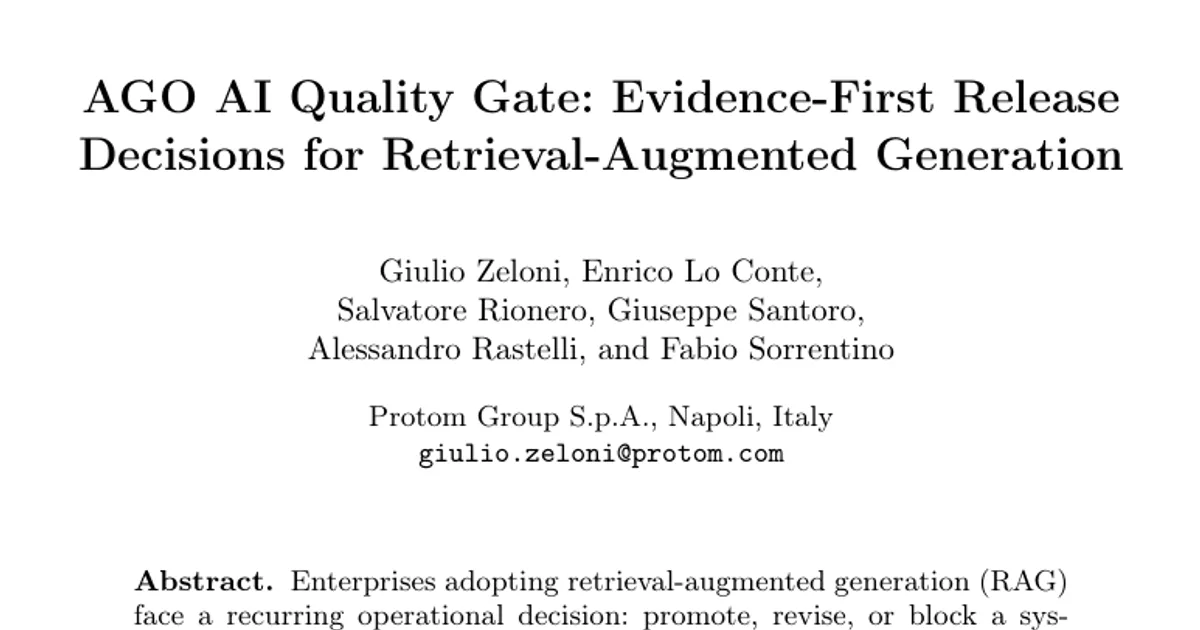

AGO AI Quality Gate: Evidence-First Release Decisions for Retrieval-Augmented Generation

AI summary

Overview

Research area: Evaluation and release management for retrieval-augmented generation (RAG) systems, specifically LLM-as-a-judge reliability and statistical quality gating.

Technical level: Advanced — the paper combines Bayesian hierarchical modeling, classical agreement statistics (Cohen's κ, MCC, AUROC), and LLM-judge protocol design, though the underlying operational problem is stated plainly.

Scope: The paper presents AGO AI Quality Gate, a self-hosted framework that converts RAG evaluation scores into auditable promote / revise / block release decisions while treating missing evidence, judge protocol errors, and statistical uncertainty as explicit first-class inputs.

What This Paper Is About

Enterprises running RAG systems must repeatedly decide whether a new system version can be released, revised, or blocked — but the evidence behind that decision is usually incomplete and comes from fallible LLM judges. The authors argue that three gaps separate scoring from deciding: evaluators routinely lack evidence, point estimates overstate certainty on the small stratified datasets real engagements afford, and the LLM judge itself is never validated for the specific domain it is being used in. The paper describes the AGO framework's design and evaluates its judge layer on the public RAGBench benchmark plus its statistical gate on controlled synthetic scenarios.

Key Contributions

1. Evidence-first decision semantics deployed in production. A four-state decision lattice — promote, manual review, block, and not evaluable — with per-metric decision modes, a fixed set of critical metric identifiers that escalate regardless of mode, and explicit treatment of missing evidence and judge protocol errors.

2. A stratified beta-binomial statistical gate. Per-stratum credible intervals and a probabilistic regression risk, P(p_B < p_A − δ), replace point-estimate comparisons between baseline and candidate runs.

3. Per-engagement judge meta-evaluation. A mandatory protocol with balanced golden sets, threshold-free agreement statistics, and bootstrap confidence intervals that must run before judge scores are allowed to influence decisions for a new deployment domain.

4. A public two-boundary evaluation. Judge-layer validation on RAGBench, plus operating characteristics of the production gate measured under three controlled scenarios: regression, no change, and improvement.

Main Findings

• Judge quality dominates, and cheap judges can fail silently. On identical stratified test samples of N = 1200 per judge across 12 RAGBench datasets, gpt-4o achieved AUROC 0.783 [0.756, 0.807] on adherence, while gpt-4.1-nano reached only 0.603 [0.570, 0.634] — barely above chance. The gap is +0.180 AUROC and +0.263 MCC at the deployed threshold θ = 0.8, with non-overlapping confidence intervals. Nothing in the low-cost judge's operational output signaled the deficiency: it produced zero protocol errors and well-formed, plausible explanations throughout.

• The weak judge's failure is not a threshold artifact. No threshold in a 0.1–0.9 sweep yielded MCC above 0.17 for gpt-4.1-nano, and its per-class score distributions overlapped heavily.

• Confidence intervals changed the conclusion. An earlier pilot on three datasets (N = 300) gave the same low-cost judge AUROC 0.563 [0.495, 0.631] — an interval that includes chance, which is precisely why the framework mandates intervals before drawing conclusions.

• Reliability is domain-dependent even for a frontier judge. For gpt-4o at N = 100 per dataset, AUROC ranges from 0.620 (cuad, legal contracts) to 0.883 (expertqa), and MCC at the deployed threshold ranges from 0.040 (emanual) to 0.618 (msmarco). On some domains the production operating point is close to uninformative.

• Relevance rank correlations are low and unstable. Spearman values for the gpt-4o judge range from −0.159 (hotpotqa) to 0.583 (techqa); the authors attribute this to a definitional mismatch between their holistic context-relevance score and the TRACe relevance label (a fraction of relevant context spans) and treat the comparison as exploratory.

• Positioning against published evaluators. The benchmark authors' reported AUROC ranges across the 12 component datasets are: GPT-3.5 0.51–0.65 (mean 0.56), RAGAs 0.52–0.70 (mean 0.60), TruLens 0.40–0.70 (mean 0.59), and a fine-tuned DeBERTa-large 0.64–0.87 (mean 0.79). Under AGO's protocol, gpt-4o has a per-dataset mean of 0.77 and micro 0.783, falling within the fine-tuned encoder's range and above the zero-shot baselines. The authors stress this is orientation only, not a protocol-identical comparison.

• The decision-grade gate reduces unsafe promotion at every tested sample size. Across N = 20 to 200, the naive gate promoted 29.3%–41.8% of truly regressed candidates, whereas AGO's decision_grade profile promoted 22.2%–35.1%.

• Protection carries an explicit cost. Under no true change, decision_grade promotes 51.4%–76.2% and routes 23.8%–48.6% to review or block. Under true improvement it promotes 71.5%–99.4%, versus 76.7%–99.8% for the naive rule.

• The posterior separates scenarios as sample size grows. At N = 200, average posterior regression probability ρ was 0.638 for regression, 0.249 for no change, and 0.028 for improvement.

• A looser profile is reported rather than hidden. The balanced_default profile (review threshold 0.50 vs. 0.40 for decision_grade) promotes 29.8%–43.9% under regression — which can match or exceed the naive rate — while promoting 60.6%–83.0% under no change with a 17.0%–39.4% false-alarm rate. Because both profiles receive identical simulated evidence, the stronger regression protection of decision_grade is attributable solely to its lower review threshold.

• Four operational findings are drawn from deployment. Judges fail silently; confidence intervals change conclusions; reliability is model- and domain-dependent (MCC 0.040–0.618 at a fixed threshold); and treating missing evidence as a first-class outcome is what made these failures visible.

Methodology in Plain English

The decision layer. Every evaluation case (a question, an optional expected behavior, retrieval requirements, forbidden phrases) is run through three scoring layers: cheap deterministic checks (answer presence, expected source/version matching, forbidden phrases, term matching with Unicode/case/accent normalization); a local rule engine for pre- and post-conditions such as PII, secrets, prompt injection, JSON and link validity, each emitting an observable metric result; and a single constrained JSON call to an exchangeable, OpenAI-compatible judge at temperature 0 that scores the RAG triad of context relevance, adherence, and answer relevance. Each metric in the versioned evaluation profile is assigned a mode — observe, review, or block — and a fixed critical set escalates independently of mode. Malformed judge output is never coerced into a valid score; anything outside a small tolerance of the declared range is a provider protocol error and routes the case to manual review. Run-level aggregation is conservative, and a missing-evidence case can only produce not evaluable or manual review, never promote.

The statistical gate. Item outcomes are grouped into engagement-defined strata, each modeled as Bernoulli with a conjugate Beta prior (default Beta(1,1)). The run summary is a weighted posterior mean, with weights defaulting to dataset coverage but configurable to traffic shares or business criticality. To compare a baseline and a candidate, the gate draws Monte Carlo samples of the stratified weighted rate for each run (fixed, recorded seeds) and computes the regression risk P(p_B < p_A − δ), where δ defaults to 0.03. It blocks if ρ ≥ 0.8, sends to manual review if ρ ≥ 0.5, and promotes otherwise. The two runs are treated as independent — an approximation the authors acknowledge is conservative, since shared items mean independence overestimates the variance of the difference and biases toward review and block.

Judge validation. Before judge metrics can influence decisions in a new domain, a golden set of human-labeled cases must be built (at least 30 cases as an absolute floor, 100+ for decision-grade; every dimension must have both classes present with minority class ≥ 30%; two annotators with adjudication). Judge scores are binarized at the operating threshold and compared to labels using raw agreement, Cohen's κ, MCC, threshold-free AUROC, a threshold sweep, and 95% bootstrap confidence intervals. Validation evidence is bound to the exact judge configuration; switching model or endpoint invalidates the report.

The two evaluation studies. Since engagement data is proprietary, the judge layer was tested on RAGBench — 100k annotated (question, documents, response) traces from 12 datasets across five industry domains — using stratified samples of 100 instances per dataset, with a validation split of N = 300 for the three-dataset judge selection and N = 1200 per judge on the full 12-dataset test split. Judge responses were cached by (instance, model, rubric hash), the rubric was frozen before any test-split instance was scored, and all statistics carry 95% bootstrap confidence intervals from 1,000 resamples with fixed seeds. Pre-registered sanity audits caught two pipeline defects before the reported runs: a payload bug silently capping the documents passed to the judge, and duplicate instance identifiers across component datasets (which forced aborting a first full-test attempt). The gate study ran 1,000 replicates per scenario and sample size over N = 20, 30, 50, 100, or 200 items split across general (0.50), domain_specific (0.30), and critical (0.20) strata with baseline pass probabilities 0.90, 0.85, and 0.80 and candidate shifts of −0.05, 0, or +0.05. It used a Beta(1,1) prior, 95% credibility, δ = 0.03, block threshold 0.80, 121 posterior samples, and independent posterior streams seeded at 4201 and 4202, with data seed 20260709.

Why This Matters

Impact on research. The paper reframes RAG evaluation from a score-production problem into an auditable decision problem, and supplies an argument that evaluator quality must be re-measured per deployment domain rather than certified once. Its finding that a low-cost judge can produce flawless protocol output while discriminating barely above chance is a caution for any pipeline that treats judge validation as a one-time checkbox. The framework also contributes a concrete, documented treatment of "not measured" as distinct from "measured as bad" — a distinction that is often blurred by averaging over whatever data is available.

Real-world applications:

• Customer support RAG systems — gating a new retrieval or prompt version before it reaches production, with released decisions carrying machine-readable failure reasons.
• Compliance and legal document QA — the cuad dataset (legal contracts) was the weakest domain for the selected judge at AUROC 0.620, illustrating why per-domain calibration matters in regulated settings.
• Healthcare and biomedical search — the pubmedqa, covidqa, and emanual datasets sit in this space; emanual showed MCC of 0.040 at the deployed threshold.
• Financial and tabular question answering — finqa (AUROC 0.787) and tatqa (AUROC 0.829) represent a domain where the authors also observe unstable relevance correlations (−0.053 for tatqa).

Industry relevance. The platform is deployed at an IT consulting firm and used in RAG assessment engagements with enterprise clients, under constraints the paper treats as design drivers rather than caveats: client data cannot leave the premises, observability is often incomplete, evaluation sets are small (tens to a few hundred cases) and stratified over imbalanced categories, and consultants must be able to defend every automated decision they sign. The architecture is self-hosted, with the judge endpoint exchangeable between a cloud API and a self-hosted OpenAI-compatible runtime for deployments that forbid egress. The gate is framed explicitly as an escalation mechanism with mandatory human review of non-promoted cases, not an autonomous verdict.

Future Directions

1. Paired Bayesian comparison. The current gate models baseline and candidate runs as independent and acknowledges this is conservative when they share items; a paired model would recover power.

2. Native evaluation of the remaining TRACe dimensions. The AGO judge currently maps only onto adherence and holistic context relevance; utilization and completeness are not natively produced and are left to future work, and answer relevance has no TRACe counterpart and was excluded.

3. Repeated-sampling analysis of per-case variance. Named explicitly as future work, addressing variability at the individual case level rather than the run level.

4. Resolving the context-relevance definition mismatch. The low and unstable rank correlations — including negative Spearman values for hotpotqa and tatqa — follow from comparing a holistic score against a span-fraction label; a reconciled definition would make that comparison informative rather than exploratory.

Target Audience

ML platform and evaluation engineers building RAG deployment pipelines; applied researchers working on LLM-as-a-judge reliability and uncertainty quantification; enterprise architects in regulated sectors (legal, healthcare, finance) who need auditable release decisions rather than raw scores; and consultants or data scientists responsible for defending automated quality assessments to clients. Readers unfamiliar with Bayesian posteriors, AUROC, or MCC will find the conceptual argument accessible but the evaluation sections dense.

Note on scope: the judge-layer study on RAGBench is not an end-to-end validation of AGO, and the gate-level experiments are synthetic and local, making no external model or benchmark calls. The stratified samples support controlled comparison rather than population-level performance estimates, and no personal, client, or proprietary data are introduced by either experiment. The paper states that generative AI tools were used to assist with drafting, editing, and implementing the evaluation harness and simulation code, with all content, code, and reported numbers reviewed and verified by the authors.

Authors’ abstract

Enterprises adopting retrieval-augmented generation (RAG) face a recurring operational decision: promote, revise, or block a system version. The evidence is incomplete and the metrics come from fallible LLM judges. We report on AGO AI Quality Gate (AGO), an evidence-first quality-gate framework deployed in industrial RAG assessment engagements. AGO integrates four key components: a four-state decision model that treats missing data and judge errors as explicit outcomes; layered scoring combining deterministic checks, local guardrails, and structured LLM evaluation; a stratified beta-binomial gate that quantifies regression risk probabilistically; and a mandatory meta-evaluation protocol to validate the LLM judge before it influences decisions. Since engagement data is proprietary, we evaluate the judge layer on RAGBench, a public benchmark of 100k annotated RAG traces across 12 datasets. On identical stratified test samples (N=1200 per judge), a low-cost judge (gpt-4.1-nano) detects non-adherent answers barely above chance (AUROC 0.603 [0.570, 0.634]), despite producing flawless protocol output, while gpt-4o reaches 0.783 [0.756, 0.807] -- yet its per-domain performance still ranges from 0.62 to 0.88. A fixed-seed gate study spanning regression, no change, and improvement quantifies unsafe promotion, false-alarm cost, and improvement throughput. Under regression, the decision-grade profile reduces unsafe promotion to 22.2%-35.1%, against 29.3%-41.8% for a naive gate. These results support the design choices that judge quality must be measured per engagement and that point estimates alone are not a release decision.
