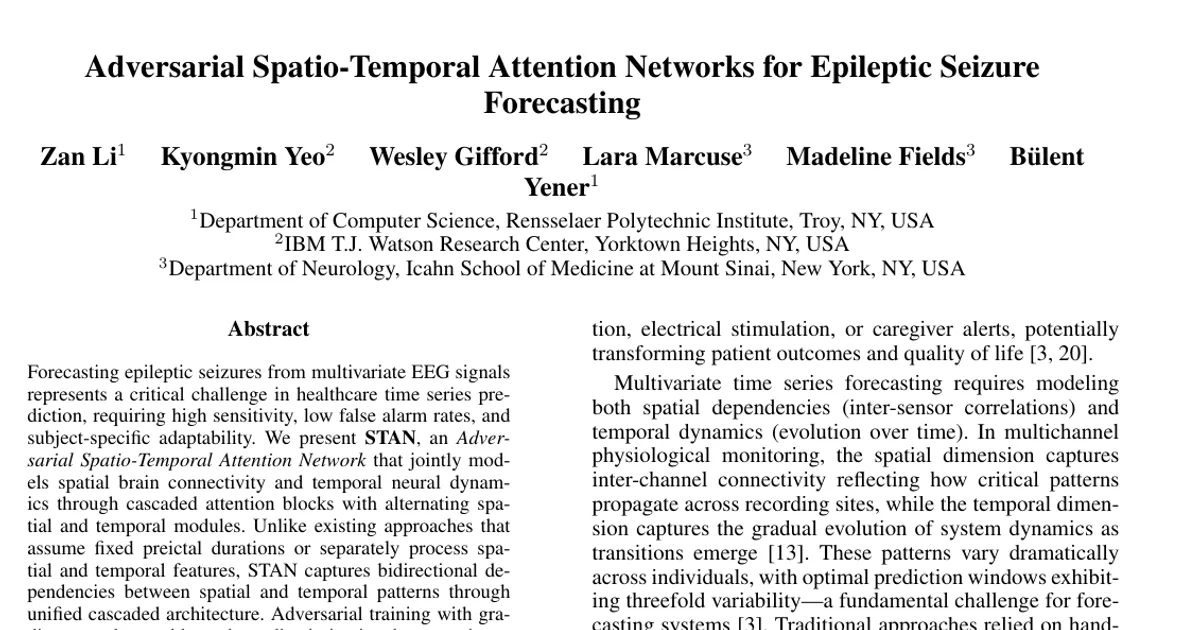

Adversarial Spatio-Temporal Attention Networks for Epileptic Seizure Forecasting

AI summary

Overview

Research area: Machine learning for healthcare time series forecasting, specifically deep learning on multivariate EEG for epileptic seizure prediction.

Technical level: Advanced. The paper assumes familiarity with attention mechanisms, generative adversarial training, and the evaluation conventions of seizure-prediction literature.

Scope: The paper introduces STAN (Spatio-Temporal Attention Network), a cascaded alternating attention architecture trained adversarially to forecast seizures from scalp and intracranial EEG, and reports retrospective results on two benchmark datasets.

What This Paper Is About

Forecasting epileptic seizures from multichannel EEG is hard because the events are rare, the signals are non-stationary, and the patterns differ substantially from person to person. Existing deep models typically fix the prediction horizon in advance, process spatial (inter-channel) and temporal (over-time) information separately before fusing them, and are too large to run on wearable or edge hardware. STAN's goal is to model spatial and temporal structure jointly in one cascaded architecture, learn a robust interictal-versus-preictal decision boundary without hand-crafted features, and still be small and fast enough for real-time deployment.

Key Contributions

1. A unified cascaded attention architecture. Three consecutive attention blocks (M = 3), each containing a spatial attention module followed by a temporal attention module with H = 4 attention heads, capture bidirectional spatial-temporal dependencies rather than processing the two dimensions separately and fusing them later.
2. An adversarial discrimination mechanism with gradient penalty. A discriminator is trained with WGAN-GP loss (λ = 0.05) on the attention maps themselves, not on raw features, to separate interictal from preictal states without manual feature engineering.
3. Early detection via continuous monitoring. Although trained only on clearly defined 15-minute preictal windows, the learned attention patterns trigger reliable alarms at subject-specific times, typically 15–45 minutes before onset, without individualized model training or per-subject parameter tuning.
4. Efficiency at the edge. The model uses 2.3M parameters, 45 ms inference time, and 180 MB memory, which the authors position as sufficient for wearable and closed-loop neurostimulation scenarios.

Main Findings

• CHB-MIT scalp EEG performance: STAN reaches 96.6% sensitivity with 0.011 false detections per hour averaged over 8 pediatric subjects and 46 seizures. This is a 40-fold reduction in false detection rate versus BFB+SVM (0.438/h) and 7.7-fold versus a Transformer baseline (0.085/h).
• MSSM intracranial EEG performance: 94.2% sensitivity with 0.063/h false detection rate over 4 adult subjects and 14 seizures, which the authors present as evidence of cross-modality generalization from scalp to intracranial recordings and from pediatric to adult patients.
• Statistical significance: Improvements over baselines were assessed with the Wilcoxon signed-rank test on per-seizure sensitivity and FDR across all test seizures, reported as p < 0.01.
• Per-patient results on CHB-MIT: The paper states that five patients achieve perfect sensitivity with zero false alarms; the corresponding table shows 100% sensitivity and 0.000/h FDR for chb01, chb05, chb06, and chb08, with chb10 at 86.4% and 0.000/h.
• Ablation — adversarial training matters: Removing adversarial training gives 96.3% sensitivity and 0.024/h FDR (2.2× worse FDR); removing the gradient penalty gives 96.5% and 0.019/h.
• Ablation — cascade depth matters: Single network (M = 1) 93.1% / 0.037/h; two networks (M = 2) 95.2% / 0.021/h; three networks (M = 3) 96.6% / 0.011/h.
• Ablation — joint modeling matters: Spatial-only reaches 91.4% / 0.048/h and temporal-only 92.7% / 0.041/h, so joint modeling adds 5.2% sensitivity and a 3.7× FDR reduction relative to the single-modality variants.
• Detection timing: Continuous 90-minute monitoring shows gradual score transitions beginning at least 15 minutes before onset, with detection times reported as typically 15–45 minutes before onset and as varying 20–45 minutes across subjects in Figure 4.
• Efficiency comparison: CNN 1.8M parameters / 32 ms / 140 MB; STS-HGCN 5.1M / 85 ms / 320 MB; Transformer 8.7M / 120 ms / 450 MB; STAN 2.3M / 45 ms / 180 MB — 3.8× fewer parameters, 2.7× faster inference, and 2.5× less memory than the Transformer.
• Alarm burden: STAN's 0.011–0.063/h FDR corresponds to roughly 0.3–1.5 false alarms per day, versus the 0.2–0.5/h (5–12 daily) range the paper attributes to prior systems.

Methodology in Plain English

The input is a multichannel EEG recording cut into 1-second non-overlapping windows. A window is fed through three stacked attention blocks. Inside each block, a spatial module treats the EEG channels as nodes in a complete graph and asks which channels relate to which at each moment; a temporal module then treats the timestamps as nodes and asks how those relationships evolve over time. Each module uses a 1D convolutional encoder, multi-head attention, residual connections, layer normalization, and tanh activation. The network is first pre-trained for 50 epochs to reconstruct its input (MSE reconstruction loss), which teaches it useful spatio-temporal representations without labels.

After pre-training, the network's weights are frozen and a separate discriminator is trained for 100 epochs (learning rate 0.00004). Crucially, the discriminator receives the six attention maps (three spatial, three temporal) rather than the raw features, on the hypothesis that the interictal-to-preictal transition shows up as a change in correlation structure. The discriminator uses 2D convolutions (5×5 kernels for spatial maps, 8×8 for temporal), producing 512-dimensional features that go through three fully connected layers of 256 units with ReLU and dropout (p = 0.2) and a sigmoid output interpreted as a risk score.

Training labels are strict: 15 minutes before a seizure is preictal (class 0), and anything at least 4 hours before or after a seizure is interictal (class 1). The zone in between is left unlabeled and unused. WGAN-GP loss with a gradient penalty forces a smooth transition between the two classes and stabilizes training. At test time, the model monitors continuously for 90 minutes before each seizure, predicting every 5 seconds (1,080 predictions per seizure), smoothing with a 30-second moving average, and raising an alarm when the smoothed score drops below τ = 0.5. Evaluation uses Leave-One-Seizure-Out cross-validation, and interictal segments are randomly subsampled to match the number of preictal samples.

Why This Matters

Impact on research. The paper argues that fixing the prediction horizon in advance mislabels data — windows are called preictal when they are not, generating false alarms, or genuine early warnings are missed. STAN shows that a model trained on a narrow 15-minute definition can still produce useful alarms earlier than that because the adversarial objective learns a broader discriminative structure. It also makes the case that spatial and temporal modeling should be interleaved rather than performed separately and fused, and it offers a lightweight alternative to large time series foundation models such as TimeGPT and Lag-Llama in data-limited clinical settings.

Real-world applications (as described in the paper):

• Hospital monitoring in epilepsy monitoring units, integrated with existing EEG infrastructure for high-risk patients.
• Ambulatory wearable EEG systems for community-dwelling patients.
• Closed-loop neurostimulation, triggering responsive electrical stimulation in patients with implanted devices.
• Caregiver alerting and fast-acting antiepileptic medication, which the paper notes is effective within 10–15 minutes, inside the 15–45 minute window.

Industry relevance. The stated motivation of 2.3M parameters, 45 ms latency, and 180 MB memory is edge deployment on medical-grade wearables and mobile devices, where continuous monitoring is only viable if inference is cheap and the false alarm rate is low enough that patients do not abandon the system. The paper also discusses a deployment pipeline in which patient-specific calibration takes 2–3 days of initial monitoring and cloud-based retraining with federated learning could update models while preserving privacy. Epilepsy is described as affecting 50 million people worldwide.

Future Directions

• Prospective clinical validation. The current evaluation is retrospective; the authors state that prospective clinical trials are needed to validate real-world performance and to assess impact on patient outcomes.
• Multimodal integration. Combining EEG with heart rate variability, accelerometer data, and sleep-wake cycles could capture systemic physiological changes that precede seizures.
• Interpretability of attention patterns. Analyzing the learned spatial and temporal attention maps may yield neurological insight into seizure generation mechanisms and potentially inform therapeutic strategies.
• Foundation model pre-training for medical time series. The authors flag combining their patient-specific adaptive learning with large-scale pre-trained representations as an orthogonal direction, alongside periodic retraining to track long-term pattern drift.

Target Audience

This paper is written for machine learning researchers working on spatio-temporal and healthcare time series, clinical researchers and epileptologists interested in quantitative seizure forecasting, and engineers building wearable or implantable monitoring systems who care about the trade-off between predictive performance and on-device cost. Readers without a background in attention architectures, adversarial training, or EEG evaluation protocols will find the methodology sections demanding.

Authors’ abstract

Forecasting epileptic seizures from multivariate EEG signals represents a critical challenge in healthcare time series prediction, requiring high sensitivity, low false alarm rates, and subject-specific adaptability. We present STAN, an Adversarial Spatio-Temporal Attention Network that jointly models spatial brain connectivity and temporal neural dynamics through cascaded attention blocks with alternating spatial and temporal modules. Unlike existing approaches that assume fixed preictal durations or separately process spatial and temporal features, STAN captures bidirectional dependencies between spatial and temporal patterns through a unified cascaded architecture. Adversarial training with gradient penalty enables robust discrimination between interictal and preictal states learned from clearly defined 15-minute preictal windows. Continuous 90-minute pre-seizure monitoring reveals that the learned spatio-temporal attention patterns enable early detection: reliable alarms trigger at subject-specific times (typically 15-45 minutes before onset), reflecting the model's capacity to capture subtle preictal dynamics without requiring individualized training. Experiments on two benchmark EEG datasets (CHB-MIT scalp: 8 subjects, 46 events; MSSM intracranial: 4 subjects, 14 events) demonstrate state-of-the-art performance: 96.6% sensitivity with 0.011 false detections per hour and 94.2% sensitivity with 0.063 false detections per hour, respectively, while maintaining computational efficiency (2.3M parameters, 45 ms latency, 180 MB memory) for real-time edge deployment. Beyond epilepsy, the proposed framework provides a general paradigm for spatio-temporal forecasting in healthcare and other time series domains where individual heterogeneity and interpretability are crucial.
