Adversarial Label Invariant Graph Data Augmentations for Out-of-Distribution Generalization

AI summary

Overview

Research area: Graph machine learning, specifically out-of-distribution (OoD) generalization under covariate shift, combining causal data-generation modeling, adversarial training, and minimax optimization.

Technical level: Advanced. The paper assumes familiarity with structural causal models, invariant risk minimization, graph neural networks, alternating minimax optimization, and Q-learning.

Scope in one sentence: The paper proposes RIA (Regularization for Invariance with Adversarial training), a method that searches for "hard" counterfactual data environments via adversarial label-invariant graph augmentations in order to prevent a learner from collapsing to an empirical risk minimization (ERM) solution, and evaluates it on synthetic and natural graph distribution shifts.

What This Paper Is About

Out-of-distribution generalization asks a model to perform well when test data comes from a different environment than training data, a situation that standard empirical risk minimization (ERM) handles poorly because training environments rarely resemble the test environment. This problem is harder for graphs because of variable node counts, adjacency matrices whose edge counts grow quadratically in the number of nodes, and permutation invariance. The paper's goal is to build a training procedure that adversarially generates new, difficult, label-preserving data environments for a graph, so that an invariance-seeking learner cannot simply collapse onto the ERM solution.

Key Contributions

1. A causal data-generation process for graphs. The authors define a structural causal model (SCM) over random variables {E, X_C, X_S, A_C, A_S, X, A, Y}, where E is an exogenous environment variable, the subscripted C tensors are causal, and the subscripted S tensors are spurious. The causal and spurious graphs are combined through deterministic joining maps J_X and J_A, with the constraint that the Hadamard product A_C ⊙ A_S = 0.
2. Identification of "ERM collapse." The paper isolates a common failure mode in existing OoD methods, where the learner converges to the ERM solution, and characterizes three sufficient conditions: few samples, a single training environment, and zero risk. Proposition 1 shows that, under common support of the training distributions, Case 1 implies Case 2, and Case 2 implies Case 3. Example 4.1 gives a concrete two-environment graph construction (a complete graph with a causal spanning tree and constant 0 signal; even-length causal and spurious paths with signal 1) in which IRMv1 learns Φ*(G) = 0 and achieves zero risk on both environments without recovering the true parity-of-maximum-degree labeling function.
3. A formalization of adversarial label-invariant data augmentations. Definition 4 defines a label-invariant augmentation a as a map on the support of P satisfying f(a(X)) = f(X). Definition 5 defines an adversarial augmentation as one satisfying h(a(X)) ≠ h(X). Combining them yields the adversarial label-invariant data augmentation, and the induced pushforward distribution is called the adversarial counterfactual distribution P^aug(e) := (a)_#(P^e).
4. The RIA algorithm and its theoretical guarantee. RIA is formulated as a minimax problem that minimizes a regularized OoD loss over a learner h while the augmentation distribution is adversarially maximized, and is solved with an alternating gradient descent-ascent algorithm. Theorem 5.1 states that RIA(E_tr)_† ≥ †(E_tr) ≥ ERM(E_tr) ≥ 0, so RIA can avoid ERM collapse.

Main Findings

• RIA can provably escape ERM collapse. Theorem 5.1 establishes the chain of inequalities RIA(E_tr)_† ≥ †(E_tr) ≥ ERM(E_tr) ≥ 0. The proof uses the Q-learning analogy from Lemma 1 to argue the augmentation is risk-maximizing, then invokes the contrapositive of Proposition 4.1 to argue at least one environment other than the collapsed one must exist.
• The adversarial environment exists. Lemma 2 proves P^aug(e) exists for any e in E_tr, relying on compactness of the weight space W and on the determinism of the causal-to-label map, which rules out two covariate-label pairs sharing a covariate but differing in label.
• The method is motivated by a formalized risk-reward analogy to Q-learning. Lemma 1 states that with α = 1, the analogous Q-function must have n = 1, giving Q_1(h, w_max) ← r^e(h, w_max). The Q-function in this analogy is memory-less and exploitative, and the average deep-learning risk serves as pure exploration.
• The augmentation makes the problem a regularization rather than a hard symmetry constraint. Standard invariance methods impose h(a(X)) = h(X); the paper loosens this into a regularized objective OoD-Reg_•(h) so that the augmentation can remain adversarial.
• Label invariance is preserved by masking node signals. The implementation learns a distribution of node-attribute masking augmentations. Because the mask applies only to the node signal, and because the ground-truth labels in CMNIST and Motif depend only on graph topology, the augmentation is label invariant for those datasets.
• The augmenter is black-box. The adversarial augmentations avoid differentiating a combinatorial object such as a graph, which the paper notes would be computationally expensive in a white-box alternative.
• Experimental setup. Experiments were run on a 64 core Intel(R) Xeon(R) CPUs @2.40 GHz machine with 128 GB DRAM and one 40 GB DRAM Ampere A100 GPU. Test scores for the best in-distribution validation score are averaged across 3 runs for both real-world and synthetic datasets, with hyperparameters following the defaults of the GOOD benchmark. RIA is implemented using the regularizations of RICE, IRM, and VREx, and compared against baselines including Coral, DANN, and DIR.
• Quantitative results are not present in the provided content. The paper text available here is truncated inside the experiments section, so no accuracy numbers, benchmark tables, or per-dataset comparisons are reported above; the abstract states only that the method "can achieve high accuracy compared with OoD baselines."

Methodology in Plain English

The authors start by writing down a story about how graph data comes to exist. An environment variable picks a setting; the setting determines both a causal part of the graph (which truly determines the label) and a spurious part (which correlates with the label in training data but should not be relied on). A recursive neighborhood expansion over the causal tensors, followed by an aggregation map, produces the label. Because the label depends only on the causal part, any transformation that touches only the spurious part leaves the label unchanged, and such transformations are safe to use as augmentations.

The training algorithm then treats the augmentation as an opponent. A small graph neural network outputs Bernoulli probabilities over which node entries to keep; samples from those probabilities produce masks applied to node attributes. The masker is trained by gradient ascent to make the main learner's loss as high as possible, while the main learner is trained by gradient descent to do well anyway. Within each outer epoch the masker is updated T times, and the learner once, at step t = T. Because the loss combines an existing OoD regularization term with the ordinary per-environment loss, this procedure can wrap around existing invariance-based OoD methods such as IRM, VREx, and RICE without modifying them. The intuition is that the masking opponent keeps generating environments the learner is bad at, which prevents the learner from settling for the easy ERM answer.

Why This Matters

Impact on research. The paper connects three usually separate threads: causal graph data generation, adversarial training, and invariance-based OoD methods. Its main conceptual move is to show that the hard invariance constraint used by methods like IRM can be relaxed into a regularizer, which opens the door to reusing those methods with an adversarial environment generator rather than replacing them. The ERM-collapse analysis and the observation that few samples imply a single environment imply zero risk gives a clean diagnostic framing for why OoD methods fail in low-environment-count settings.

Real-world applications:

• Molecular property prediction, where models trained on one chemical library must transfer to molecules from a different source, and where spurious substructure-label correlations are common.
• Fraud and abuse detection on transaction graphs, where the graph of accounts and interactions shifts continuously and the training period never reflects the attack patterns at test time.
• Drug repurposing and biomedical knowledge graphs, where node attributes (assay measurements, annotations) shift between cohorts while the underlying relational structure carries the signal.
• Social network and recommendation systems, where user-attribute distributions drift across time or region while the structural signal about relevance stays stable.

Industry relevance. Any deployed graph model faces environment drift. A method that plugs into existing invariance regularizers and requires only a masking augmenter is comparatively easy to adopt, and the black-box augmenter avoids the cost of differentiating over graph structure, which matters at industrial graph scale.

Future Directions

• Restoring the missing empirical evidence. The truncated text leaves the quantitative comparison against Coral, DANN, DIR, and the RICE/IRM/VREx-based RIA variants unreported here; the relative gains on synthetic versus natural shifts remain an open question in the available content.
• Extending beyond node-attribute masking. The implementation masks node signals only. Edge-level or topology-level augmentations that remain label invariant under the causal model are an obvious next step, though the paper notes differentiating combinatorial graph structure is expensive.
• Generalizing the Q-learning analogy beyond the memory-less case. Lemma 1 fixes n = 1 and α = 1, so the analogy discards the temporal structure of Q-learning. Whether a multi-episode variant yields better exploration is unexplored.
• Verifying label invariance on datasets whose labels do depend on node attributes. The label-invariance argument for masking is stated specifically for CMNIST and Motif, where labels depend only on topology; applying the same augmentation elsewhere would need a separate argument.

Target Audience

This paper is best suited to machine learning researchers working on out-of-distribution generalization, causal representation learning, or graph neural networks, and to practitioners who already use invariance-based methods such as IRM, VREx, or RICE and want a way to escape ERM collapse without abandoning those regularizers. Readers without a background in structural causal models and minimax optimization will find the theoretical sections demanding.

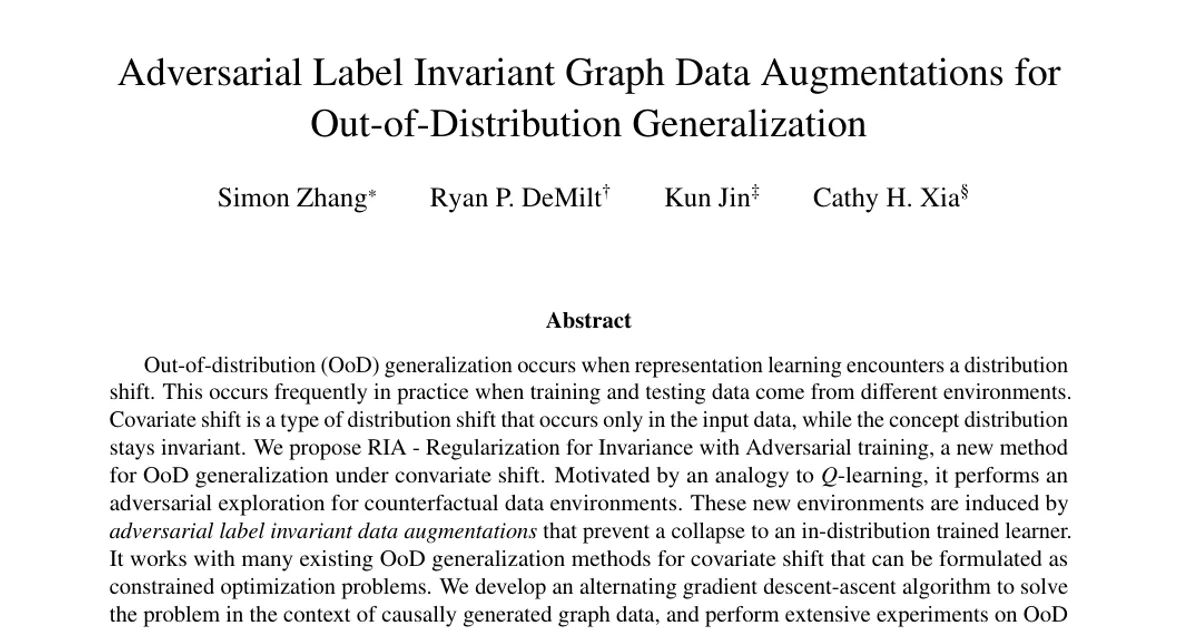

Authors’ abstract

Out-of-distribution (OoD) generalization occurs when representation learning encounters a distribution shift. This occurs frequently in practice when training and testing data come from different environments. Covariate shift is a type of distribution shift that occurs only in the input data, while the concept distribution stays invariant. We propose RIA - Regularization for Invariance with Adversarial training, a new method for OoD generalization under convariate shift. Motivated by an analogy to $Q$-learning, it performs an adversarial exploration for training data environments. These new environments are induced by adversarial label invariant data augmentations that prevent a collapse to an in-distribution trained learner. It works with many existing OoD generalization methods for covariate shift that can be formulated as constrained optimization problems. We develop an alternating gradient descent-ascent algorithm to solve the problem, and perform extensive experiments on OoD graph classification for various kinds of synthetic and natural distribution shifts. We demonstrate that our method can achieve high accuracy compared with OoD baselines.
