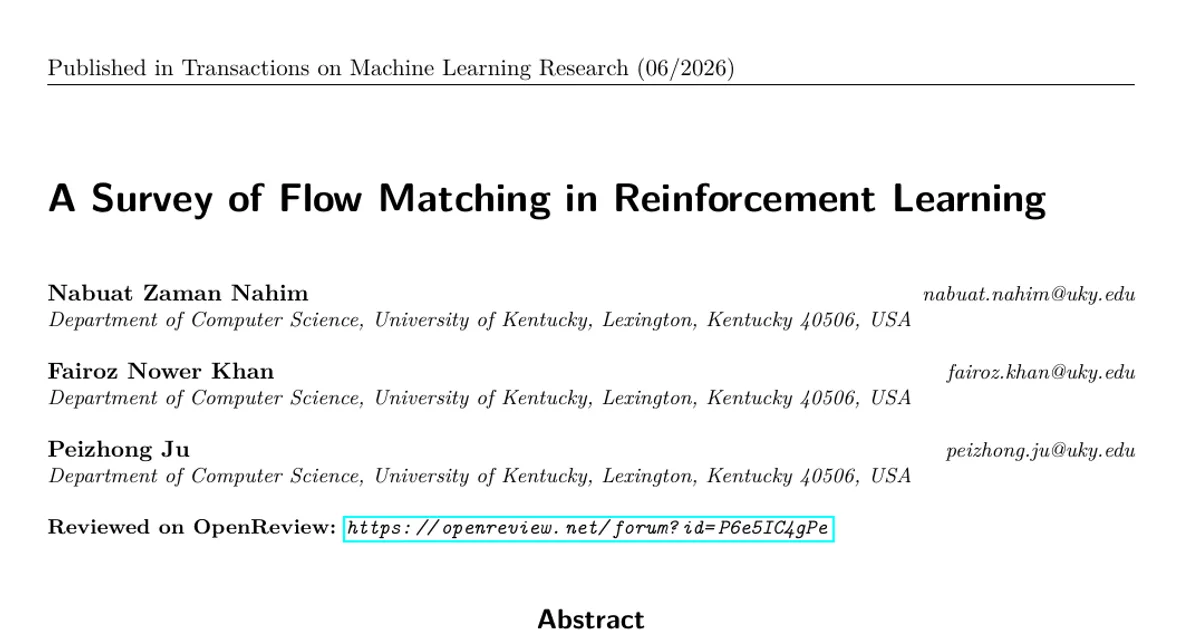

A Survey of Flow Matching in Reinforcement Learning

AI summary

Overview

Research area: Reinforcement learning and generative modeling, specifically the use of Flow Matching (FM) and Continuous Normalizing Flows as policy and model classes for sequential decision-making.

Technical level: Intermediate. The survey includes a self-contained mathematical primer (ODEs, continuity equation, conditional flow matching objectives, PPO/GRPO objectives), so beginners can follow it, but fluency with standard RL notation and diffusion models helps.

Scope (one sentence): A focused survey that organizes the fragmented literature applying deterministic flow-matching methods to reinforcement learning along two axes — what distribution is being modeled, and where the RL signal enters — while contrasting flow-based approaches with Gaussian and diffusion baselines.

What This Paper Is About

Standard RL policies are usually diagonal Gaussians, which are unimodal and therefore prone to averaging across distinct valid actions. Diffusion policies fix the expressivity problem but require tens or hundreds of iterative denoising steps per action, while flow matching replaces the stochastic denoising chain with a deterministic velocity field integrated by an ODE, allowing much cheaper sampling. The paper's goal is to synthesize the fast-growing but disjointed body of work that applies flow matching to RL into a single coherent taxonomy, and to clarify how, when, and why flow-based policies differ from Gaussian and diffusion alternatives.

Key Contributions

1. A two-axis taxonomy of flow-matching RL. The survey classifies methods first by what is modeled (action policies, value critics, transition dynamics, preferences) and second by where the RL signal enters (training-time weighted regression, direct or surrogate gradients through the ODE, group-relative GRPO-style optimization, and "other" mechanisms such as distillation, noise injection, and forward-process methods). The two axes are explicitly crossed in a summary table, which makes empty and hybrid cells of the literature visible.

2. A deterministic, optimal-transport framing of generative RL. Rather than treating flow matching as a faster sampling subroutine inside a diffusion pipeline, the survey develops it from Continuous Normalizing Flows, the continuity equation, conditional flow matching, and the linear optimal-transport / rectified-flow interpolation, and argues this warrants separate treatment from stochastic diffusion.

3. A systematic comparison against Gaussian and diffusion baselines, both conceptually (expressivity, sampling efficiency, optimization stability) and, per the paper's stated plan, empirically via benchmark tables. The explicit axes of comparison are multimodal expressiveness, number of function evaluations at inference, and stability of integrating the RL objective.

4. Coverage of emerging frontiers and open problems, including discrete and non-Euclidean action spaces, multi-agent settings, preference alignment, and stabilization techniques (KL regularization, Wasserstein anchoring, clipping, support constraints).

Main Findings

• Unimodal Gaussian policies are the core motivating limitation. Diagonal-covariance Gaussian policies factorize across action dimensions and can only represent a single mode centered at the predicted mean; when several actions are valid, the policy assigns mass to intermediate actions that may be unsafe or suboptimal. This "mode averaging" is described as especially problematic in offline RL and imitation learning, where datasets contain multiple valid strategies.

• Diffusion's inference cost is the second motivating limitation. Diffusion-based control policies typically require 5–100 neural network evaluations per action, versus a single forward pass for a conventional policy — described as impractical for high-frequency real-time control such as robotics.

• Flow matching can sample in far fewer steps. Because the linear optimal-transport interpolation yields approximately straight probability paths, accurate sampling is often possible with as few as 1–5 function evaluations. Training is also simulation-free: the conditional flow matching loss is a plain regression on sampled interpolation points and does not require solving the ODE.

• The RL signal enters at two distinct points. In offline RL it typically enters at training time through value- or energy-weighted regression, exploiting the closed-form energy-based policy proportional to the behavior policy times an exponential of the Q-function. In online RL it enters at policy-update time, through stochasticized flows that permit likelihood-based methods like PPO, pathwise gradients backpropagated through the ODE solver, or group-relative GRPO updates.

• Likelihood evaluation is the central technical obstacle for online flow RL. Because a flow policy is defined implicitly through an ODE, computing the log-likelihood or the PPO importance ratio is substantially harder than for Gaussian policies, requiring differentiation through the solver, likelihood approximations, or surrogate objectives. The survey frames much of the online flow-RL literature as designing tractable PPO- or GRPO-style updates around this obstacle.

• The literature splits into recognizable method families. Offline weighted-regression methods include QIPO/EFM, FlowQ, ARFM, ORW-CFM-W2, ADRPO, and RWFM; direct-gradient methods include FPO, PolicyFlow, and RL-FM; GRPO-style methods include Flow-GRPO, TempFlow, Smart-GRPO, SuperFlow, and F5R-TTS. Other mechanisms include FQL (flow prior plus a separate one-step actor head), SSCP and ReFORM (support constraints and efficiency), MAC-Flow (distillation), ReinFlow (noise injection), and DiffusionNFT (forward-process).

• Flows are used for more than policies. floq applies TD regression to a flow-based critic; DFC and FlowCritic also appear in the critic cell of the taxonomy. Dynamics, preference, and multi-agent joint behavior models are also surveyed.

• The taxonomy exposes gaps. GRPO-style updates have been applied almost exclusively to action and preference flows, and weighted-regression critics and dynamics flows remain rare.

• Empirical numbers are not present in the excerpt available here. The paper states that Section 10 reports representative performance numbers across benchmark tables and Section 9 reviews benchmarks, protocols, and metrics, but the truncated content ends inside the taxonomy table before those sections. No dataset sizes, benchmark scores, or environment names are reported in the text above, so none are asserted here.

Methodology in Plain English

This is a survey, not an experimental paper, so the "method" is organization and synthesis rather than data collection or model training. The authors first build up the necessary background from scratch: the standard MDP and value-function definitions, the PPO clipped surrogate objective, the GRPO group-normalized advantage, and the KL-regularized offline RL objective whose closed-form solution is the energy-based policy. They then introduce flow matching as a deterministic alternative to diffusion — starting from Continuous Normalizing Flows and the continuity equation, explaining why direct maximum-likelihood CNF training is expensive and unstable, and presenting conditional flow matching as a simulation-free regression on velocity fields, with the linear optimal-transport path as the special case used in nearly all RL applications.

With that foundation, they read the literature and sort each paper into their two-axis grid. Narrative chapters follow the learning setting (offline, then online, then beyond policy learning), while the summary table crosses "what is modeled" against "where the RL signal enters," so the same paper can be located by function and by mechanism. Comparison against Gaussian and diffusion baselines is done conceptually along expressivity, sampling efficiency, and optimization stability, with empirical tables promised in the later sections. The survey closes with application domains, evaluation practice, and open challenges.

Why This Matters

Impact on research. Flow matching is being adopted quickly but from disconnected communities — offline researchers treat it as supervised regression, online researchers treat it as a policy parameterization for actor-critic methods — and the survey's explicit claim is that no prior review gives a focused, unified analysis of flow-matching-in-RL as distinct from diffusion RL. By making the two axes explicit and marking empty cells (rare weighted-regression critics and dynamics flows, GRPO confined largely to actions and preferences), it gives new work an obvious place to start. It also positions flow matching as an efficient sampling subroutine in existing diffusion surveys versus a first-class deterministic paradigm in its own right.

Real-world applications:

• Real-time robotic control, where the 5–100 network evaluations per action required by diffusion policies are a bottleneck and 1–5 step flow sampling is more viable for high-frequency action generation.
• Offline learning from mixed-quality or multi-strategy datasets, such as imitation learning where human demonstrations contain several valid ways to complete a task and a unimodal Gaussian would average them into an unsafe intermediate.
• Fine-tuning and aligning large pretrained generative models, where GRPO-style group-relative updates remove the need for a separate critic — the survey notes this idea has been especially influential for large generative models.
• Multi-agent and structured decision-making, where flows have been used to model joint behaviors, plus discrete and non-Euclidean action spaces as an emerging frontier.

Industry relevance. Inference latency is described as a critical bottleneck for deployed generative policies, so methods that reduce per-action cost — straight flow paths, single-step completion, distillation approaches like MAC-Flow — translate directly into cheaper control loops. The pairing of expressive generative policies with familiar, stable optimizers (PPO clipping, GRPO normalization, KL regularization, Wasserstein anchoring) also matters for practitioners who need to reuse existing RL infrastructure rather than build new training stacks.

Future Directions

• Tractable likelihoods and ratios for flow policies. Making log-likelihood, entropy, and PPO importance ratios cheap and stable for ODE-defined policies is the recurring obstacle behind online flow RL; better surrogates or unbiased estimators would widen which algorithms can be applied unchanged.
• Filling the empty cells of the taxonomy. Weighted-regression critics and dynamics flows are rare, and GRPO-style updates have been used almost exclusively for action and preference flows — extending group-relative optimization to critics, dynamics, and multi-agent joint models is a natural next step.
• Discrete and non-Euclidean action spaces. The survey flags these as emerging frontiers; extending deterministic transport beyond continuous Euclidean action spaces is left largely open.
• Scalable efficiency guarantees. Closing the gap between the 1–5 function evaluations that straight flow paths permit in principle and what is actually achieved in control settings, including distillation and single-step completion, remains an active question.

Target Audience

RL researchers and graduate students who want a single entry point to flow-based policy learning; practitioners in robotics or control deciding between Gaussian, diffusion, and flow policies on expressivity and latency grounds; and generative-modeling researchers moving from image or text generation into sequential decision-making and alignment. Readers who already know diffusion RL will find the deterministic, optimal-transport framing and the two-axis taxonomy the most distinctive parts; readers new to the area can use the background sections (MDPs, PPO, GRPO, CNFs, conditional flow matching) as a self-contained primer before the method chapters.

Authors’ abstract

Flow Matching (FM) has recently emerged as a principled and efficient generative modeling framework for reinforcement learning (RL), enabling expressive, multimodal policy parameterizations via deterministic probability transport. Compared to diffusion-based policies that rely on stochastic denoising chains, FM uses sampling based on ordinary differential equations (ODEs), with learned velocity fields, which can substantially reduce inference latency and simplify the incorporation of RL objectives. As research in flow-based RL rapidly accelerates across offline continuous control, online fine-tuning, and foundation model alignment, the literature has become highly fragmented. In this survey, we provide a comprehensive taxonomy of flow-matching approaches in reinforcement learning. We organize the literature along two axes: the target distribution being modeled (e.g., action policies, value critics, transition dynamics) and the mechanism of RL signal integration (e.g., energy-weighted regression, flow-based policy gradients, and group relative policy optimization). Furthermore, we survey emerging frontiers such as discrete and non-Euclidean action spaces, provide a systematic comparative analysis against Gaussian and diffusion baselines, and outline critical open problems. Ultimately, this survey serves as a foundational roadmap for the next generation of generative reinforcement learning and alignment.
