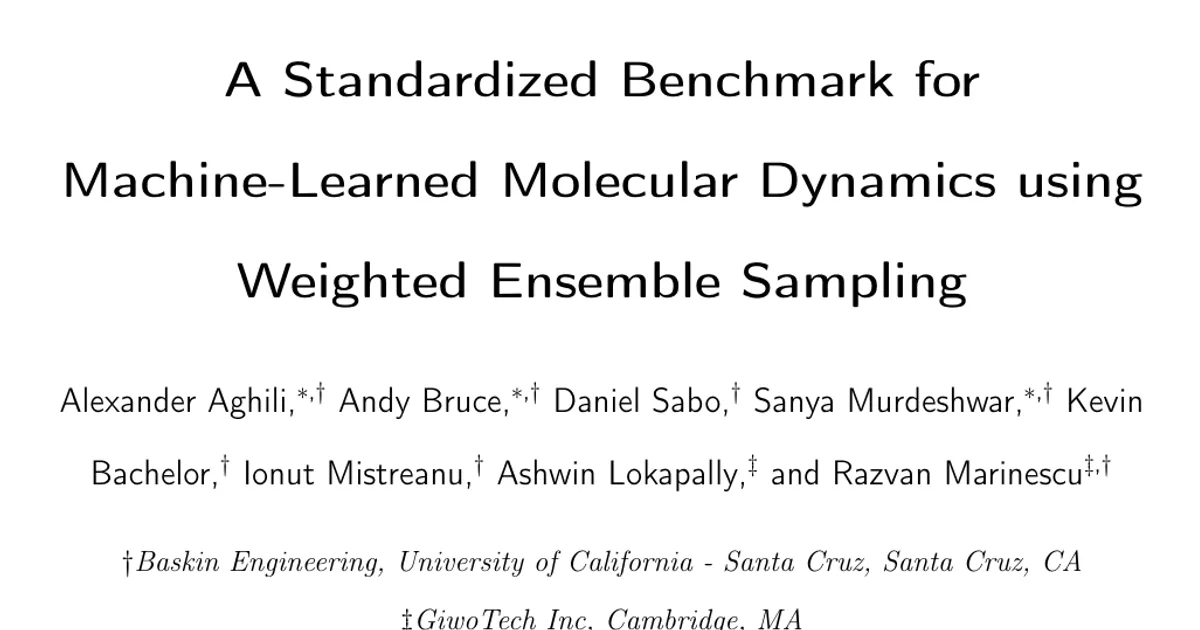

A Standardized Benchmark for Machine-Learned Molecular Dynamics using Weighted Ensemble Sampling

AI summary

Overview

• Research area: Computational biophysics and machine-learned molecular simulation, specifically standardized benchmarking of molecular dynamics (MD) methods using enhanced sampling.
• Technical level: Intermediate. Familiarity with molecular dynamics, coarse-grained models, and dimensionality reduction helps, but the paper explains its machinery (weighted ensemble sampling, TICA, Markov state models) in accessible terms.
• Scope (one sentence): The paper introduces a modular, open-source benchmark that evaluates classical and machine-learned protein MD methods against a nine-protein ground-truth dataset using weighted ensemble sampling, a pluggable propagator interface, and a suite of more than 19 metrics and visualizations.

What This Paper Is About

Molecular dynamics methods — including new machine-learned force fields and coarse-grained models — are advancing faster than the tools used to validate them, so different simulation approaches cannot be compared fairly. The authors build a reproducible benchmarking platform that combines enhanced sampling (weighted ensembles via WESTPA), a shared ground-truth trajectory dataset of nine proteins, and a fixed battery of structural and statistical metrics. The goal is to give the field a common yardstick for judging whether a simulation method reproduces real protein behavior.

Key Contributions

1. A modular benchmarking framework built around WESTPA-2.0 weighted ensemble sampling, with progress coordinates derived from TICA, and a lightweight propagator interface that supports arbitrary simulation engines — including classical force fields (OpenMM implicit and explicit solvent) and machine-learned models (CGSchNet).
2. A ground-truth dataset of nine diverse proteins, ranging from 10 to 224 residues (Chignolin, Trp-cage, BBA, a3D, Protein B, Protein G, λ-repressor, Homeodomain, WW domain), each simulated at 300K for one million MD steps per starting point (4 ns), drawn from 9919 starting points.
3. A comprehensive evaluation suite of 19 plots spanning five classes: TICA probability densities and 2D contour maps, TICA point plots, a macrostate model, length/angle/dihedral/gyration metrics, and contact maps — plus quantitative Wasserstein-1 and Kullback-Leibler divergences.
4. A demonstration of the framework's discriminating power, comparing fully trained versus under-trained CGSchNet models, and validating the methodology with implicit-solvent all-atom MD enhanced by weighted ensembles.

Main Findings

• Conformational coverage varies widely across proteins: Under implicit-solvent all-atom MD with WESTPA, Trp-cage reached 96.44% of the ground-truth 2D TICA space and Chignolin 93.05%, while a3D reached only 51.24%. Coverage is computed by discretizing the TICA space into a 100×100 grid and counting a cell as explored only if it contains both a ground-truth point and at least one model point.
• Most proteins met the 75% stopping criterion: BBA 90.89%, WW Domain 83.26%, Homeodomain 82.72%, Protein B 75.12%, Protein G 73.47%, λ-repressor 68.15%, and a3D 51.24%.
• Larger and more complex proteins plateau: The authors report qualitative evidence that λ-repressor, Protein G, and particularly a3D plateaued in exploration, attributed to complex conformational landscapes with high energy barriers separating metastable states.
• Full training generally improves agreement with ground truth: Across the reported Wasserstein-1 distances, the fully trained CGSchNet model usually produced lower values than the under-trained model for TIC 0, TIC 1, bonds, angles, and dihedrals — for example, Protein B's TIC 1 distance dropped from 1.7827 (under-trained) to 0.5817 (fully trained), and Protein G's TIC 0 distance from 0.7457 to 0.5210.
• Exceptions exist in the W1 table: The fully trained model had higher W1 than the under-trained model in several entries, including a3D for TIC 0 (0.7346 vs 0.6139) and TIC 1 (0.4382 vs 0.3653), BBA for TIC 1 (0.2781 vs 0.2095), Protein B for angles (0.2287 vs 0.1276), Protein G for TIC 1 (0.4907 vs 0.2944), angles (0.0951 vs 0.0471), and dihedrals (0.4118 vs 0.2949), and Trp-cage for dihedrals (0.1854 vs 0.1069).
• Under-trained models can destabilize proteins: Poorly trained models sometimes produced unstable trajectories where proteins exploded or imploded, which occurred when bond lengths or angles reached physically implausible values and the graph neural network created bonds exceeding a maximum threshold.
• Chignolin's full benchmark illustrates the metric suite: The TICA density plots showed significant overlap between model and ground truth with slight shifts in peak locations and amplitudes; the model scatter came from 597,210 points across 5482 WESTPA iterations; the contact-map difference showed most residue pairs placed closer together in the model, with only pair (3,1) consistently closer than ground truth; and bond-length and bond-angle distributions matched ground truth very well while radius of gyration and dihedrals showed some difference.
• Compute cost is reported: Ground-truth generation consumed approximately 2693.6 node-hours in total, and the implicit-solvent weighted ensemble runs consumed approximately 8,348 node hours. The paper states direct cost comparisons between the two are not meaningful because the ground truth uses many independent starting configurations while the weighted ensemble starts from a single configuration.
• Maximum timescales reached: λ-repressor 74.184 ns, Protein G 71.696 ns, Homeodomain 69.604 ns, a3D 51.644 ns, Protein B 46.508 ns, WW Domain 32.808 ns, BBA 29.300 ns, Trp-cage 23.924 ns, and Chignolin 21.928 ns, computed by multiplying total iterations by 4 ps per iteration.
• Training configuration details: The two CGSchNet models shared an embedding dimension of 128, 4 interaction layers, 20 RBFs, O(3) equivariance, 8 attention heads, and a cutoff of 2.0 to 12.0 Å. They differed in learning-rate schedule (plateau for fully trained vs constant for under-trained), frame selection (all frames vs 10% of frames per protein), and atoms-per-call (20000 vs 60000). Both ran for 23 WESTPA iterations on 120 segments with 1,000 CG steps per segment per iteration.
• KL divergences: The paper states that Table 8 reports KL divergences for the same distributions as the Wasserstein table, but the provided content is truncated mid-table, so the KL values are not available here.

Methodology in Plain English

The authors start by assembling a reference dataset. They take nine well-studied proteins spanning different folds and sizes, and run explicit-solvent MD in OpenMM 8.2.0 with the AMBER14 force field and TIP3P-FB water model, using 9919 starting configurations prepared at 350K. Each starting point runs one million steps at a 4-femtosecond timestep, which equals 4 nanoseconds of simulation at 300K. Individually these short trajectories barely move, but because they start from many different configurations, their endpoints collectively cover the protein's conformational space — this becomes the ground truth.

To test a candidate simulation method, the authors do not run thousands of separate short simulations. Instead they use weighted ensemble sampling through WESTPA-2.0, which runs many parallel trajectory copies, periodically resamples them based on how well they cover conformational space, and starts from just a single initial structure. Coverage is measured in TICA space — a dimensionality reduction that puts the slowest collective motions first — and binning uses the Minimal Adaptive Binning scheme, with the first two TICA components as the progress coordinate.

Because weighted ensemble resampling deliberately oversamples rare transition regions, raw frame counts no longer reflect equilibrium. The authors correct for this by assigning a statistical weight to every frame and using those weights whenever they compute densities, histograms, contact maps, radius of gyration, or bond/angle/dihedral distributions. Ground truth data, generated without WESTPA, uses raw unweighted values.

A flexible propagator layer lets the framework drive different simulation engines — OpenMM with explicit or implicit solvent, or the CGSchNet machine-learned coarse-grained model — while keeping the analysis pipeline identical. Output can be saved as DCD trajectories or compressed NumPy files.

For evaluation, the framework compares model and ground truth across TICA densities, 2D scatter plots, contact-map differences using Cα–Cα distances, radius of gyration, and local geometry (bond lengths, angles, dihedrals). It quantifies differences with Wasserstein-1 and Kullback-Leibler divergences. Optionally, it builds a Markov state model over 80 discretized TICA states to obtain a debiased stationary distribution as an alternative to weighted estimates, and constructs protein macrostates by clustering the first ten TICA components into 100 K-means clusters and assigning them to five macrostates with PCCA+.

Why This Matters

• Impact on research: method developers currently lack a shared protocol for comparing simulation approaches, so results are hard to reproduce and often incomparable. This framework fixes the observables, the ground-truth dataset, and the sampling methodology in one place, making comparisons between classical force fields and machine-learned models direct and quantitative.
• Drug discovery: the paper frames MD as a tool for understanding how drug candidates interact with target proteins, improving predictions of binding modes, stability, and affinity, and revealing hidden or transient binding sites that could serve as new therapeutic targets.
• Protein folding and dynamics research: the nine-protein dataset includes fast folders (Trp-cage), secondary-structure competition cases (BBA), designability tests (a3D), and a large scalability case (λ-repressor at 224 residues), giving researchers test systems at multiple difficulty levels.
• Machine-learned simulation development: the under-trained versus fully trained comparison shows the benchmark can detect the difference between a model that captures real dynamics and one that produces physically implausible structures — a practical quality gate for new architectures.
• Industry relevance: pharmaceutical and biotechnology groups that rely on computational simulations for lead optimization, and companies building machine-learned force fields or coarse-grained models, benefit from a common validation standard rather than bespoke internal comparisons.

Future Directions

• Extending the propagator ecosystem: the modular interface is designed for rapid development of new propagators, so additional simulation engines and specialized workflows can be benchmarked without rewriting the analysis pipeline.
• Improving coverage on hard systems: a3D explored only 51.24% of its TICA space and several large proteins plateaued, raising the question of whether more iterations, different progress coordinates, or higher-dimensional TICA projections would help overcome high free-energy barriers.
• Understanding where full training does not help: the fully trained model had higher Wasserstein-1 distances than the under-trained model in several entries (a3D TIC 0 and TIC 1, BBA TIC 1, Protein B angles, Protein G TIC 1/angles/dihedrals, Trp-cage dihedrals), leaving open which metrics and proteins remain difficult for current machine-learned models.
• Broader conclusions beyond a single architecture: the paper demonstrates the framework on implicit-solvent all-atom MD and CGSchNet; applying it more widely would test whether the observed exploration and stability behaviors generalize to other machine-learned force fields.
• Noise and termination criteria: the explosive and implosive failure modes observed in under-trained models suggest a need for standardized stability checks and automatic run termination conditions, since the benchmark graphics alone can look extreme in these cases.

Target Audience

Researchers developing or applying molecular dynamics methods, including machine-learned and coarse-grained force fields, benefit most from the dataset, metrics, and open-source framework. Computational chemists and biophysicists in drug discovery will find the validation protocol and the curated nine-protein set directly useful, while machine learning researchers working on graph neural networks for physical simulation gain a concrete, reproducible evaluation target with both qualitative plots and quantitative divergence scores.

Authors’ abstract

The rapid evolution of molecular dynamics (MD) methods, including machine-learned dynamics, has outpaced the development of standardized tools for method validation. Objective comparison between simulation approaches is often hindered by inconsistent evaluation metrics, insufficient sampling of rare conformational states, and the absence of reproducible benchmarks. To address these challenges, we introduce a modular benchmarking framework that systematically evaluates protein MD methods using enhanced sampling analysis. Our approach uses weighted ensemble (WE) sampling via The Weighted Ensemble Simulation Toolkit with Parallelization and Analysis (WESTPA), based on progress coordinates derived from Time-lagged Independent Component Analysis (TICA), enabling fast and efficient exploration of protein conformational space. The framework includes a flexible, lightweight propagator interface that supports arbitrary simulation engines, allowing both classical force fields and machine learning-based models. Additionally, the framework offers a comprehensive evaluation suite capable of computing more than 19 different metrics and visualizations across a variety of domains. We further contribute a dataset of nine diverse proteins, ranging from 10 to 224 residues, that span a variety of folding complexities and topologies. Each protein has been extensively simulated at 300K for one million MD steps per starting point (4 ns). To demonstrate the utility of our framework, we perform validation tests using classic MD simulations with implicit solvent and compare protein conformational sampling using a fully trained versus under-trained CGSchNet model. By standardizing evaluation protocols and enabling direct, reproducible comparisons across MD approaches, our open-source platform lays the groundwork for consistent, rigorous benchmarking across the molecular simulation community.
