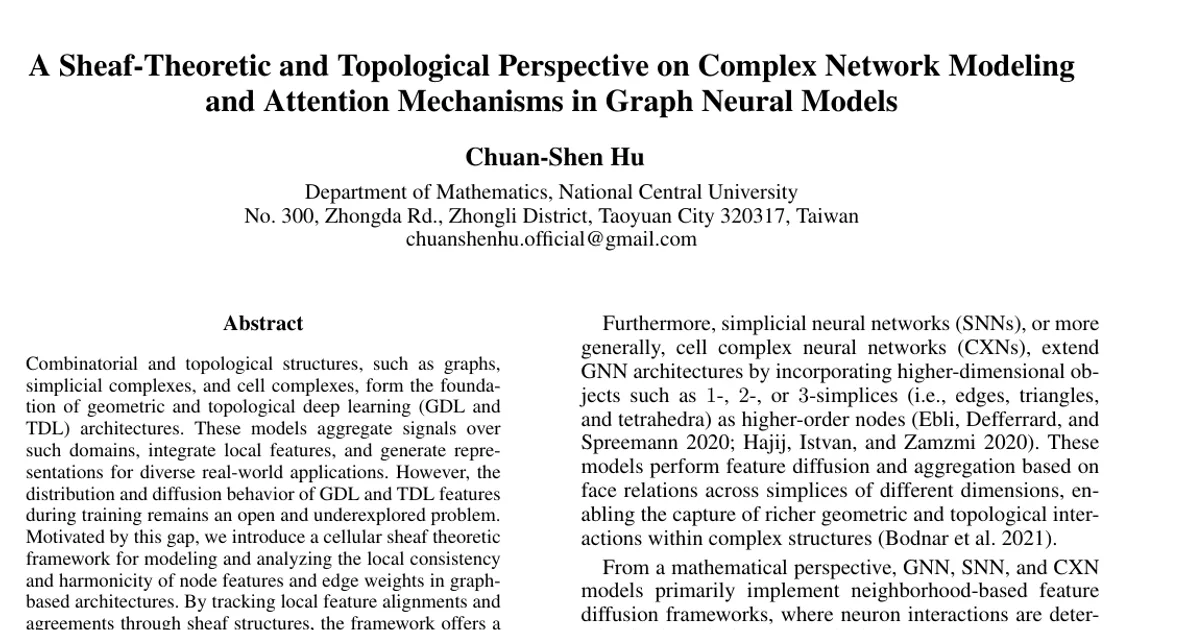

A Sheaf-Theoretic and Topological Perspective on Complex Network Modeling and Attention Mechanisms in Graph Neural Models

AI summary

Overview

Research area: Geometric and topological deep learning (GDL/TDL) — specifically the theoretical analysis of graph neural networks (GNNs), graph attention networks (GATs), simplicial neural networks (SNNs), and cell complex neural networks (CXNs) using cellular sheaf theory, Alexandrov topology, and topological data analysis (TDA).

Technical level: Advanced. The paper is written for readers comfortable with category theory, poset topology, sheaf cohomology, and spectral graph theory.

One-sentence scope: The paper recasts the attention mechanism of GATs as a cellular sheaf on the underlying graph, defines "harmonic" node and edge sets that measure local agreement of node signals, and sketches a TDA-style multiscale filtration of these harmonic structures.

What This Paper Is About

GDL and TDL models diffuse and aggregate features over graphs, simplicial complexes, and cell complexes, but how those features are distributed and how they diffuse during training remains, in the author's words, "an open and underexplored problem." The paper's goal is to build a sheaf-theoretic framework that jointly describes (i) a graph's topology and (ii) the node signals and edge weights defined on it, so that local consistency of signals along edges can be measured and tracked across scales. Rather than inserting a learned sheaf Laplacian into the message-passing step (as SheafAN does), the author instead treats the trained attention weights themselves as defining a cellular sheaf, and analyzes the structure they induce.

Key Contributions

1. Identification of GAT attention as a cellular sheaf. Theorem 1 shows that any GAT triple — Equation (6): $(G, (\mathbf{s}{v_i}){i=1}^{n}, \mathbf{W})$, where $G = V \cup E$ is a finite, undirected, simple, unweighted graph, each $\mathbf{s}{v_i} \in \mathbb{R}^d$, and $\mathbf{W} = (w{ij}) \in \mathbb{R}^{n \times n}$ is the attention weight matrix with $w_{ij} = 0$ when ${v_i, v_j} \notin E$ and $w_{ii} = 0$ — defines a cellular sheaf $\mathcal{F}: (G, \unlhd) \to \text{Vect}{\mathbb{R}}$ with $\mathcal{F}v := \mathbb{R}^d$ for every node, $\mathcal{F}e := \mathbb{R}^d$ for every edge, and restriction maps given by scalar multiplication by $w{ij}$. A generalization replaces the scalar multiplication with general linear restriction maps $\mathcal{G}{v_j, {v_i, v_j}} \in \mathbb{R}^{d \times d}$, extending the standard attention aggregation formula $\sum{v_j \in \mathcal{N}(v_i)} w_{ji} \cdot \mathbf{s}_{v_j}$.

2. Harmonicity analysis of sheaf structures on graphs. Definition 1 introduces harmonic edges (edges $e$ where $\mathbf{t}e = \mathbf{0}$, i.e., $\mathcal{F}{v,e}\mathbf{s}v = \mathcal{F}{w,e}\mathbf{s}_w$) and harmonic nodes (nodes of degree 0, or nodes incident to a harmonic edge). Theorem 2 establishes that the harmonic set $\text{Har}(\mathbf{s})$ equals all of $G$ if and only if $\mathbf{s}$ is a global section $\Gamma(G; \mathcal{F})$, and that $\text{Har}(\mathbf{s})$ is a union of connected components of $G$ if and only if it is Alexandrov-open. Corollary 1 states that on a connected graph, the harmonic set is Alexandrov-open only if it is empty or the entire graph.

3. A TDA-based multiscale framework. Theorem 3 and Corollary 2 construct a filtration of graphs from the harmonicity notion in (1) and (2), yielding a multiscale picture of how local-to-global signal alignment evolves. The paper positions persistence barcodes as the summary object that would encode scale-dependent behavior of harmonic substructures.

4. A distinct sheaf perspective from SheafAN. The author states explicitly that the proposed sheaf differs from that of SheafAN (Barbero et al. 2022a): SheafAN trains restriction linear maps and integrates the sheaf Laplacian into message passing alongside attention weights, whereas here the trained GAT attention weights themselves define the sheaf, and the analysis asks what structure those weights induce.

Main Findings

• Theorem 1 (GAT as sheaf): Any GAT triple in the form of Equation (6) yields a cellular sheaf whose stalks are $\mathbb{R}^d$ at both nodes and edges and whose restriction maps are scalar multiplications by the attention weights $w_{ij}$. The proof rests on the fact that scalar multiplication $\mathbf{x} \mapsto \lambda \mathbf{x}$ on $\mathbb{R}^d$ is $\mathbb{R}$-linear.

• Global sections characterize perfect agreement: The global section space is $\Gamma(G; \mathcal{F}) = \ker(\mathbf{C}^0_{\mathcal{F}})$, and by the combinatorial Hodge decomposition theorem applied to the cochain complex, $\ker(\mathbf{L}^0_{\mathcal{F}}) = \ker(\mathbf{C}^0_{\mathcal{F}}) = \Gamma(G; \mathcal{F})$. A vector $\mathbf{s} \in C^0(G; \mathcal{F})$ is a global section exactly when it is a 0-eigenvector of the sheaf Laplacian.

• The constant sheaf recovers the graph Laplacian: The paper notes the well-known result that the standard graph Laplacian coincides with the sheaf Laplacian of the constant sheaf $\underline{\mathbb{R}}$ (Equation 3), where $\underline{W}_v = \underline{W}_e = W$ and restriction maps are identity maps $\text{id}_W$.

• Harmonic sets are subgraphs and Alexandrov-closed: If $e \in \text{Har}_1(\mathbf{s})$ and $v$ is an endpoint of $e$, then $v \in \text{Har}_0(\mathbf{s})$; consequently $\text{Har}(\mathbf{s})$ is a subgraph of $G$ and hence Alexandrov-closed. Also, $\text{Har}(\mathbf{s}) = G$ if and only if $\text{Har}_1(\mathbf{s}) = E$.

• A topological dictionary for subgraphs: Proposition 1 states that a subset of a graph is a subgraph if and only if it is Alexandrov-closed.

• Alexandrov topology on the face relation: Star-open sets $U_p = {q \in P \mid p \leq q}$ form a basis of the Alexandrov topology. On a graph, $U_e = {e}$ for an edge, while $U_v$ consists of $v$ together with all its incident edges. Local sections (Equation 5) require $\mathcal{F}_{p \unlhd r}(\mathbf{s}p) = \mathcal{F}{q \unlhd r}(\mathbf{s}_q)$ for all $p, q \unlhd r$ within an open set.

• Illustrative examples (not empirical results): Figure 2 and Figure 3 use a graph with vertex set $V = {u, v, w, x}$ and edge set $E = {{u,w}, {v,w}, {w,x}}$, showing a global section versus a sheaf cochain that is not a global section, and several Alexandrov open sets. Figure 4 uses $V = {u,v,w,x,y}$ and $E = {{u,v},{u,w},{u,x},{u,y}}$, with weights $w_{uv} = w_{uw} = w_{ux} = w_{uy} = 1$ and $w_{vu} = w_{wu} = w_{xu} = w_{yu} = 0.25$.

• No empirical evaluation is reported. The paper contains no datasets, no benchmarks, no accuracy figures, and no trained-model experiments; all results are theorems, definitions, corollaries, and figures. The main results section frames the TDA summary (persistence barcode) and the applications to node classification, substructure detection, and community detection as insights and future directions rather than demonstrated results. Note also that the provided content is truncated; the full statements and proofs of Theorem 3 and Corollary 2 are not included in the excerpt, so their precise technical content is not reported here.

Methodology in Plain English

The approach is purely mathematical and constructive, in three moves.

First, the author views a graph as a partially ordered set: nodes and edges are objects, and an edge "sits above" each of its two endpoints under a face relation $\unlhd$. This turns the graph into a poset category, and also equips it with the Alexandrov topology, in which the minimal open neighborhood of a node is the node plus all its incident edges.

Second, a cellular sheaf is assigned to the graph: each node and each edge gets its own vector space (a "stalk") and each endpoint-to-edge pair gets a linear "restriction map" that translates a node's signal into the edge's space. The coboundary matrix $\mathbf{C}^0_{\mathcal{F}}$ measures, edge by edge, the mismatch between the two translated node signals; when an edge's mismatch is zero, the two endpoints agree. The key maneuver is choosing the restriction maps to be the trained GAT attention weights, so that attention itself becomes the sheaf. Signals that agree everywhere are global sections; the sheaf Laplacian $\mathbf{L}^0_{\mathcal{F}} = (\mathbf{C}^0_{\mathcal{F}})^\top \mathbf{C}^0_{\mathcal{F}}$ is symmetric and positive semi-definite, and its kernel is exactly the global section space.

Third, the author turns this edge-by-edge agreement test into sets (harmonic edges, harmonic nodes, and their union) and asks how those sets behave topologically and across scales. Because the harmonic set is a subgraph, it is Alexandrov-closed, and whether it is also Alexandrov-open determines whether it is a whole union of connected components. Nesting these constructions over changing thresholds gives the filtration that a TDA summary, such as a persistence barcode, would read off.

Why This Matters

Impact on research. The paper offers an analytical lens rather than a new architecture: it lets researchers interpret a trained GAT's attention weights as a geometric object with stalks, restriction maps, Laplacian, harmonic substructures, and a persistent homology summary. It also links two previously separate threads — sheaf neural networks that learn restriction maps, and classical TDA that summarizes structure across scales — by showing that the weights a GAT already learns carry sheaf structure that can be analyzed post hoc. The paper frames this as a joint characterization of GDL/TDL architectures based on both their underlying geometric-topological structure and the signals learned on it.

Real-world applications (as named in the paper):

• Social network analysis, including social networks cited in the introduction.
• Molecular graphs and scientific data with complex geometric structure.
• Citation network modeling.
• Conventional graph tasks named as beneficiaries of the framework: node classification, substructure detection, and community detection.

Industry relevance. The framework speaks directly to practitioners who need to explain or audit a deployed graph attention model: reading harmonic nodes and edges off attention weights could reveal which edges the model treats as agreement (harmonic, $\mathbf{t}_e = \mathbf{0}$) versus disagreement. Because the harmonic set is a subgraph, those diagnostics are structured and interpretable rather than scattered per-edge scores. The paper does not report any deployment, scaling, or runtime study, so industrial readiness is not established in the content provided.

Future Directions

• Computing and interpreting persistence barcodes. The paper proposes that the TDA summary of the harmonic filtration — the persistence barcode — encodes scale-dependent behavior of harmonic substructures, and explicitly lists this as a future direction rather than a completed result.
• Applying the framework to concrete tasks. Node classification, substructure detection, and community detection are named as tasks the framework provides insight for; no experiments on these tasks are reported.
• Generalizing beyond scalar attention restriction maps. The paper sketches a generalized sheaf where restriction maps $\mathcal{G}{v_j, {v_i, v_j}} \in \mathbb{R}^{d \times d}$ replace scalar multiplication by $w{ji}$, enabling a more complex attention mechanism that has not yet been analyzed.
• Extending to higher-dimensional domains. The introduction situates the work within GDL and TDL including SNNs and CXNs built on simplicial and cell complexes with 1-, 2-, and 3-simplices (edges, triangles, tetrahedra); the framework in this paper is developed for graphs, leaving the higher-order case open.

Target Audience

This paper is best suited to theoretical machine learning researchers and mathematicians working at the intersection of sheaf theory, algebraic topology, and graph representation learning — particularly those already familiar with cellular sheaves, the sheaf Laplacian, Alexandrov topology on posets, and persistent homology. It will also interest GNN practitioners with strong mathematical backgrounds who want a principled interpretation of attention weights, and graduate students in topological data analysis or geometric deep learning looking for a worked bridge between sheaf cohomology and attention mechanisms. Readers seeking implementation details, benchmark comparisons, or empirical validation will not find them here.

Authors’ abstract

Combinatorial and topological structures, such as graphs, simplicial complexes, and cell complexes, form the foundation of geometric and topological deep learning (GDL and TDL) architectures. These models aggregate signals over such domains, integrate local features, and generate representations for diverse real-world applications. However, the distribution and diffusion behavior of GDL and TDL features during training remains an open and underexplored problem. Motivated by this gap, we introduce a cellular sheaf theoretic framework for modeling and analyzing the local consistency and harmonicity of node features and edge weights in graph-based architectures. By tracking local feature alignments and agreements through sheaf structures, the framework offers a topological perspective on feature diffusion and aggregation. Furthermore, a multiscale extension inspired by topological data analysis (TDA) is proposed to capture hierarchical feature interactions in graph models. This approach enables a joint characterization of GDL and TDL architectures based on their underlying geometric and topological structures and the learned signals defined on them, providing insights for future studies on conventional tasks such as node classification, substructure detection, and community detection.
