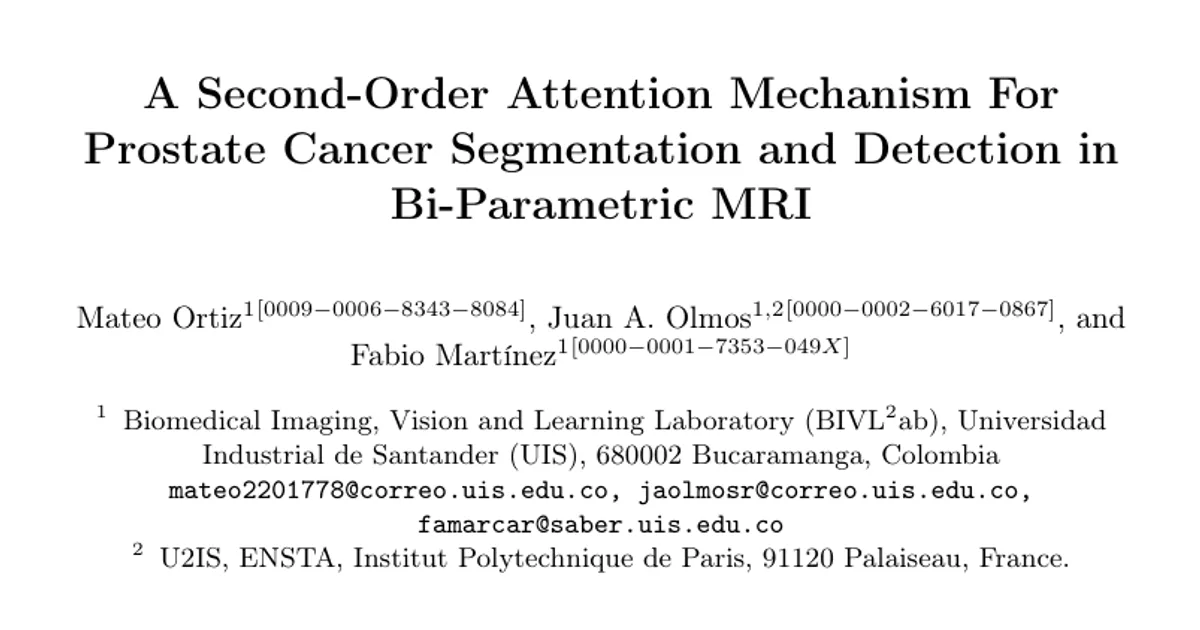

A Second-Order Attention Mechanism For Prostate Cancer Segmentation and Detection in Bi-Parametric MRI

AI summary

Overview

• Research area: Medical computer vision — deep learning for prostate cancer lesion detection and segmentation in bi-parametric MRI (bp-MRI).
• Technical level: Advanced (requires familiarity with attention modules, U-Net/nnU-Net architectures, symmetric positive definite matrices, and Riemannian manifold learning).
• Scope: The paper introduces a second-order geometric attention (SOGA) module for encoder–decoder skip connections, learns it on the Riemannian manifold of SPD descriptors, and evaluates it on the PI-CAI and PROSTATE158 cohorts.

What This Paper Is About

Detecting clinically significant prostate cancer (csPCa) from biparametric MRI is noninvasive but depends heavily on subjective expert reading, and lesions vary widely across prostate zones. Existing deep learning detectors rely on large annotated datasets and often generalize poorly to new hospitals. The authors build an attention mechanism that summarizes correlations between features as second-order descriptors and processes them with geometry-aware layers, then plug it into the skip connections of U-Net and nnU-Net to improve detection, segmentation, and generalization.

Key Contributions

1. A second-order geometric attention (SOGA) module that compresses encoder and decoder feature banks into compact symmetric positive definite (SPD) matrices of size C_ℓ × C_ℓ via SPD pooling (X₀ = (1/N)RRᵗ), then processes them with Riemannian layers (BiMap, ReEig, LogEig) before projecting back to Euclidean space to produce attention coefficients α_ℓ.
2. Integration into two backbone families: a standard 3D U-Net (five levels, channels [32, 64, 128, 256, 512]) and the self-configuring nnU-Net framework, with controlled ablations against a first-order attention baseline (U-Net FOA, global average pooling) and a second-order-but-non-geometric baseline (U-Net SOA, SPD pooling without learnable BiRE blocks).
3. Two-cohort validation protocol: training and 5-fold cross-validation on the public PI-CAI cohort, with generalization tested on the hidden PI-CAI tuning cohort (100 studies) and on the independent external PROSTATE158 dataset.
4. A lesion-size stratified analysis on PROSTATE158, splitting lesions into small (<931 mm³), medium (931–2337 mm³), and large (>2337 mm³) groups using the 33rd and 66th percentiles as thresholds.

Main Findings

• Public PI-CAI, U-Net backbones: Adding SOGA to U-Net raised AUC-ROC from 0.76 ± 0.03 to 0.82 ± 0.03 (+7.9%), Sen@1FP from 0.61 ± 0.14 to 0.74 ± 0.06 (+21.3%), and DSC by 0.08 (+23.5%), with reduced DSC standard deviation. The U-Net SOA variant, however, recorded the highest values in this table for AUC-ROC (0.85 ± 0.02) and AP (0.38 ± 0.05), while its DSC was the lowest (0.22 ± 0.26).
• Public PI-CAI, nnU-Net framework: nnU-Net improved all U-Net-based methods. Within nnU-Net, SOGA reached an AP of 0.37 ± 0.05 (+5.7% over the 0.33 ± 0.09 baseline) and a DSC of 0.52 ± 0.02 (+23.8% over 0.47 ± 0.03). UNETR (AP 0.35 ± 0.08) and Swin UNETR (AP 0.34 ± 0.07) performed below SOGA overall.
• Hidden PI-CAI tuning cohort (generalization): AUC-ROC was similar across methods (baseline 0.78, FOA 0.76, SOGA 0.77, Swin UNETR 0.78), but SOGA lifted AP from 0.37 to 0.46 (+24.3%). Swin UNETR was the top method here with AP 0.54, an improvement of 46% over baseline.
• External PROSTATE158 (generalization): SOGA was the top performer with AUC-ROC 0.75, AP 0.37, Sen@1FP 0.52, and DSC 0.31, versus baseline nnU-Net at 0.62, 0.15, 0.23, and 0.12 respectively — improvements of 0.13 (+21.0%) AUC-ROC, 0.22 (+146.6%) AP, 0.29 (+126.1%) Sen@1FP, and 0.19 (+158.3%) DSC.
• Lesion size matters: On PROSTATE158, SOGA led all methods for small lesions (DSC 0.22, AP 0.38, Sen@1FP 0.50) and medium lesions (DSC 0.33, AP 0.44, Sen@1FP 0.50). For large lesions it kept the best DSC (0.40) but was surpassed in AP (0.47 vs 0.43) and Sen@1FP (0.50 vs 0.57) by Swin UNETR.
• Reported computational cost: The authors note a remarked training cost for SOGA due to Riemannian operations, including eigenvalue decomposition and geometry-aware bilinear mapping. No runtime or memory figures are reported.
• Qualitative behavior: In Figure 3, a large lesion was delineated only by Swin UNETR, SOA, and SOGA (SOGA ahead by 3 DSC points); a medium lesion was missed by all models in one case; a small peripheral-zone lesion was weakly detected by nnU-Net and SOA, missed by FOA, and identified by UNETR, Swin UNETR, and SOGA.
• Internal inconsistency in the reported numbers: The discussion text states generalization results of AUC-ROC 0.83, Sen@1FP 0.74, and DSC 0.42, which match the U-Net SOGA row of Table 1 rather than the nnU-Net SOGA row (0.83, 0.82, 0.52) or the PROSTATE158 row (0.75, 0.52, 0.31).

Methodology in Plain English

The backbone is a 3D U-Net that processes T2-weighted, diffusion-weighted, and apparent diffusion coefficient volumes. Normally, U-Net passes encoder features directly to the decoder through skip connections. Here, the authors insert attention at those connections.

For each level, they take the encoder feature bank and the decoder feature bank and compress each into a compact matrix that records how strongly every pair of feature channels co-varies — a second-order summary, mathematically constrained to be symmetric positive definite. Because such matrices live on a curved Riemannian space rather than flat Euclidean space, the authors process them with a small Riemannian network: a bilinear mapping that shrinks dimensions (BiMap), a rectification step that keeps eigenvalues above a small threshold ϵ = 10⁻⁴ (ReEig), and a logarithm map that returns the representation to Euclidean space (LogEig). The upper triangular parts of the resulting encoder and decoder descriptors are concatenated, passed through two fully connected layers with a reduction ratio r = 4, and turned into attention coefficients that rescale the encoder features before they reach the decoder.

Training used 200 epochs, a sum of Dice loss and binary cross-entropy, RMSprop with a learning rate of 10⁻⁴ for non-Riemannian parameters, and gradient descent on the Stiefel manifold with a learning rate of 10⁻¹ for BiMap weights. Scans were resampled to 0.5 mm × 0.5 mm × 3.0 mm, center-cropped to 24 axial slices of 384 × 384 pixels, and a volumetric ROI of 20 × 180 × 180 voxels was extracted around the prostate centroid, with z-score normalization per input sequence. Performance was measured with AUC-ROC, Average Precision at IoU of at least 0.1, Sensitivity at 1 False Positive per patient (Sen@1FP), and the Dice Similarity Coefficient (DSC), using PICAI's recommended post-processing and 5-fold cross-validation with the organizers' predefined splits; ensembles averaged softmax outputs across folds.

Why This Matters

• Research impact: The paper shows that second-order, geometry-aware statistics can outperform first-order attention and compete with transformer-based models such as UNETR and Swin UNETR, particularly on external data. It also provides a structured ablation separating the effect of second-order pooling (SOA) from the effect of the Riemannian processing (SOGA).
• Real-world applications:
  • Computer-aided detection to assist radiologists reading bp-MRI, where interpretation is currently subjective and confused by benign prostatic hyperplasia.
  • Biopsy triage: PSA testing has low specificity (around 36%), causing false positives and unnecessary procedures; better imaging-based detection can refine who gets biopsied.
  • Large-scale screening programs, since bp-MRI avoids the contrast agents and long acquisition times of multiparametric MRI.
  • Early detection of small lesions, where the reported advantage is largest (SOGA AP 0.38 vs baseline 0.04 on small lesions).
• Industry relevance: Multicenter generalization is the key practical barrier for deploying prostate MRI AI. Prostate cancer is the second most common cancer and the fifth leading cause of cancer-related death among men, with over 1.5 million new cases and over 390,000 deaths reported globally in 2022, so tools that hold up across sites have clear commercial and clinical value. The noted training-time computational cost of Riemannian operations is a practical constraint for vendors.

Future Directions

1. Integrating SOGA into other detection frameworks and systematically studying how much of the gain comes from the geometric processing versus the second-order pooling itself.
2. Testing under data-constrained conditions, since the authors identify reliance on extensively annotated datasets as a core limitation of existing csPCa methods.
3. Expanding the number of evaluation datasets, especially beyond the two cohorts (PI-CAI and PROSTATE158) used here.
4. Reducing the training cost of the Riemannian manifold operations, which the authors flag as a remarked computational burden relative to baseline attention.

Target Audience

Researchers and graduate students working on medical image analysis, geometric deep learning, or attention mechanisms in segmentation networks; engineers building prostate MRI computer-aided diagnosis systems; and clinical informatics teams evaluating whether manifold-based attention is worth the added training cost for multi-center deployment. Readers should already be comfortable with U-Net architectures, SPD matrix fundamentals, and standard detection metrics (AUC-ROC, AP, DSC).

Authors’ abstract

The detection of clinically significant prostate cancer lesions (csPCa) from biparametric magnetic resonance imaging (bp-MRI) has emerged as a noninvasive imaging technique for improving accurate diagnosis. Nevertheless, the analysis of such images remains highly dependent on the subjective expert interpretation. Deep learning approaches have been proposed for csPCa lesions detection and segmentation, but they remain limited due to their reliance on extensively annotated datasets. Moreover, the high lesion variability across prostate zones poses additional challenges, even for expert radiologists. This work introduces a second-order geometric attention (SOGA) mechanism that guides a dedicated segmentation network, through skip connections, to detect csPCa lesions. The proposed attention is modeled on the Riemannian manifold, learning from symmetric positive definitive (SPD) representations. The proposed mechanism was integrated into standard U-Net and nnU-Net backbones, and was validated on the publicly available PI-CAI dataset, achieving an Average Precision (AP) of 0.37 and an Area Under the ROC Curve (AUC-ROC) of 0.83, outperforming baseline networks and attention-based methods. Furthermore, the approach was evaluated on the Prostate158 dataset as an independent test cohort, achieving an AP of 0.37 and an AUC-ROC of 0.75, confirming robust generalization and suggesting discriminative learned representations.
