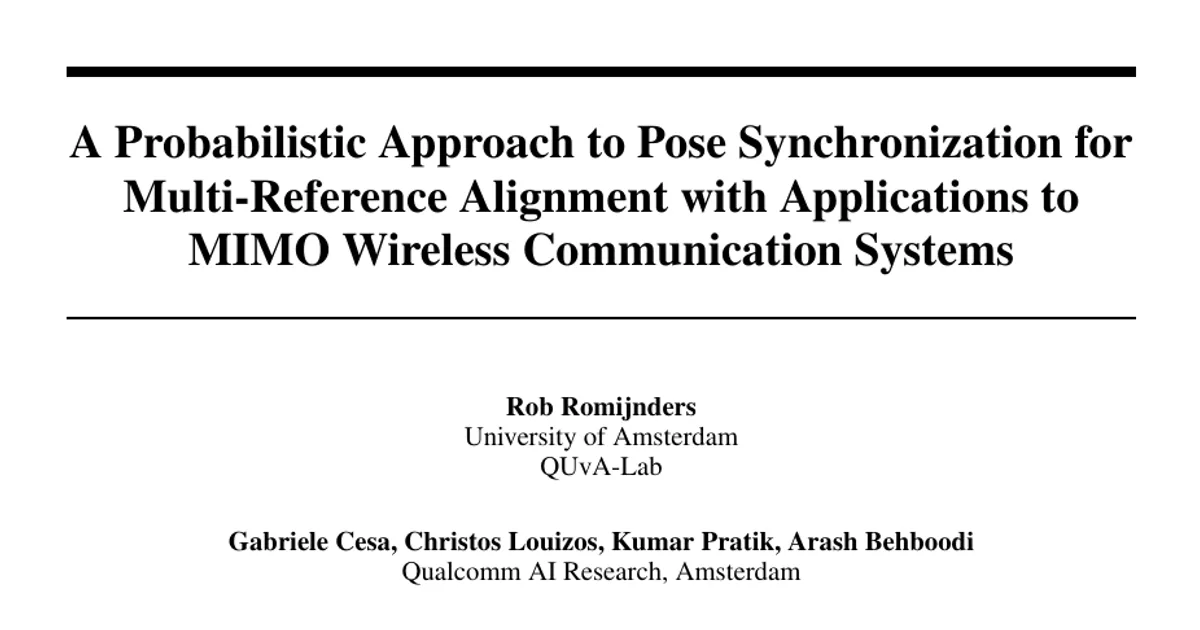

A Probabilistic Approach to Pose Synchronization for Multi-Reference Alignment with Applications to MIMO Wireless Communication Systems

AI summary

Overview

Research area: Machine learning and statistical signal processing, specifically multi-reference alignment (MRA), group-theoretic pose synchronization, structured probabilistic graphical models, and their application to MIMO channel estimation in narrow-band 5G NR wireless systems.

Technical level: Advanced. The paper relies on matrix-normal distributions, orthogonal group theory, Procrustes projections, and variational/expectation-maximization style derivations.

Scope: The paper proposes a relative-pose probabilistic reformulation of multi-reference alignment, derives two decentralization-friendly algorithms (a direct triplet estimator and an iterative refinement scheme), and evaluates them on synthetic 5G-like MIMO channel reconstruction problems against pairwise alignment baselines.

What This Paper Is About

Multi-reference alignment is the problem of reconstructing an underlying signal from many noisy observations, where each observation has been transformed by an unknown rotation, translation, or other group action. Because only the relative arrangement of those unknown transformations is identifiable, traditional methods that estimate absolute poses suffer from global symmetry and can converge poorly or get trapped in local minima. The paper reframes MRA entirely in terms of relative poses, which are uniquely defined, and applies the resulting machinery to estimating MIMO channels in narrow-band 5G NR, where each physical resource block group (PRG) has its own unknown precoding rotation.

Key Contributions

1. The first MIMO decoding framework that explicitly incorporates relative rotations, addressing what the authors describe as a fundamental limitation of existing channel estimation methods that cannot exploit correlation between neighboring PRG blocks.
2. A direct estimator and an iterative refinement algorithm for joint denoising and synchronization, both derived from a principled structured probabilistic graphical model rather than as ad hoc heuristics.
3. Use of cycle consistency as a modeling constraint: the authors prove (Appendix E) that cycle-consistent relative poses are in one-to-one correspondence with equivalence classes of absolute pose assignments, which is what makes the relative-pose formulation valid and what guarantees that local synchronization over a triplet implies global synchronization.
4. Theoretical insights and empirical evidence for 5G-like MIMO scenarios, showing lower reconstruction error than pairwise alignment and than denoising without synchronization across the reported experimental settings.

Main Findings

• Relative poses avoid the global symmetry problem: because absolute poses and the signal are only defined up to a joint transformation Q ∈ O(d), estimating them requires artificial symmetry breaking; relative poses R_ij = P_i^{-1} P_j are uniquely defined and sidestep this entirely.
• Triplets are the minimal useful subgraph: a triplet of nodes is the smallest subgraph in which local synchronization implies global synchronization over the whole grid, and it also uses local spatial correlation most economically, since Rayleigh scattering means only nearby PRG blocks are correlated.
• Decentralization avoids cubic scaling: the centralized formulation scales cubically in the number of measurements and therefore cubically in the number of nodes, which is impractical on wide time-frequency lattices of up to hundreds of blocks per time slot under telecom modem resource and power constraints. The triplet decomposition retains O(D³) complexity.
• The direct triplet iteration converges quickly: each iteration step is non-decreasing in the objective because the update is a closed-form orthogonal Procrustes projection, and the authors report it usually converges in three to five steps. The refinement algorithm stabilizes after three or four iterations.
• Iterative refinement achieves the lowest reconstruction error: in the main experiment (Figure 1), beyond 0 dB SNR all three MRA methods improve, synchronization achieves lower MSE than pairwise alignment, and iterative refinement achieves the lowest MSE across experimental settings. The authors also report that the "synchronization base" approach by itself achieves lower reconstruction error than prior art for reasonable SNR values.
• Most gain from refinement occurs early: Figure 2 shows the largest improvement over the direct approach is achieved in two to five refinement steps.
• Robust to correlation length scale: Figure 3 reports numerical results across varying length scales (which set the correlation properties), and the authors state that their synchronization improves channel reconstruction across these settings.

Methodology in Plain English

The paper models the MIMO channel estimation problem as follows. The receiver observes noisy versions of the effective channel, meaning the true channel already multiplied by an unknown precoding rotation that is shared across neighboring resource elements within a PRG. The true channels across PRG blocks are assumed to be correlated through a rotation-invariant matrix-normal prior, with correlation decaying with distance (a squared-exponential decay modeling Rayleigh fading).

The central move is to stop treating each block's absolute precoding rotation as the unknown. Instead, the model works with the rotations between pairs of blocks. These relative rotations are well defined even though the absolute ones are not. To make a set of relative rotations a valid configuration, the model enforces cycle consistency: walking around any cycle in the relative-pose graph must return the identity transformation.

With that model, the authors derive two procedures:

1. Direct estimation. For a small cluster of blocks (derived concretely for a triplet), they alternate between a closed-form projection that estimates the relative rotations from noisy observations and a linear solve that estimates the denoised channels given those rotations. The rotation update reduces to Frobenius inner-product maximization, i.e. an orthogonal Procrustes problem solved in closed form.
2. Iterative refinement. Loosely inspired by expectation-maximization, this version replaces the noisy observations in the rotation-estimation step with the current denoised channel estimate, then re-estimates the channel using the updated rotations. The rotation step is only a point estimate (a delta distribution over rotations), and the authors frame it as tightening a variational lower bound on log p(B).

The channel estimation step is linear and costs O(D³). Both algorithms are decentralized: the grid is processed as overlapping triplets rather than as one large coupled system. Evaluation proceeds by sampling synthetic data from the ground-truth graphical model, running each method to reconstruct the signal, and comparing reconstruction error.

Key experimental setup from the paper: 6 × 6 = 36 grids of PRG blocks, D = 3 × 4 = 12 measurements in each block (each block is 3 by 4 measurement cells), a spatial correlation length scale of five measurements with squared-exponential decay, error bars indicating standard error among 25 random seeds. Two theoretical reference curves, labeled "single channel" (no synchronization) and "ideal line" (perfect synchronization, explained in Appendix F), are included in the plots.

Why This Matters

The paper's significance is that it removes a structural obstacle (global pose ambiguity) that degrades optimization in multi-reference alignment, and it does so in a way that also cuts computation from cubic to local per-triplet work — an important property for resource-constrained receivers. Rather than estimating absolute poses and then synchronizing a signal, the method "directly synchronizes" the underlying signal, marginalizing over relative poses as nuisance variables. The authors also claim to be the first to combine group-theoretic MRA approaches with 5G decoding using statistical methods.

Real-world applications described or implied by the paper:

• Narrow-band 5G NR MIMO channel estimation: exploiting correlation between neighboring PRG blocks that current receivers ignore, potentially improving channel estimates from limited pilot (DMRS) observations.
• Cryo-electron microscopy (Cryo-EM) and cryo-electron tomography (Cryo-ET): reconstructing molecular structure from many noisy, randomly oriented particle images.
• Computer vision geometry: Structure-from-Motion (SfM) and Simultaneous Localization and Mapping (SLAM), where relative pose estimation is central.
• General synchronization problems: abstract settings where group-valued variables must be made consistent across a graph, and related stochastic block model research.

Industry relevance: the work is affiliated with Qualcomm AI Research and the University of Amsterdam, funded in part by Qualcomm Technologies Inc. and the Dutch Top consortia for Knowledge and Innovation (TKIs) from the Netherlands Ministry of Economic Affairs and Climate Policy. The motivation is explicitly a modem-side concern, namely that scaling a centralized estimator across hundreds of PRG blocks per time slot is impractical under the resource and power constraints of modern 5G telecom modems.

Future Directions

• More sophisticated denoising strategies: the authors state that their results open new directions for denoising methods that can exploit the global synchronization obtained through triplet-based cycle consistency.
• Extending beyond triplets and beyond the abstractions: the derivation is carried out concretely for a triplet (and Appendix B generalizes the channel-estimation step to J blocks, illustrated with J = 4), leaving open how best to scale or reweight larger subgraphs without reintroducing the cubic cost or the harder synchronization among more noisy nodes.
• Better posterior approximations: the algorithms use a point estimate (delta distribution) for the relative poses; the paper frames this as a loose variational analogy to EM, leaving room for richer posterior approximations.
• Validation gap: the reported evaluation is on synthetic data sampled from the ground-truth graphical model. Performance on real over-the-air 5G measurements, and comparison against the deep-learning approach of prior work on narrow-band 5G NR MRA, are not reported in the content provided.

Target Audience

This paper suits readers with a strong quantitative background in signal processing, statistical inference, or machine learning theory — particularly researchers working on group synchronization, multi-reference alignment, cryo-EM reconstruction, and probabilistic graphical models. It is also relevant to wireless communications engineers and modem architects interested in MIMO channel estimation for 5G NR and in computationally decentralized estimators. Readers without comfort in matrix-normal distributions, orthogonal groups, and Procrustes-style derivations will find the method sections demanding.

Authors’ abstract

From molecular imaging to wireless communications, the ability to align and reconstruct signals from multiple misaligned observations is crucial for system performance. We study the problem of multi-reference alignment (MRA), which arises in many real-world problems, such as cryo-EM, computer vision, and, in particular, wireless communication systems. Using a probabilistic approach to model MRA, we find a new algorithm that uses relative poses as nuisance variables to marginalize out -- thereby removing the global symmetries of the problem and allowing for more direct solutions and improved convergence. The decentralization of this approach enables significant computational savings by avoiding the cubic scaling of centralized methods through cycle consistency. Both proposed algorithms achieve lower reconstruction error across experimental settings.
