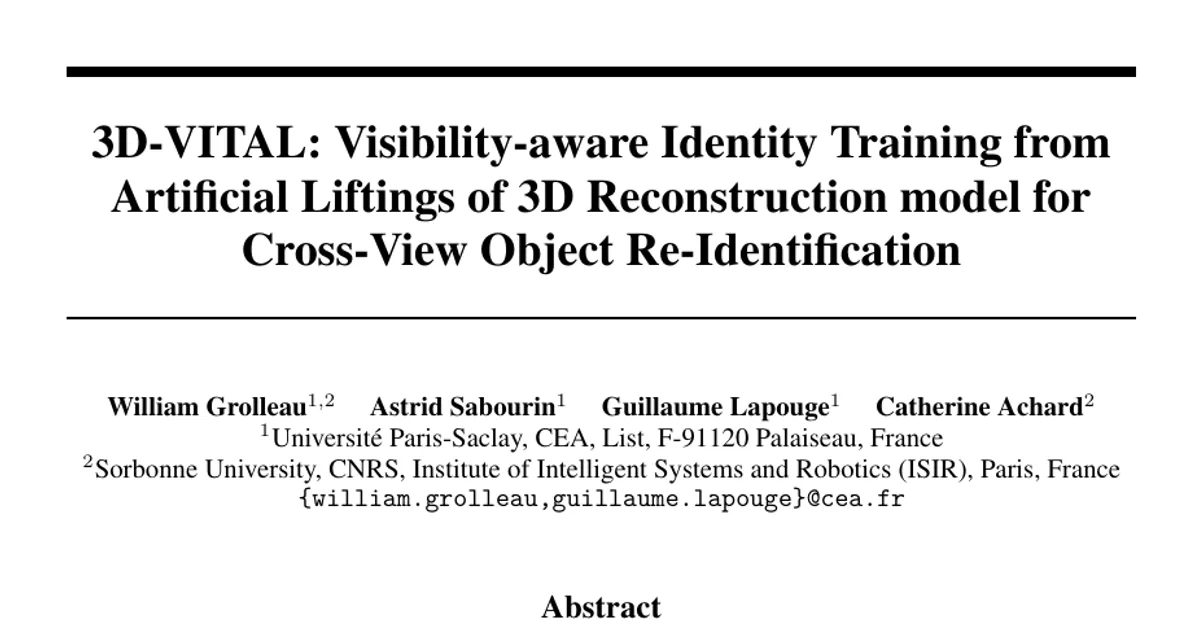

3D-VITAL: Visibility-aware Identity Training from Artificial Liftings of 3D Reconstruction model for Cross-View Object Re-Identification

AI summary

Overview

Research area: Computer Vision, specifically Cross-View Object Re-Identification (ReID), with a focus on Single-View Aerial-Ground Re-Identification (SV AG-ReID) and the use of synthetic training data produced by single-view 3D mesh reconstruction.

Technical level: Advanced. The paper assumes familiarity with vision transformers, triplet losses, attention supervision, and 3D mesh rendering pipelines.

Scope (one sentence): The paper shows that a per-pixel visibility map, obtained as a byproduct of rendering reconstructed 3D meshes, can be turned into a training signal that makes synthetic novel views usable for cross-view ReID, and validates this on the AG-ReID, AG-ReID.v2, and MOO benchmarks.

What This Paper Is About

Re-identification systems must match the same object across cameras with very different viewpoints, and the gap between top-down aerial views and frontal ground views causes severe geometric distortion, self-occlusions, and pose variation. Annotating data from both viewpoints is expensive, so the Single-View AG-ReID protocol trains on only one viewpoint and requires generalization to an unseen viewpoint at inference. The paper's goal is to make the synthetic novel views generated by lifting a single image into a textured 3D mesh reliably useful for training, rather than letting geometrically broken meshes or hallucinated textures corrupt the learned identity representation.

Key Contributions

1. Identification of a new reliability signal. The authors observe that single-view 3D mesh reconstruction models expose a per-pixel partition between regions actually observed in the source image and regions the model had to hallucinate, available as a deterministic byproduct of rendering. Prior generative paradigms used in ReID, such as GANs and diffusion models, do not naturally expose such a geometric signal.

2. Cross-View Consistency Filtering (CVCF). A filtering stage that scores each source reconstruction using frozen DINOv2 patch-feature similarity between the source image and its novel views, restricted to visible patches only, and keeps the synthetic views of the 50% of source images with the highest score while every real image remains in training.

3. Visibility-Aware Attention Supervision (VAAS). A training stage that uses the visibility map in two ways: a visibility-aware identity loss (L_vis), a cross-entropy between the identity token's final-layer patch attention and the normalized visibility map, and a visibility-weighted triplet loss (L_tri^w) where each anchor is weighted by the fraction of visible pixels in its rendered view.

4. State-of-the-art results and ablations. The method sets a new state of the art on AG-ReID, AG-ReID.v2, and MOO, with component ablations that isolate the contribution of CVCF, VAAS_vis, and VAAS_tri.

Main Findings

• Best results on all four AG-ReID configurations. On AG-ReID with Aerial training in the Ground-to-Aerial direction (G→A), 3D-VITAL reaches 53.2 mAP and 62.6 R-1, which is +3.7 mAP and +4.9 R-1 percentage points over 3D-LENS and far ahead of the best non-3D-lifting baseline, DCAC, at 35.2 / 42.7.

• Large gains on MOO. On MOO with Side training in the Top-to-Side direction (T→S), 3D-VITAL reaches 47.8 mAP and 99.6 R-1, a +15.7 mAP percentage point jump over 3D-LENS.

• Improvements on AG-ReID.v2 are strongest under CCTV training. For Aerial-to-CCTV (A→C) the method reaches 46.3 / 54.5 versus 3D-LENS at 41.4 / 50.8 mAP / R-1.

• Weaker gains under Wearable training. Gains are smaller there because the higher image resolution (222 × 96, versus 187 × 84 for Aerial and 157 × 59 for CCTV) makes most reconstructions usable, so the fixed 50% filtering ratio becomes overly aggressive. Even so, 3D-VITAL still outperforms every prior method other than 3D-LENS in those columns.

• Each component contributes independently (AG-ReID Aerial A→G). VAAS_vis alone yields +3.2 mAP pp, VAAS_tri +0.9 pp, and CVCF the largest standalone gain at +5.1 pp. Combined, the three components reach +6.5 mAP pp under Aerial training and +6.3 under Ground training.

• Wider viewpoint augmentation becomes beneficial rather than harmful. Without 3D-VITAL, performance peaks at the moderate ±30° azimuth range and drops by 1.3 mAP pp at ±60°; with 3D-VITAL, accuracy rises with the range, reaching 52.1 mAP on Aerial A→G at ±60°, a gain of +2.3 mAP pp over the same setting at ±30°.

• Visibility-restricted filtering beats image-level filters. CLIP-based filters (image-to-image and image-to-text) underperform; DINOv2 variants improve but let hallucinated regions corrupt the score; the ReID-based filter Diff-Person (ReID-CTF) is the strongest non-visibility baseline. Without VAAS our filter leads only modestly (52.0 vs 51.2 mAP for ReID-CTF on Aerial G→A), but with VAAS the gap widens to between 1.2 and 1.5 mAP consistently across all eight settings.

• The visibility map itself is the source of the gain. Uniform "One" maps and a Foreground map reach roughly the same accuracy as each other and fall +1.5 to +1.7 mAP pp below the visibility map on Aerial training, showing that VAAS does not simply act as subject masking. Directing attention to hallucinated regions falls below the model trained without attention supervision (Index 4 of Table 3) in every column.

• Hallucinated content should stay in the input. Hard-masking hallucinated pixels in rendered views lowers accuracy in every column, because those regions still provide object context such as silhouette and pose.

• Low-visibility views are valuable. Retaining only novel views below a hallucination-ratio threshold hurts: accuracy increases as more hallucinated views are retained, and keeping all views is best in every column, which is why CVCF targets geometrically incorrect meshes rather than low-visibility views.

• Calibration noise tolerance. A ±5° perturbation of the fitted source pose leaves accuracy almost unchanged, while larger perturbations degrade it progressively. For scale, the fitted rotations average 21.6° / 27.0° / 0.5° (azimuth / elevation / roll).

Methodology in Plain English

The pipeline starts from a single real training image. A segmenter extracts the foreground, and a 3D reconstruction model lifts that image into a textured mesh. A virtual camera is calibrated by maximizing the IoU between the foreground mask and the mesh silhouette, so that later viewpoint perturbations are defined relative to the source viewpoint. Novel views are then rendered from that mesh, composited onto an inpainted background, and aligned in style with the source image.

The key addition is a visibility map. The authors build a copy of the mesh with a binary label per triangle, using ray casting from the source camera: the first triangle hit by each pixel ray is marked visible, everything else is marked hallucinated. Rendering this labeled mesh under each novel camera pose produces a binary per-pixel map, which is downsampled by average pooling into a patch-grid map whose entries give the fraction of visible pixels per patch. This map is never fed to the network as an input.

That map is used in two places. In CVCF, frozen DINOv2 patch features match each patch of a style-aligned novel view to its most similar source-image patch, producing cosine similarities; these are averaged over visible patches only and then averaged across the rendered novel views, giving one consistency score per source reconstruction. Synthetic views from the top 50% of source images are kept, and all real images stay. The score is one-directional from novel view to source, because a bidirectional match would fail when novel viewpoints occlude source patches.

In VAAS, the surviving samples are used with two supervision signals. At the final transformer layer, the identity token's attention weights over the P image patches are extracted, averaged across heads, and re-normalized; the normalized visibility map serves as the target distribution in a cross-entropy attention loss. Separately, the mean visibility of a rendered view becomes a per-sample scalar that scales that anchor's contribution to the triplet loss, so heavily hallucinated views influence optimization proportionally less. For real source images the weight is set to 1, recovering the standard triplet term. The total objective keeps the baseline identity and domain losses (λ_id = 1, λ_dom = 0.5) and adds the weighted triplet and visibility attention terms with λ_tri = λ_vis = 1.

Training details: a ViT backbone built on 3D-LENS, images resized to 256 × 128, augmented with random cropping, horizontal flipping, and random erasing; 120 epochs of SGD with momentum 0.9, weight decay 10⁻⁴, cosine scheduling, and a learning rate of 8 × 10⁻⁴ on AG-ReID and AG-ReID.v2 and 8 × 10⁻³ on MOO. Spatial augmentations are applied identically to the visibility map to preserve pixel correspondence. Code and data are stated to be released at https://github.com/TurtleSmoke/3D-VITAL.

Why This Matters

Impact on research. The paper reframes synthetic training data for ReID as a per-pixel reliability problem rather than a whole-sample keep-or-discard decision. It suggests that 3D reconstruction pipelines carry free geometric metadata that generative 2D pipelines do not, and that this metadata can be exploited directly as supervision. The results also show a synergy: filters that discard partially hallucinated samples throw away exactly the data that visibility-aware attention is designed to learn from.

Real-world applications:

• UAV-based search and rescue and aerial monitoring, where a person or object seen from a drone must be matched against ground-level imagery.
• Livestock monitoring, represented in the paper by MOO, a synthetic cattle dataset spanning elevations from −25° to 90°.
• Cross-platform surveillance and security, matching identities across UAV, wearable, and CCTV cameras as in AG-ReID.v2.
• Cost reduction in dataset construction, since the method is designed for the single-view training protocol, where labels from only one viewpoint are needed.

Industry relevance. The method targets the practical bottleneck that paired aerial-ground annotations are expensive, and it builds directly on existing single-view 3D reconstruction models, so it can be added to an existing ReID training stack rather than requiring a new data-collection campaign. The paper also notes an ethical dimension: improved aerial-ground matching could be misused for surveillance of individuals without consent, and deployments should comply with applicable privacy regulations.

Future Directions

• Reducing the filtering bottleneck. The authors state that when poor reconstructions are systematic rather than isolated, CVCF's filtering reduces the augmented training set and becomes a bottleneck; effective handling for systematic failure is left open.

• Adaptive rather than fixed filtering ratios. The fixed 50% ratio is described as overly aggressive on the high-resolution Wearable split of AG-ReID.v2, where average reconstruction quality is high — a per-split or quality-adaptive ratio is a natural next step.

• Improving robustness to hard inputs and atypical objects. Low resolution, severe occlusion, or multiple individuals per image may degrade reconstruction, and objects with atypical geometries or fine details outside the reconstruction model's training distribution often yield degenerate meshes.

• Reducing reliance on pose calibration. The visibility map depends on the calibrated source pose, for which no ground truth is available; the paper quantifies sensitivity to pose noise but does not remove the dependency.

Target Audience

Researchers and practitioners in computer vision working on object re-identification, cross-view or aerial-ground matching, and synthetic data augmentation for training. It is also relevant to engineers building UAV-based perception and monitoring systems, and to readers interested in how geometric side-signals from 3D reconstruction can be converted into supervision for 2D recognition models. The paper is written at an advanced technical level and is most useful to those already familiar with ReID benchmarks and vision transformer training.

Authors’ abstract

We address the Cross-View Object Re-Identification (ReID) task, aiming to match identities across drastically different viewpoints. We focus on Single-View Aerial-Ground ReID (SV AG-ReID), where models train on one viewpoint and must generalize to another at inference. To bridge this viewpoint gap, related work employs generative models to synthesize novel views from source images as additional training data. We leverage recent advances in large-scale single-view 3D mesh reconstruction to lift source images into textured meshes and to render them from new viewpoints. However, this pipeline produces unreliable data in two distinct ways. First, the reconstruction may fail and produce geometrically incorrect meshes, resulting in severe corruption in rendered novel views. Second, even when the geometry is correct, the rendered novel views contain hallucinated textures in regions not visible in the source image. The reconstructed mesh carries a per-pixel partition between regions visible from the source view and regions that the reconstruction model had to hallucinate, available as a deterministic byproduct of rendering. We introduce this per-pixel visibility map and exploit it in a two-stage design. Cross-View Consistency Filtering (CVCF) discards geometrically incorrect meshes by ensuring multi-view consistency between source and novel views over visible patches. Visibility-Aware Attention Supervision (VAAS) leverages the visibility map to guide the model's attention toward reliable regions of the rendered view during training. Combined, these two components enable our method, 3D-VITAL, to better leverage the synthetic signal from single-view 3D mesh reconstruction. 3D-VITAL sets a new state-of-the-art on three SV AG-ReID benchmarks. Code and data will be released at https://github.com/TurtleSmoke/3D-VITAL.
