Graph Community Detection and Network Partitions

A collaboration graph connects employees whenever one system sends another a notification, and community detection then finds large “teams” that mainly reflect automated workflows rather than human collaboration. A graph algorithm partitions the edges it receives. If edge semantics are wrong, a strong modularity score organizes the wrong relation efficiently.

Nothing downstream can recover from this. The score, the resolution sweep, the stability check and the picture are all computed on the relation that was recorded. Every one of them will look healthy.

Community detection depends on how somebody built the graph, before any optimization begins. Each layer carries a documented failure of its own. The null model is where Fortunato and Barthélemy's resolution limit bites. The quality function is the Q whose degeneracy Good and colleagues measured: exponentially many high-scoring partitions, and no clear global maximum. The optimization heuristic is usually the only layer a report names.

Both seek strong graph partitions. Their refinement behavior differs, and for Louvain the difference has been measured rather than asserted.

Louvain's claim to scale is a runtime. In 2008 Blondel and colleagues partitioned a web graph of 118 million nodes and more than one billion links in 152 minutes. A .uk sub-network of 39 million nodes and 783 million links took 12 minutes. Their introduction puts it plainly: “identifying communities in a 118 million nodes network took only 152 minutes”.

The same paper ran on a Belgian mobile-phone network of 2.6 million customers, weighted by total calls over a six-month period. The method returned a hierarchy of six levels. Its top level held 261 communities of more than 100 customers, about 75% of all customers. Of the 36 communities larger than 10,000 customers, every one had more than 85% of its members speaking the same language — except one, sitting at the interface between the French and Dutch clusters. That exception is what validating a partition against a known attribute looks like when it is written in numbers rather than adjectives.

Two independent benchmarks on Lancichinetti–Fortunato–Radicchi graphs rate the method highly. Lancichinetti and Fortunato reported in 2009 that “three recent algorithms introduced by Rosvall and Bergstrom, Blondel et al. and Ronhovde and Nussinov, respectively, have an excellent performance, with the additional advantage of low computational complexity, which enables one to analyze large systems.” Yang and colleagues tested eight algorithms in 2016 on such graphs of roughly 200 to 32,000 nodes. Taking accuracy and computing time together, they concluded that the Multilevel algorithm proposed by Blondel et al. outperformed all the others they examined. The same study found that for the larger networks in that range, roughly 6,000 to 32,000 nodes, Infomap and Multilevel are very likely to return the wrong number of communities. A ranking holds in part of the parameter space, not across all of it.

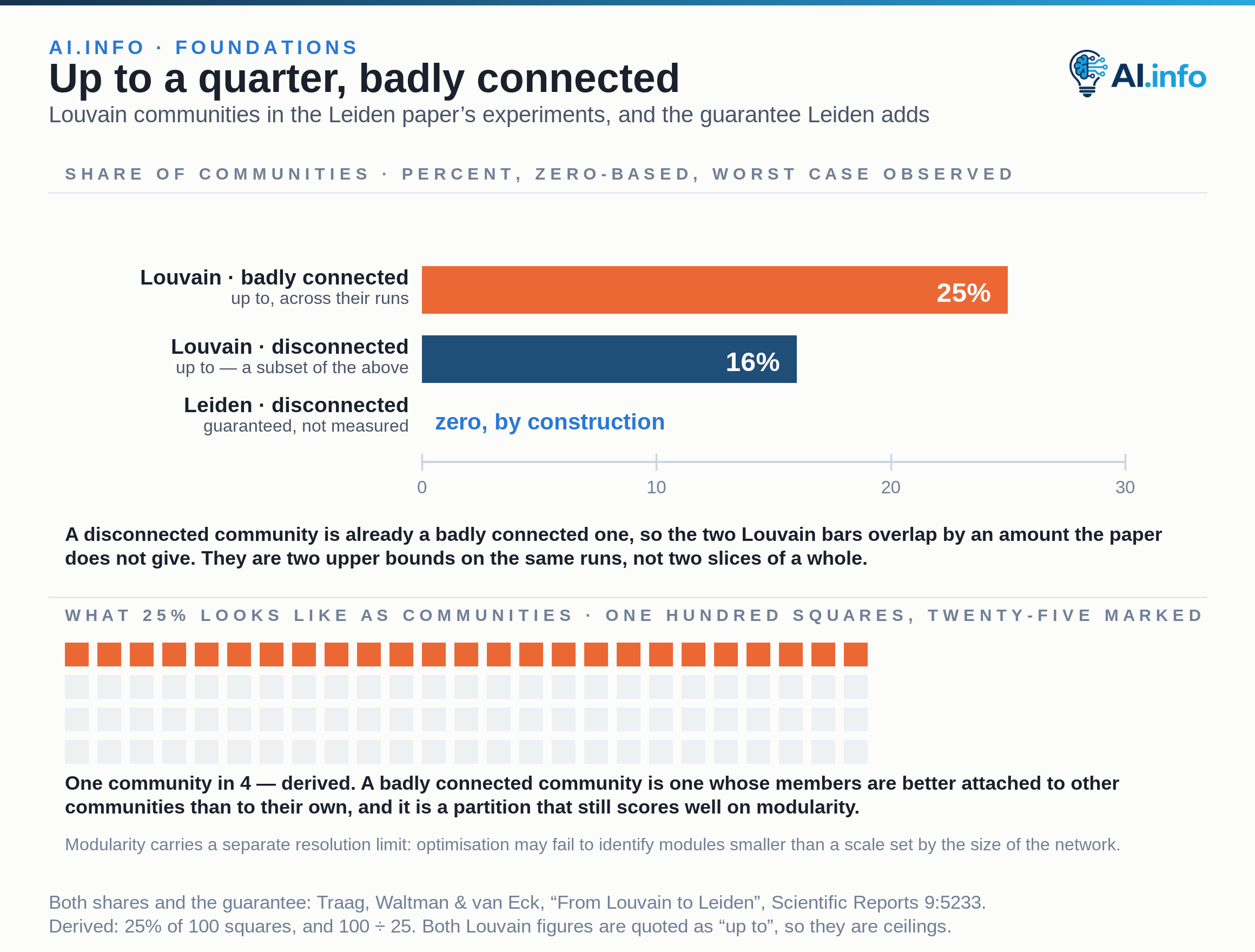

Leiden adds a refinement phase before aggregation. It buys a guarantee Louvain does not offer, at the same cost in modeling choices: the objective, the resolution and the graph construction are all still yours to defend. A spectral partition relaxes the problem differently and can expose bottlenecks, but shares the same dependence on how the graph was built.

Separate edge construction, objective selection, optimization, and interpretation.

Step 4 is not hygiene, and the reason is a result about the objective itself. Good and colleagues showed in 2010 that “the modularity function Q exhibits extreme degeneracies: it typically admits an exponential number of distinct high-scoring solutions and typically lacks a clear global maximum”. There is no single best partition waiting to be found. So two heuristics — or two seeds of one heuristic — can disagree about the modular structure of the same network while both score well. A 2021 NeuroImage review by Zamani Esfahlani and colleagues restates the property as routine and prescribes the working fix: the number of nearly-optimal partitions grows exponentially with network size, so build a consensus over an ensemble of near-optimal solutions rather than reporting one run.

Steps 3 and 5 have a canonical worked example. A university karate club split after a disagreement between its administrator and its instructor, who left and started a new club taking about half the original members with him. Wayne W. Zachary had observed 34 members of that club over a period of two years and recorded their ties; his study was published in 1977. Girvan and Newman's edge-betweenness algorithm, published in PNAS in 2002, reproduced the division against the externally recorded outcome. As they report of the karate club network, “Only one node, node 3, is classified incorrectly.” One member of 34 is the standard the reference-group check is capable of reaching — when a real outcome was recorded, and when the edges were the interactions that produced it.

A partition should be read with the graph-building policy attached.

The partition reflects which interactions were recorded, how they were weighted, and what the null model considers surprising. A high score cannot validate those upstream decisions.

The standard temptation is to check a partition against the labels already attached to the nodes — department, discipline, country, cell type — and to call agreement validation and disagreement error. That route was closed in Science Advances in 2017. Peel and colleagues state it directly in their abstract: “Here, we show that metadata are not the same as ground truth, and that treating them as such induces severe theoretical and practical problems.” The same paper proves a No Free Lunch theorem for community detection: no algorithm is optimal across all community detection tasks. A method that wins on one network has no claim on the next. Hric and colleagues had already measured the gap empirically in 2014, finding that traditional community detection methods fail to recover metadata groups in many large networks — a marked separation between structural communities and metadata groups. Zachary's club, with one member of 34 misassigned, is the memorable case precisely because it is not the usual one.

Use community labels as summaries of network structure. Claims about identity, coordination, or influence require additional evidence and often a causal design.
